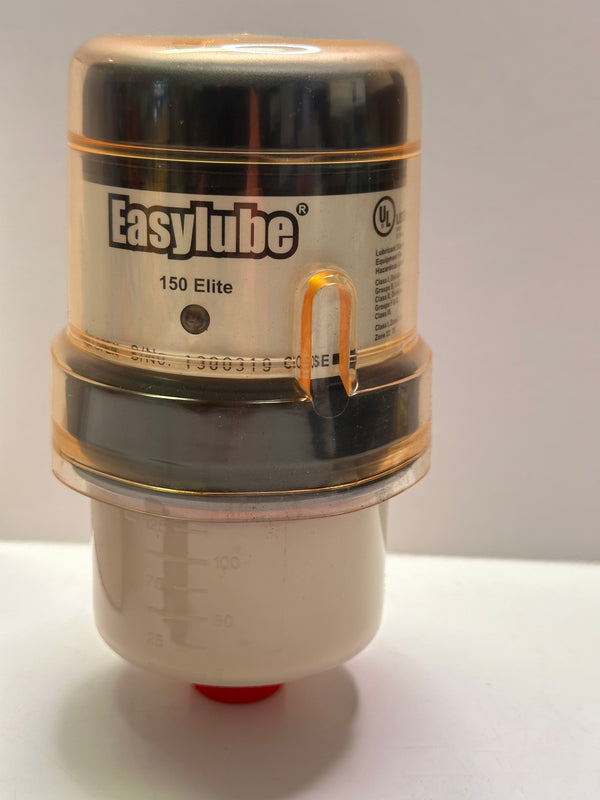

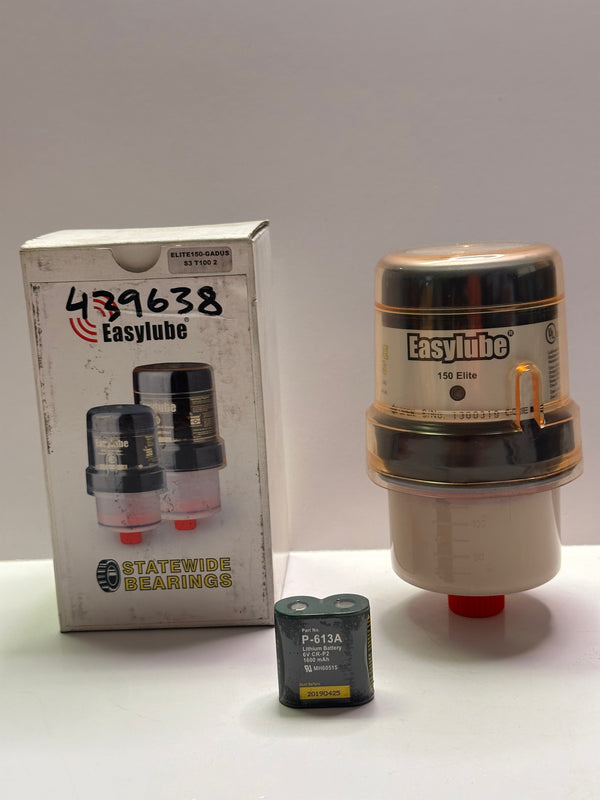

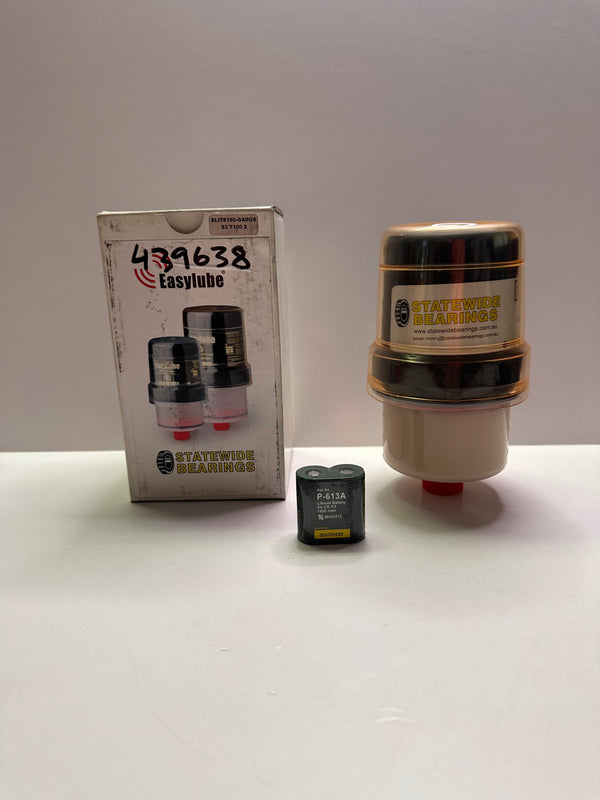

EASYLUBE Elite 150-GAUS S3 T100 2 Automatic Lubricator EL150ELITE

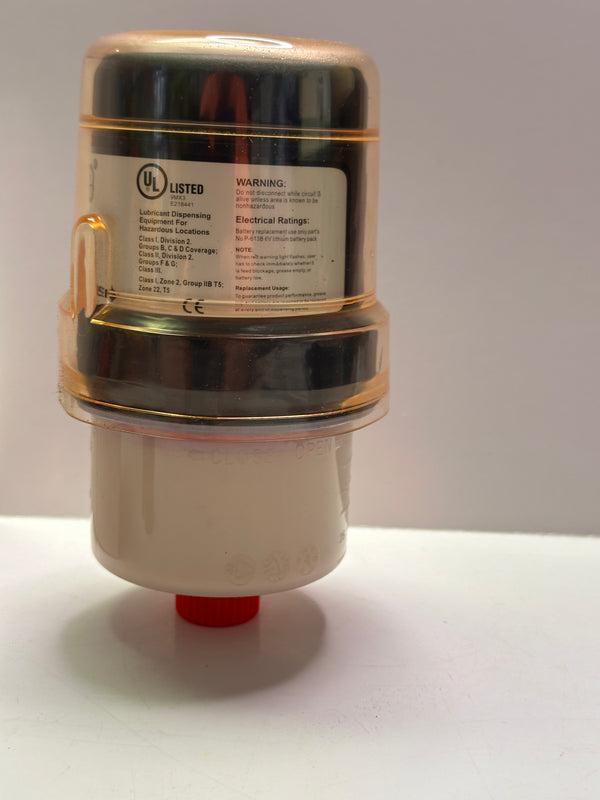

• UL approved in hazardous location	Class 1 division 2 group B,C,D Class II division 2 group F,G
  Material outlet	1/2" BSPT (M)
  Capacity	150ml (cc) (5.28oz)
  Dispense period setting	Adjustable 1-12 months with patented pre-warning system and an indicator LED
  Operating temperature range	-20 to 60å¡C (-4 to 140å¡F)
  Operating pressure range	75-150psi (5-10bar) Self-adjustable output pressure balance within pipeline
  Dimensions (stature x diameter)	15.2 x 8.9cm

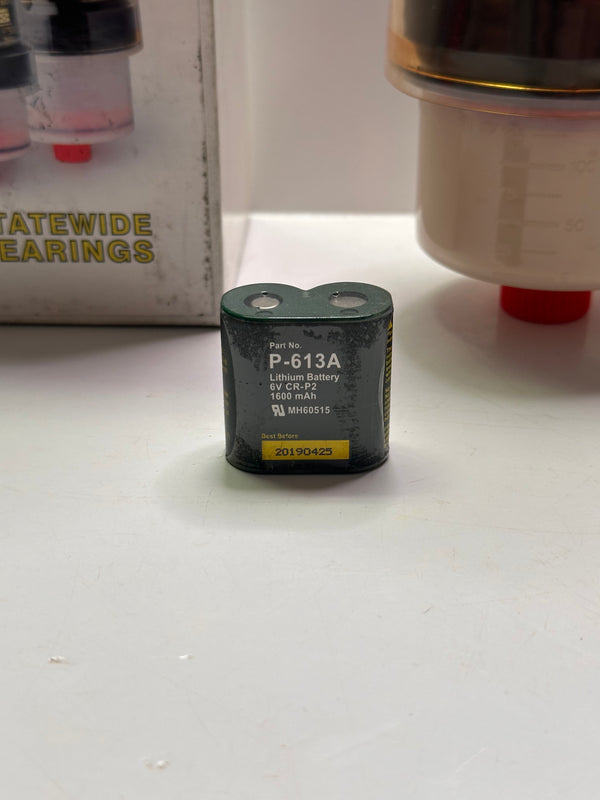

  Electrical rating	Replaceable lithium battery pack P-613B 6 Volt CR-P2
  Replaceable grease cartridge	2218 Versatility 1200 Ultimate 8318 FDA grade
  CE certificate	EC council directive 2004/180ec TUV Registration No. AE 501695430 001

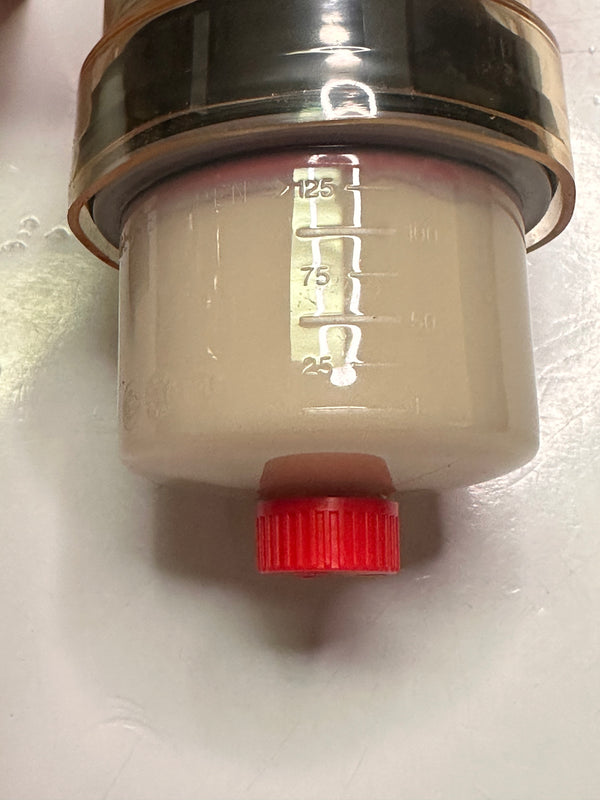

•  Unit operates independent and is fully adjustable for a dispensing schedule set from 1 to 12 months with a transparent reservoir (150 ml) for visual inspection.
  - Electromechanically driven unit which is very reliable and accurate in operation contrary to spring- or gas-driven lubricators.
  - The Easylube Elite can be filled with oil or grease of choice offering more flexibility to adapt to the requirements of every application.
  - Minimal replacement cost as Easylube Elite can be re-filled after every cycle with lubricant of choice for a new lubrication cycle.
  - Fully monitored with a green indicator LED signaling the lubricator is operational.
  - Fully monitored with a red warning indicator LED signaling empty cup, low battery or blockage issues.
  - UV, vibration, corrosion, dust and moisture resistant. Field experiences and customer testimonials confirm it maintains its quality even after a 5 years’ service life.
  - Suitable for use in a wide ambient temperature range (-20°C to 60°C) and can be remotely mounted up to 4,5 meters.
  - Full range of adaptors, connectors and fittings available for direct and remote mounting.
  - CE and UL approved.

  Dispense period and lubrication amount

  The lubricator can be set to any of 12 dispensing periods. It is empty at the end of the chosen setting. Each monthly setting dispenses the same amount of lubricant per cycle, but at a different frequency.

Please be aware that Lithium battery pack may not be allowed to be shipped internationally.
