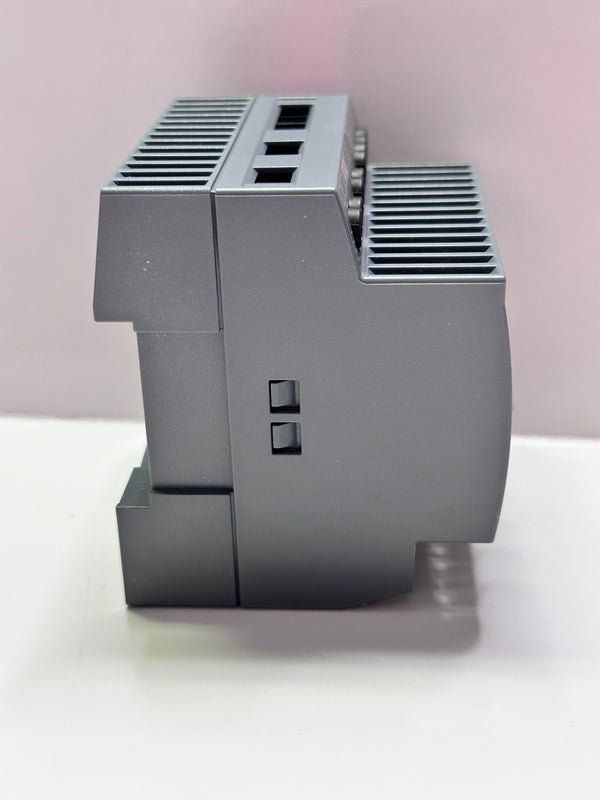

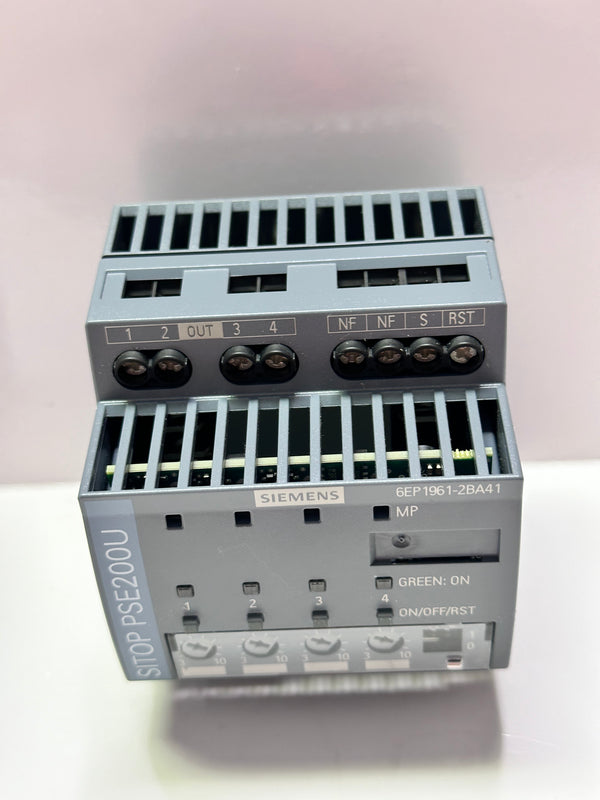

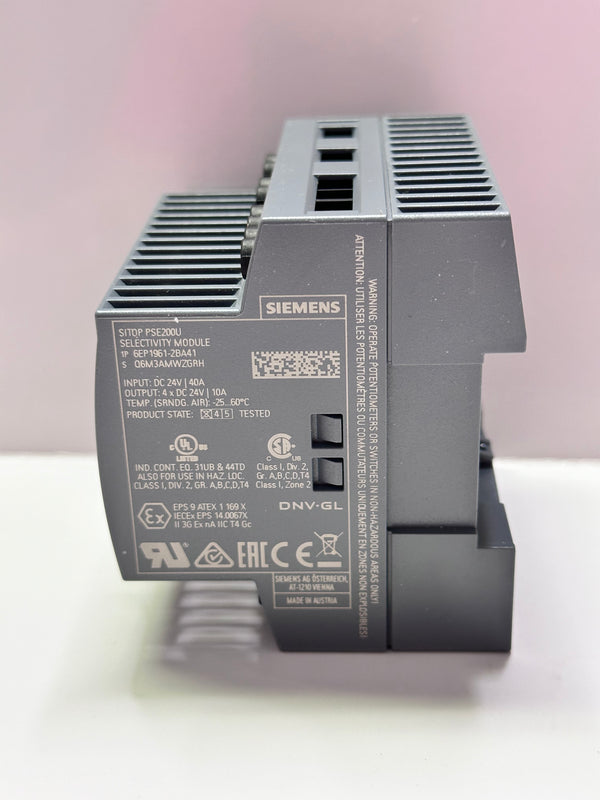

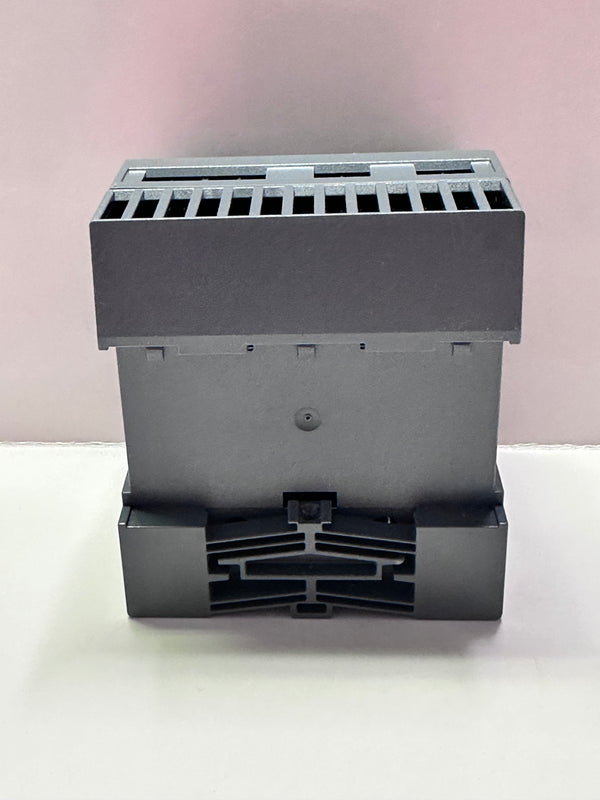

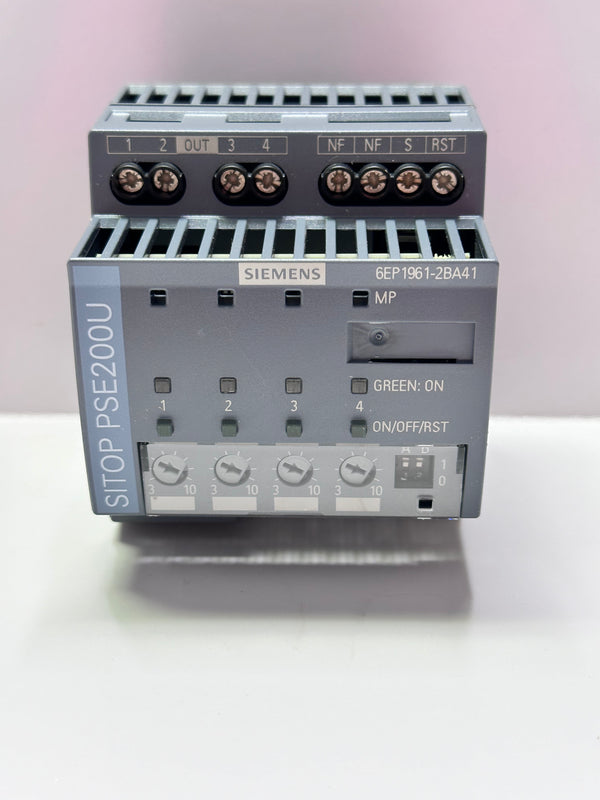

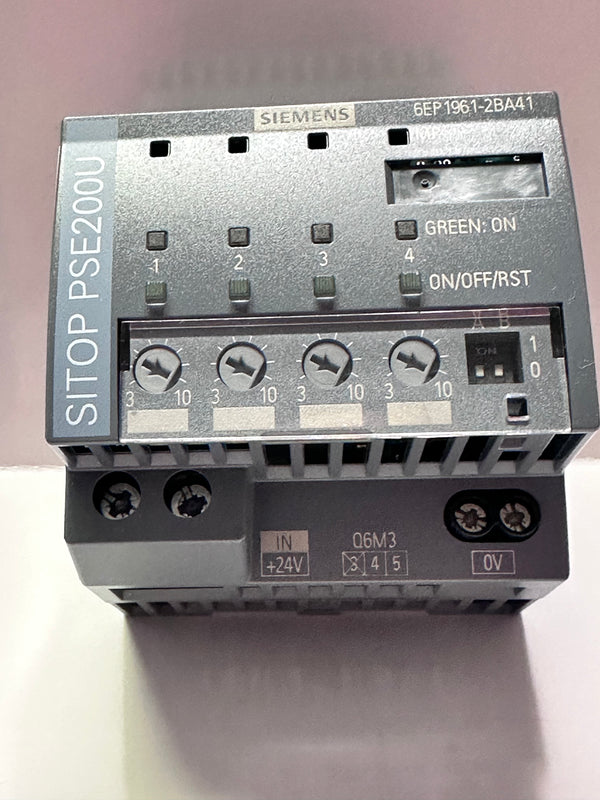

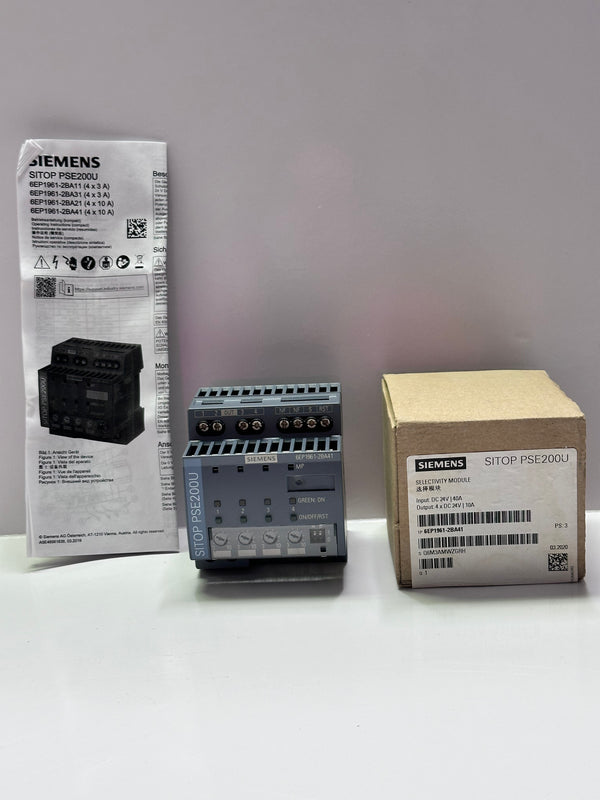

Siemens 6EP1961-2BA41 SITOP PSE200U Series Selectivity Module 24V

SITOP PSE200U 10 A selectivity module 4-channel input: 24 V DC/40 A output: 24
V DC/4x 10 A threshold adjustable 3-10 A with status message for each output.

INPUT

type of the power supply network: Controlled DC voltage
supply voltage at DC rated value: 24 V
input voltage at DC 22 ... 30 V
overvoltage overload capability 35 V
input current at rated input voltage 24 V rated value 40 A

OUTPUT

voltage curve at output-controlled DC voltage
formula for output voltage Vin - approx. 0.2 V
relative overall tolerance of the voltage notes In accordance with the supplying input voltage
number of outputs 4
output current up to 60 °C per output rated value 10 A
Adjustable output current 3 ... 10 A
type of response value setting via potentiometer
response delay maximum 5 s
product feature parallel switching of outputs No
type of outputs connection Simultaneous connection of all outputs after power up of the supply voltage >
20 V, delay time of 25 ms, 100 ms or adjustable "load optimised" via DIP switch
for sequential connection
