ABB 3AXD50000749263 IGBT Module — BGAD-22C, 300A 1200V
- SKU
- P-AB-A-8373
- Weight
- 5.0 kg
Specifications
| Manufacturer | ABB |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-AB-A-8373 |
| Weight | 5.0 kg |
Description

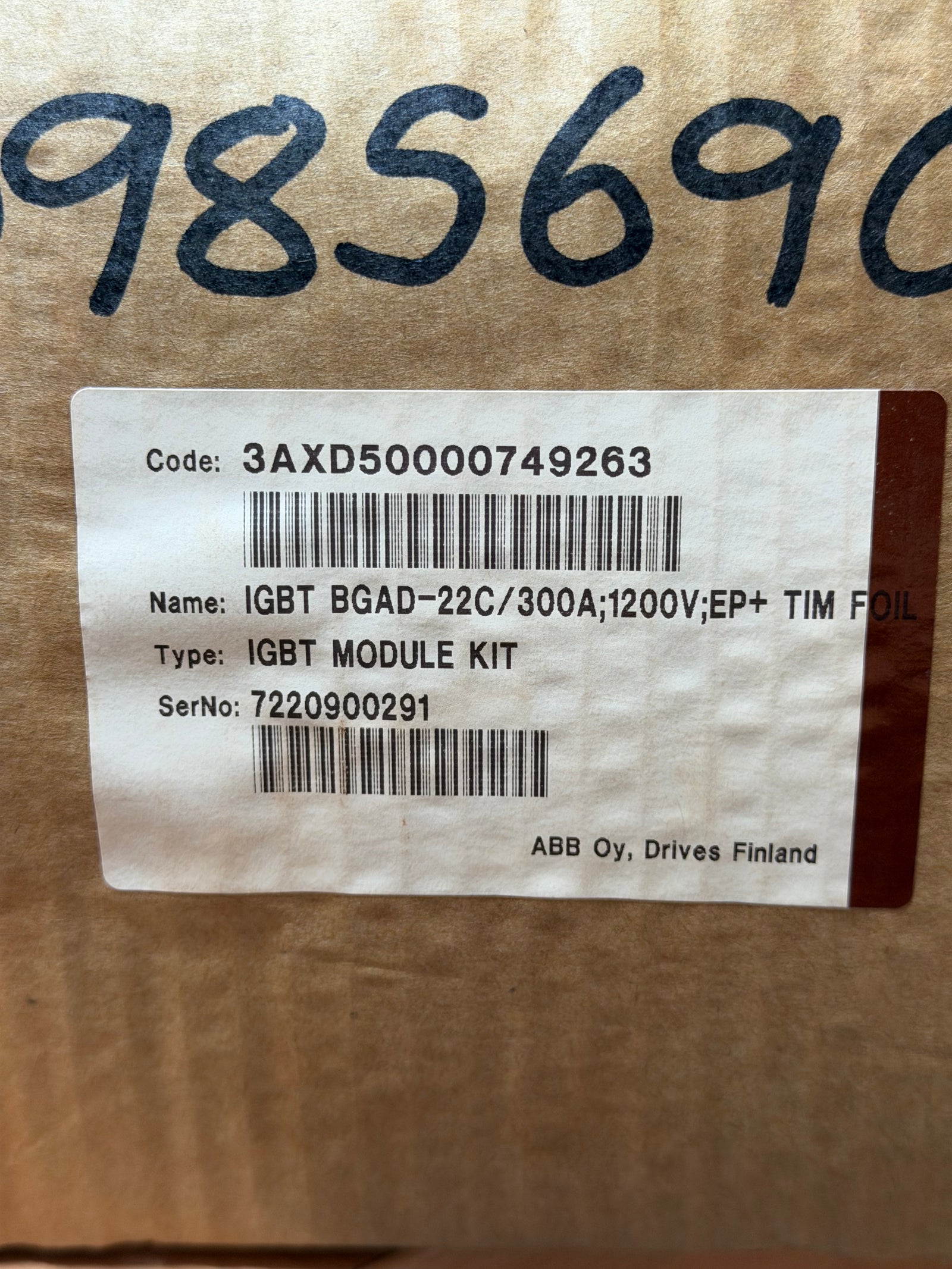

ABB 3AXD50000749263 IGBT module with the recorded designation BGAD-22C/300A;1200V; EP+ TIM FOIL SP.
Recorded product identification
IGBT BGAD-22C/300A;1200V; EP+ TIM FOIL SP
The 300A and 1200V entries are source identification/rating references, not a claim that the module can operate continuously at both values under unspecified conditions. Confirm the exact electrical and thermal requirements using the matching technical data.

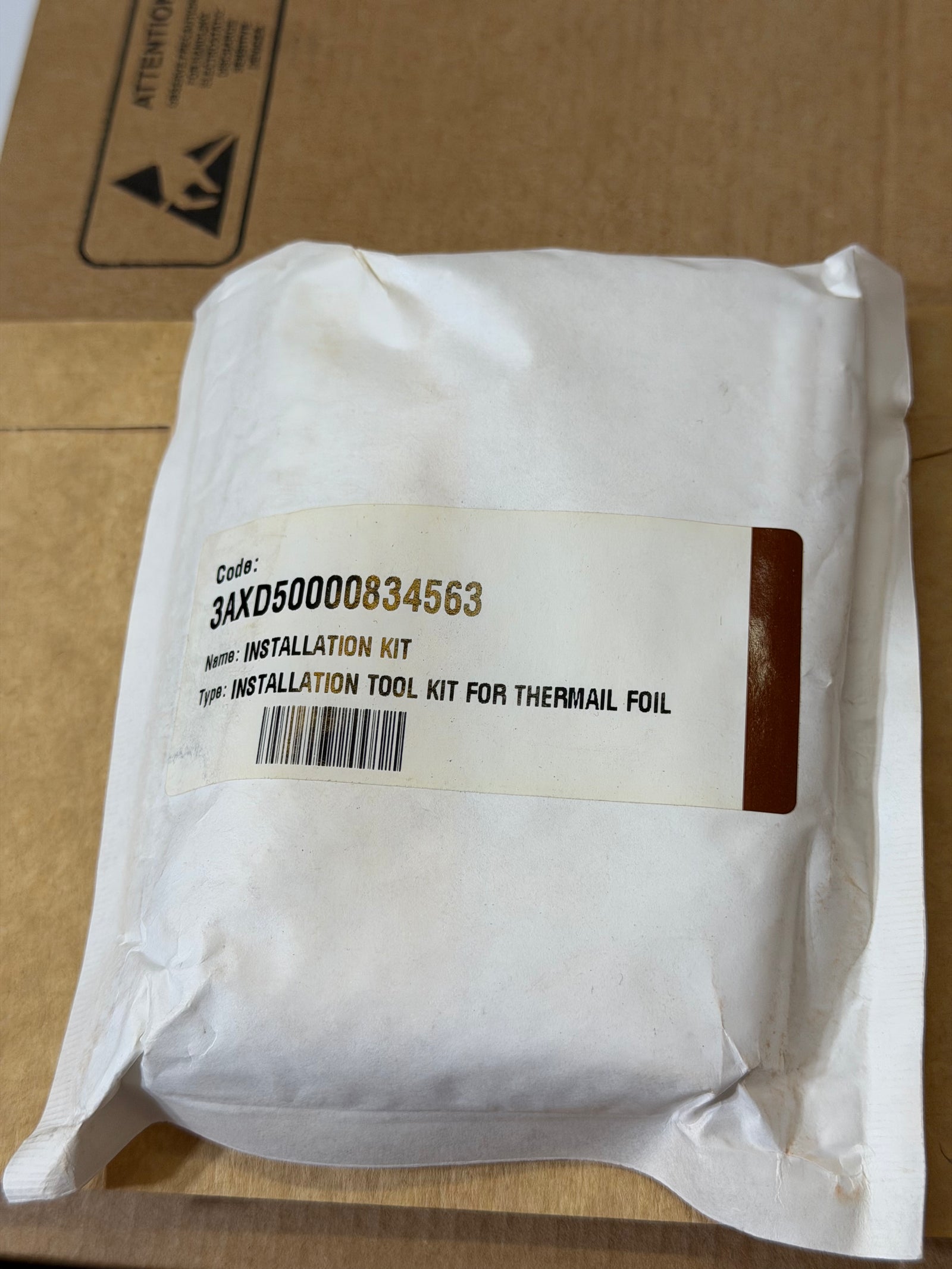

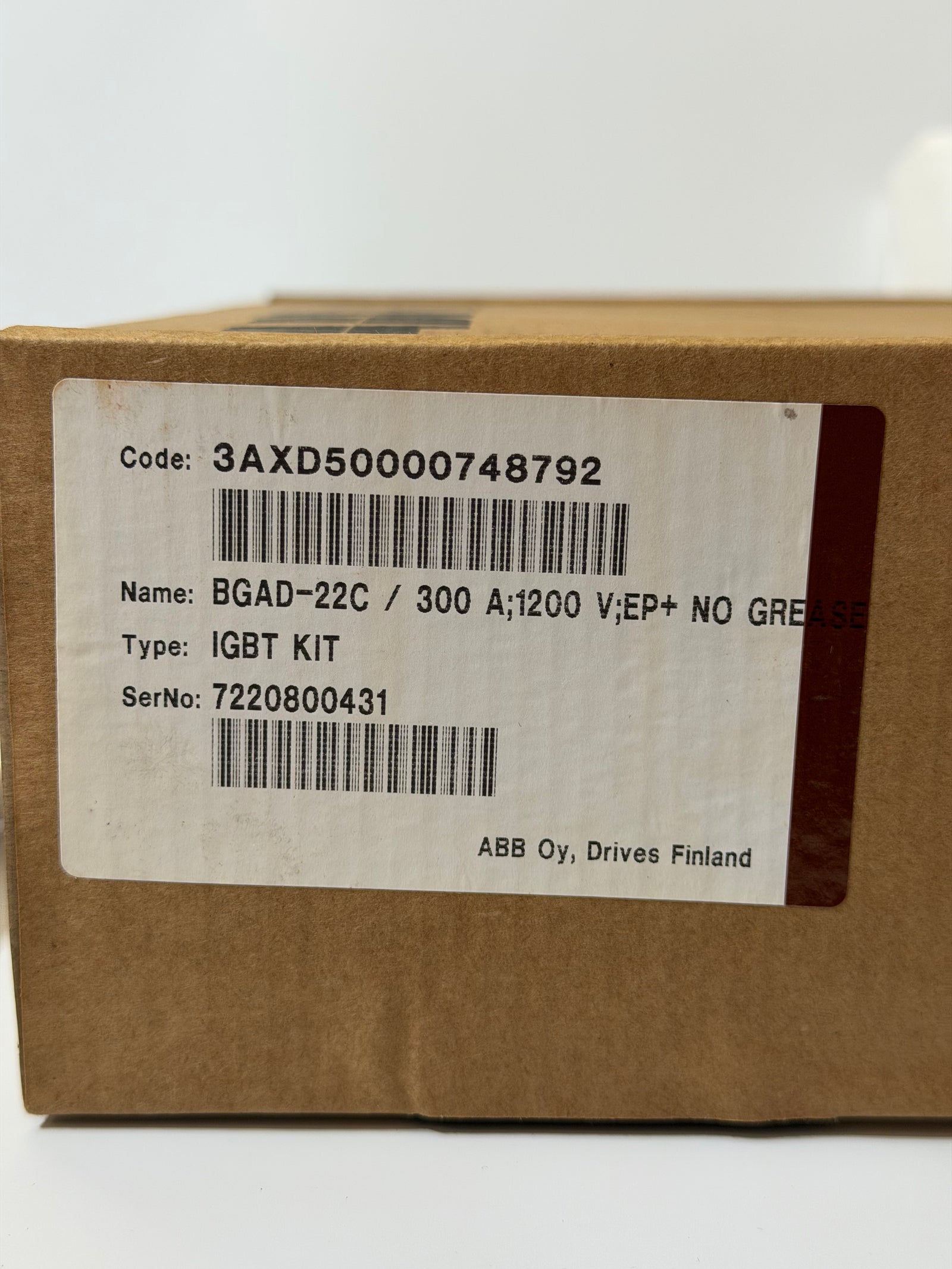

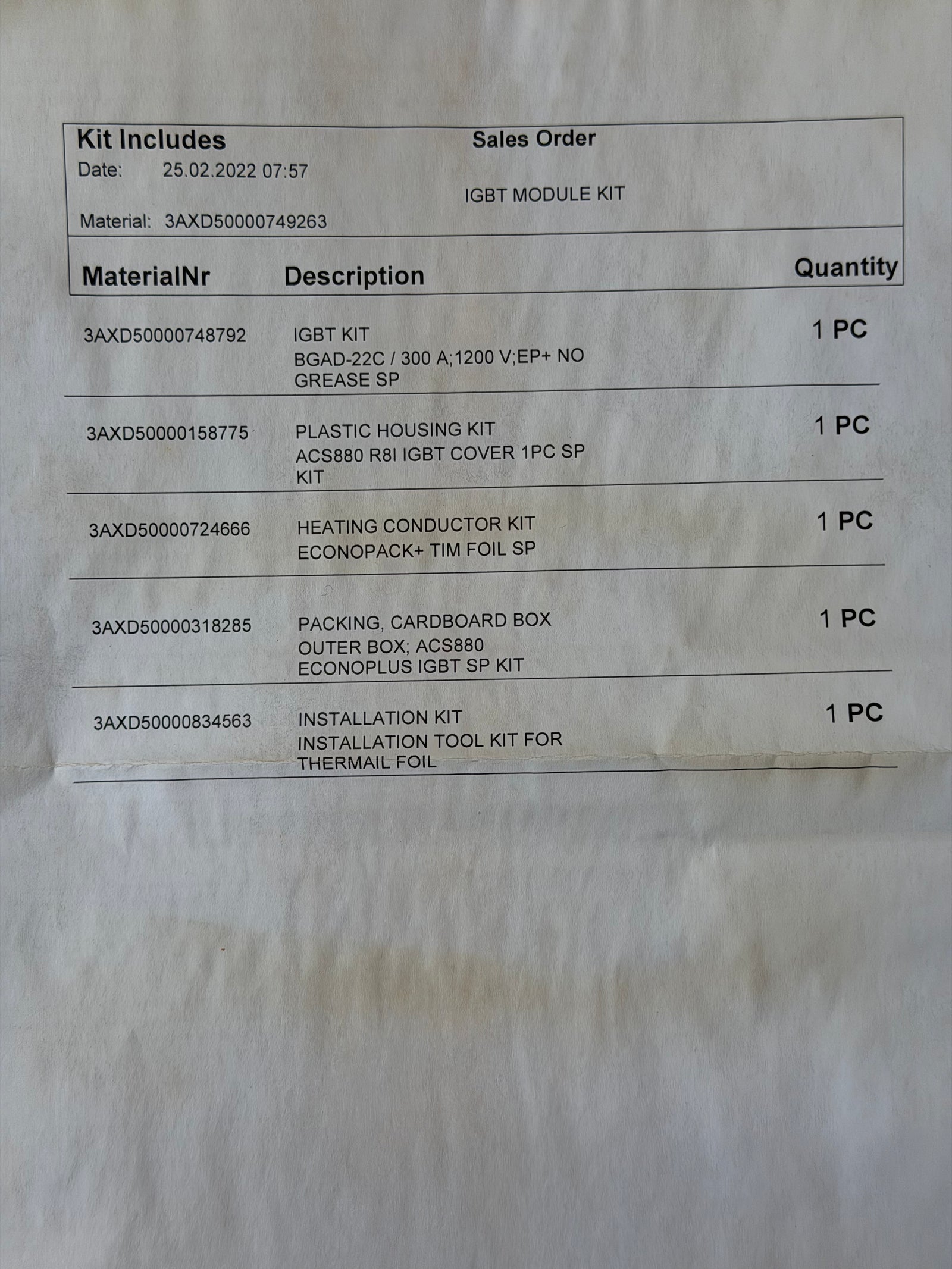

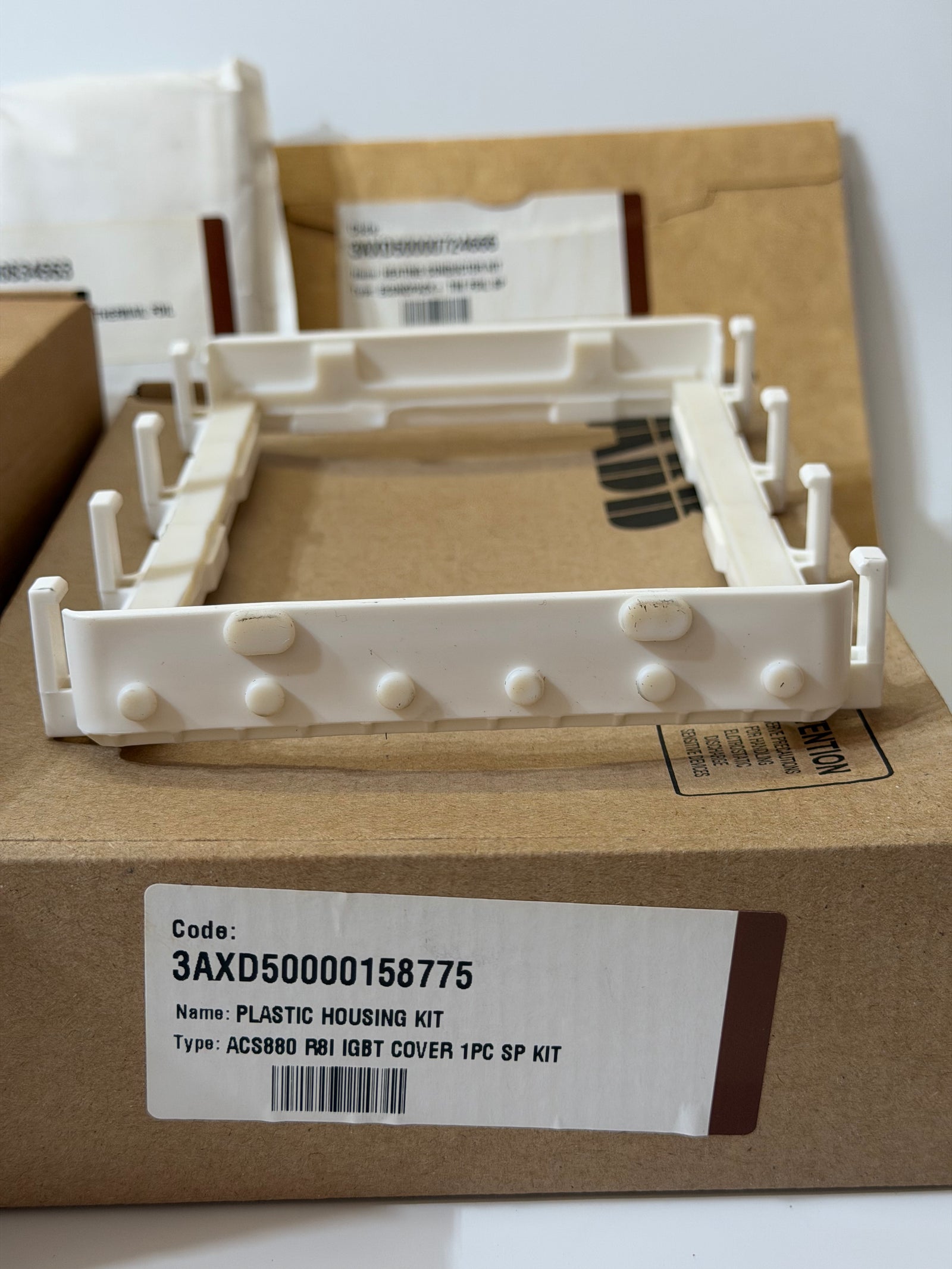

Legacy references 3AXD50000158775, 3AXD50000318285, 3AXD50000724666, 3AXD50000748792 and 3AXD50000834563 are not established as interchangeable parts. ACS880-104 and R8I compatibility appears only in tags and needs confirmation.

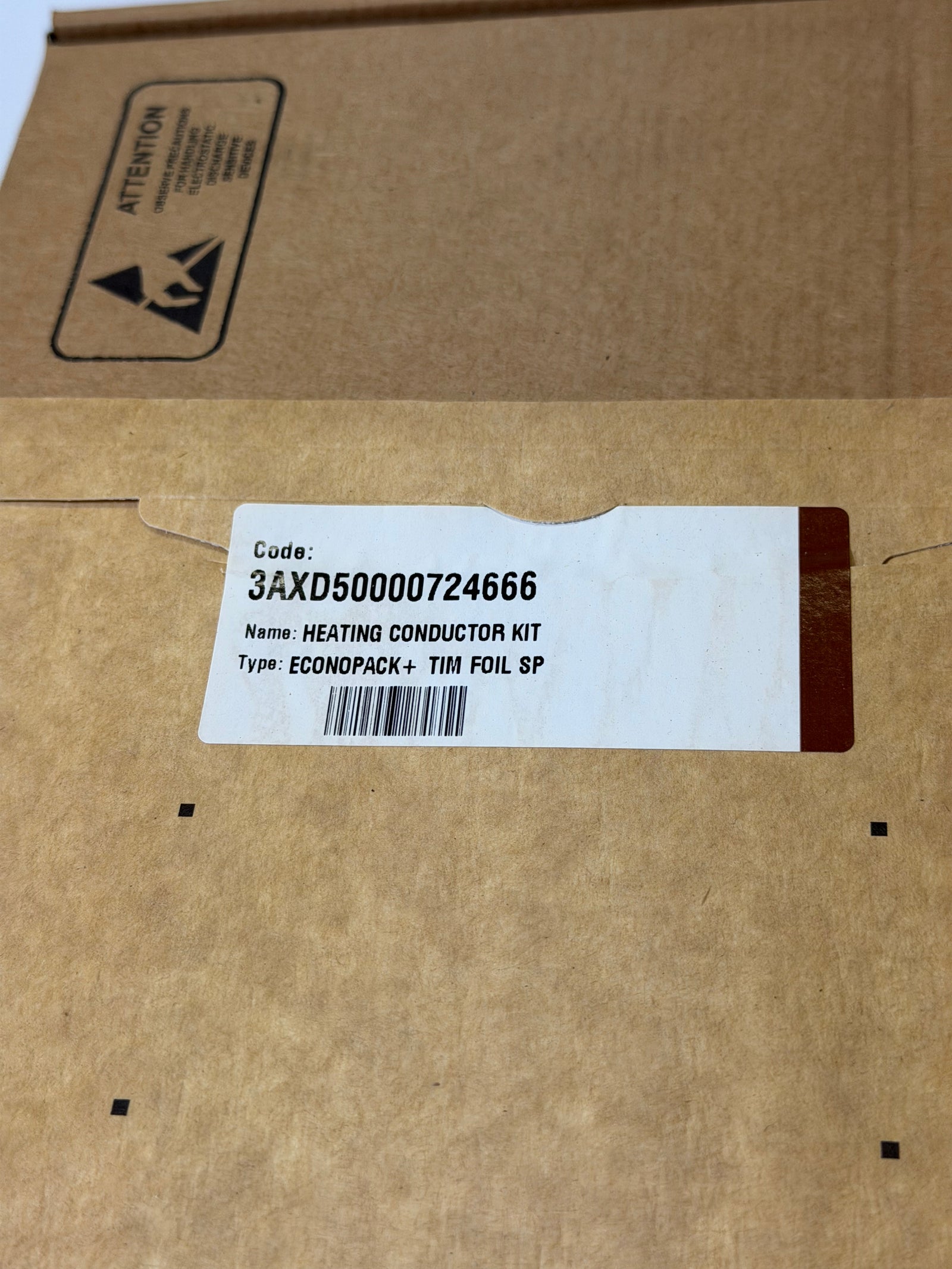

“EP+ TIM FOIL SP” is retained without expanding it into a parts list. Confirm the supplied module, foil and any other service components. This is not a complete drive, PLC or HMI.
