SEL

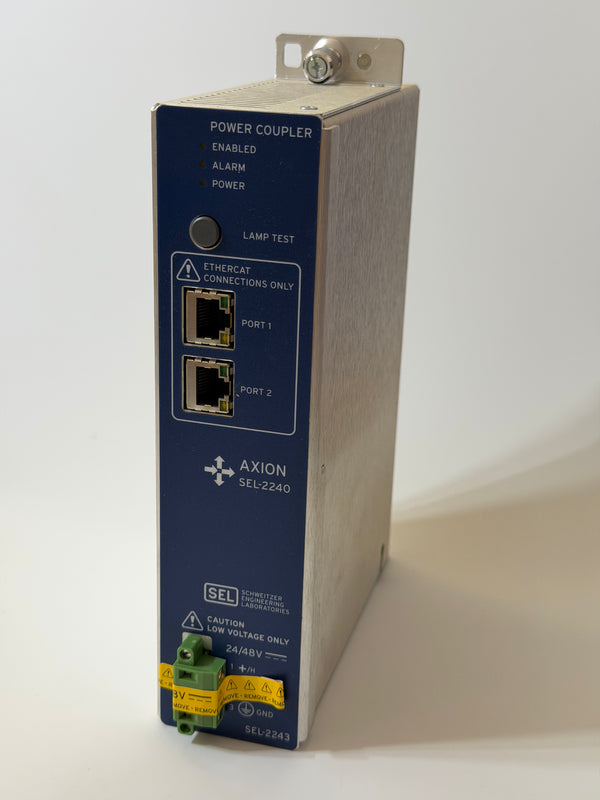

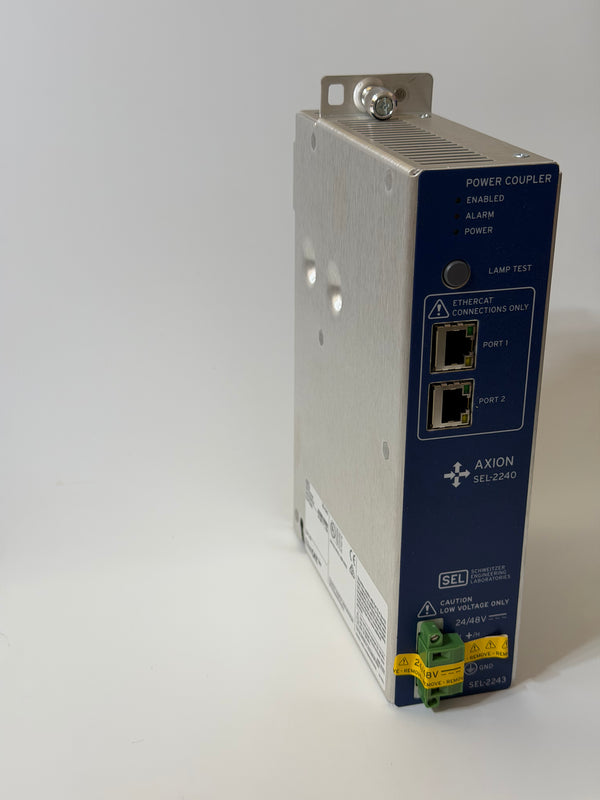

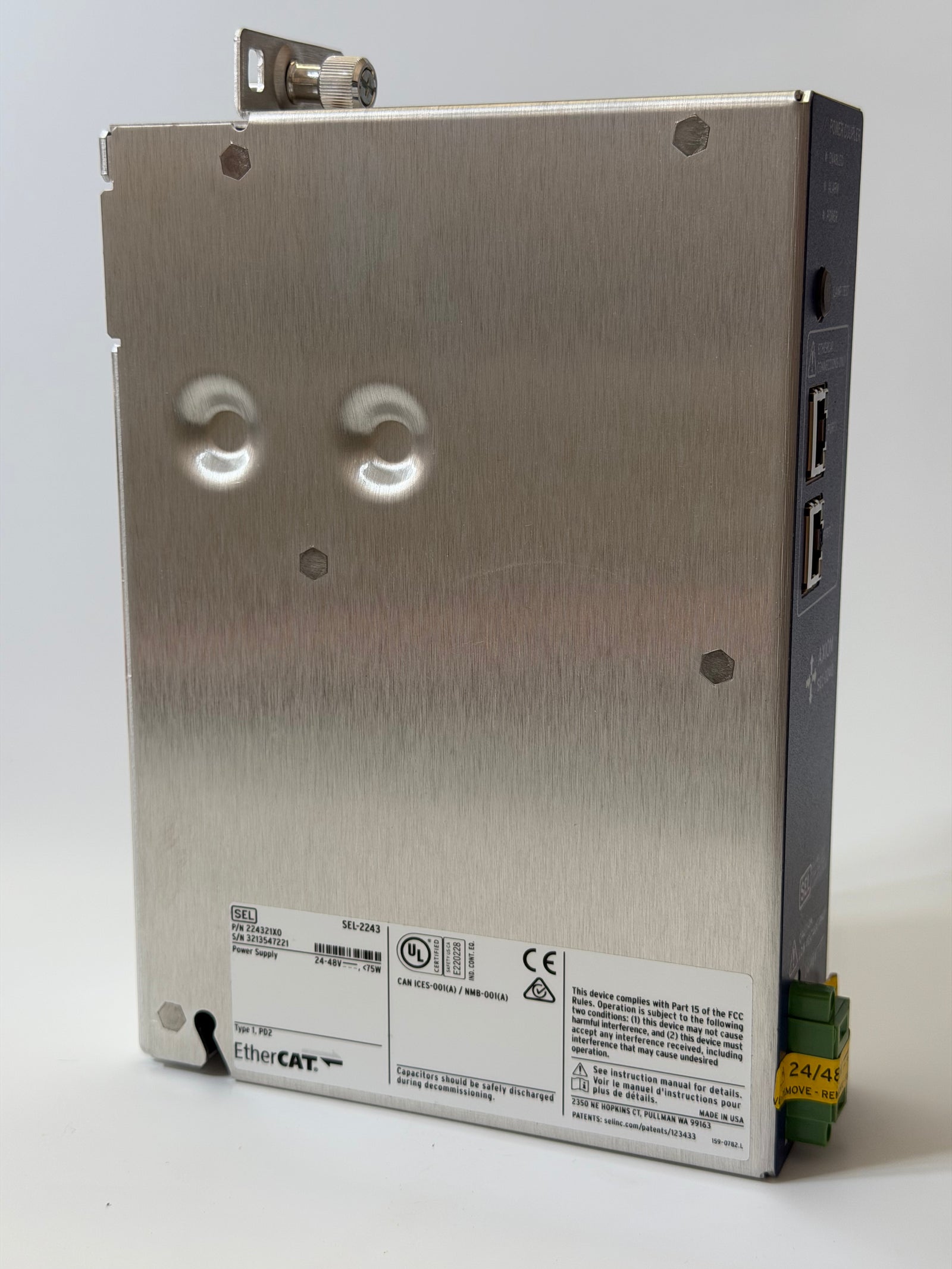

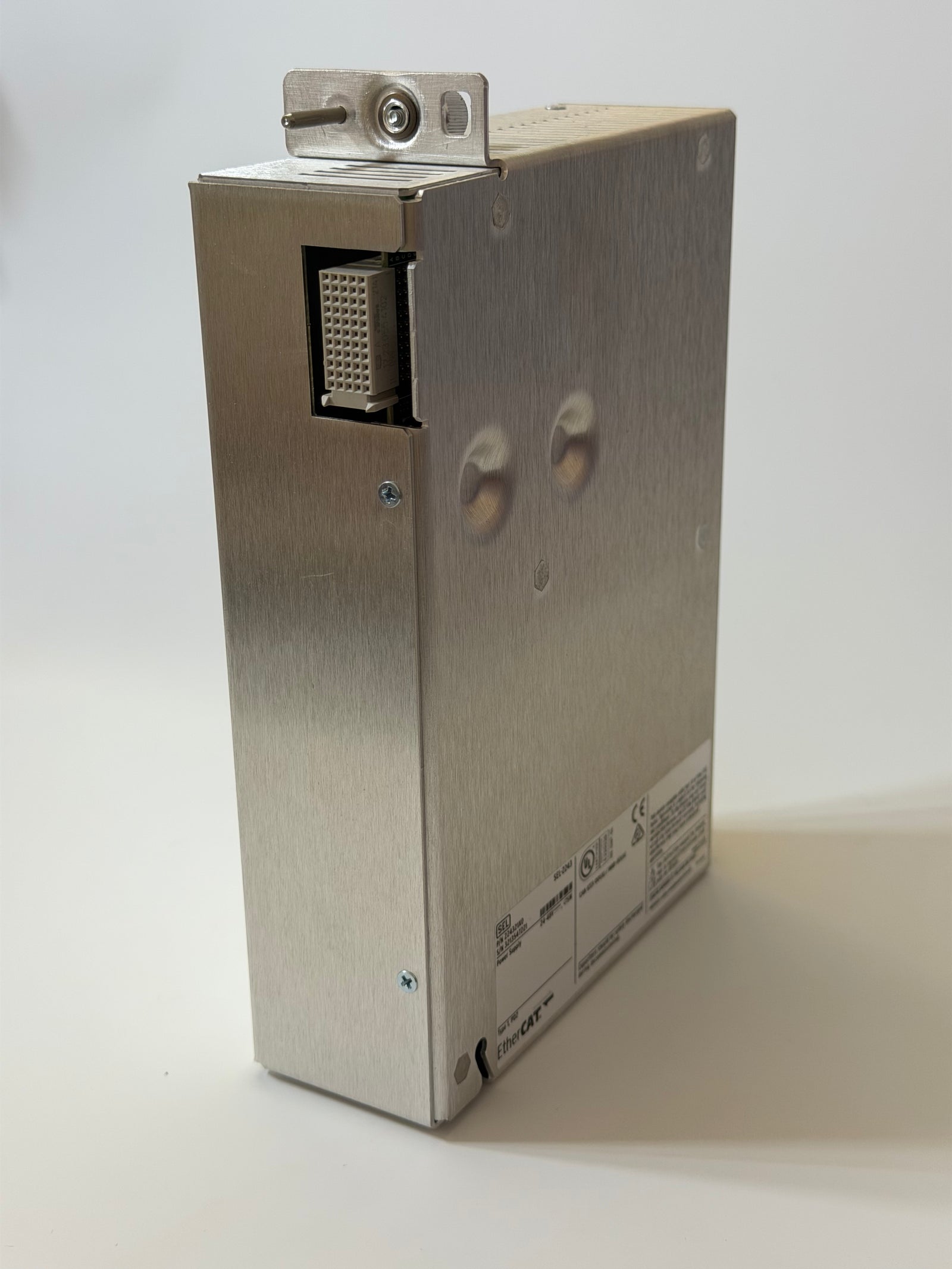

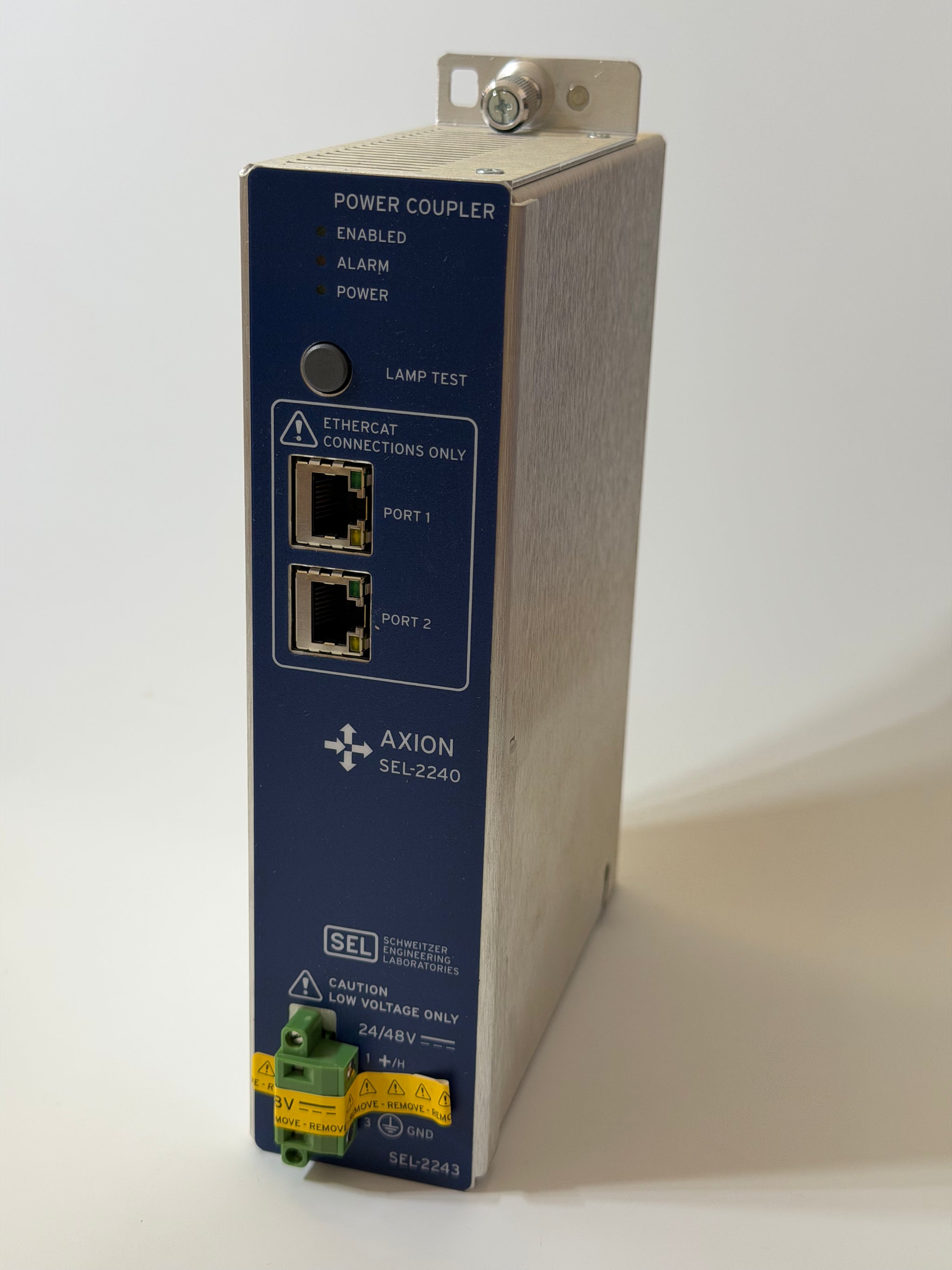

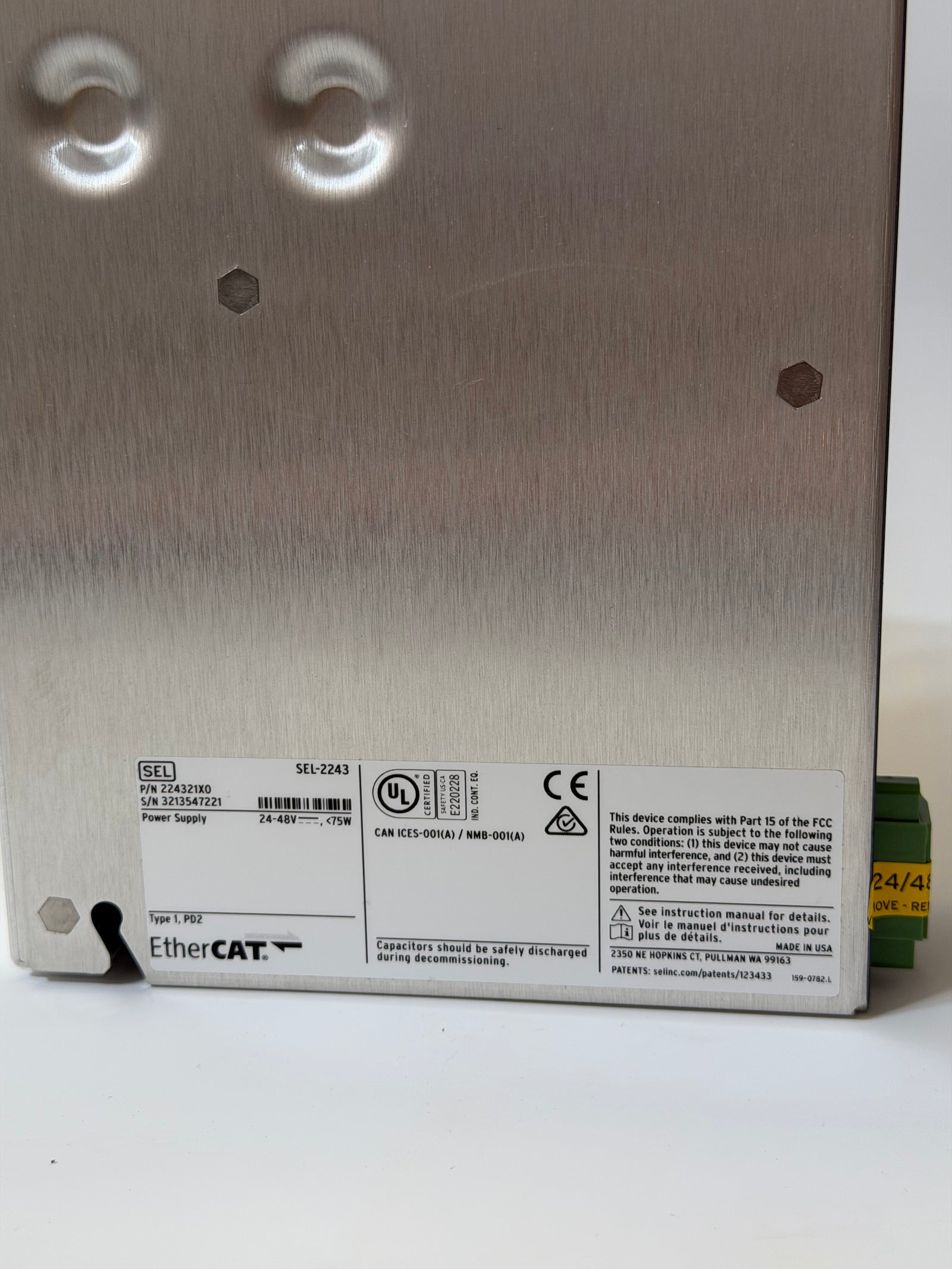

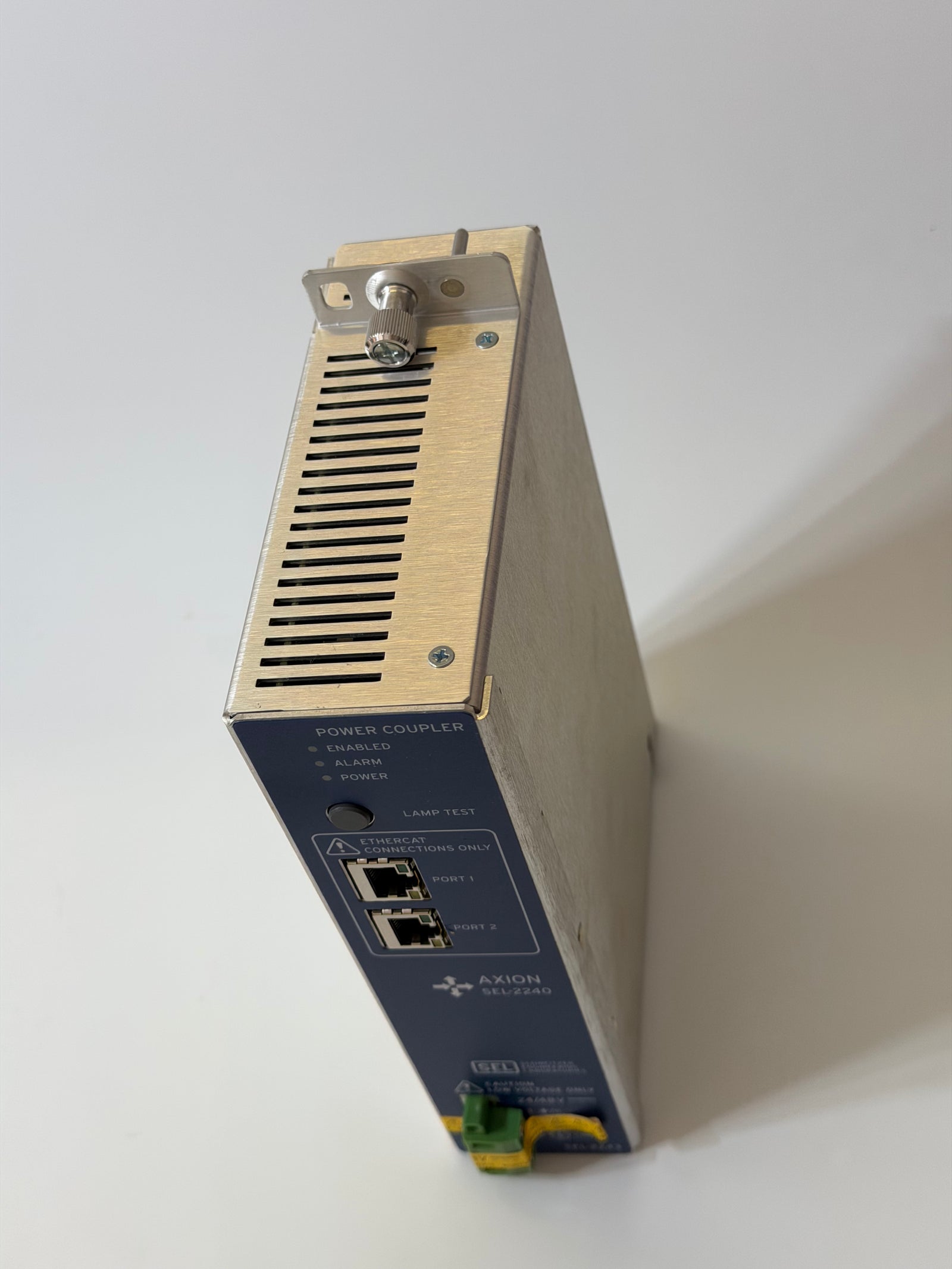

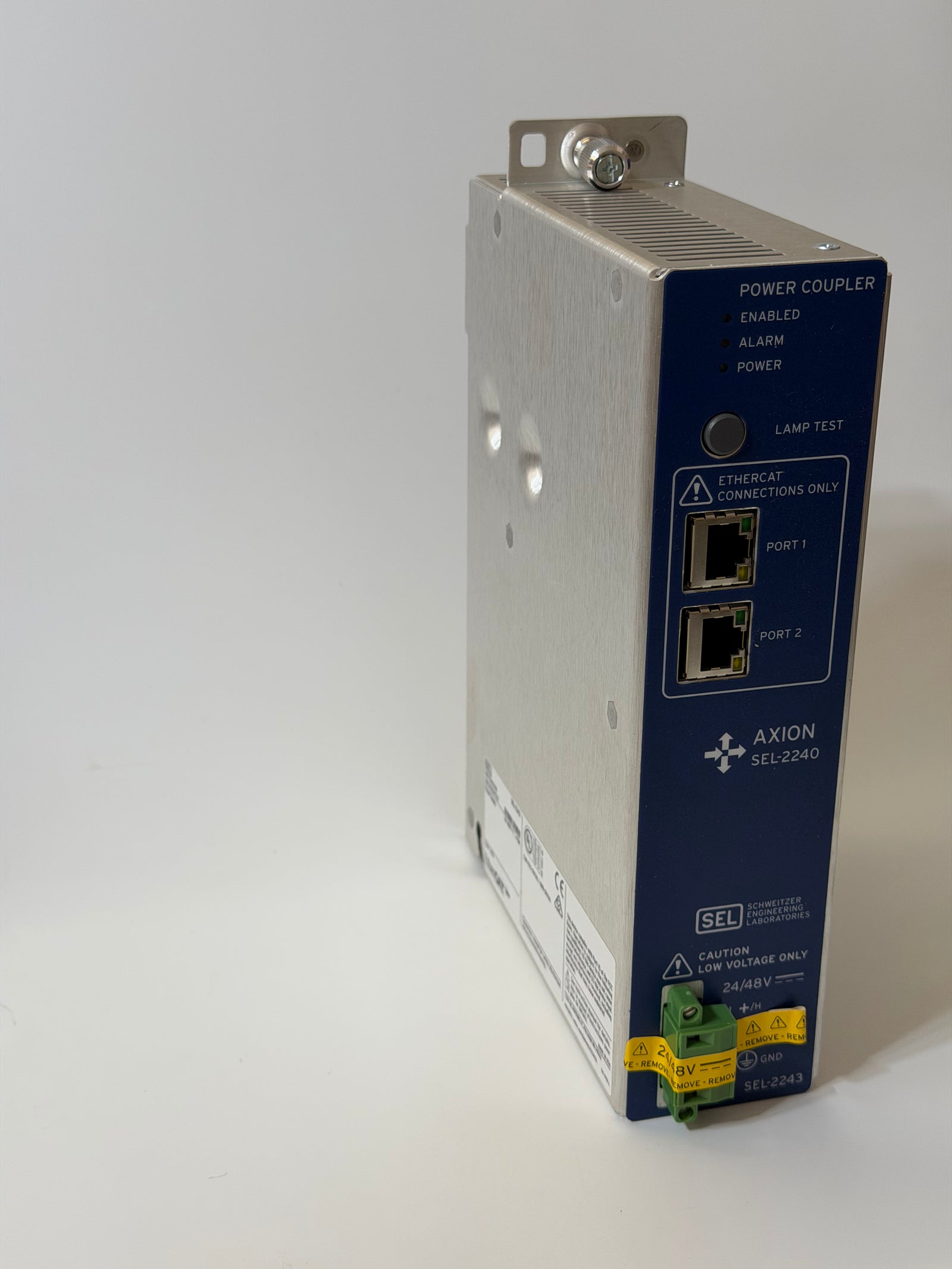

SEL Axion SEL-2243 Power Coupler
- SKU
- P-AX-S-8324
- Weight
- 3.5 kg
Specifications
| Manufacturer | SEL |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-AX-S-8324 |
| Weight | 3.5 kg |
Description
SEL-2243 power coupler for the SEL Axion system; additional catalogue family reference SEL-2240. The source identifies it as a system power supply with two dedicated EtherCAT ports for linking multiple nodes.
Source range options — exact configuration required
- EtherCAT networking: copper or fibre port variants.
- Low-voltage input variants: 24/48 V DC.
- High-voltage input variants: 125/250 V AC or DC.
The supplied description does not identify which voltage or port variant this item has. Do not treat the range options as interchangeable inputs on one unit.
The source describes one coupler per node where reliable service power is available, or redundant couplers with dual service feeds. That is system-design information, not a claim that two couplers or service feeds are included.
Confirm the full order code, input rating and port type before installation. EtherCAT is identified in the source as a registered trademark and patented technology licensed by Beckhoff Automation GmbH, Germany.
