Balluff BTL7-E501-M0150-P-S32 Linear Sensor — BTL15NH
- SKU
- P-BT-B-8531
$1,200.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 4.0 kg
Specifications
| Manufacturer | BALLUFF |
|---|---|
| Product type | SENSOR |
| SKU | P-BT-B-8531 |
| Weight | 4.0 kg |
Description
Version |
Version P |
Principle of operation |
Micropulse transducer |
Operating principle |
Magnetostrictive |
Ambient temperature |
-40...85 °C |
Analog output |
Analog, current 4?20 mA;Analog, current 20?4 mA |
Connection |
Connector, M16x0.75, 8-pin |
Connector design |
M16x0.75 |
Diagnostic coverage |
0.0 % |
Housing material |
Aluminum, Anodized |
Interface |
Analog, current 4?20 mA;Analog, current 20?4 mA |
IP rating |
IP67, with connector |
Magnets, number max. |
2 |
Material |
Aluminum Anodized |
Measuring length |
150 mm |
Measuring range |
150 mm |
Mission Time |
0 a |

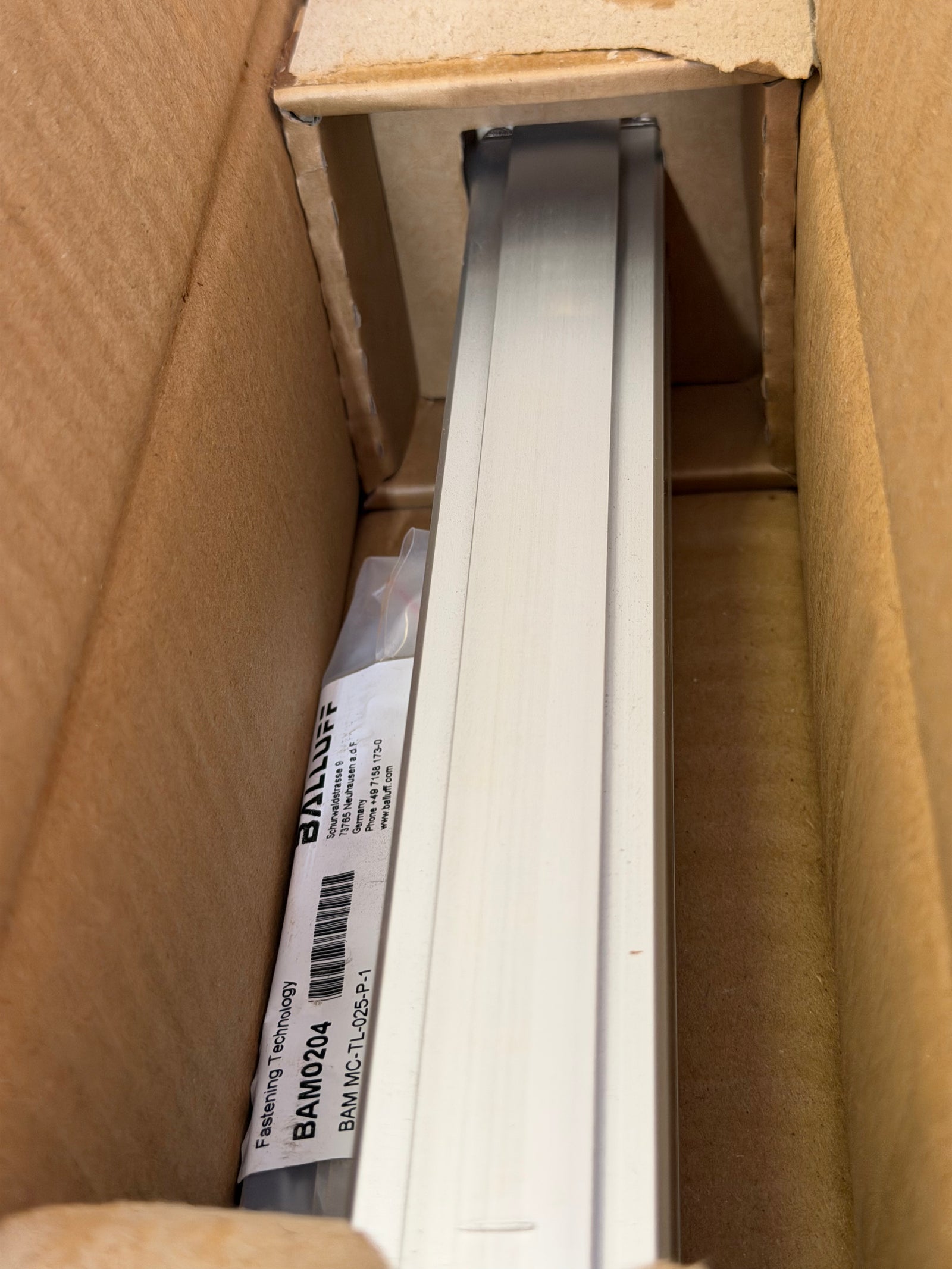

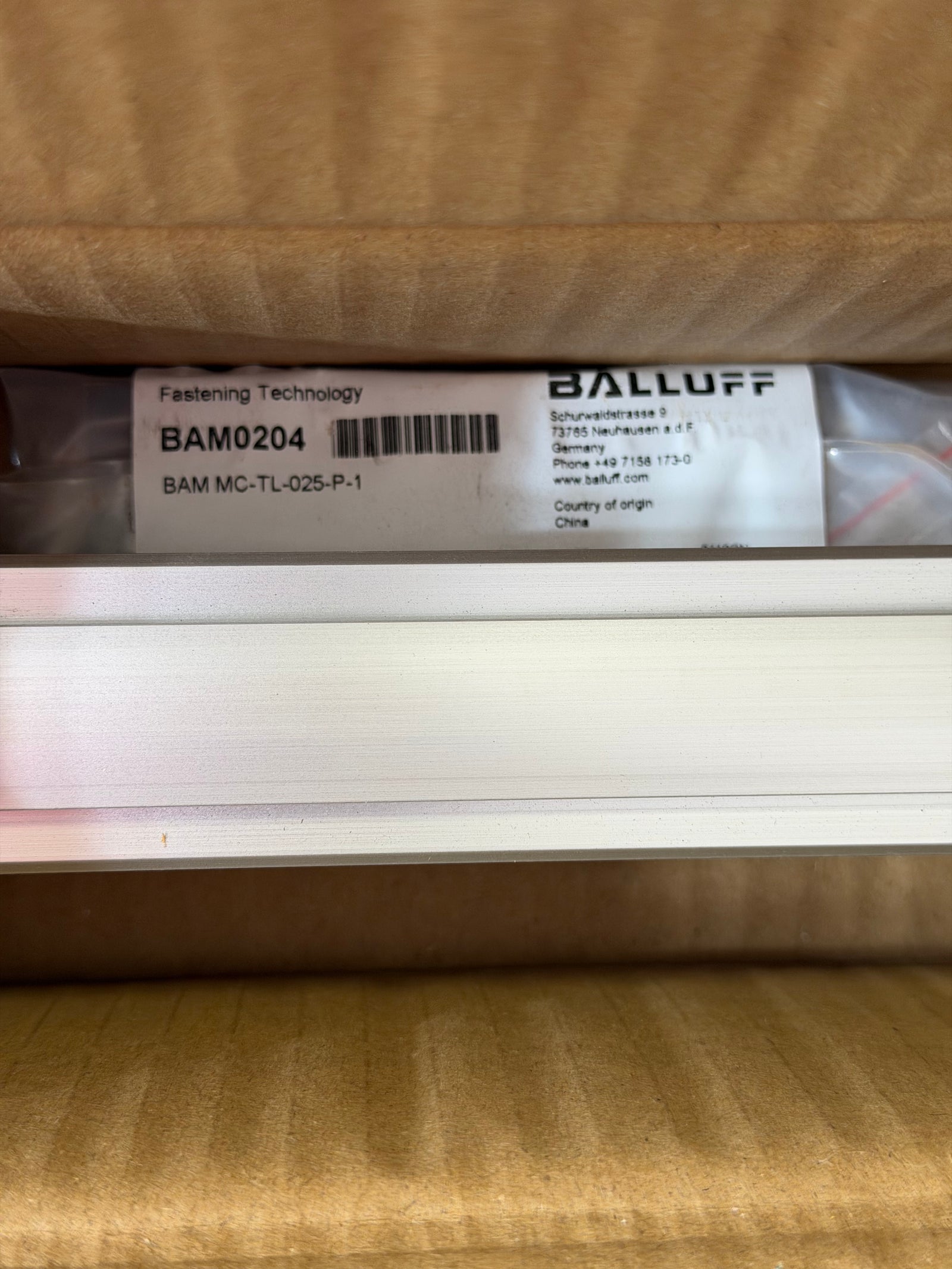

Mounting part |
Mounting clamps |
MTTF (40 °C) |
49 a |
Non-linearity max. |
±50 µm |
Operating voltage max. DC 01 |
30.0 V |
Operating voltage Ub |
10...30 VDC |
Repeat accuracy |
± 5 µm |
Sampling frequency max. |
4000 Hz |
Storage temperature |
-40...100 °C |
Style |
Profile series |
Temperature coefficient typ. |
≤ 30 ppm/K at 50% of nominal stroke 500mm |
Approval/Conformity |
CE, UKCA, cULus, WEEE |

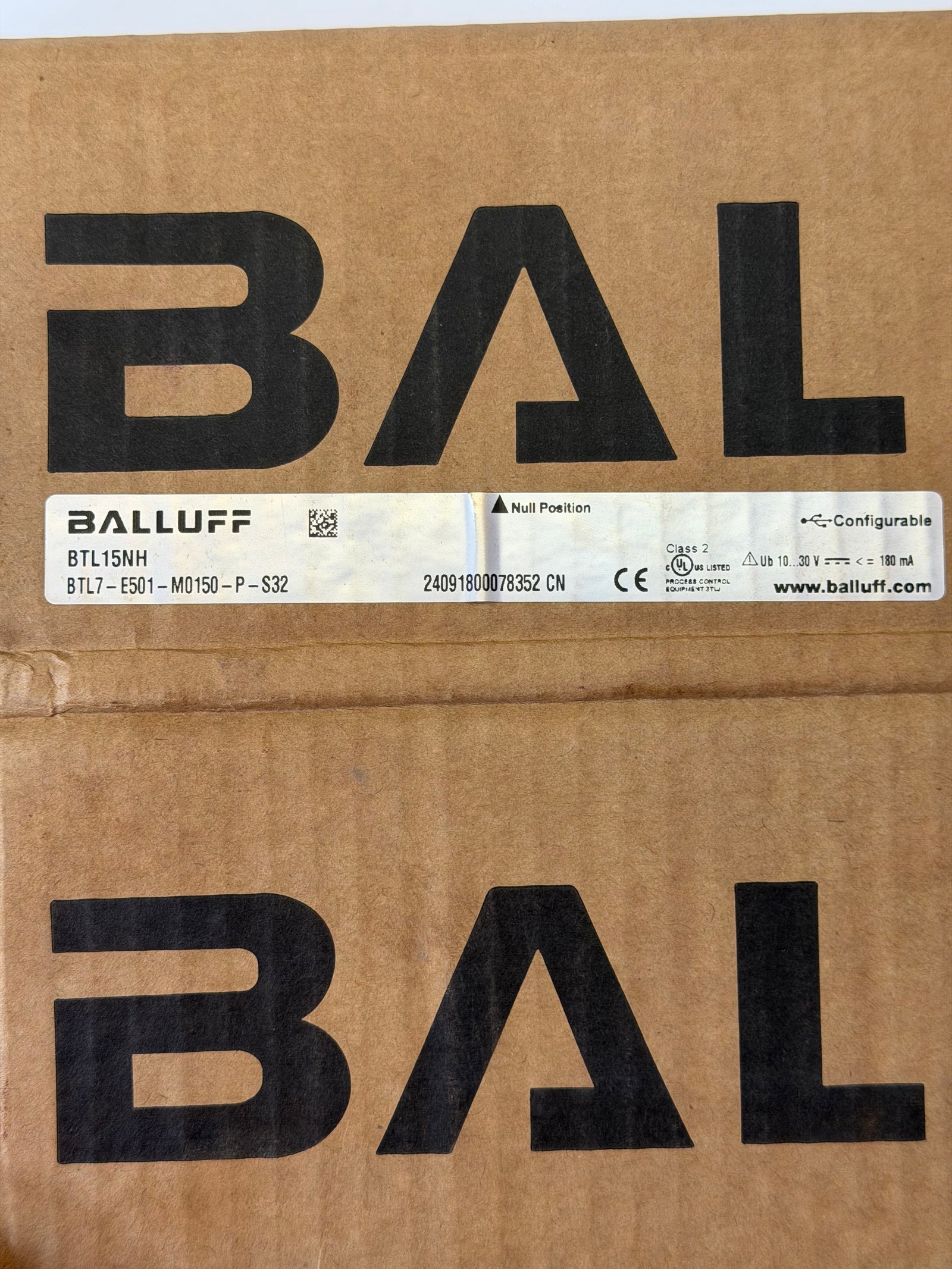

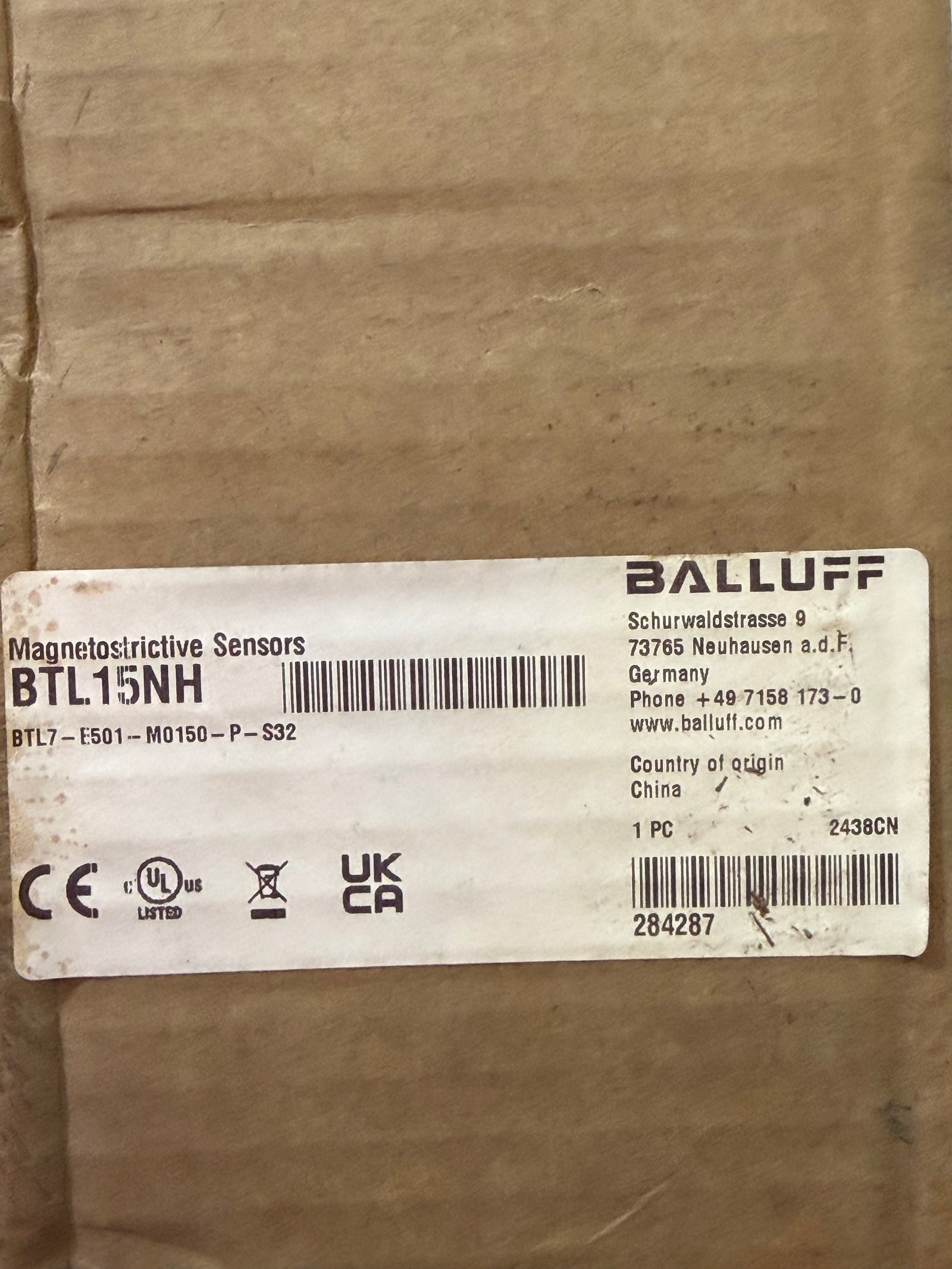

Reference check: the original title records BTL15NH, while the original tag is BLT15NH. Confirm the ordering code from the label. Some source current-output entries contain unreadable separators (4?20 mA and 20?4 mA); verify the actual output configuration. Listed conformity references are source claims, not a new safety-function certification.
