Specifications: -
Valve type 4/3 proportional rotary lever operated pneumatic valve.
Fluid Compressed air – Regulated, dry, filtered to 5µm, 0.5 to 4 bar (7 to 58 psi)
Max pressure 10 bar (145 psi) tested at 7 bar (101 psi)
Temperature -100°C to +100°C (-148°F to +212°F)
Materials Stainless steel, PTFE, Alumina ceramic, medium Nitrile rubber and epoxy glue
Paddle Standard – Round, (Flat on request)
Fittings Standard – NPB 1/8” BSPP to Ø8 mm push in swivel elbows. Other types and
materials on request
Mounting M6 stainless steel studs with Nyloc nuts through a stainless-steel Clamp Plate
Options A cover in a variety of materials and finishes

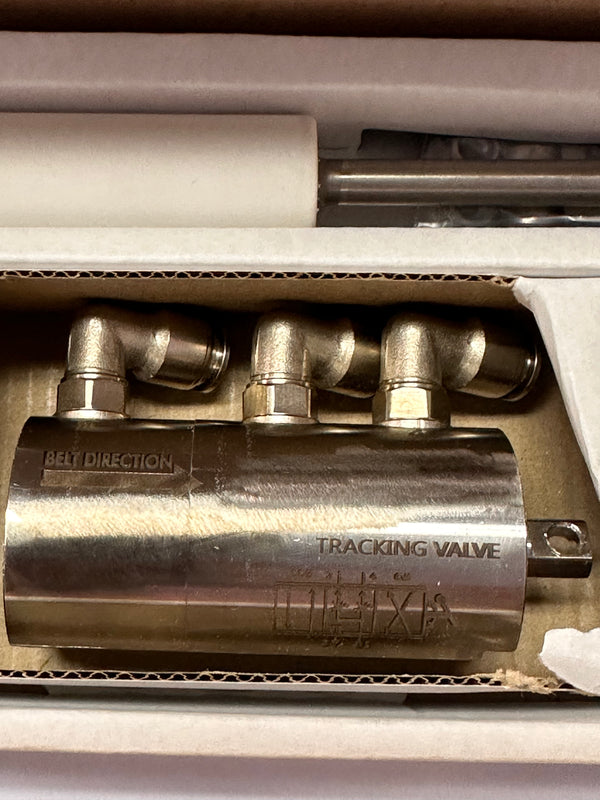

Tracking Valve kit comes complete with 1 off Eliminator Tracking Valve, 1 off Paddle, 1 off 4mm
Allen key, 2 off M6 Studs, 2 off M6 Nyloc nuts, 1 off Setting Pin
Valve type 4/3 proportional rotary lever operated pneumatic valve.
Fluid Compressed air – Regulated, dry, filtered to 5µm, 0.5 to 4 bar (7 to 58 psi)
Max pressure 10 bar (145 psi) tested at 7 bar (101 psi)
Temperature -100°C to +100°C (-148°F to +212°F)
Materials Stainless steel, PTFE, Alumina ceramic, medium Nitrile rubber and epoxy glue
Paddle Standard – Round, (Flat on request)
Fittings Standard – NPB 1/8” BSPP to Ø8 mm push in swivel elbows. Other types and
materials on request
Mounting M6 stainless steel studs with Nyloc nuts through a stainless-steel Clamp Plate
Options A cover in a variety of materials and finishes
Tracking Valve kit comes complete with 1 off Eliminator Tracking Valve, 1 off Paddle, 1 off 4mm
Allen key, 2 off M6 Studs, 2 off M6 Nyloc nuts, 1 off Setting Pin
