DENSO
Denso 021080-0730 Alternator, 24 V 95 A
- SKU
- P-DE-D-8273
$850.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 9.0 kg
Specifications
| Manufacturer | DENSO |
|---|---|
| Product type | AUTO ELECTRICAL |
| SKU | P-DE-D-8273 |
| Weight | 9.0 kg |
Description

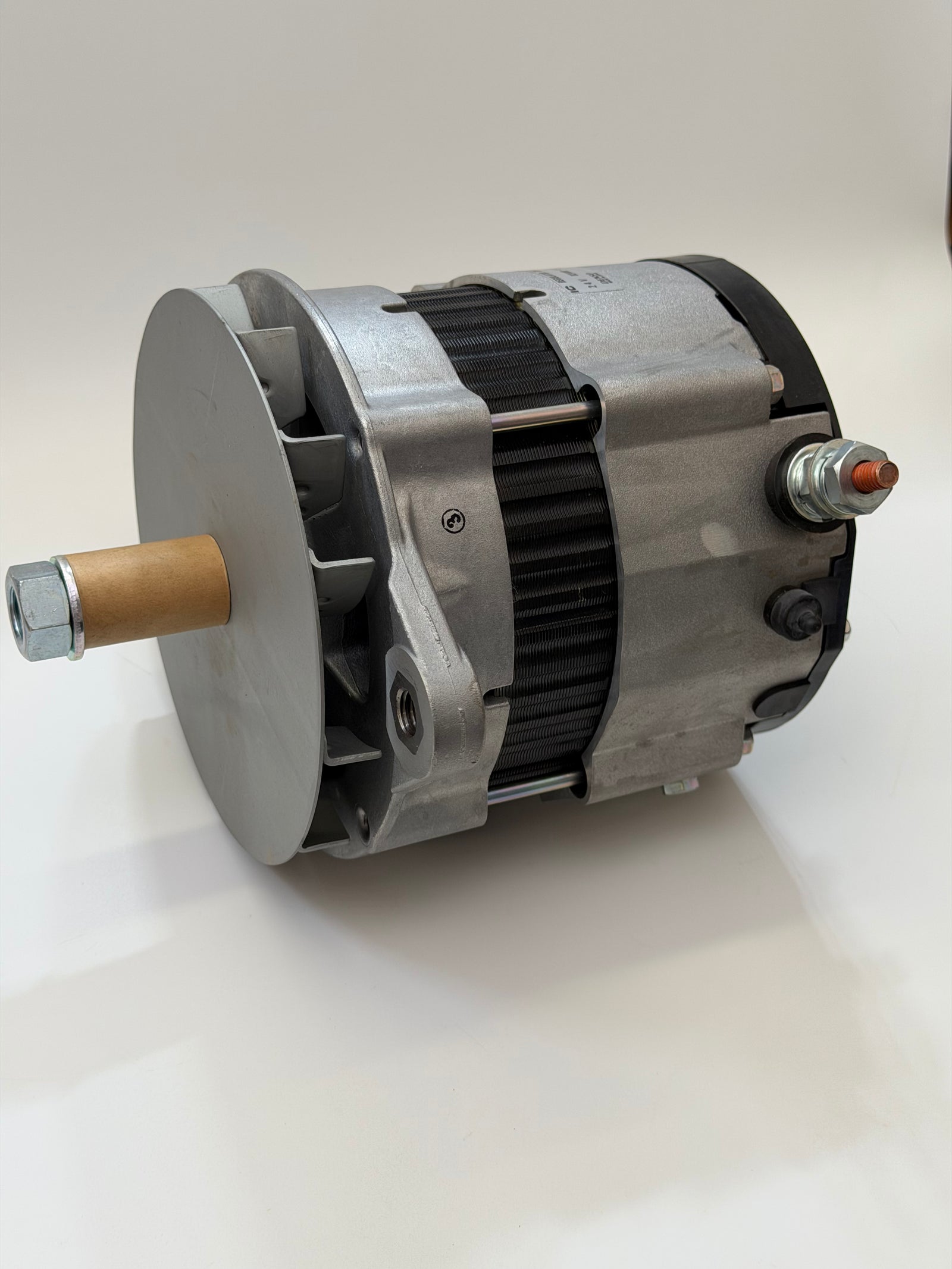

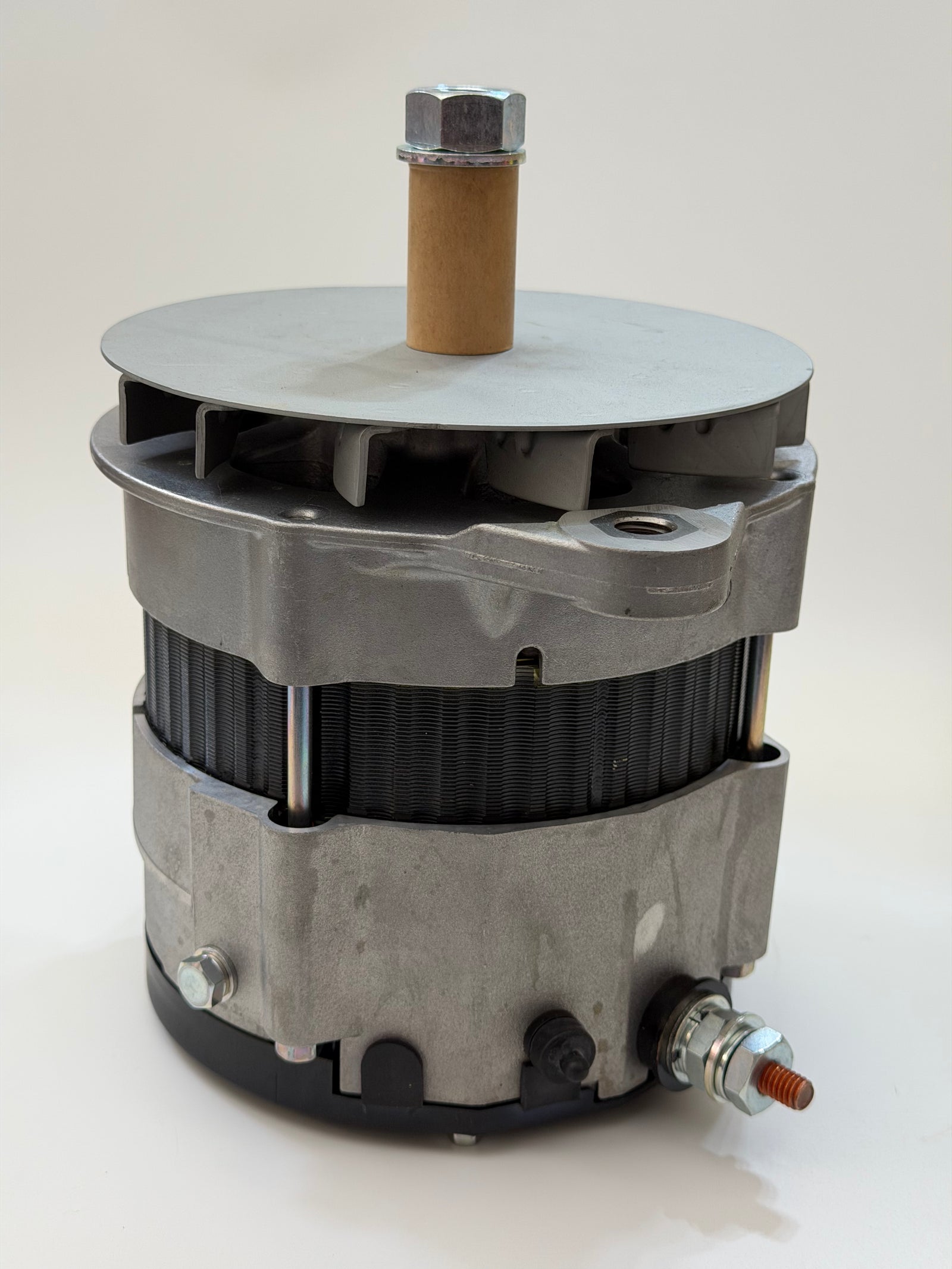

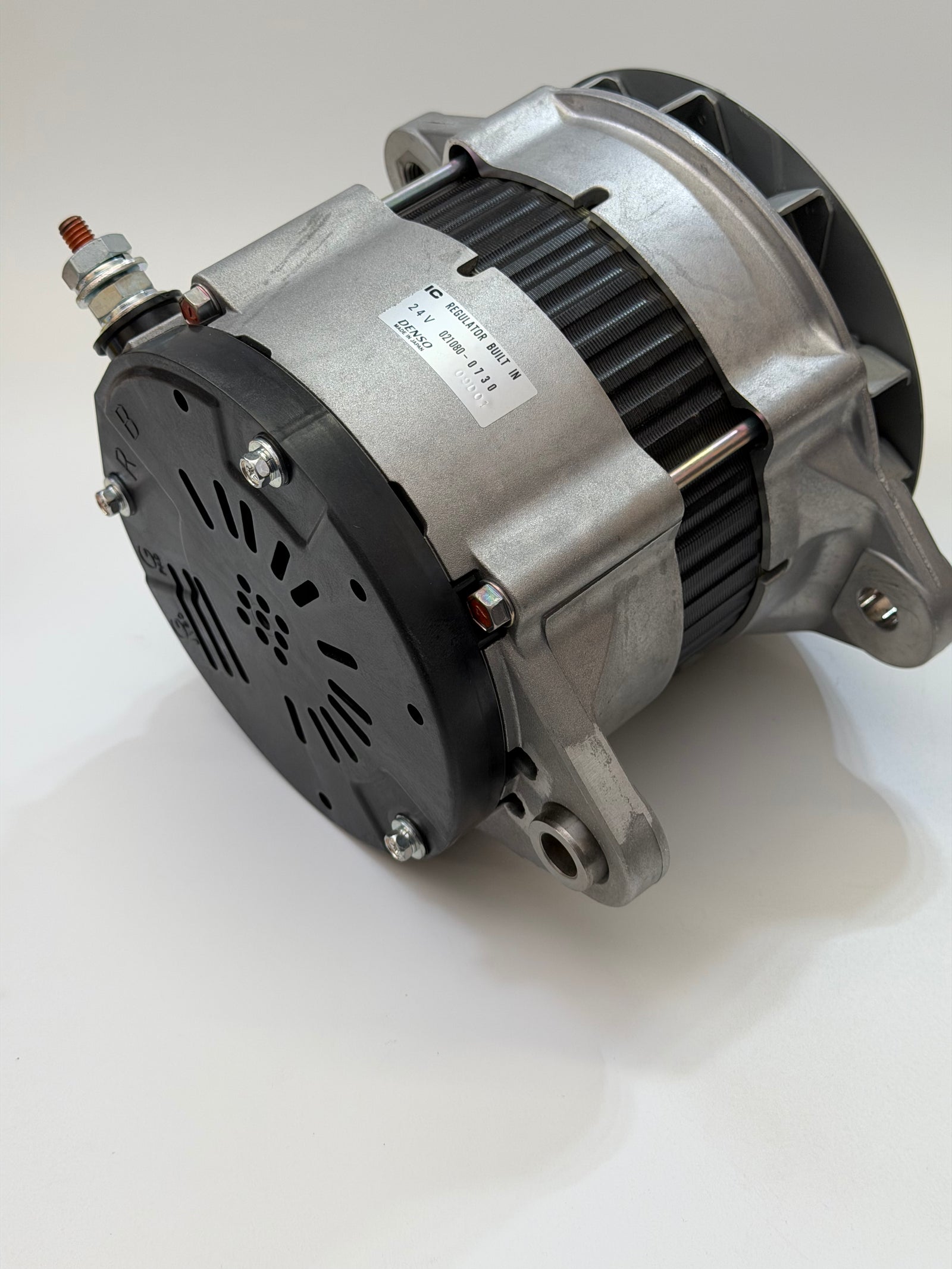

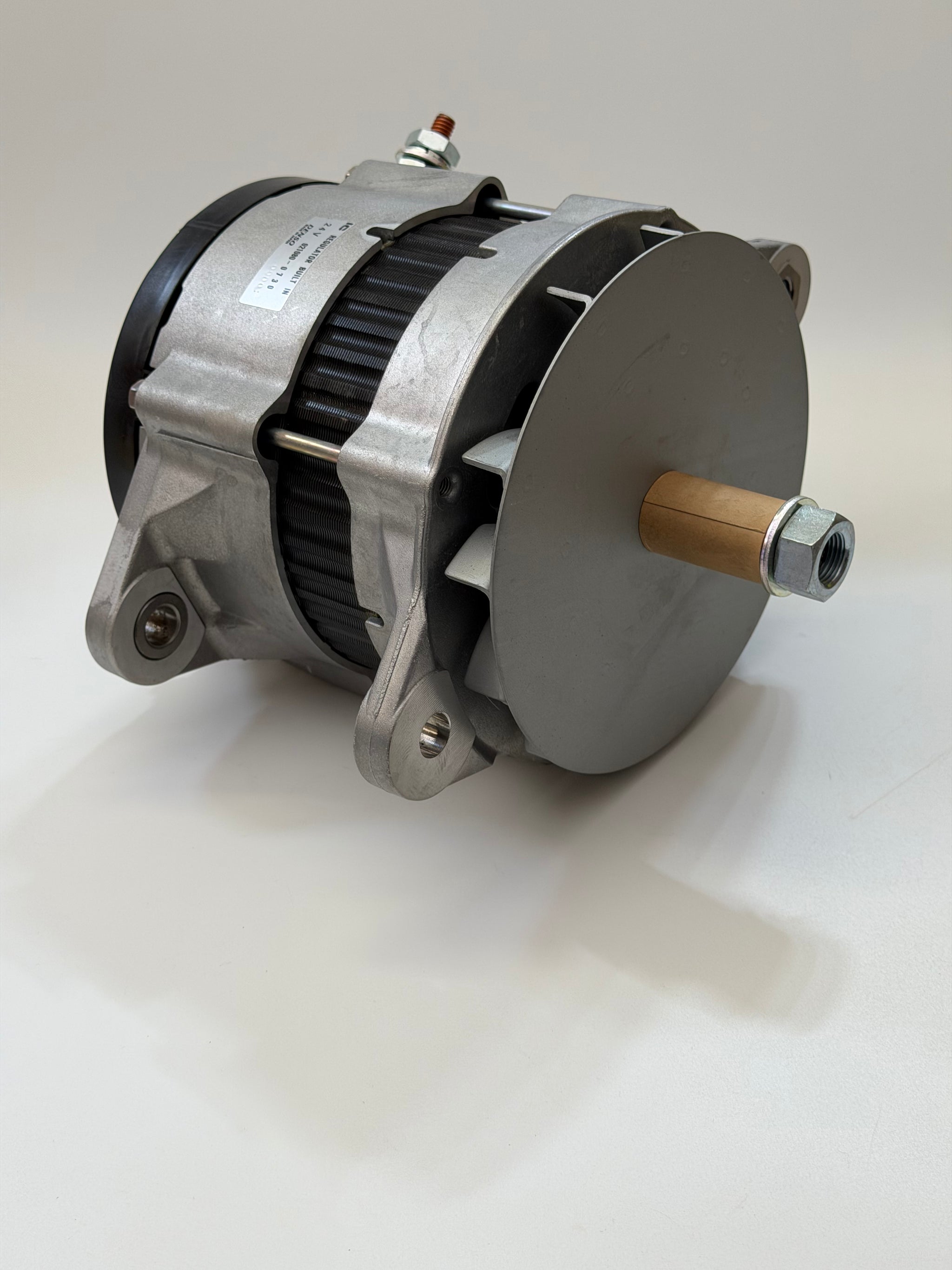

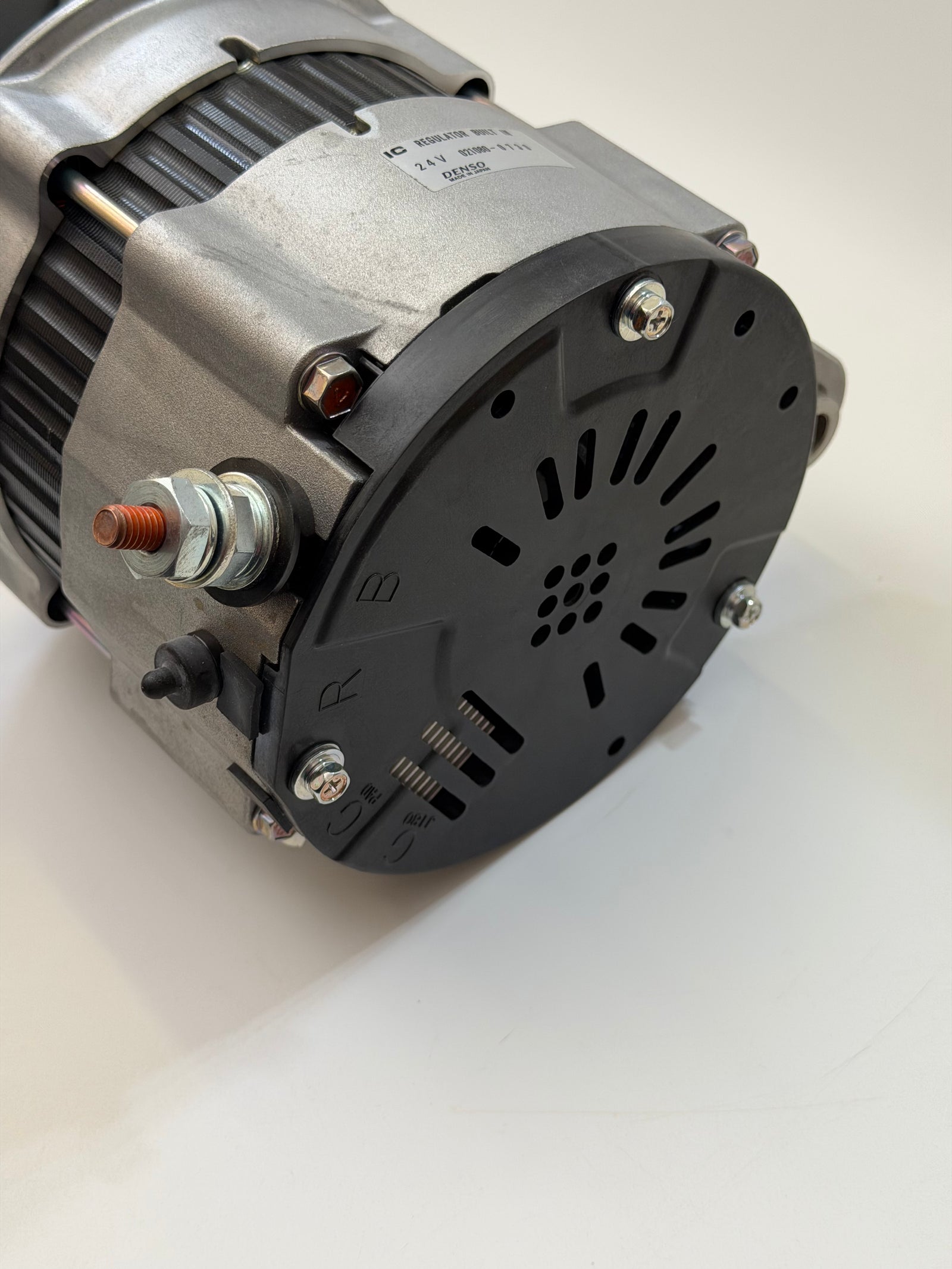

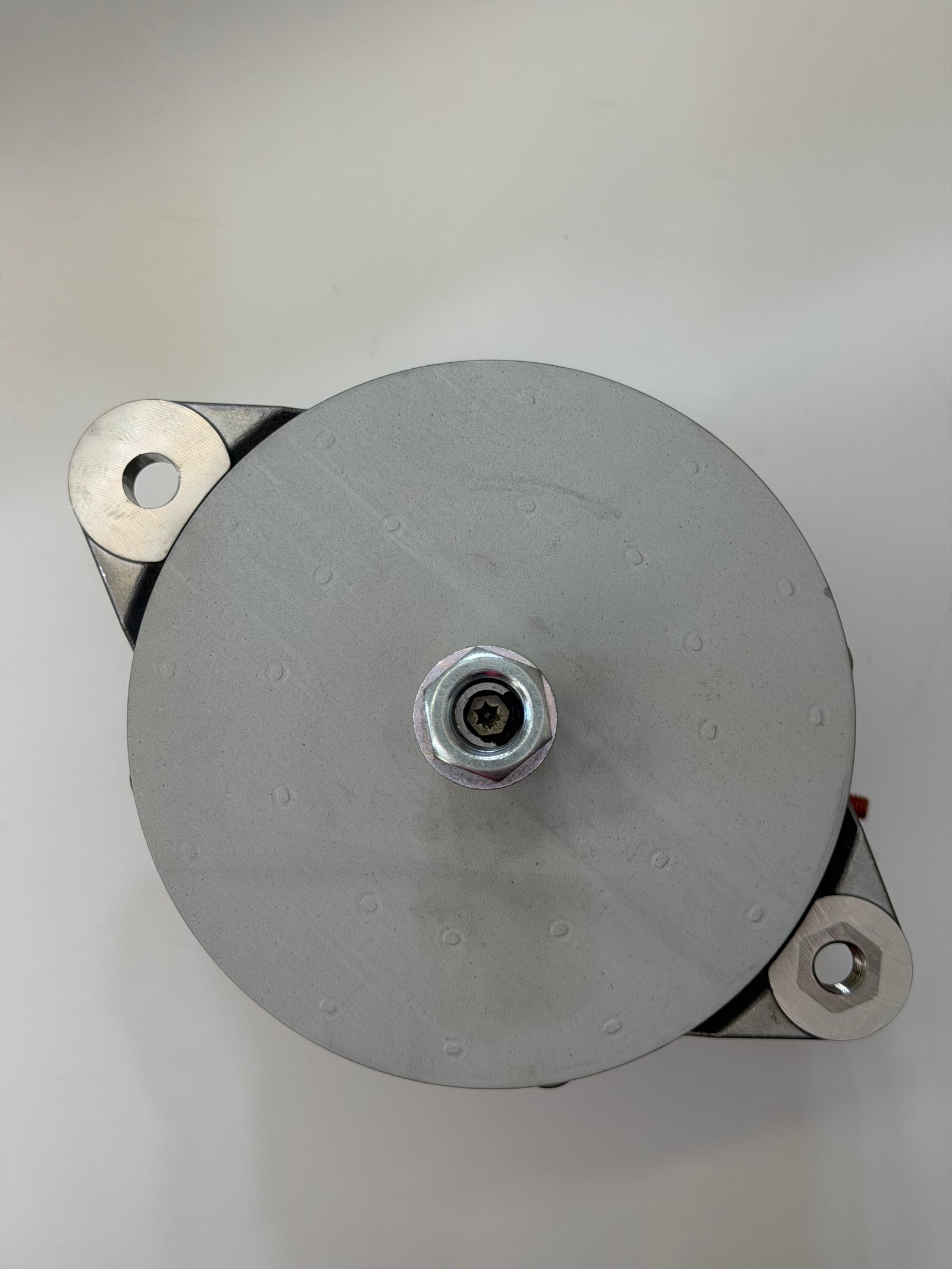

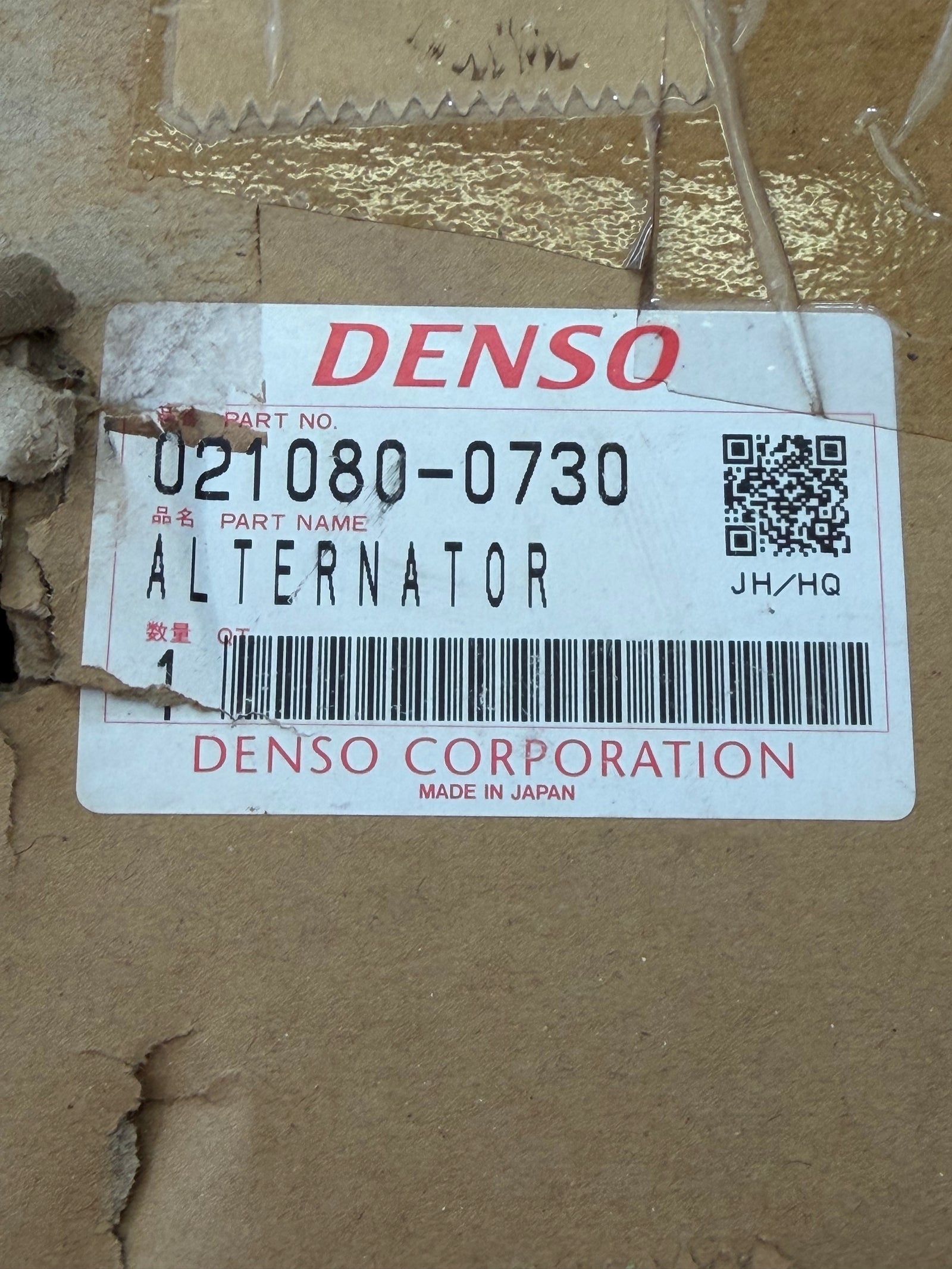

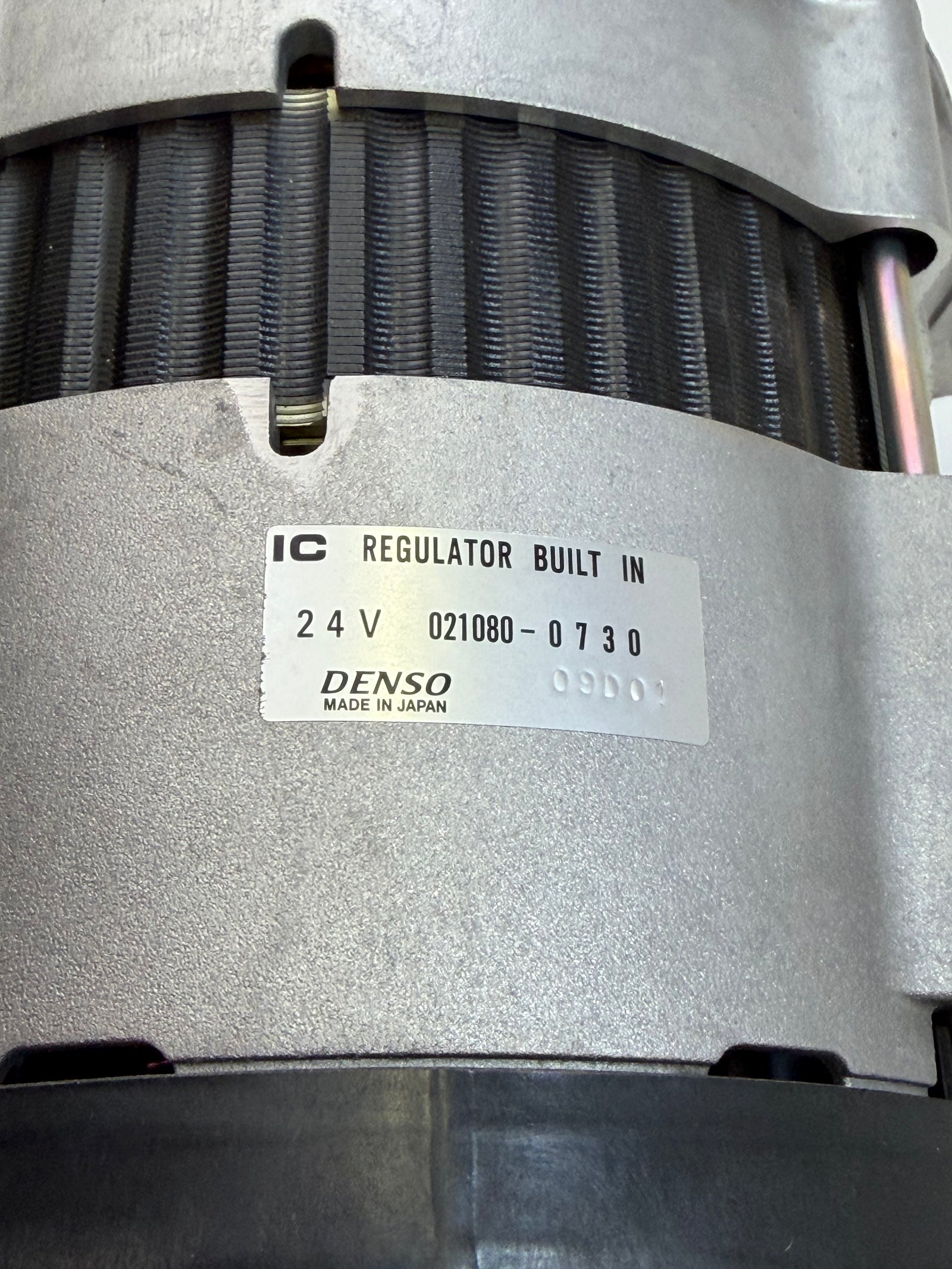

Denso 021080-0730 alternator, listed at 24 V and 95 A. Additional recorded reference: 0210800730.
Source specifications
| Voltage | 24 |
|---|---|
| Suits Unit Make | Denso |
| Regulator Type | Internal |
| Power Rating [Amp] | 95 |
| Alternator Mount | Twin Leg |
| New / Reman. | New |
| Adjusting Hole Diameter | 1/2 UNC |
| Inside Mounting Legs | 101mm |
| Pivot Hole Diameter | 13 |
| Shaft Diameter | 22mm |
| Mount Cnt to Cnt | 198mm |
| Pin Code | IR246 |
The “Power Rating [Amp]” entry is an amperage value, not a watt rating. The pivot-hole value 13 has no unit stated; the adjusting-hole entry 1/2 UNC is retained as the supplied thread notation. “New” is the source condition entry.
Source-listed cross-references
- Caterpillar (CAT): 197-8820, 0R4841, 10R9789, 10R9790
- Denso: 101211-8340, 101211-8341, DAN2003
- Remy / Delco Remy: DRA0681, 1969007
- Leece Neville: A0014989PGH, 8RH2002, 102200
- Wilson HD Rotating Electrical: 92-01-3038, 90-01-4280
Confirm the part number, mounting, pulley/shaft arrangement, pin code and electrical connections against the original alternator before ordering. Cross-references are supplied for identification, not a guarantee of interchangeability in every installation.
