GOYEN

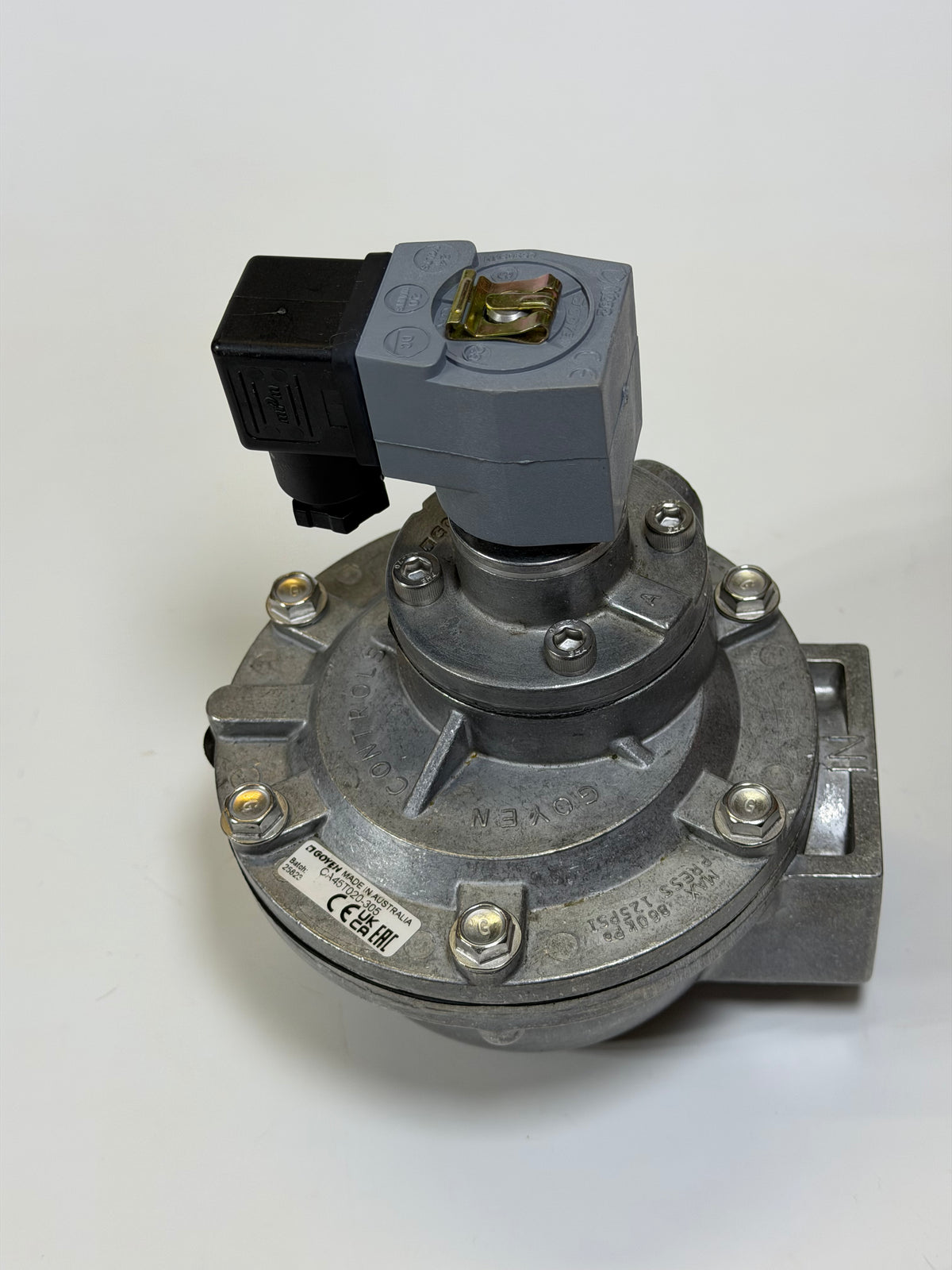

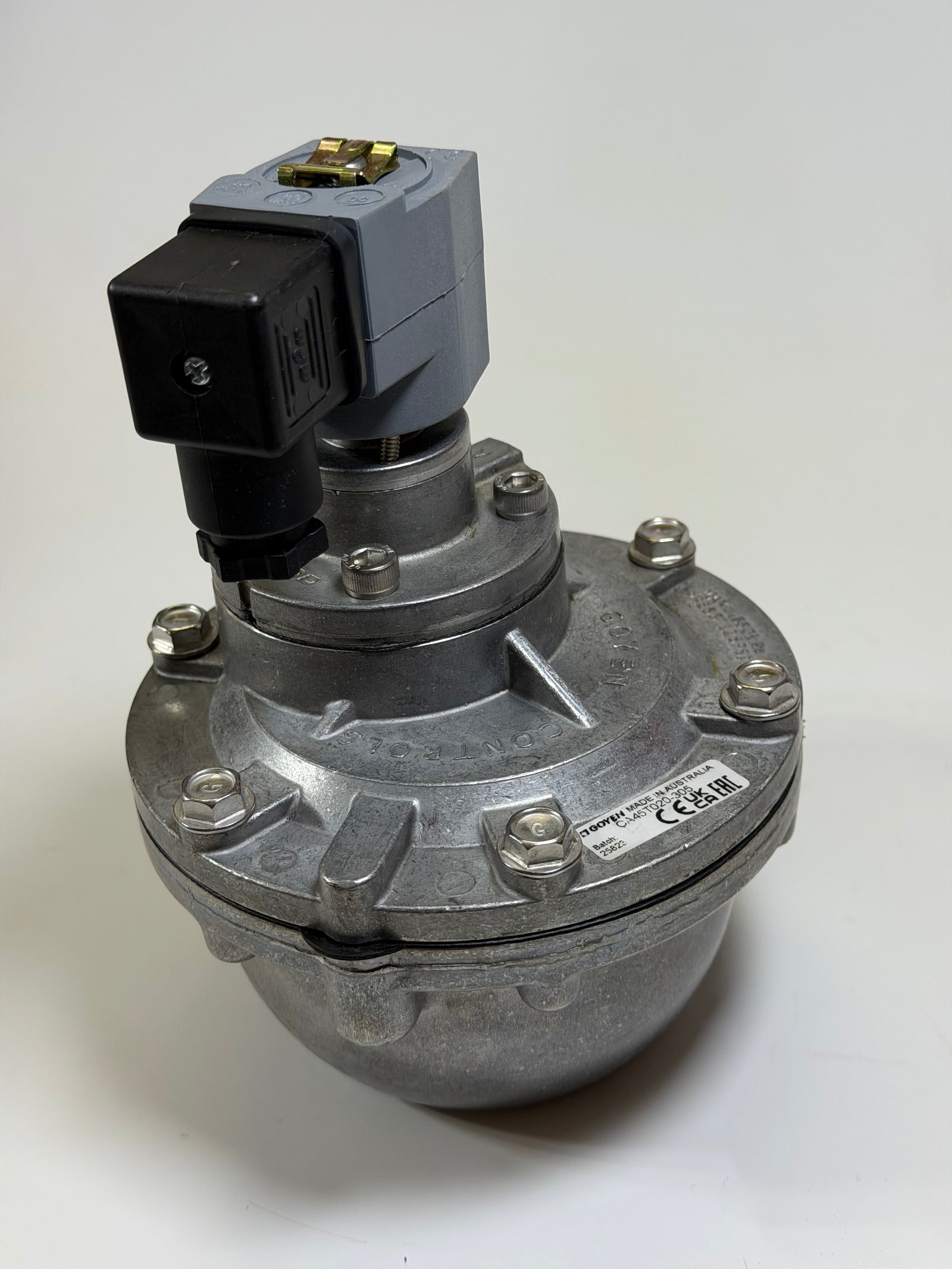

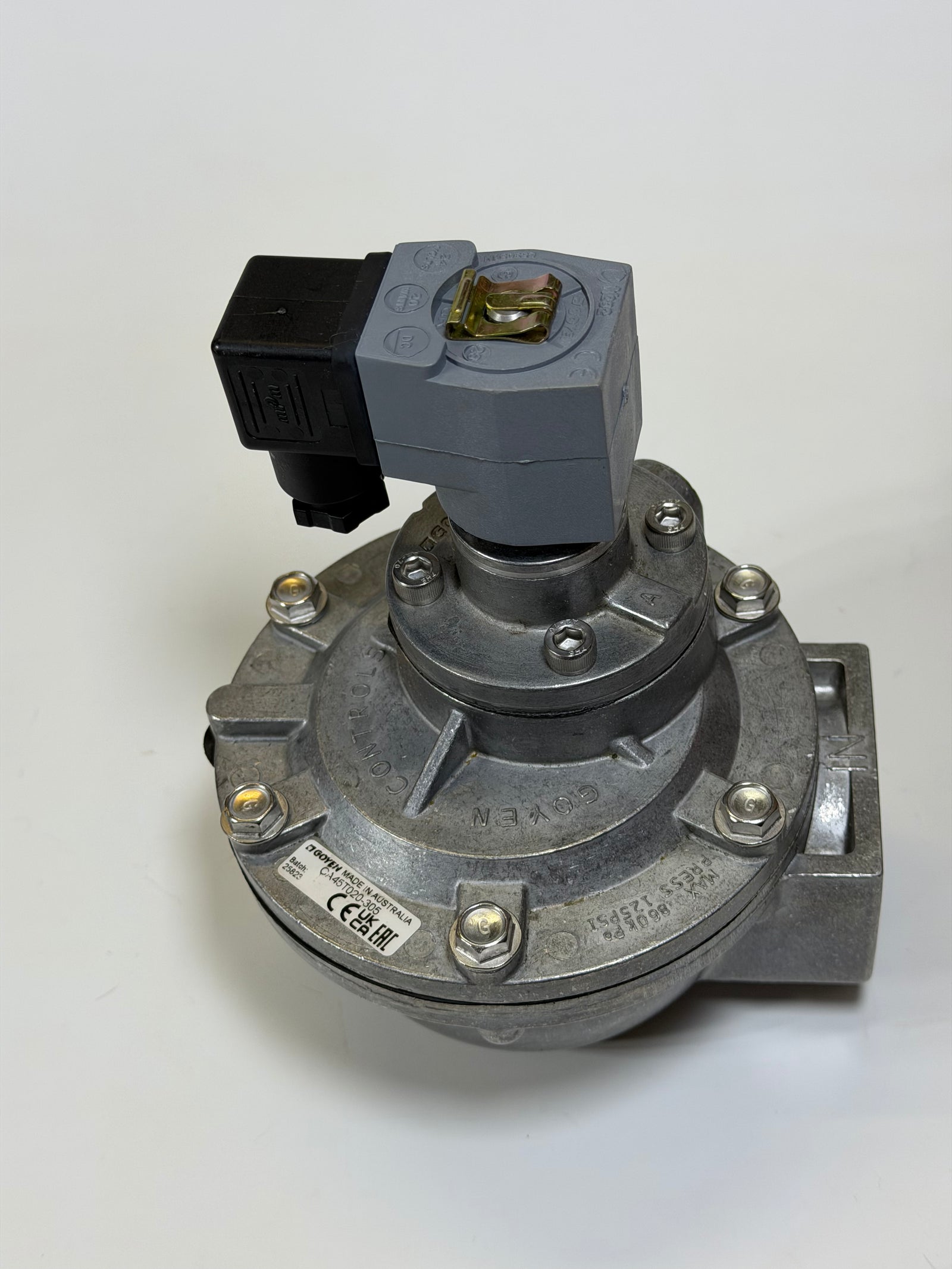

Goyen CA45T020 - 305 Diaphragm Valve, 24V DC, 1.5" BSP
- SKU
- P-GO-G-8462
$85.00
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 4.0 kg
Specifications
| Manufacturer | GOYEN |
|---|---|
| Product type | VALVES |
| SKU | P-GO-G-8462 |
| Weight | 4.0 kg |
Description

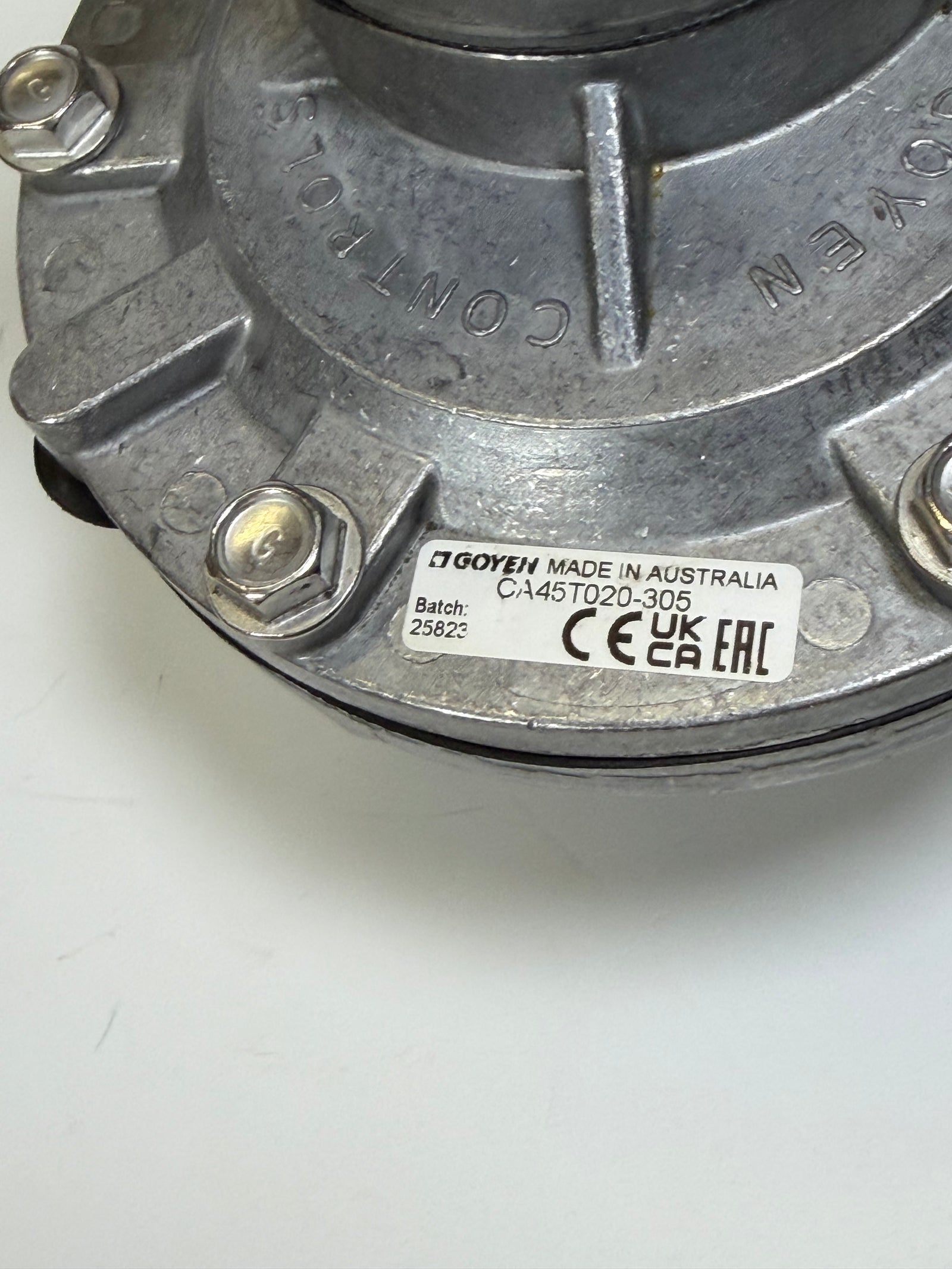

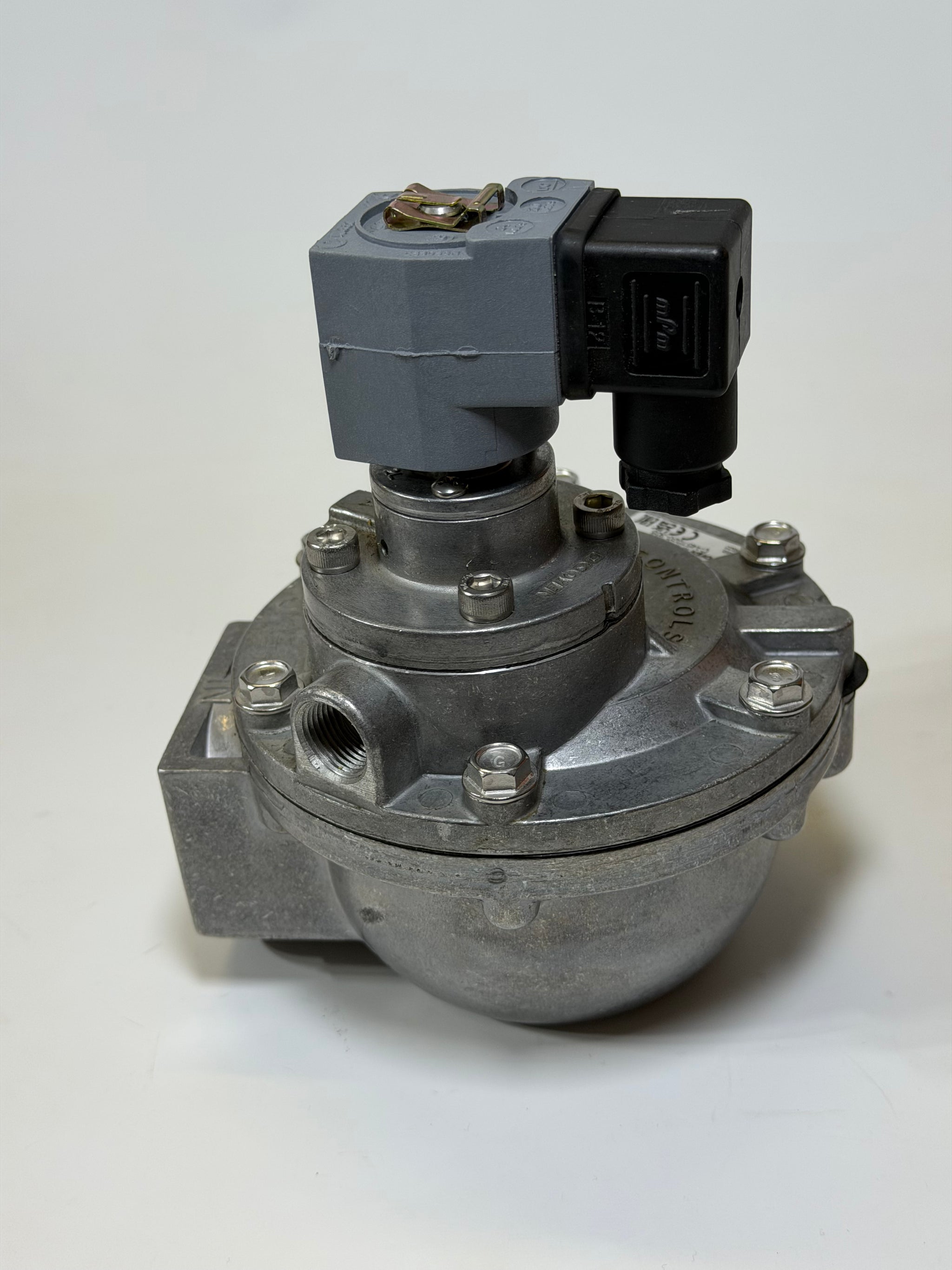

Goyen CA45T020 - 305 threaded diaphragm valve with integral 24V DC solenoid and standard-temperature nitrile diaphragm. Also listed as CA45T020-305.
Specifications
- Manufacturer: Goyen Controls.
- Body: diecast aluminium.
- Model: CA45T020, nitrile version.

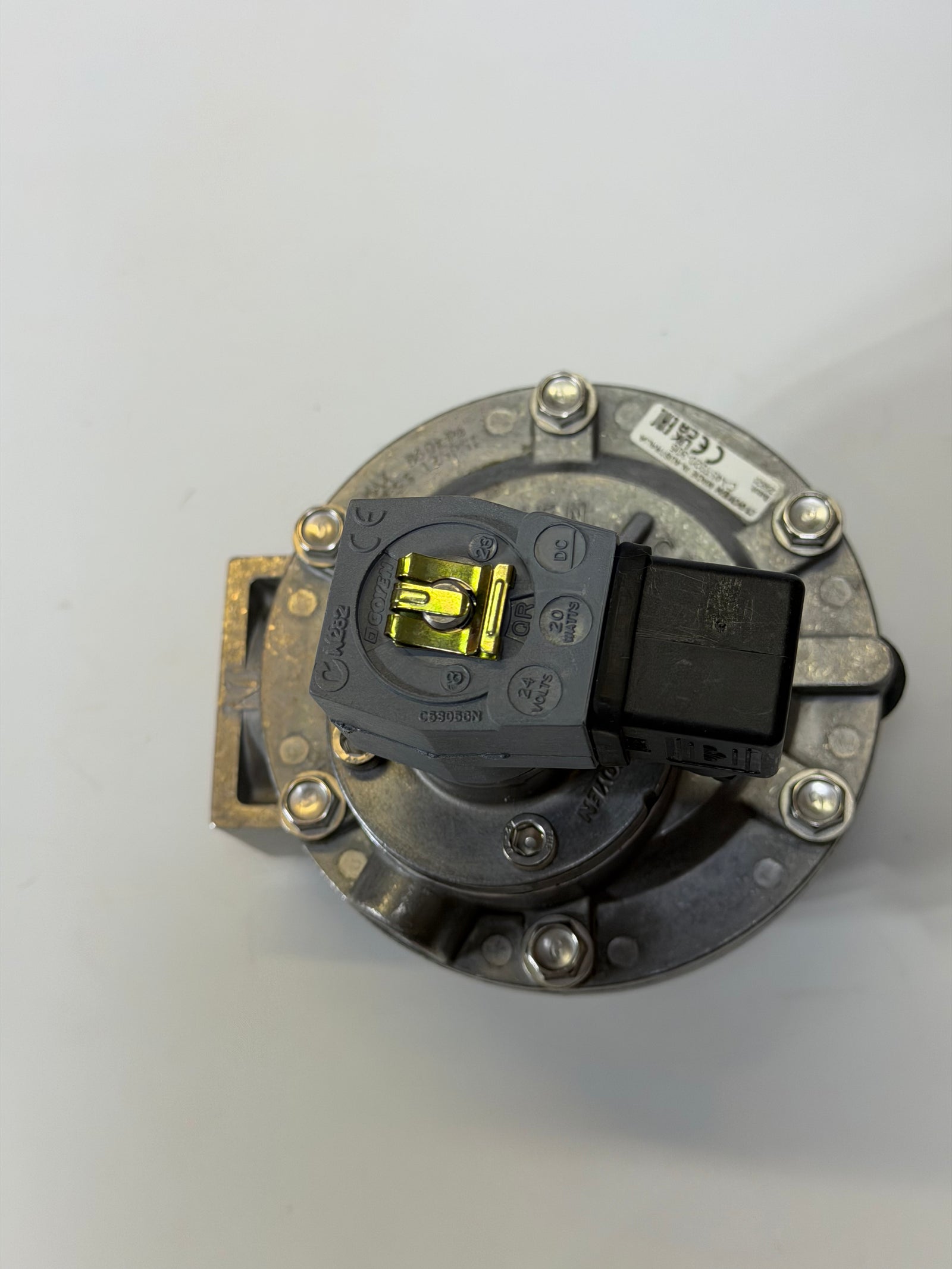

- Pilot operation: integral, with solenoid coil fitted to the valve.

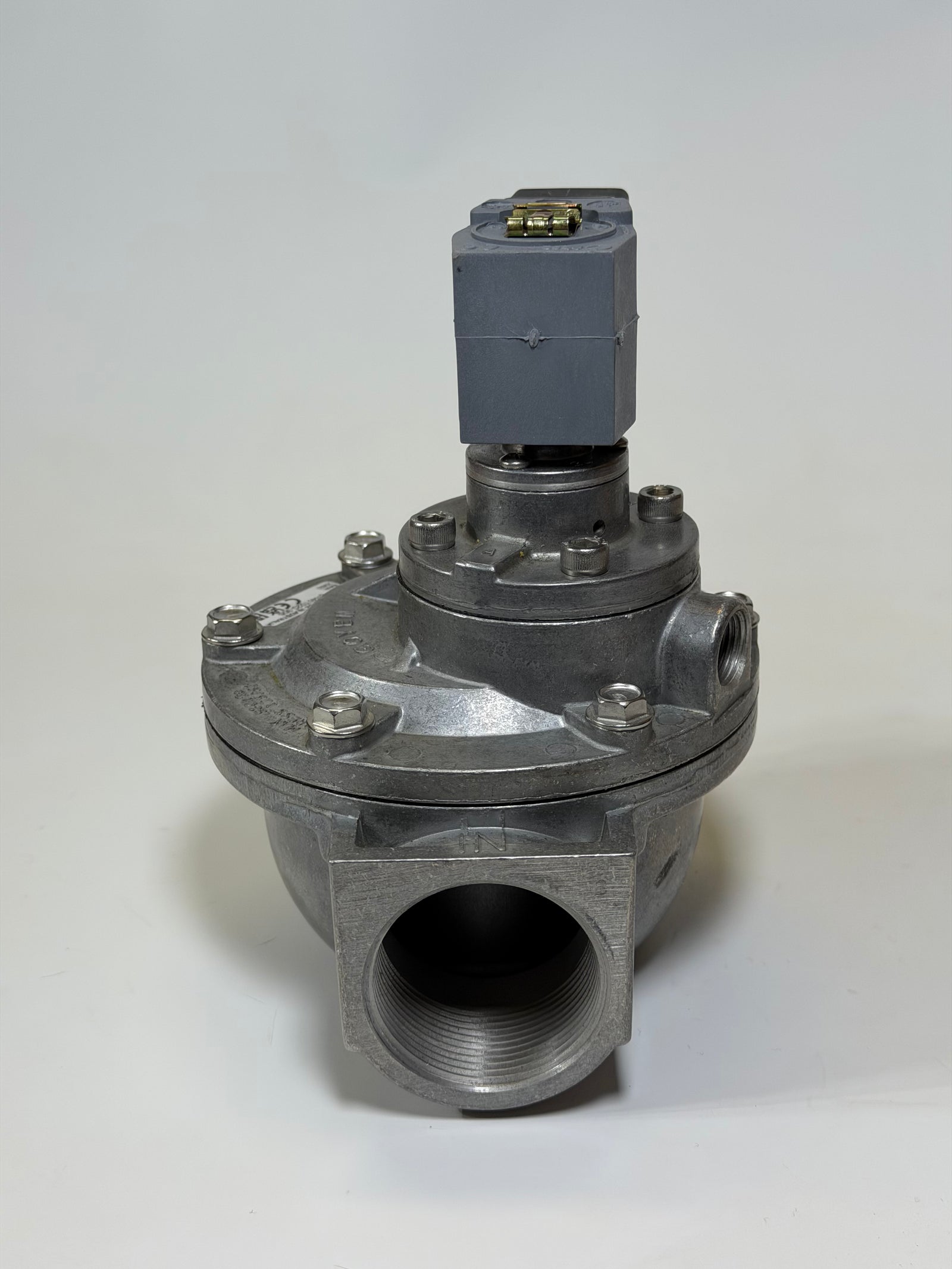

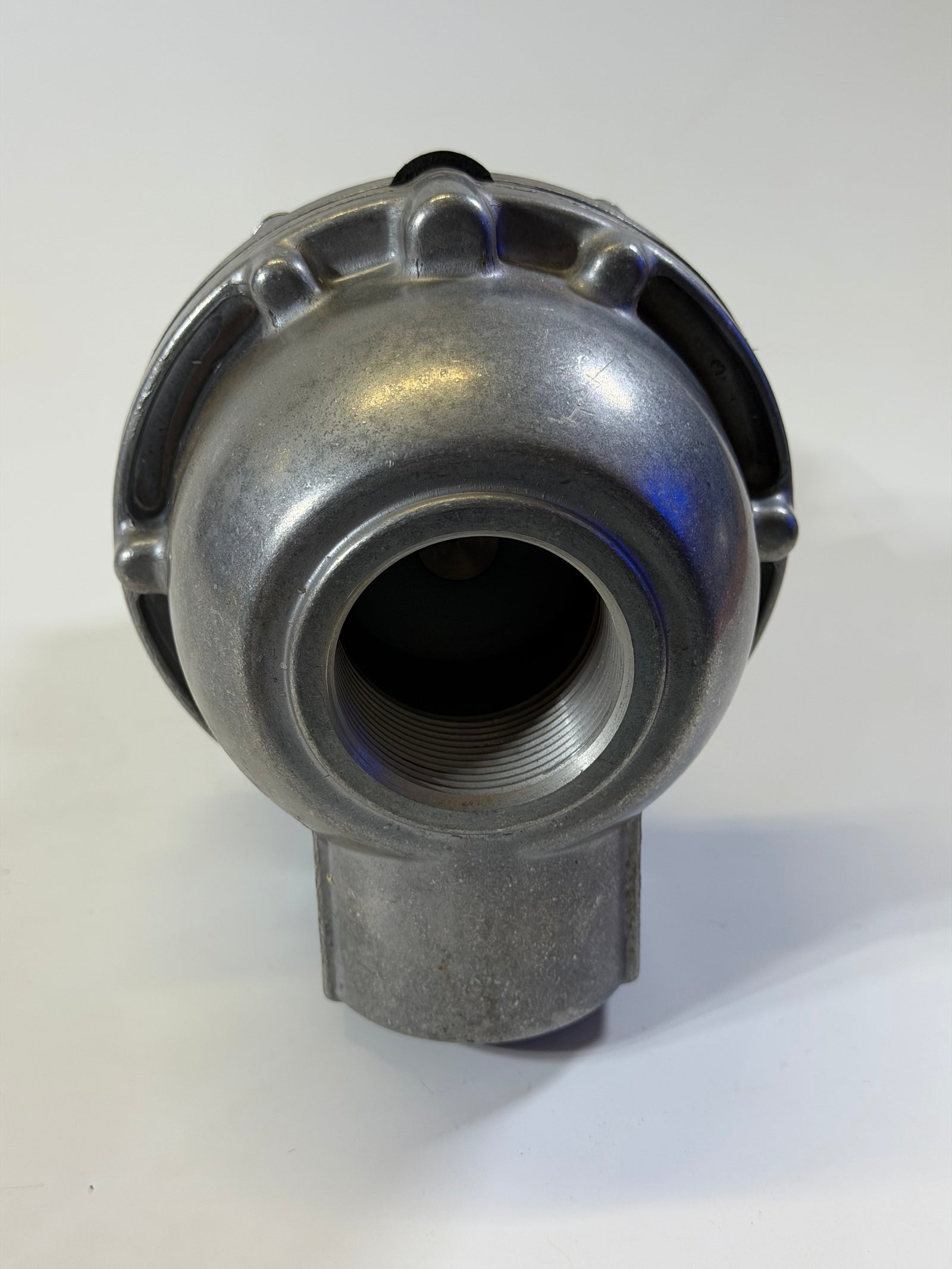

- Connection: 1.5" BSP female thread; the source listing also gives 45mm.

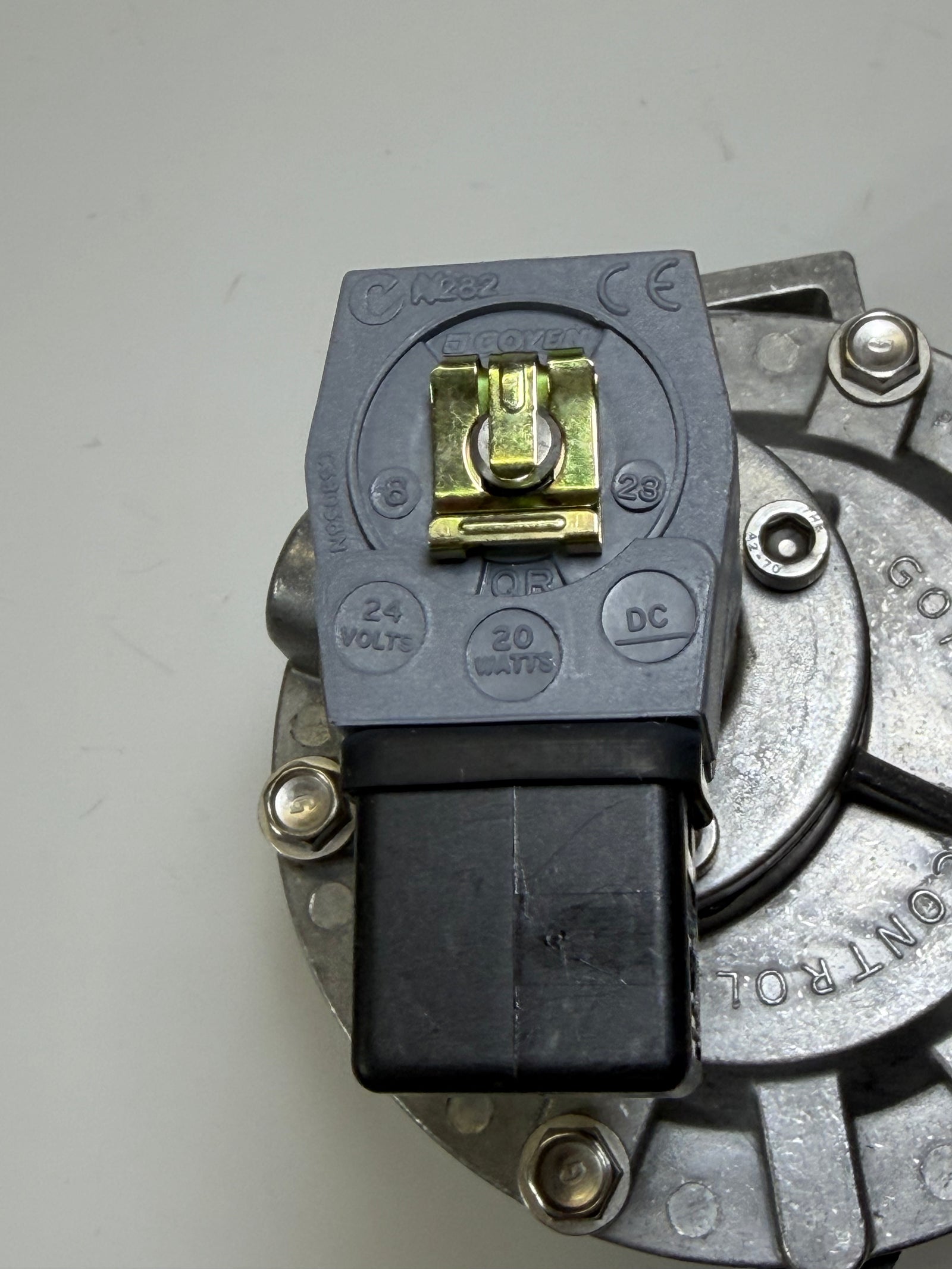

- Solenoid voltage: 24VDC.

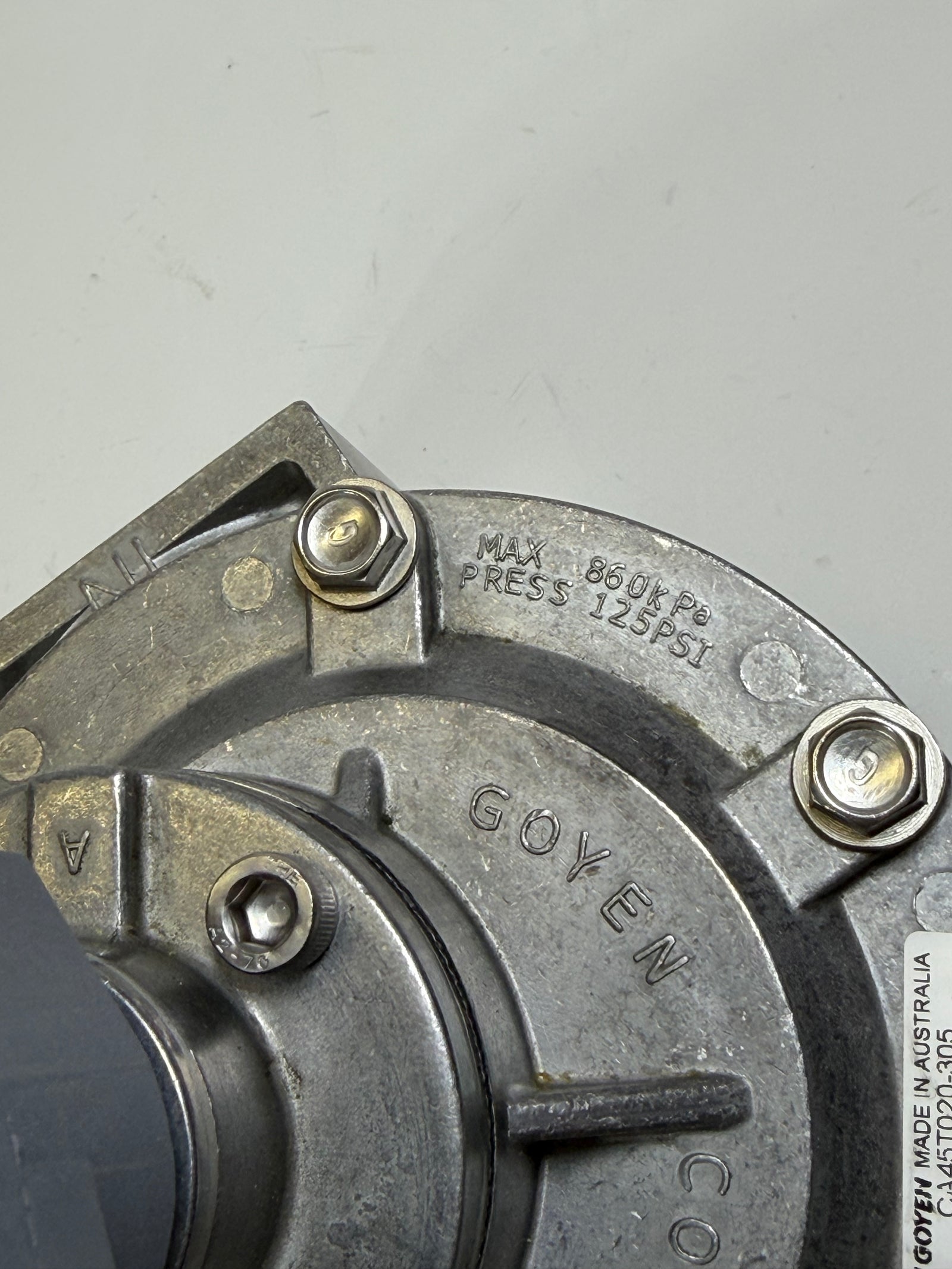

- Listed pressure range: 5–125psi (30–860kPa).
- Diaphragm: nitrile, standard temperature.
Service and reference information
Suitable diaphragm repair kit: K4502, standard temperature; not stated to be included. The source also mentions CA45T021 as the Viton model, not the model offered here. Listed additional reference: C58056N.
Confirm the full valve reference, connection and service conditions before ordering. The 45mm reference is retained as listed and is not a measured thread diameter.
