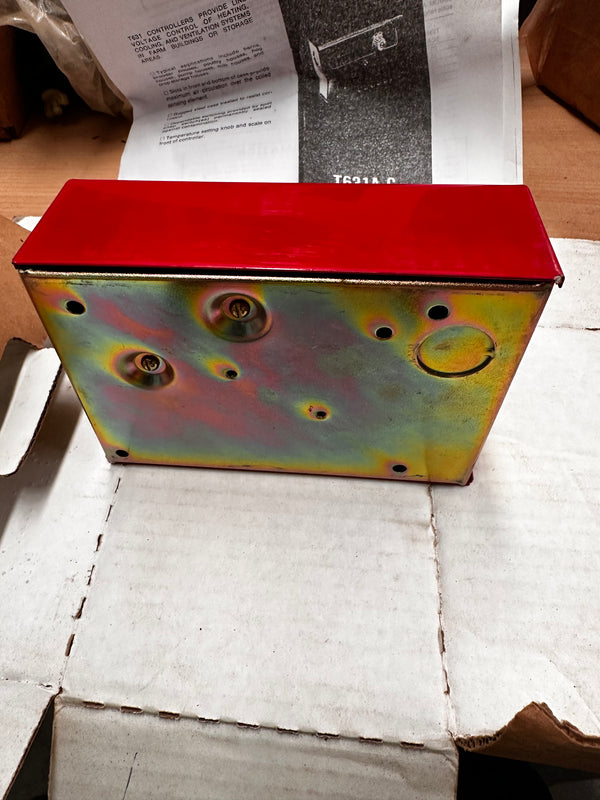

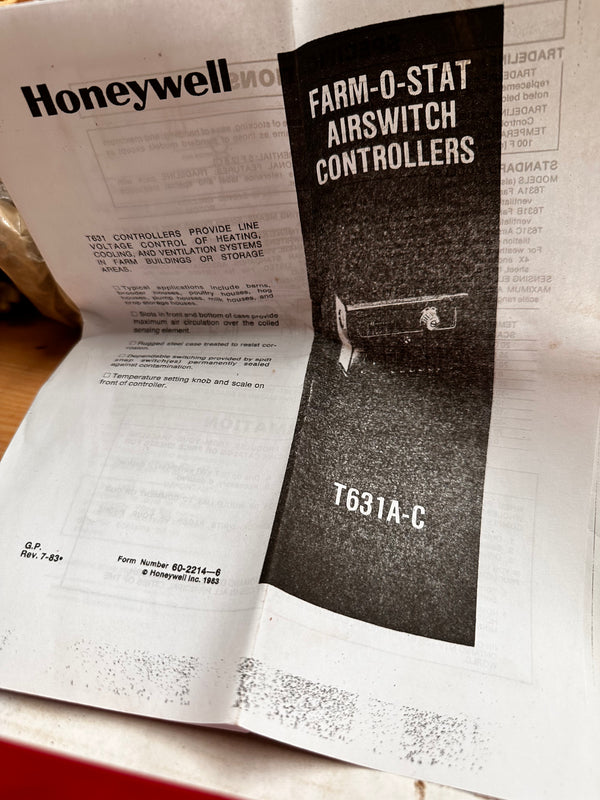

Specification Data For T631A,B,C Farm-O-Stat Airswitch Controllers (English) (carrierenterprise.com)
| Contact Ratings (24 Vac) | 2.0A AFL |
|---|
| Color | Red finish |
|---|
| Output | 1 SPDT |
|---|
| Overview | Provide line voltage control of heating, cooling and ventilating systems in farm buildings or storage areas. |
|---|
| Type | Agricultural Temperature Controller |
|---|
| Application | Provide line voltage control of heating, cooling and ventilating systems in farm buildings or storage areas |
|---|
| Comments | Celsius model |
|---|
| Sensor Element | Coiled Copper Tube |
|---|
| Maximum Operating Temperature (F) | 120 F |
|---|
| Setpoint Temperature Range (C) | 0 C to 40 C |
|---|
| Maximum Operating Temperature (C) | 50 C |
|---|
| Differential Temperature (F) | 2 F |
|---|
| Voltage | 24 Vac or 120/240 Vac |
|---|
| Differential Temperature (C) | 1.1 C |
|---|
| Contact Ratings (120 Vac) | 7.4 AFL, 44.4 ALR |
|---|
| Contact Ratings (240 Vac) | 3.7 AFL, 22.2 ALR |
|---|
| Dimensions (in.) | 4 5/16 in. high x 6 1/16 in. wide x 2 7/8 in. deep |
|---|
| Dimensions (mm) | 110 mm high x 154 mm wide x 73 mm deep |
|---|
