JAYLEC

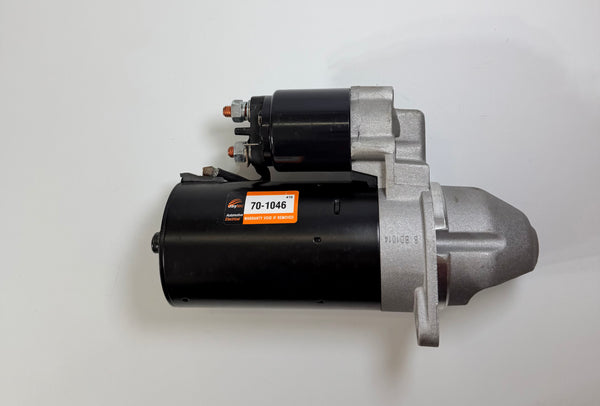

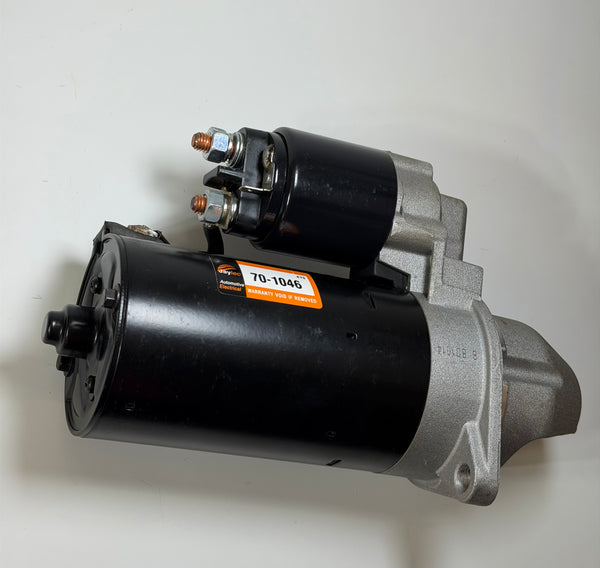

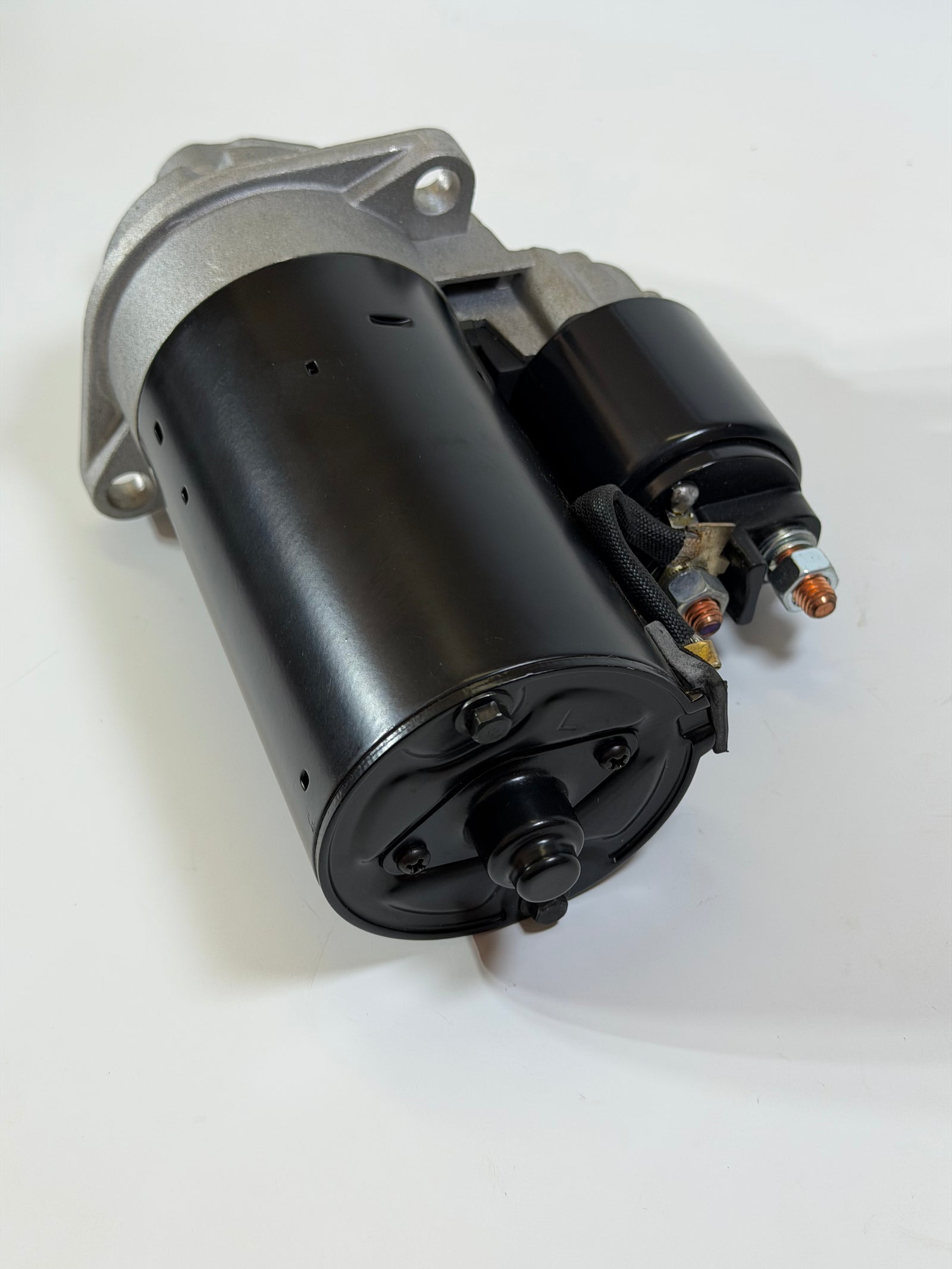

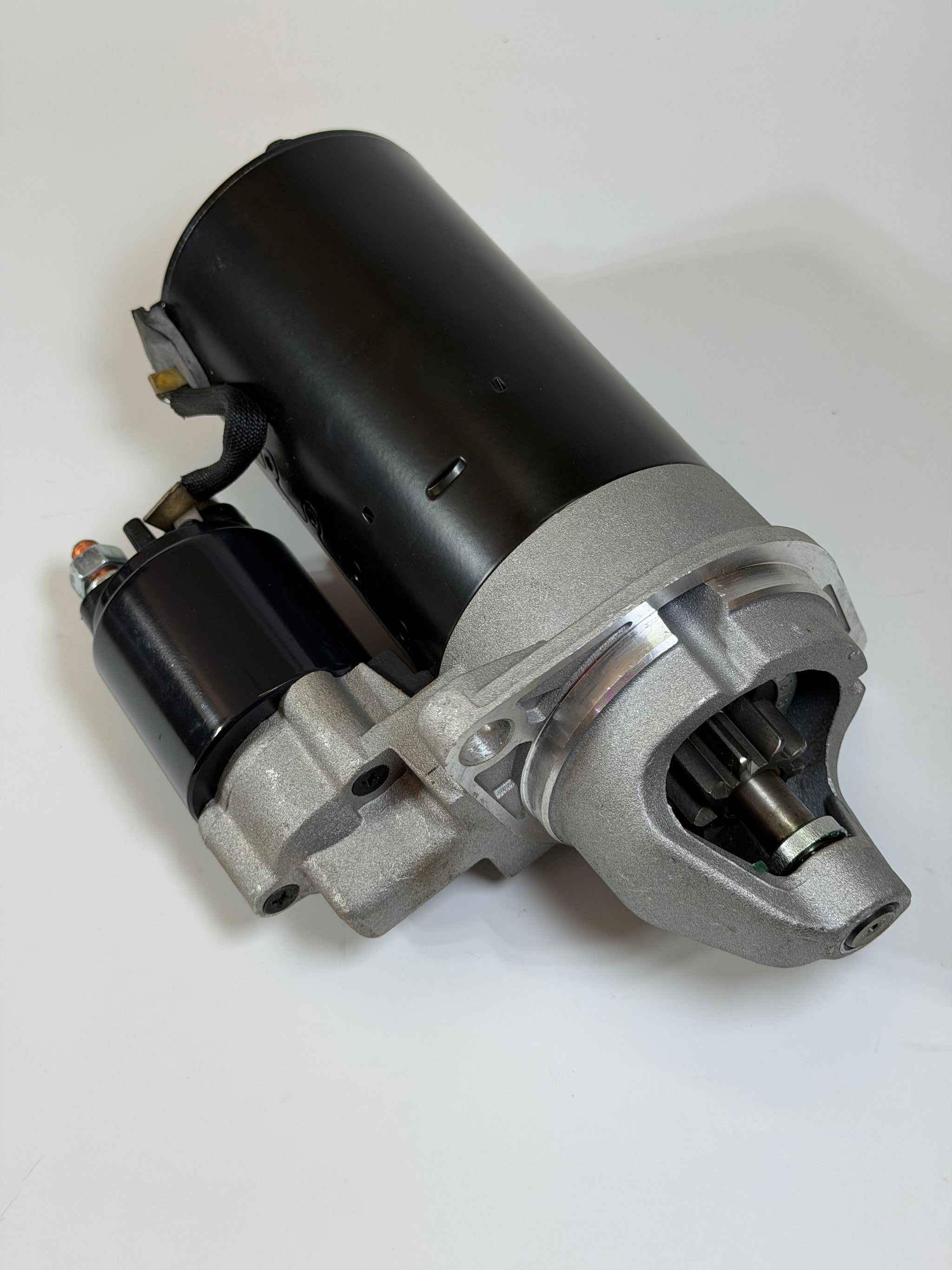

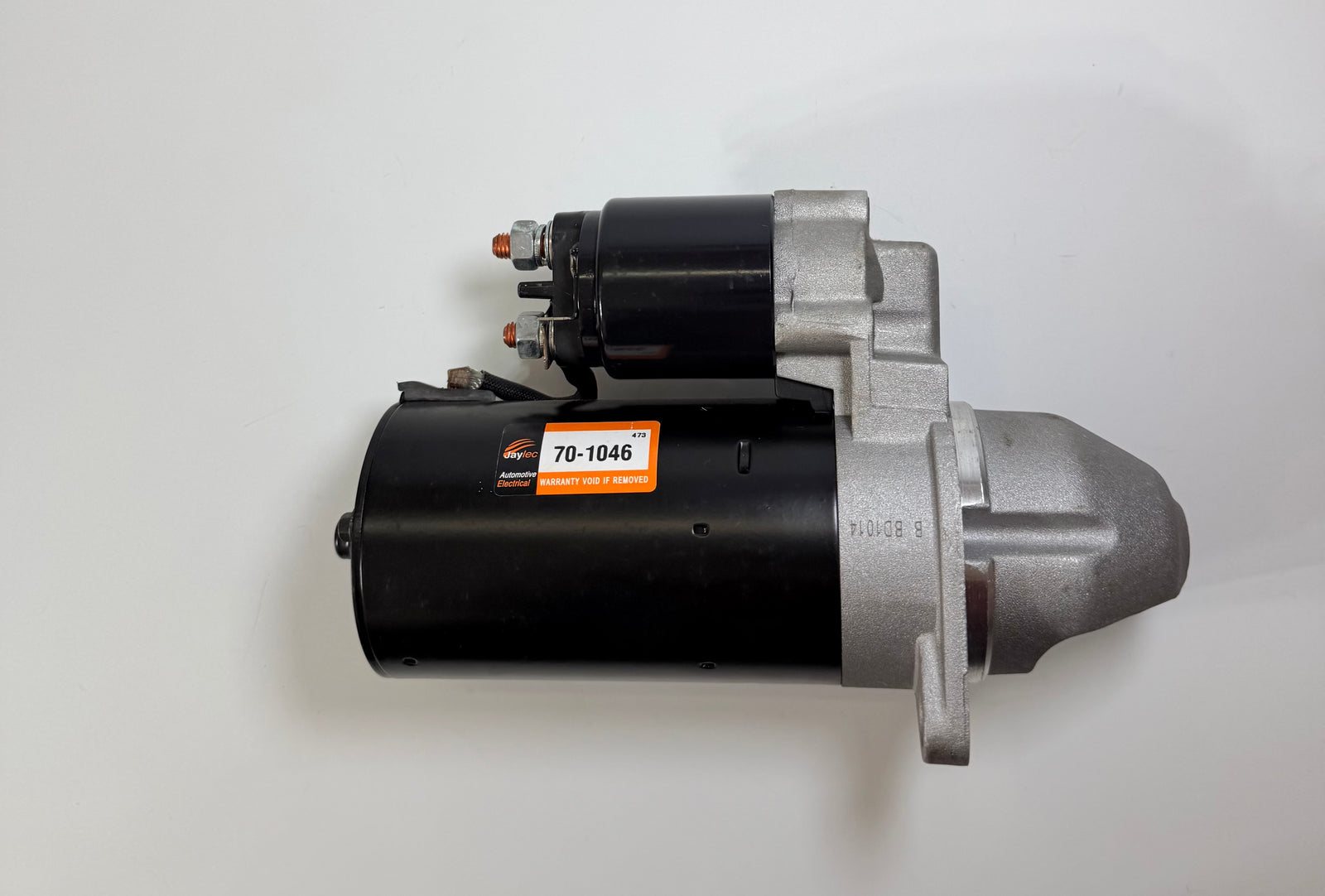

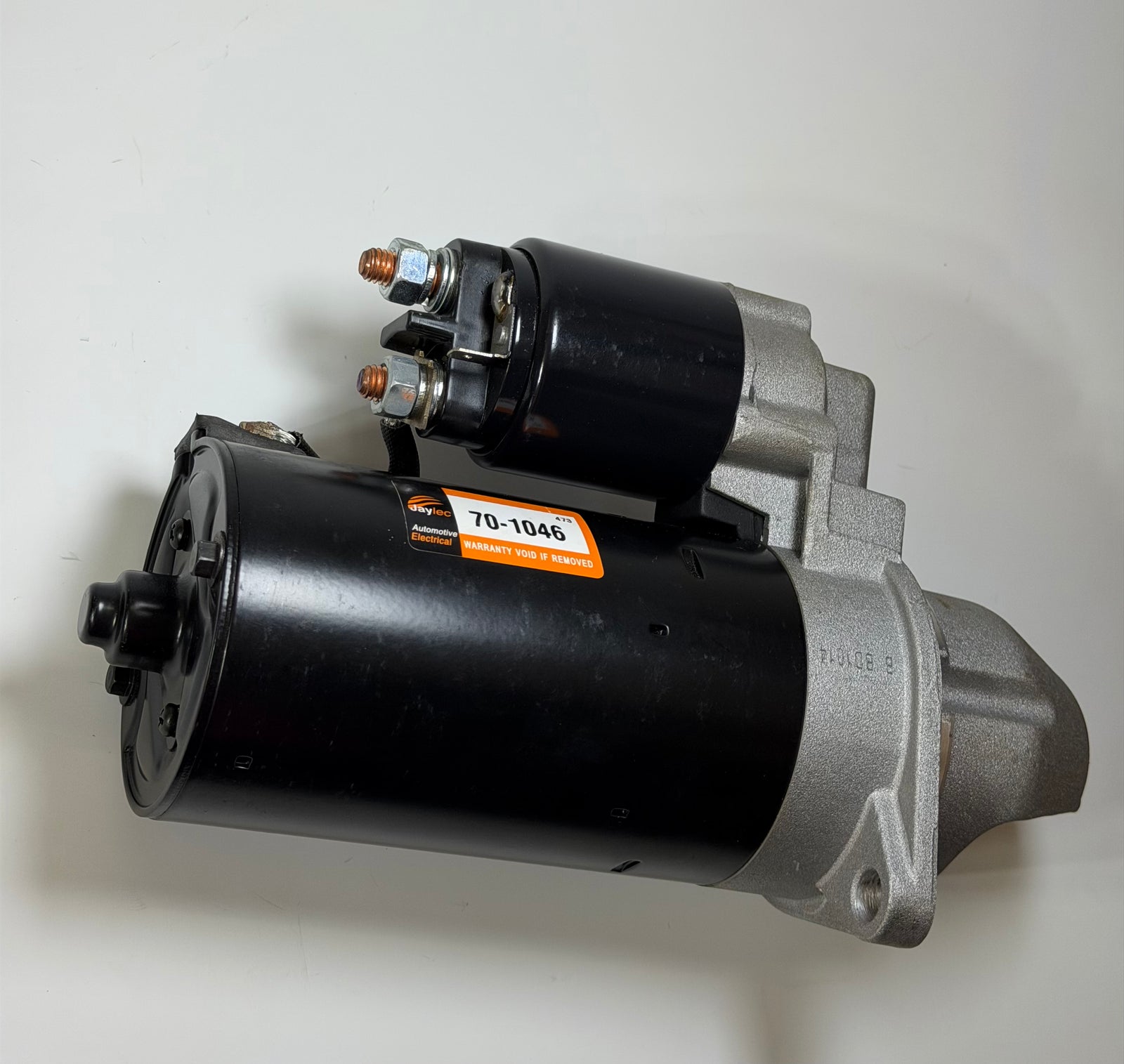

Jaylec 70-1046 Starter Motor 12V, 9 Tooth
- SKU
- P-JA-J-8427
$200.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 7.0 kg
Specifications
| Manufacturer | JAYLEC |
|---|---|
| Product type | AUTO ELECTRICAL |
| SKU | P-JA-J-8427 |
| Weight | 7.0 kg |
Description

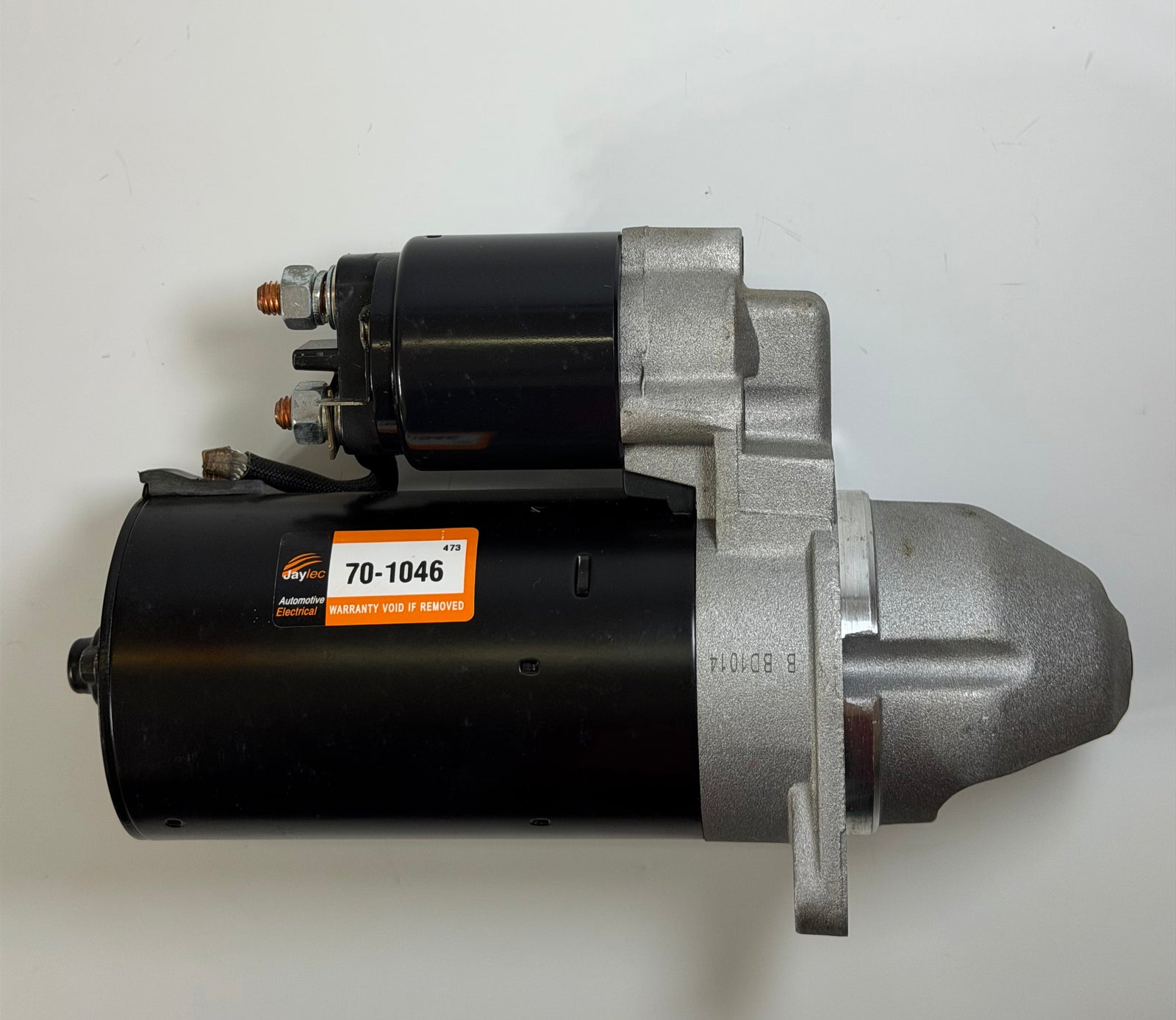

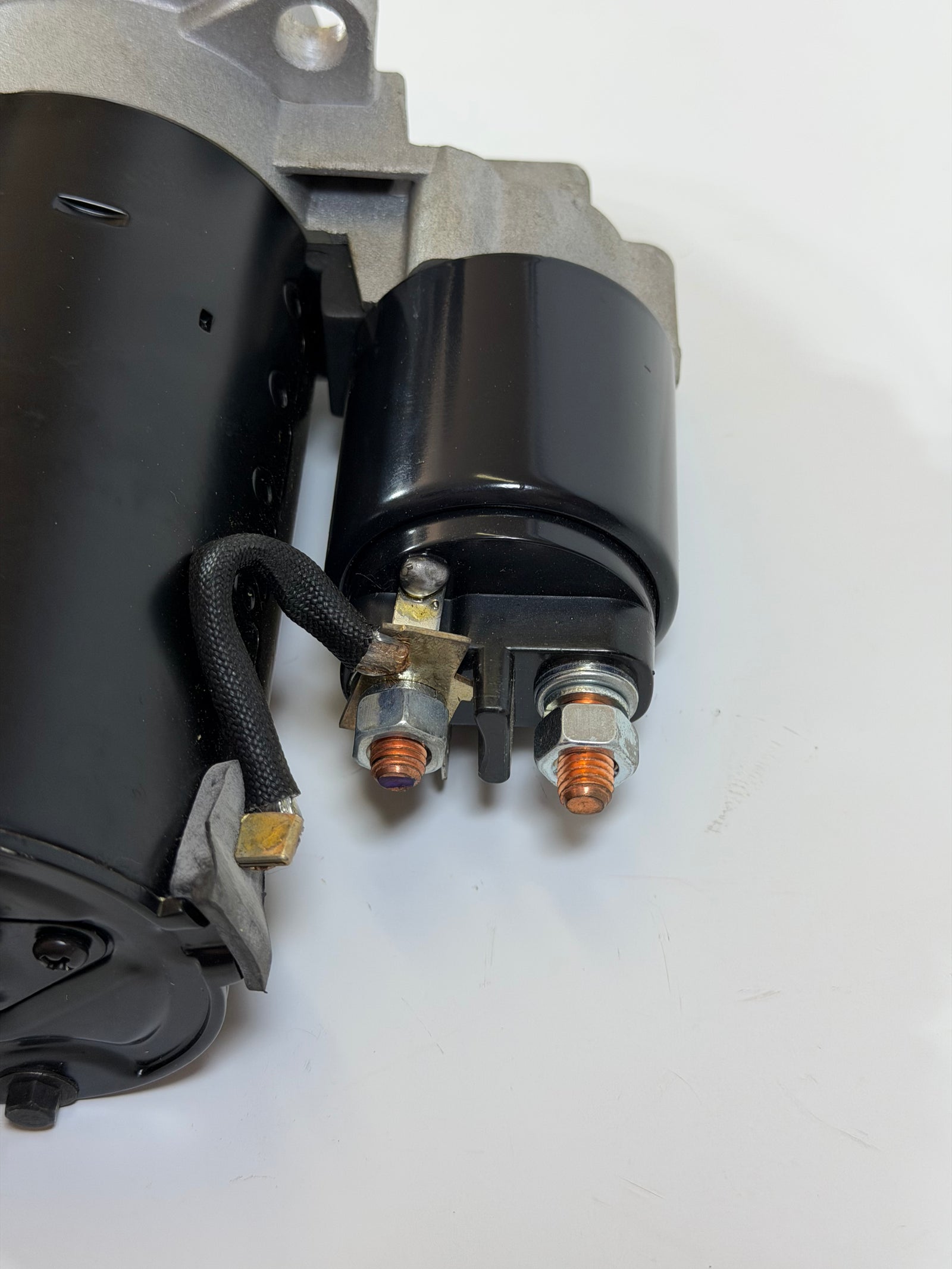

Jaylec 70-1046 starter motor, listed as 12V with 9 teeth, for the recorded Lombardini reference 58400890.
Recorded specifications — confirmation required
- Voltage: 12V
- Kilowatt: 1.7KW

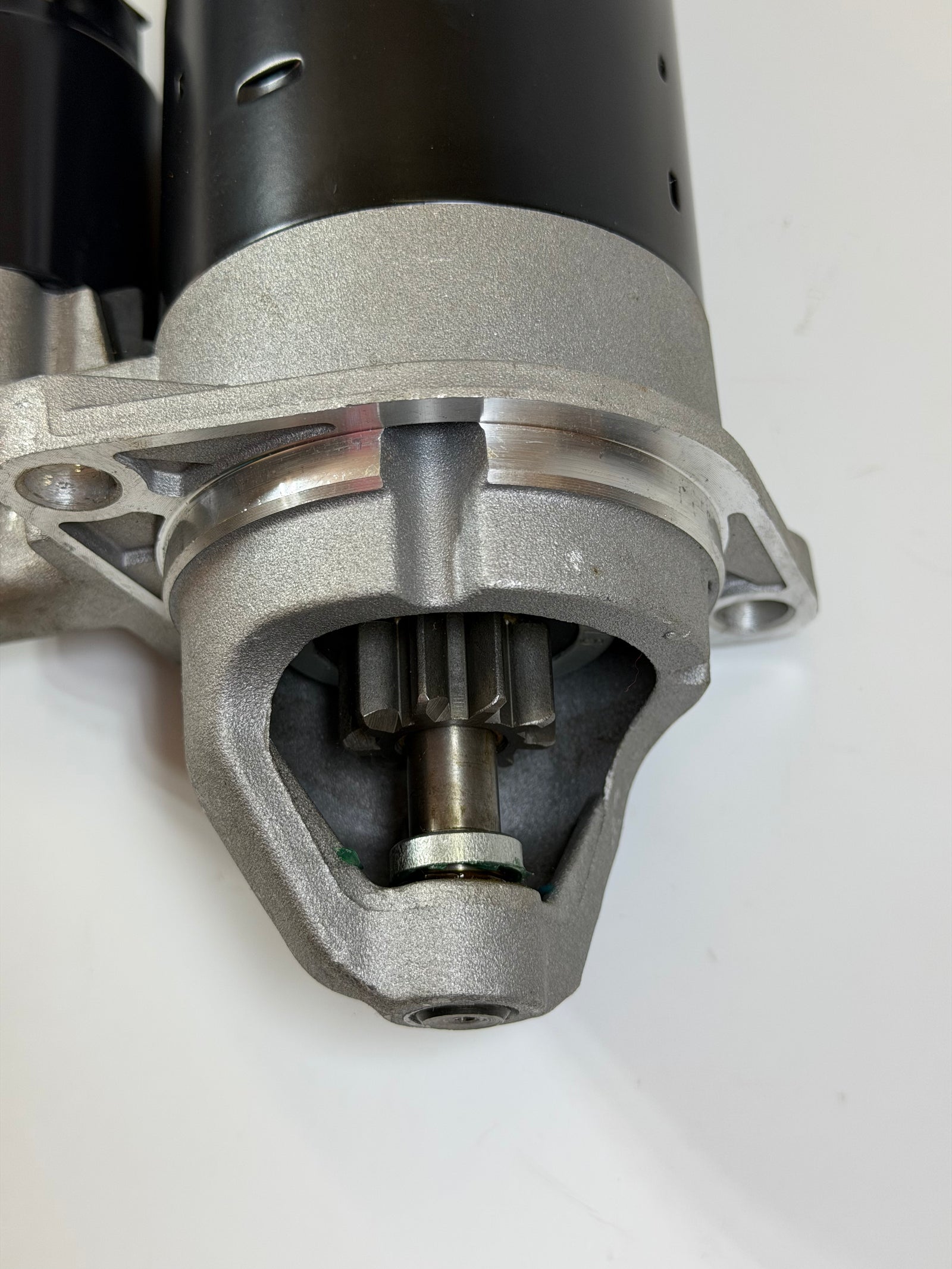

- Number of Teeth: 9
- Pinion Diameter: 29
- Rotation: CCW
- Pinion at Rest: 27
- Flange Diameter: 76
- Mount Hole - Center to Center: 105
- Mount Hole Diameter: 2 X 11
- Overall Length: 250
- Ground: NEGATIVE
- Housing Index: FIXED
TO Suit Lombardini: 58400890
Power-rating discrepancy: the description records 1.7KW, while an existing tag records 1.8kw. Neither has been selected as the confirmed rating.
The source omits units for the dimensional figures and does not specify the viewing direction for CCW rotation. Confirm the rating, dimensional units, rotation convention, mounting arrangement and application against the original starter before purchase. Confirm condition and included items.
