BIJUR DELIMON
Bijur Delimon M2500C4G Divider Valve Assembly — M2500G-20SP
- SKU
- P-MC-B-8341
$500.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | BIJUR DELIMON |
|---|---|
| Product type | VALVES |
| SKU | P-MC-B-8341 |
| Weight | 5.0 kg |
Description

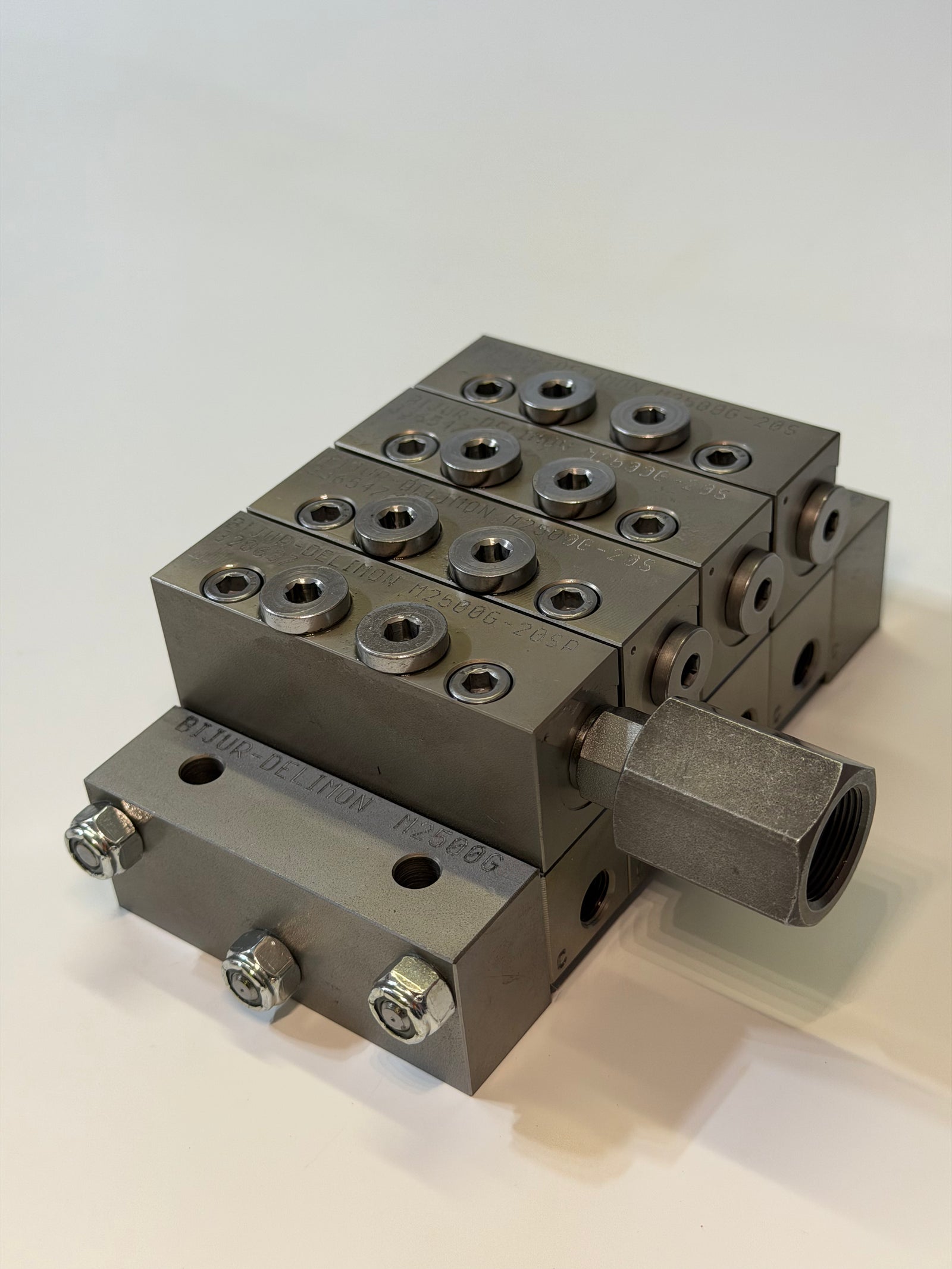

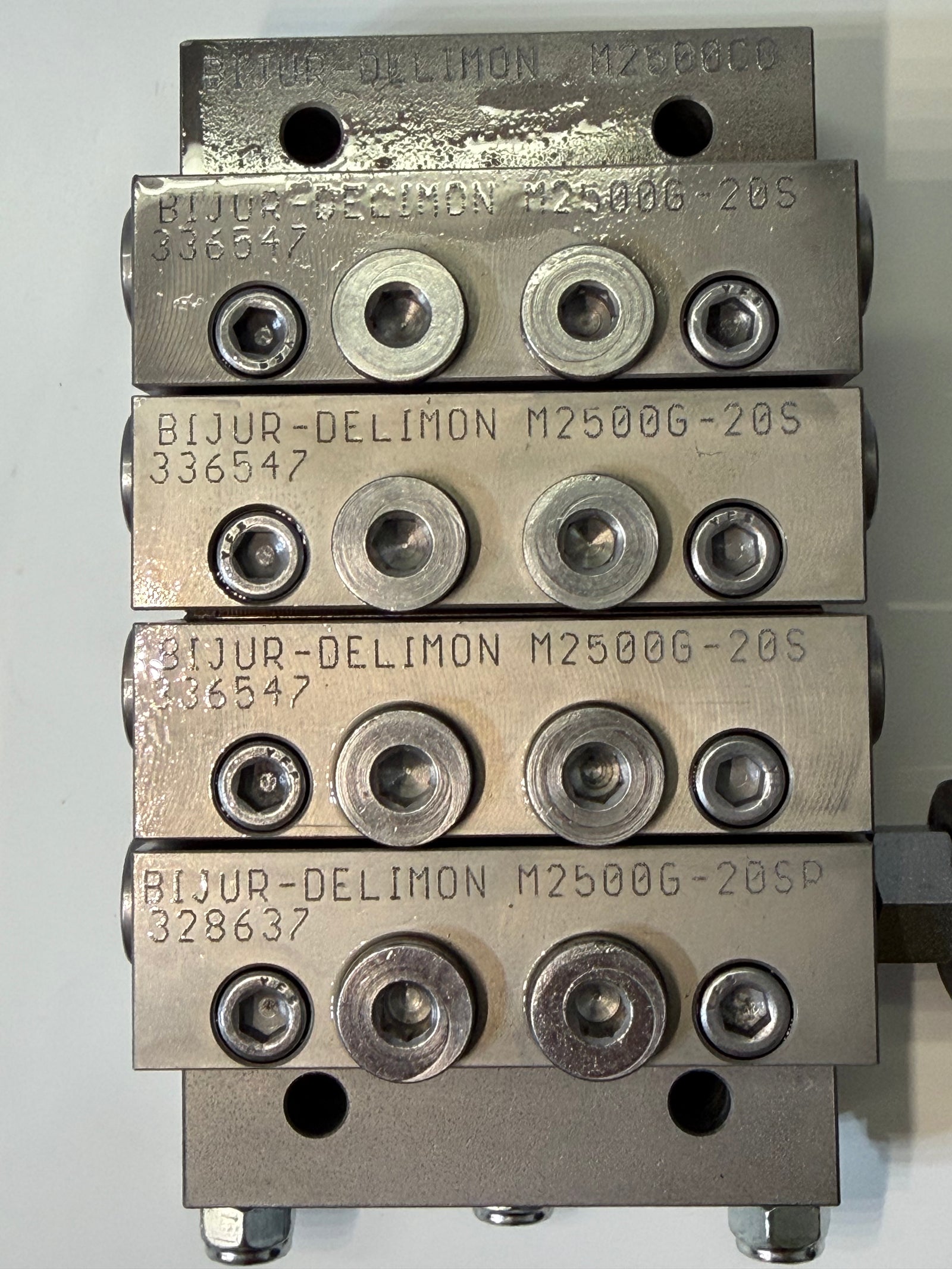

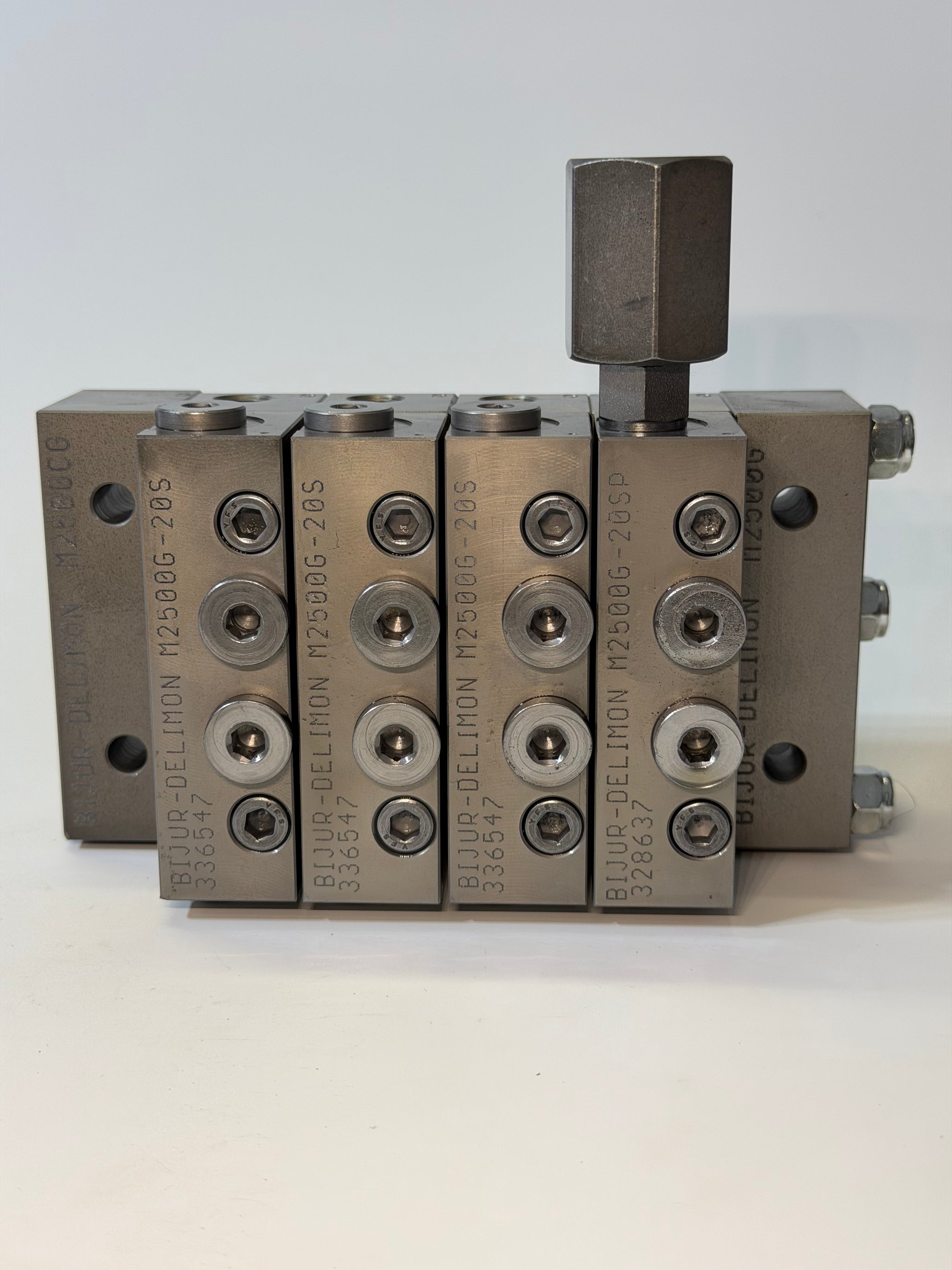

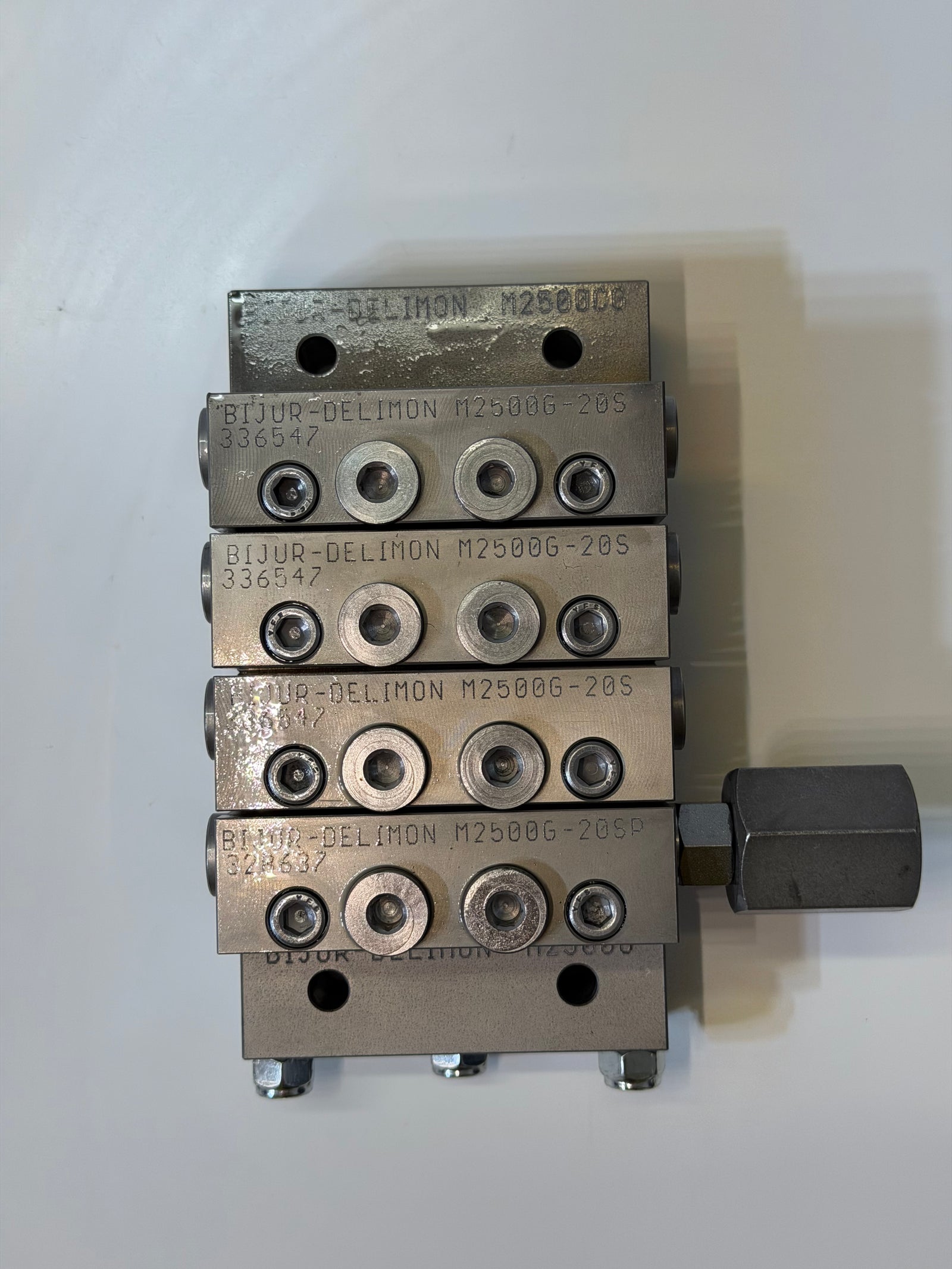

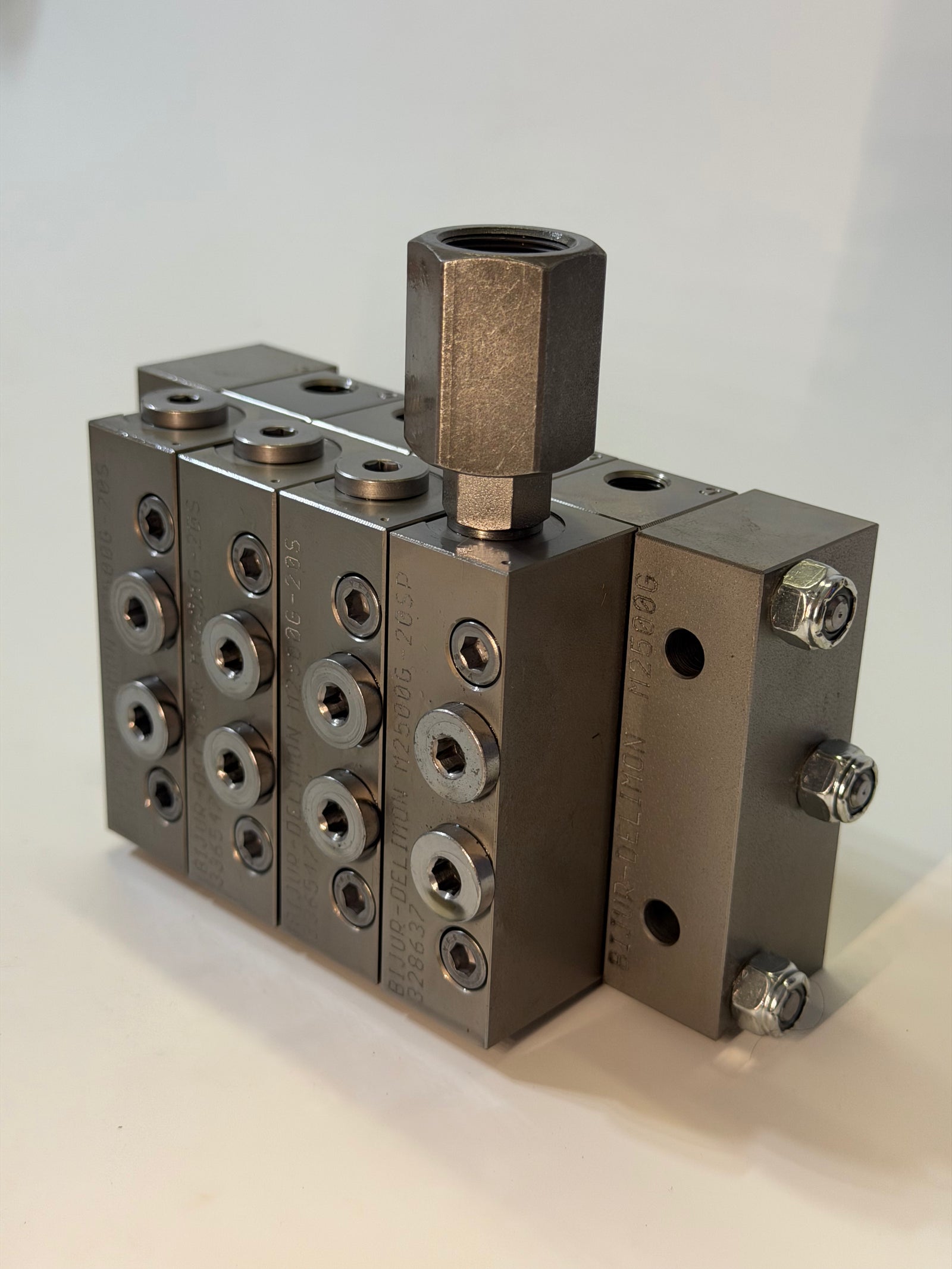

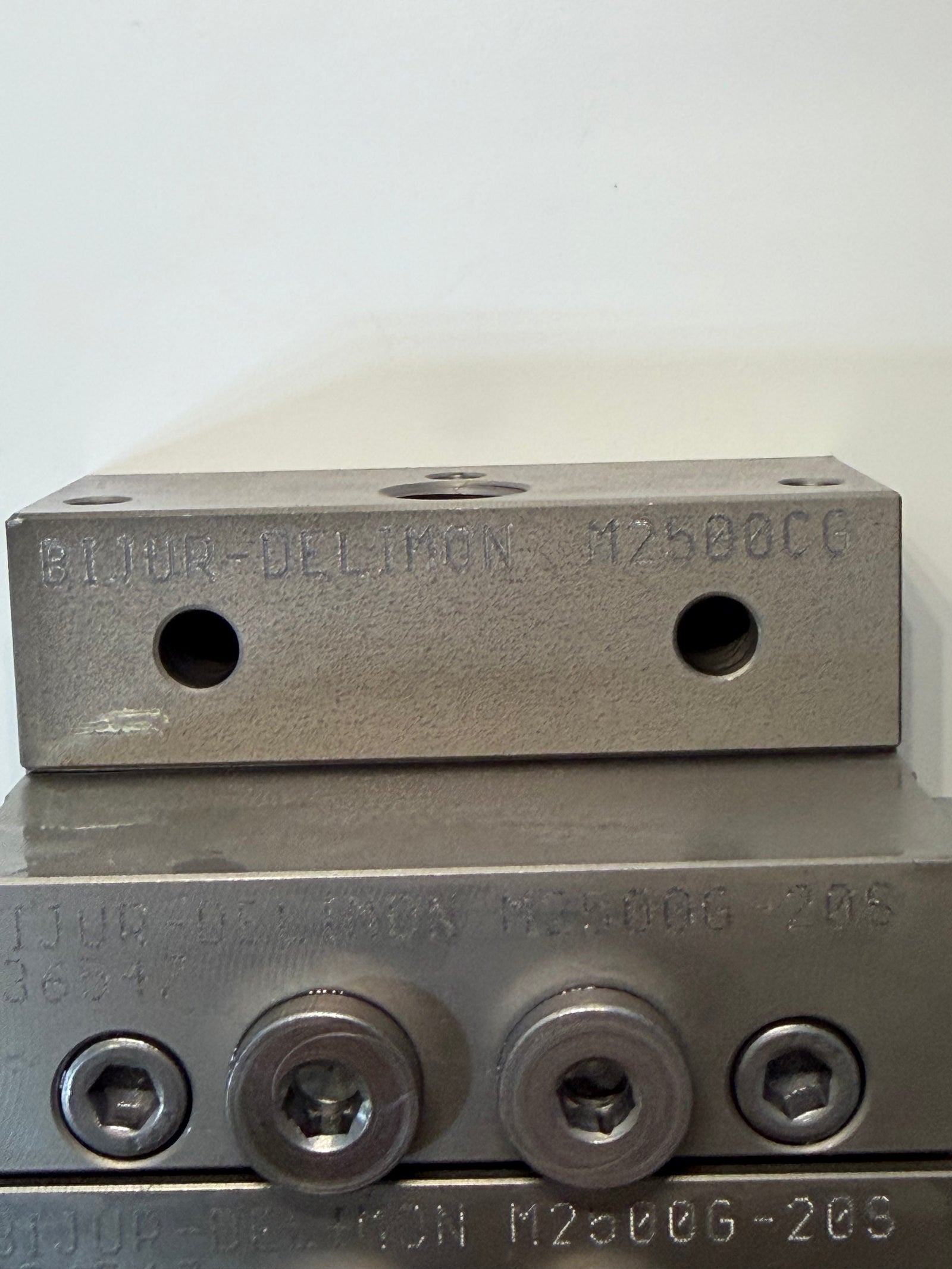

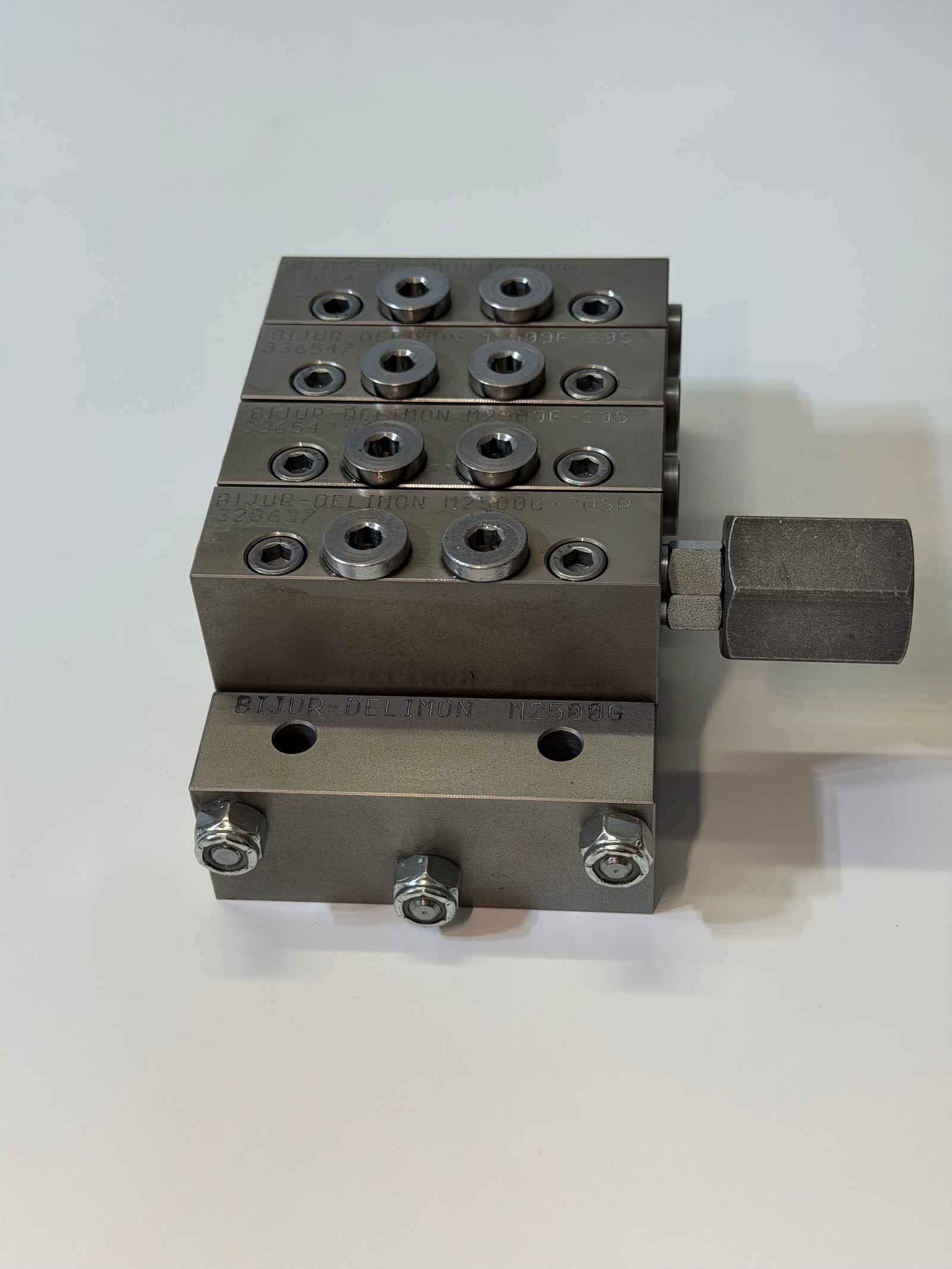

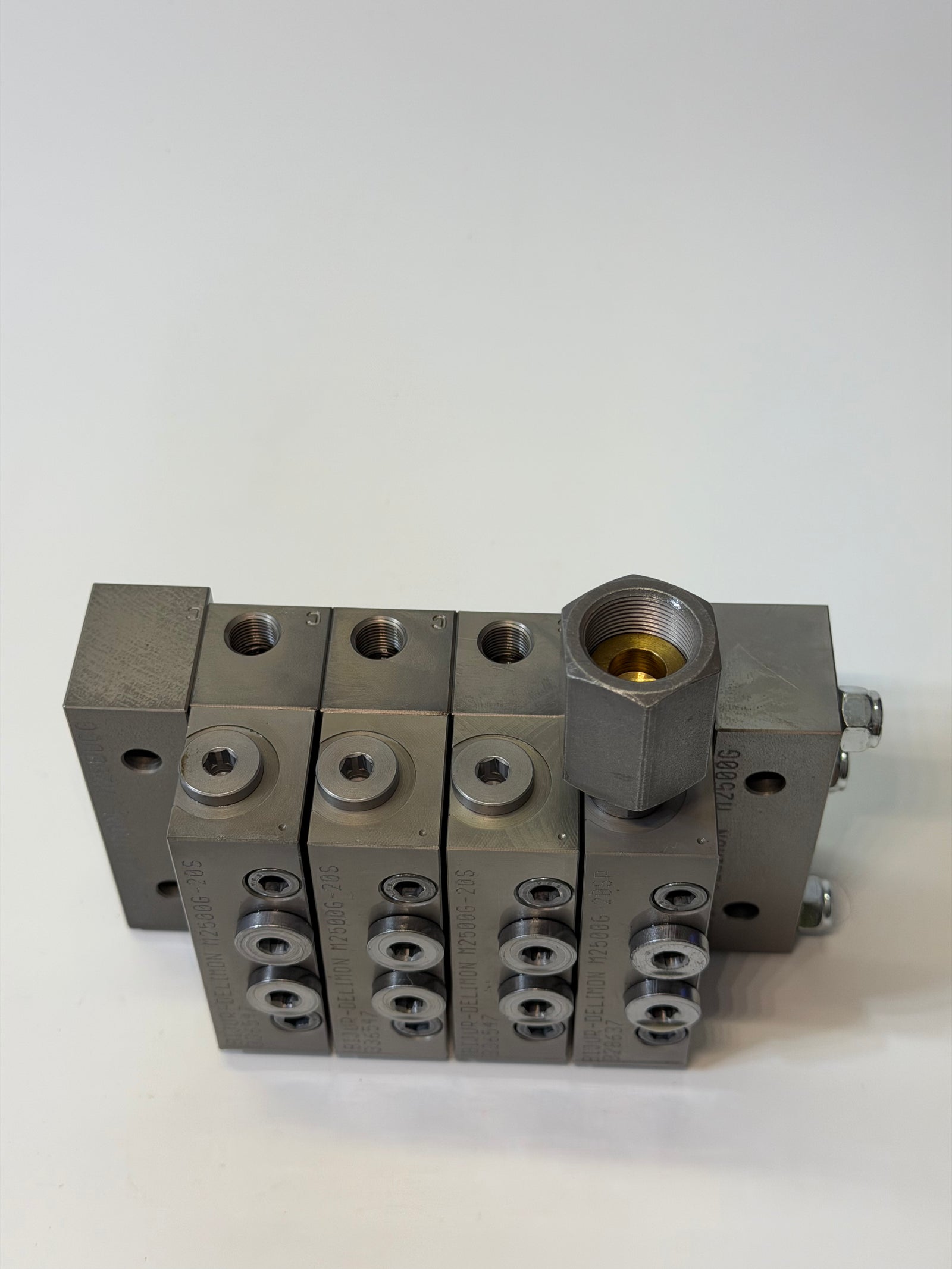

Bijur Delimon M2500C4G progressive divider valve assembly, also listed as M2500G-20SP. Additional existing catalogue reference: 336547; M2500G series.
Existing specification record
| Lubricant | OIL/GREASE |
|---|---|
| Viscosity Range | OIL TO GREASE NLGI #2 |
| Outlet Thread | 1/8BSPP |
| Inlet Thread | 1/4BSPP |
| Operating Temperature Range F | MAX 350°F |
| Operating Temperature Range C | 163°C MAX |
| OUTPUT VOLUME | 0.08cc-1.31cc |
| Max Pressure PSI | 5800 |
| Max Pressure Bar | 400 |
| UM | EA |
| Material | STEEL |
| Finishing | ZINC-NICKEL PLATED |
The source temperature entries MAX 350°F and 163°C MAX are not equivalent. Confirm the correct limit for the actual assembly before use. The 0.08cc-1.31cc output entry is a range, not a confirmed per-outlet delivery for this configuration.
Match the complete assembly references, port arrangement and lubrication requirements before ordering. Outlet count, section arrangement and included fittings are not specified.
