6118035

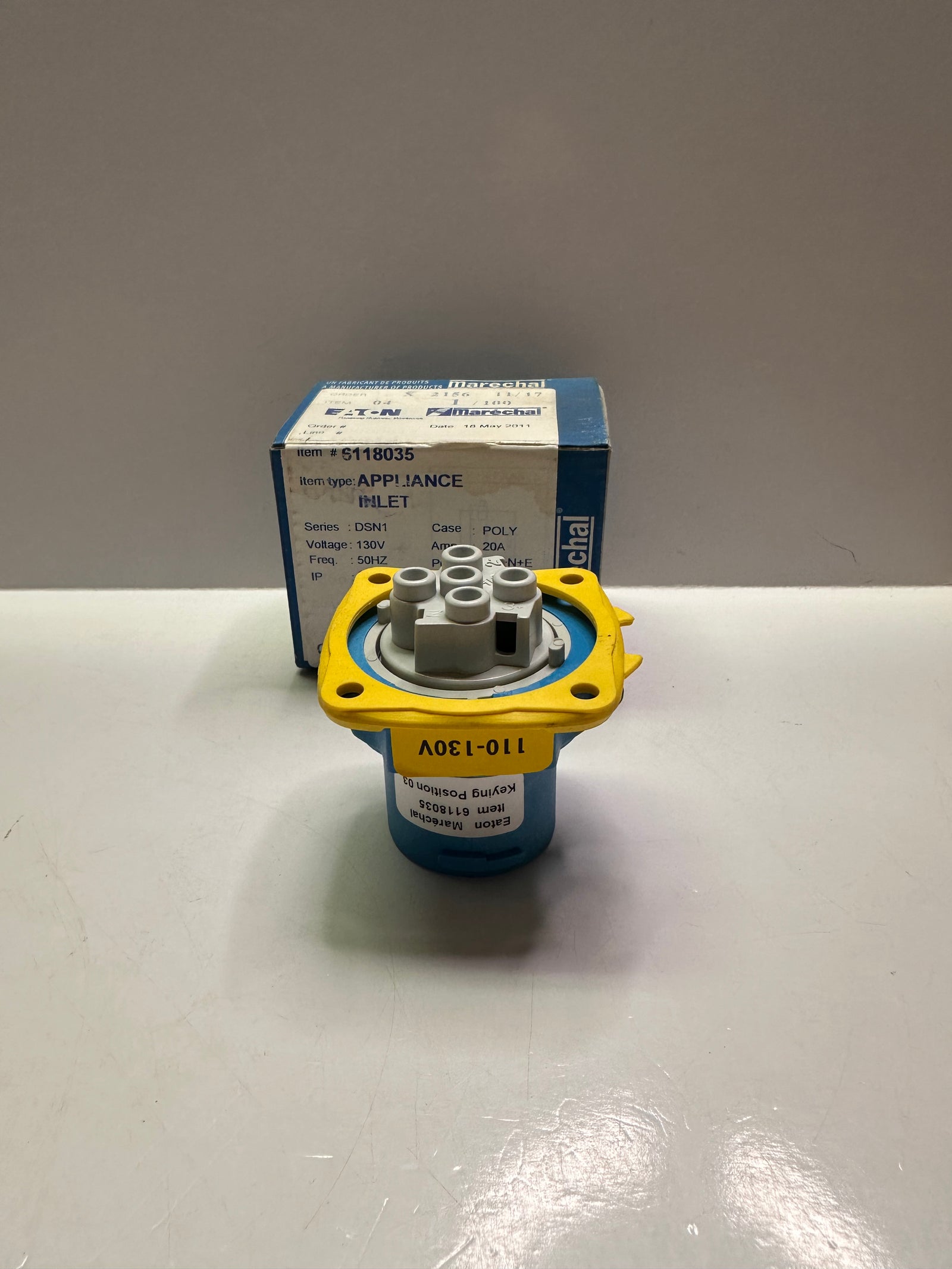

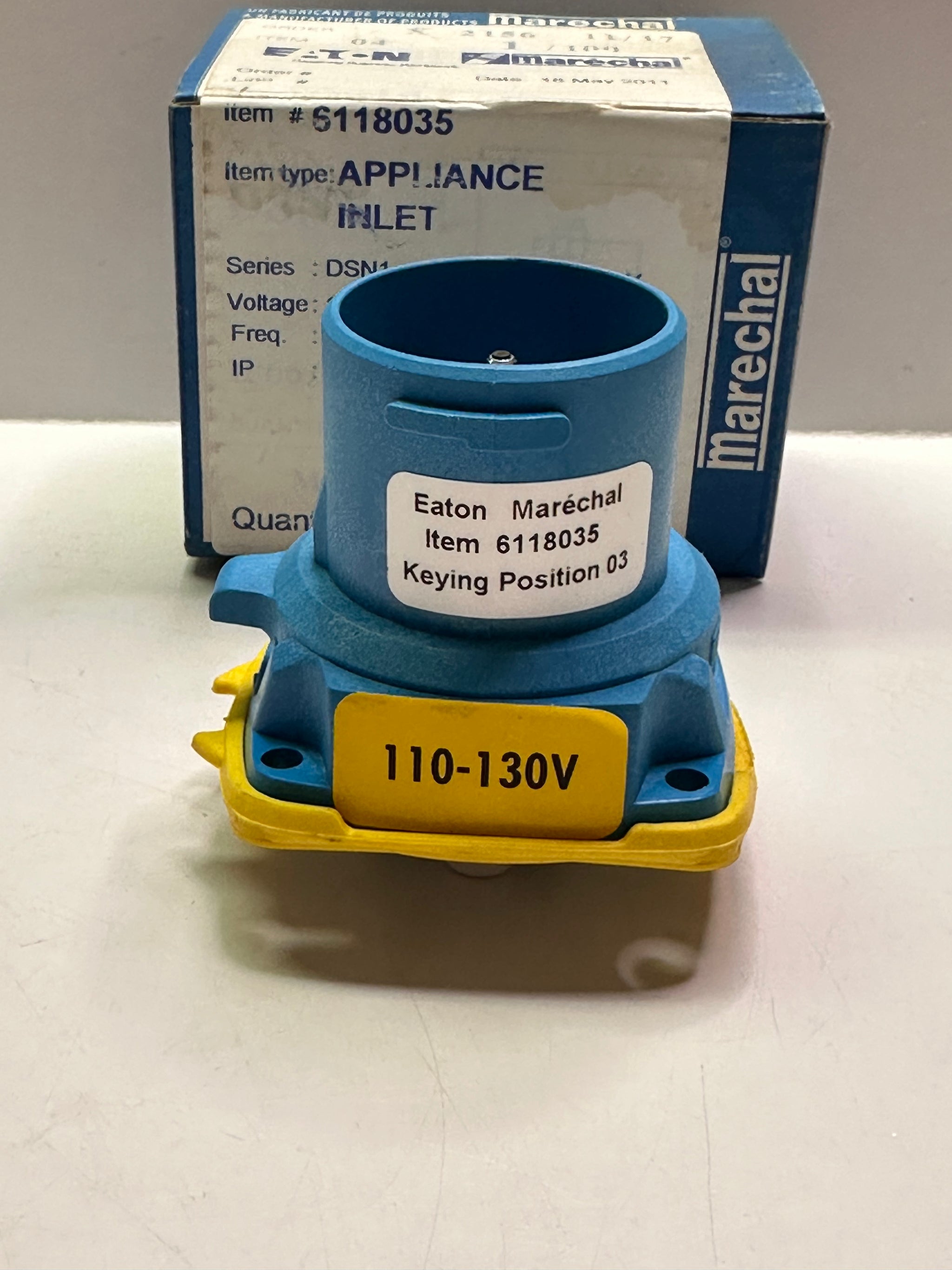

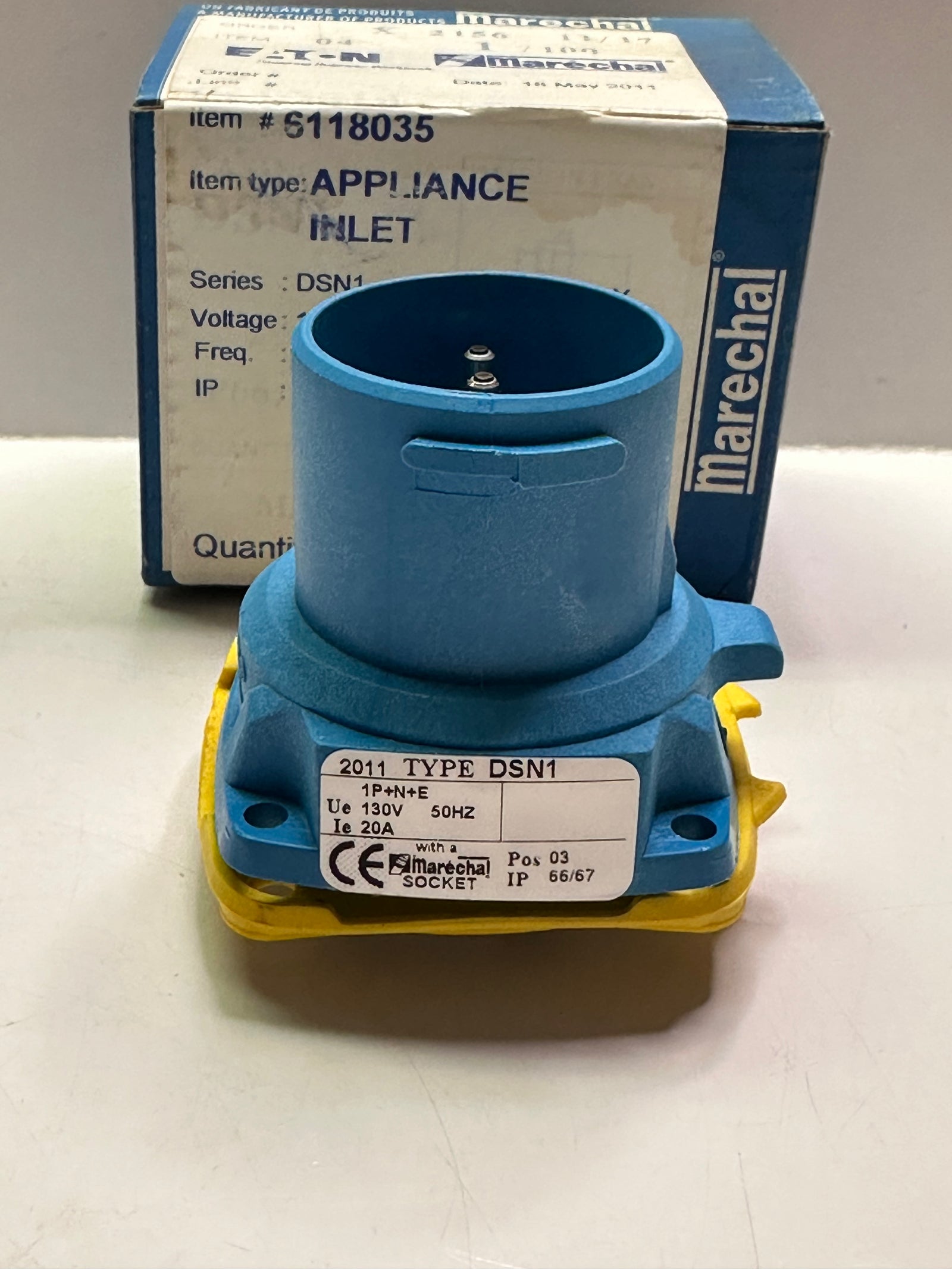

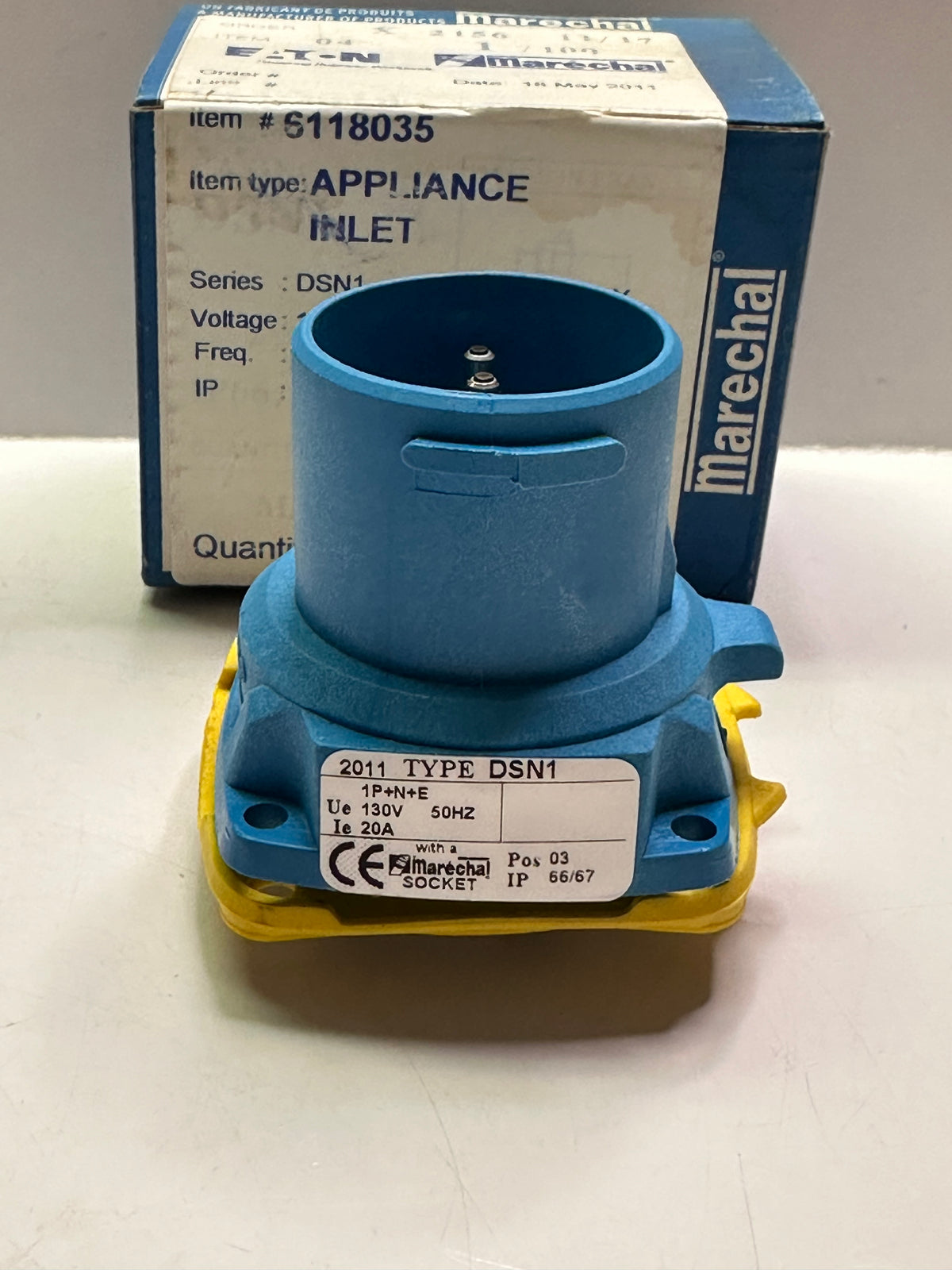

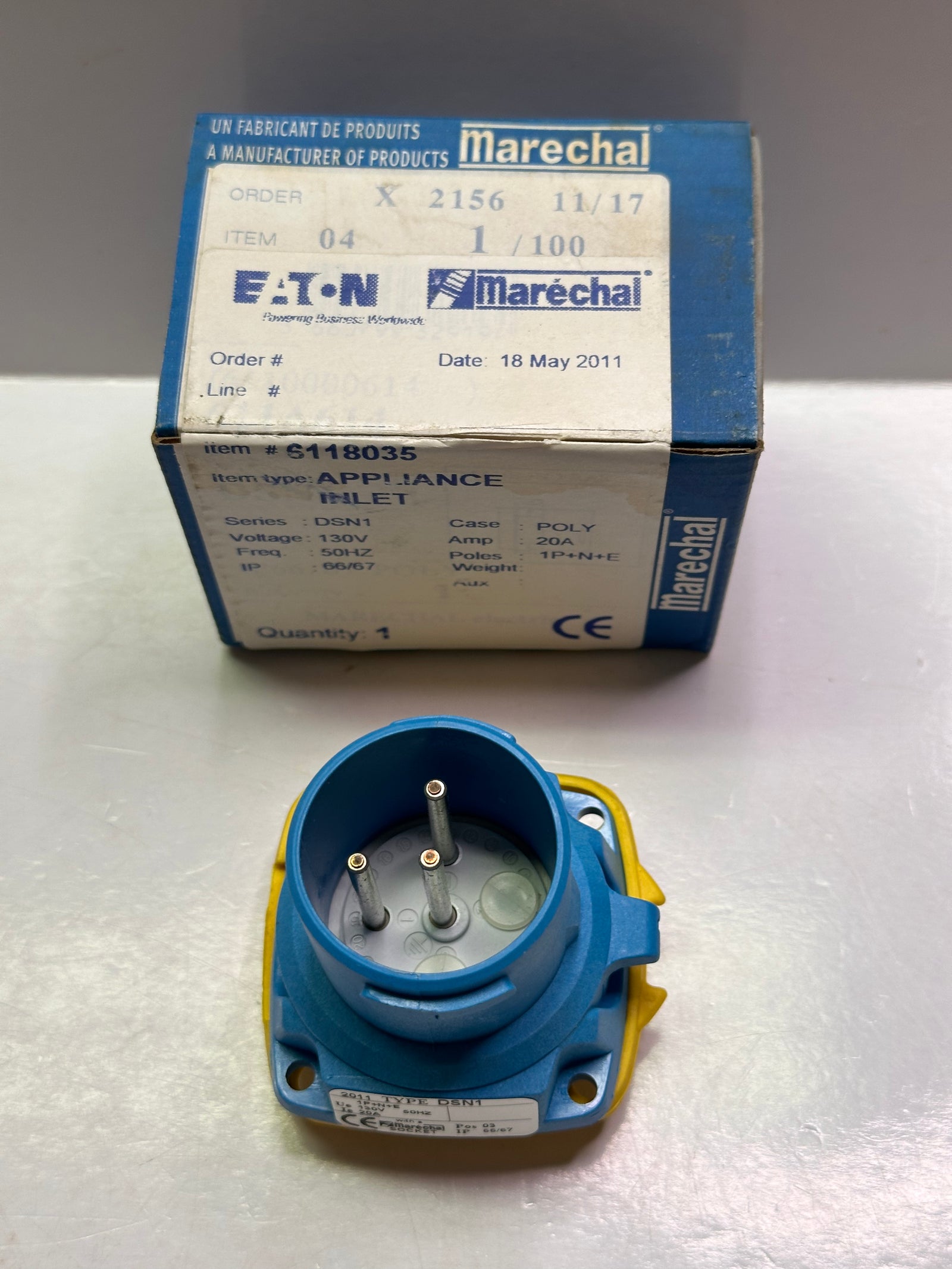

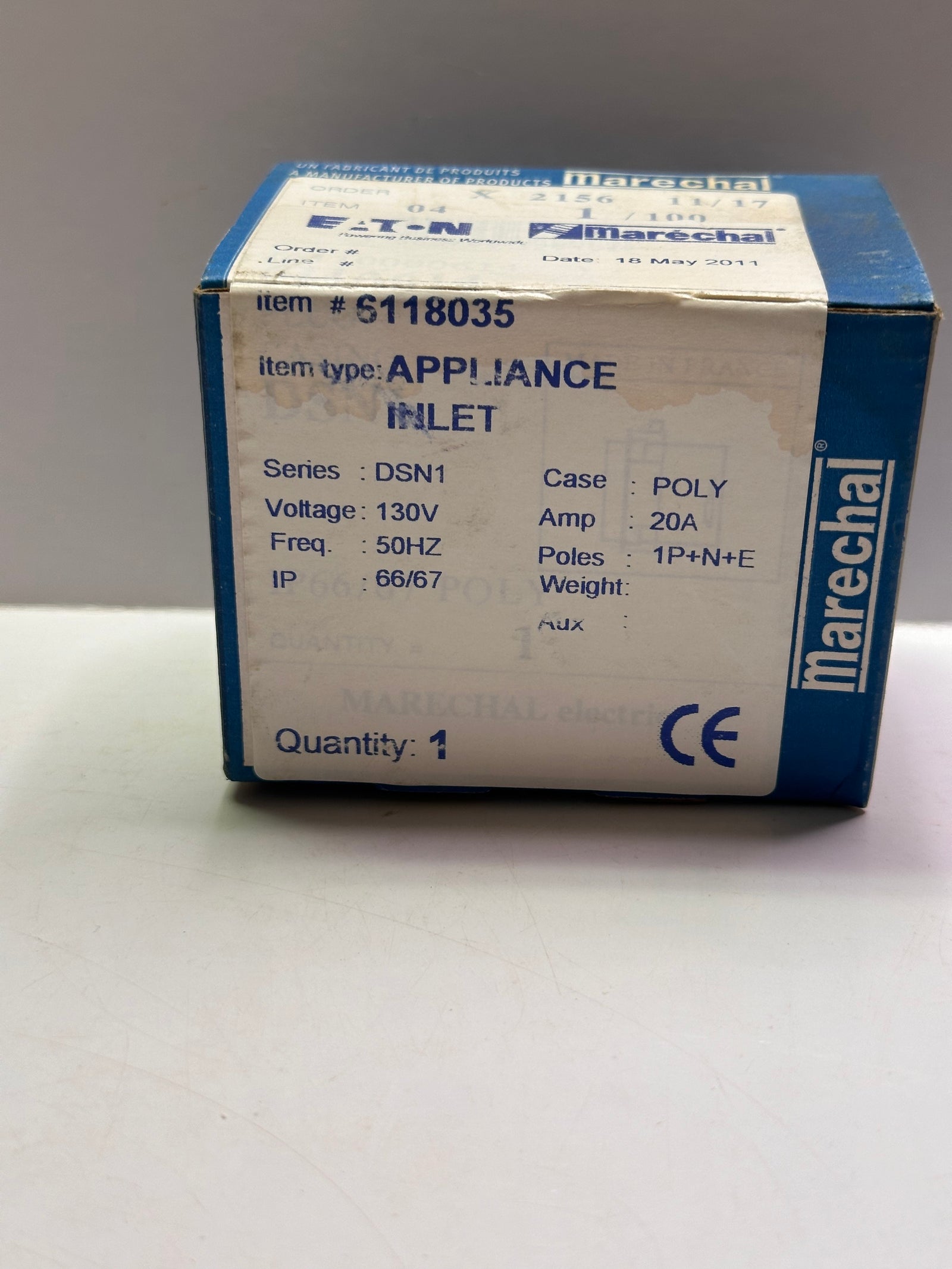

DECONTACTOR DSN1 INLET POLY BLUE SIZE.1 IP66/67/69 1P+N+E 20A 130V AC
| RATED CURRENT (A) | 20 | 20 |
| PHASING | 1P+N+E | 1P+N+E |
| MIN. RATED VOLTAGE (V) | 110 | 110 |
| MAX. RATED VOLTAGE (V) | 130 | 130 |
| IP RATING | IP66/67/69 | IP66/67/69 |
| RATED VOLTAGE (V) | 130 | 130 |
| FREQUENCY | AC | AC |
| MARKING | CE | CE |
| MATERIAL | POLY | POLY |
| PRODUCT COLOUR | BLUE | BLUE |
| IK | IK09 | IK09 |
| MIN. OPERATING TEMPERATURE (°C) | -40 | -40 |
| MAX. OPERATING TEMPERATURE (°C) | +60 | +60 |
| MIN. FLEXIBLE CONDUCTOR | 1MM2 | 1MM2 |
| MAX. FLEXIBLE CONDUCTOR | 2,5MM2 | 2,5MM2 |
| MIN. STRANDED CONDUCTOR | 1,5MM2 | 1,5MM2 |
| MAX. STRANDED CONDUCTOR | 4MM2 | 4MM2 |
| TYPE OF CONNECTION | TO SCREW | TO SCREW |
| N° OF KEYING POSITION | 23 | 23 |
| NOTCHES | 03 | 03 |
| COLOUR-CODED RING | YELLOW | YELLOW |
