ABSOPULSE ELECTRONICS
Absopulse MOX720-P4668E / MOX720P4668E DC Switching Power Supply
- SKU
- P-MO-A-8411
$3,500.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | ABSOPULSE ELECTRONICS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-MO-A-8411 |
| Weight | 5.0 kg |
Description

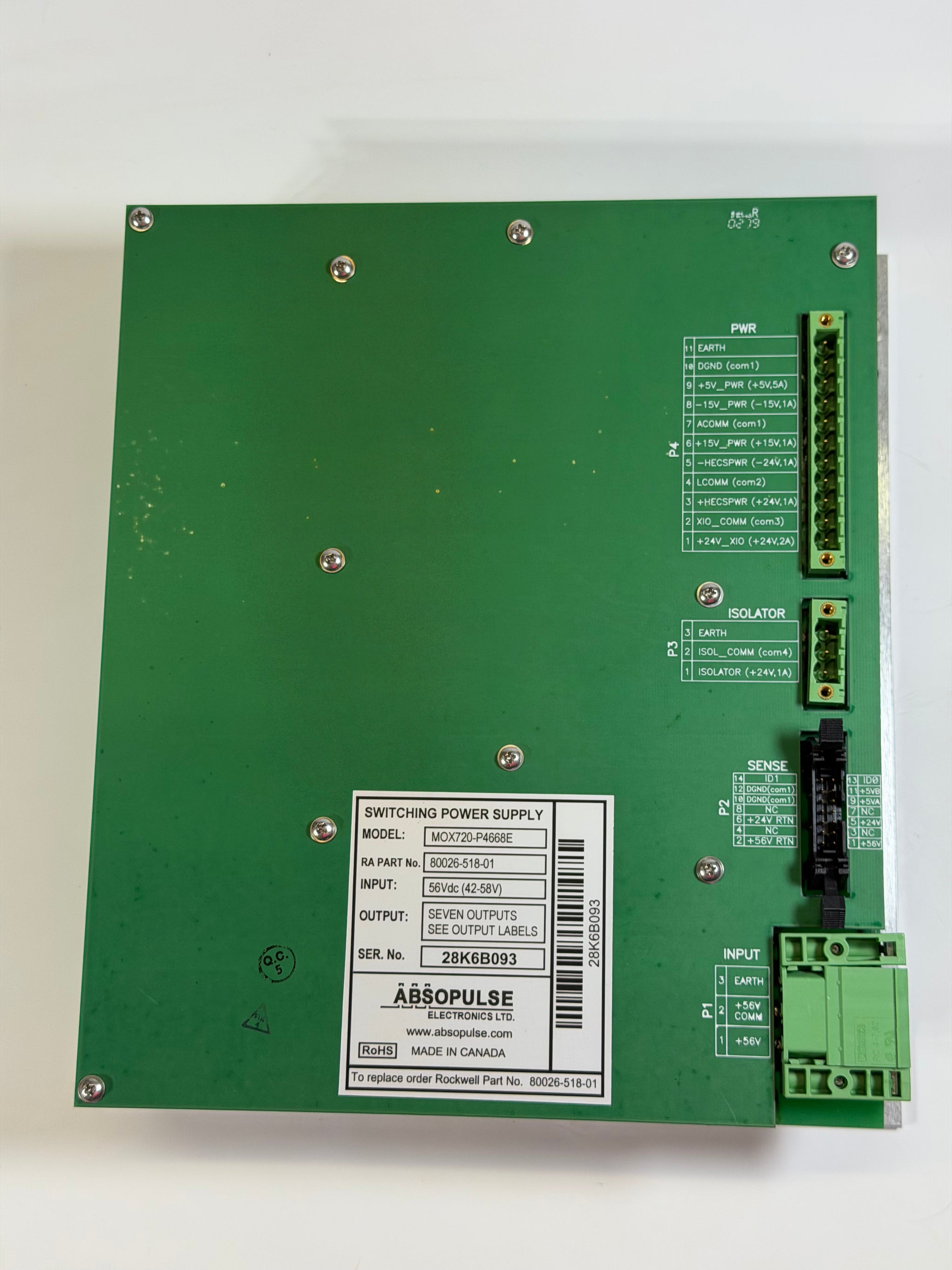

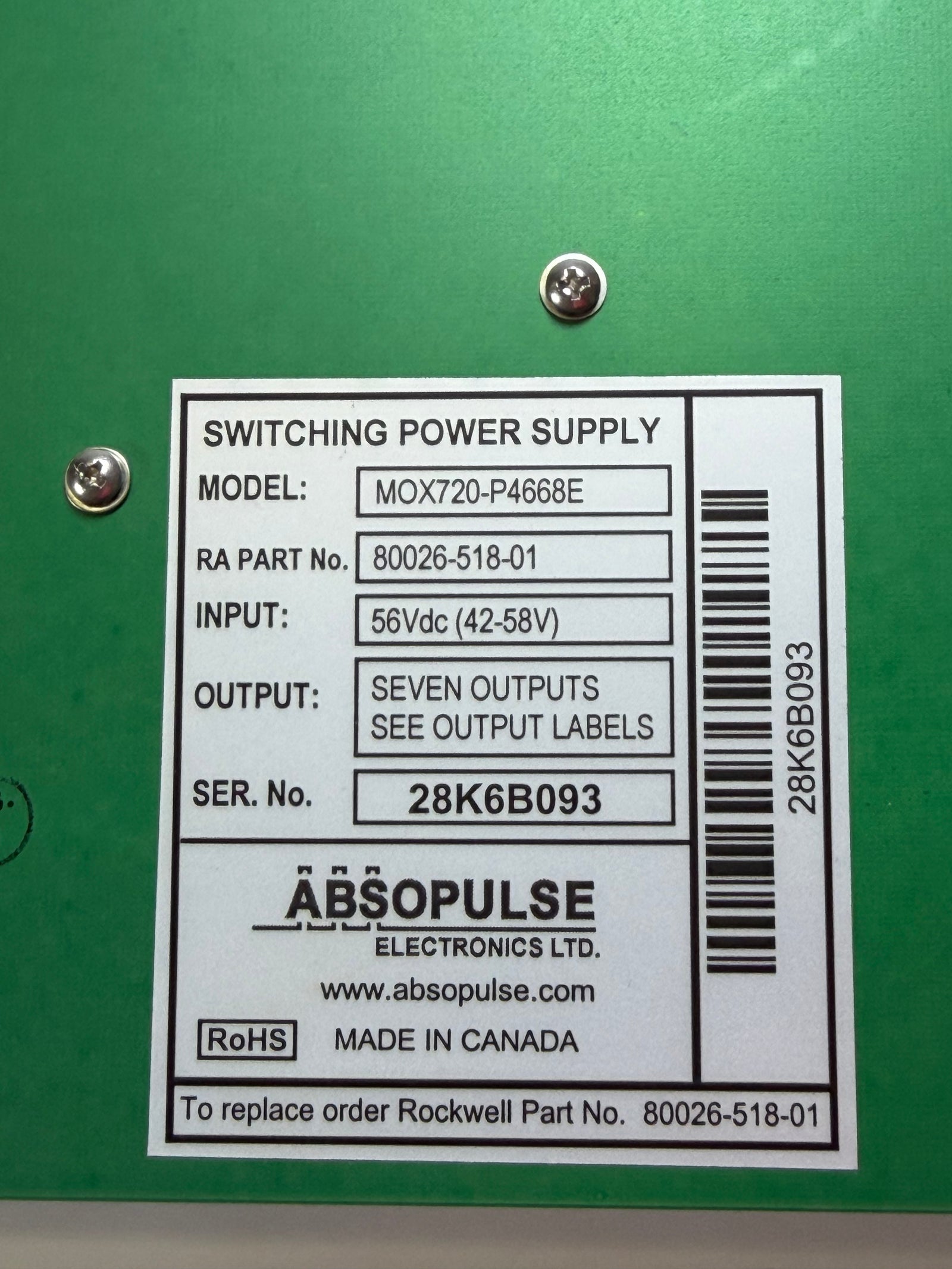

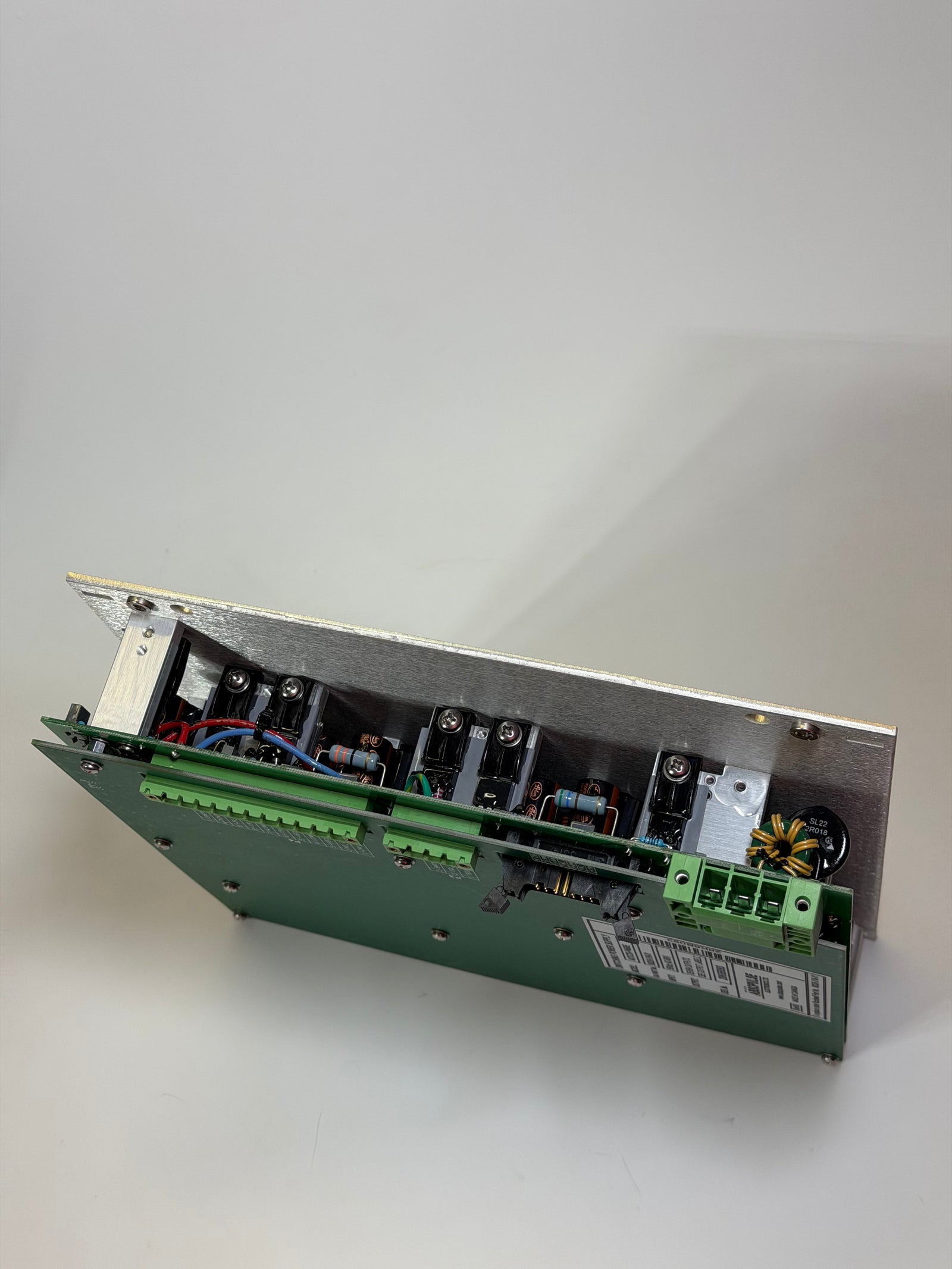

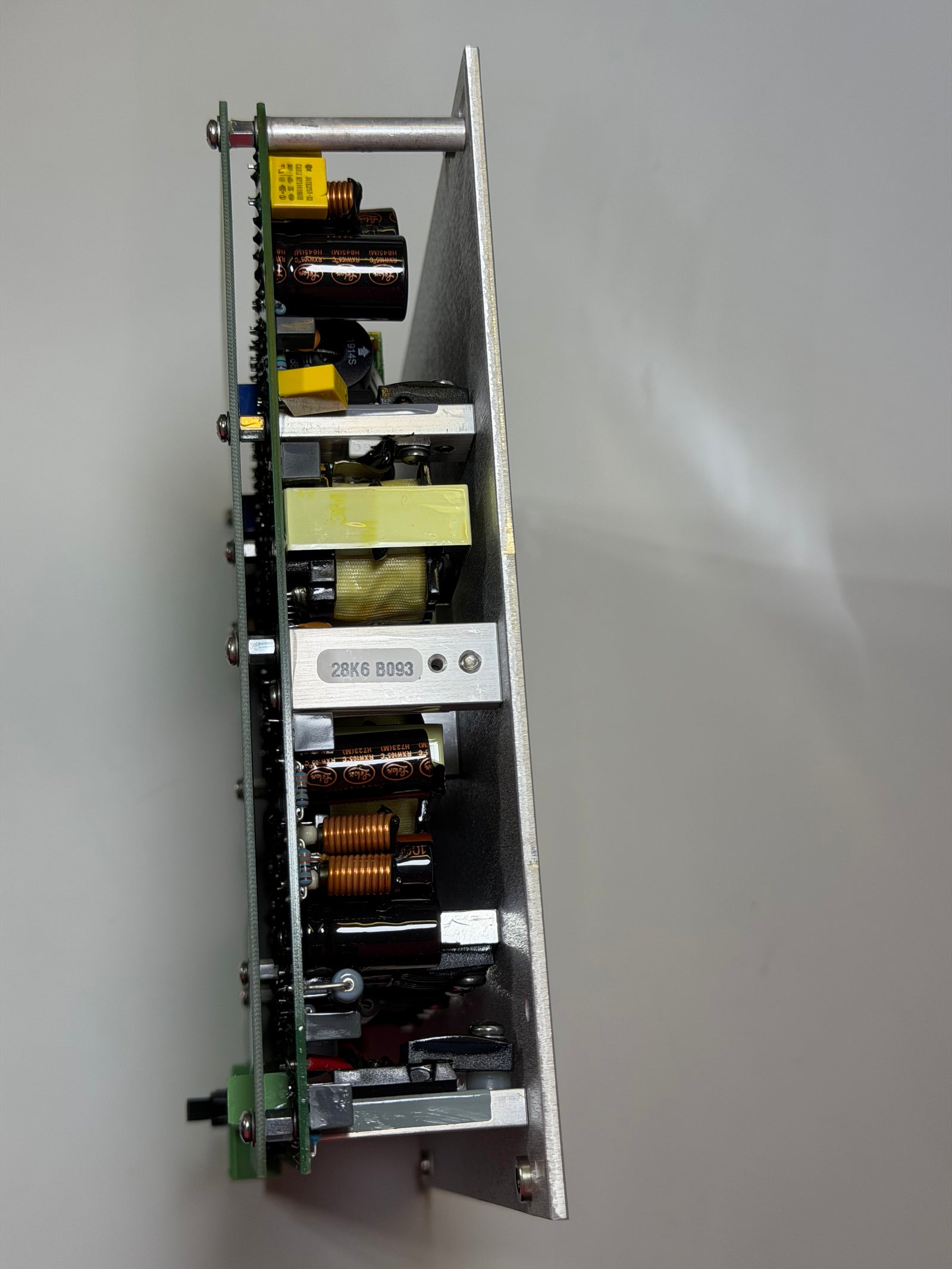

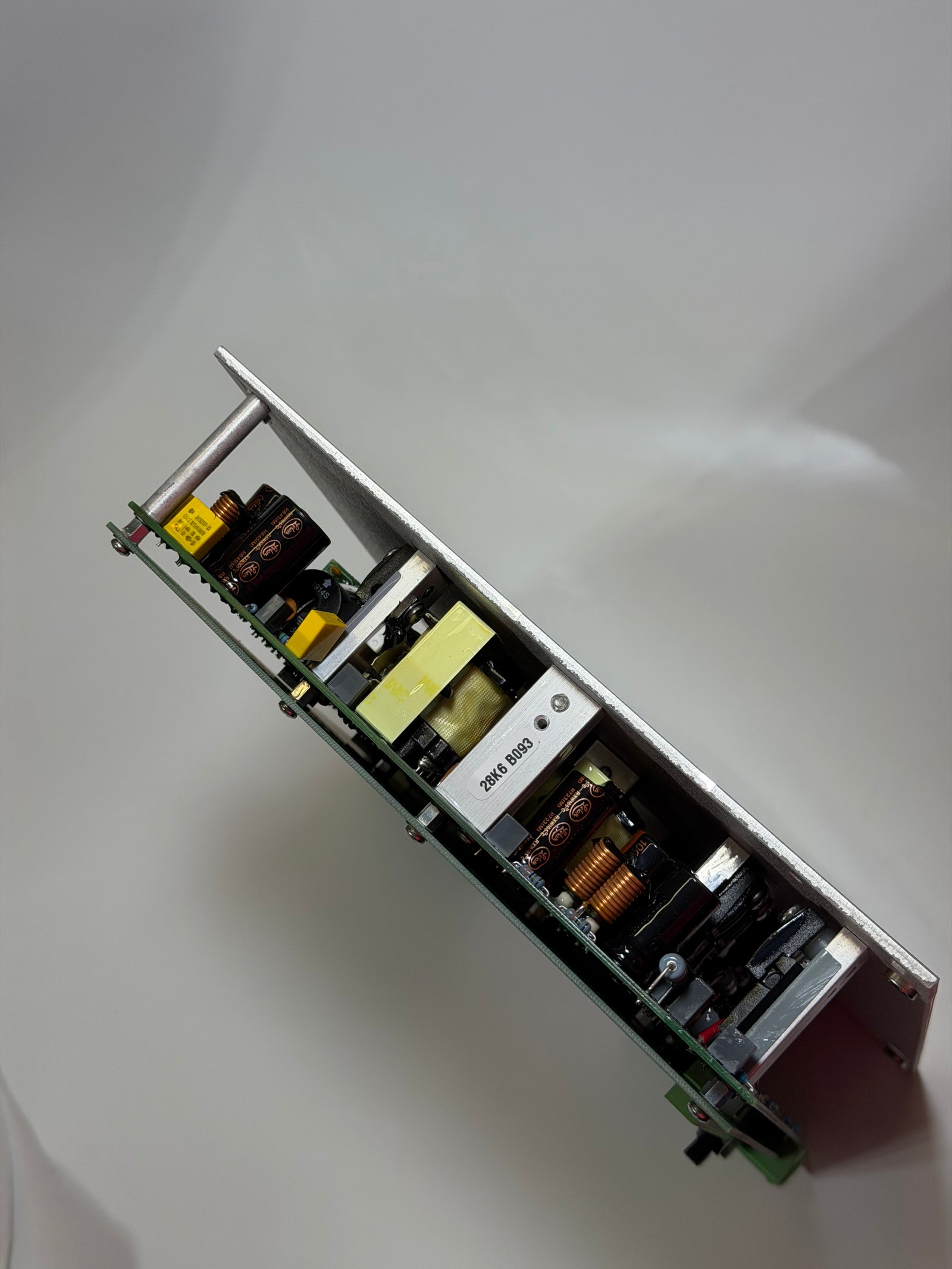

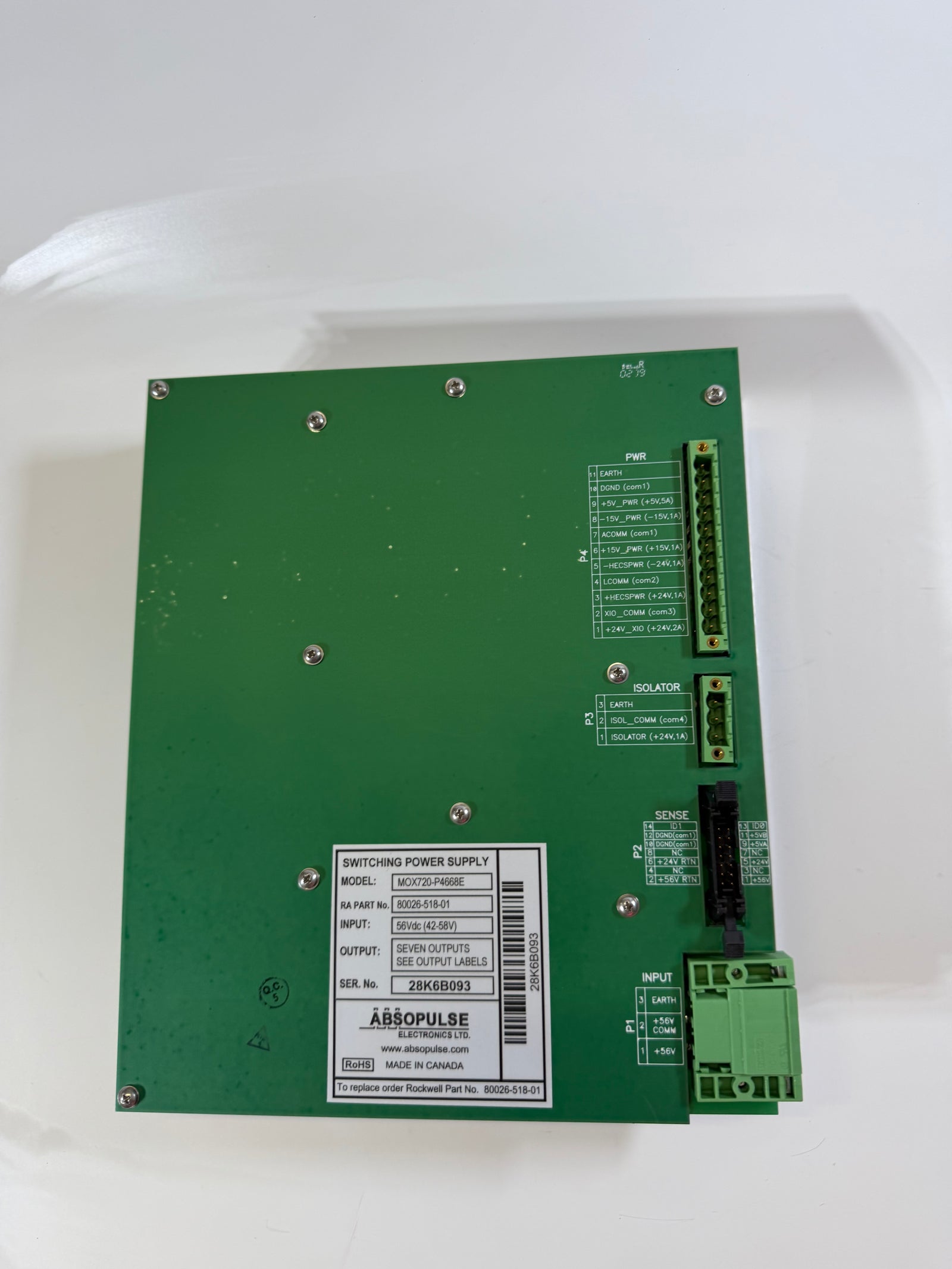

Absopulse Electronics MOX720-P4668E DC switching power supply, also recorded as MOX720P4668E.
Source electrical notes
- Input: 56 V DC
- Number of outputs: 7
- Listed output voltages: 5/15/24 V DC
- Listed output currents: 5/2/1 A
The source does not map these voltage/current figures to all seven outputs. Do not assume each output provides 5 A or infer a total output-power rating from this list.
Replacement references requiring confirmation
The title describes a replacement for 80026-518-01; the source also lists 80026-518-01-R. Allen-Bradley, Rockwell Automation and POWERFLEX appear in source tags, without a specific supported drive/revision. Confirm compatibility, pinout and the complete output schedule before purchase.
The source marks MOX720P4668E as discontinued by manufacturer; current availability or support status has not been independently checked.
