SPORLAN

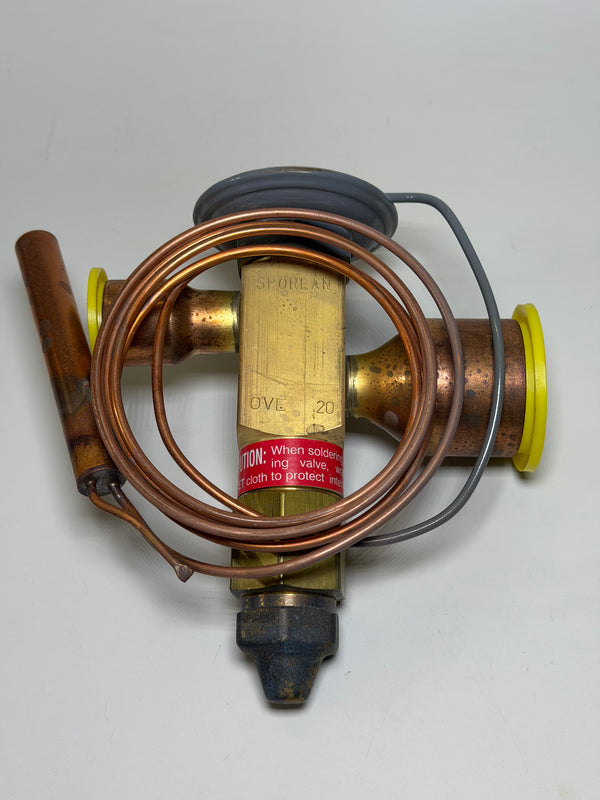

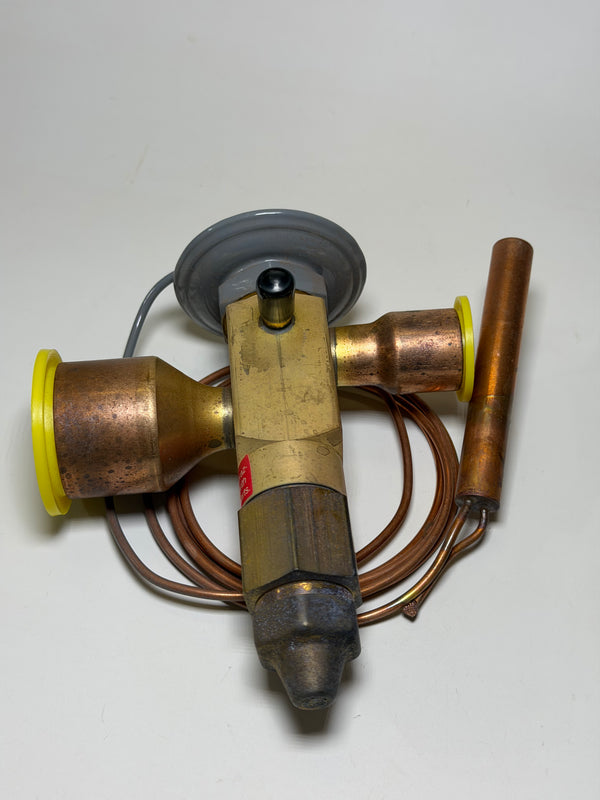

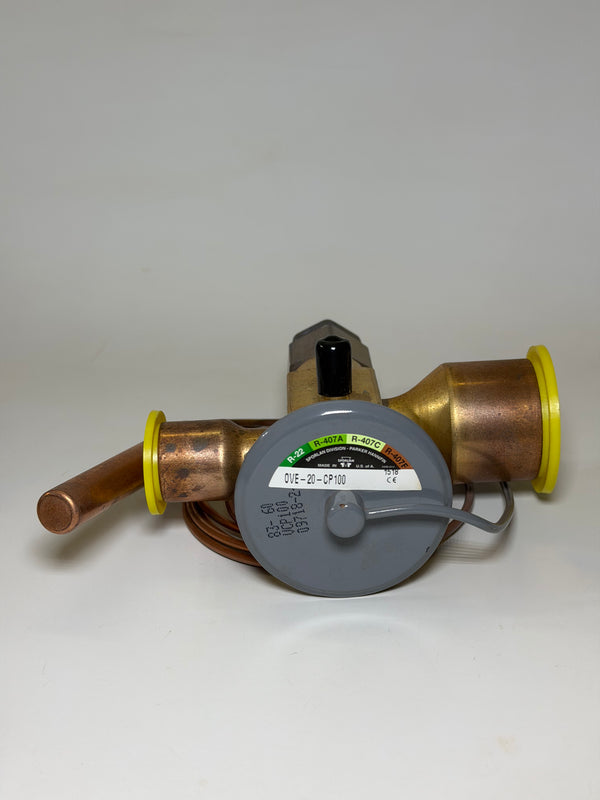

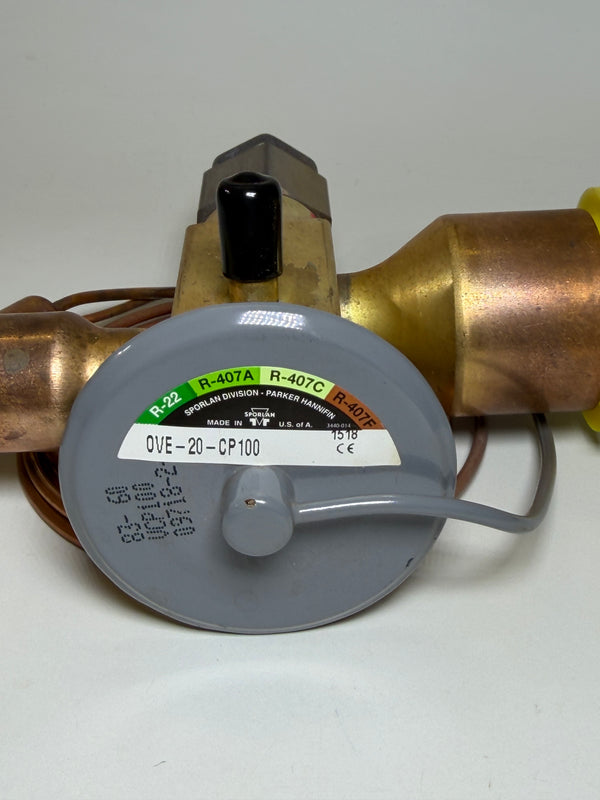

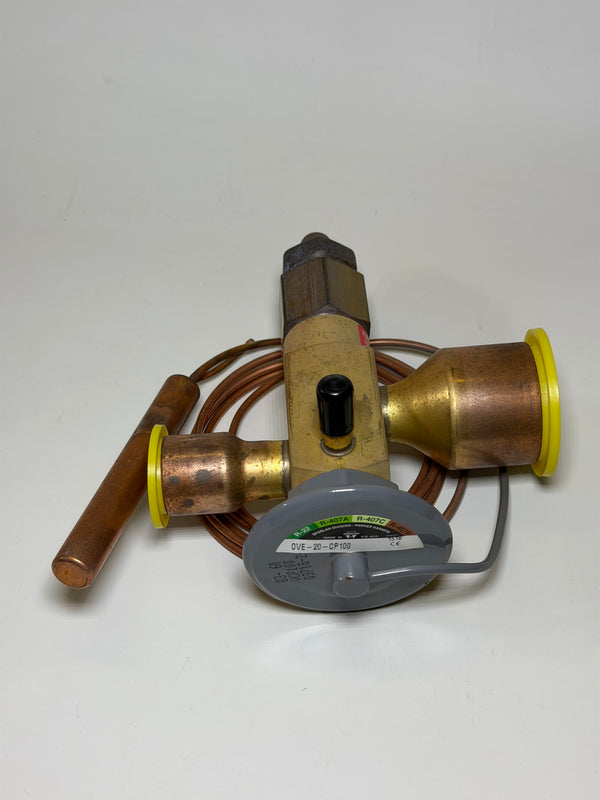

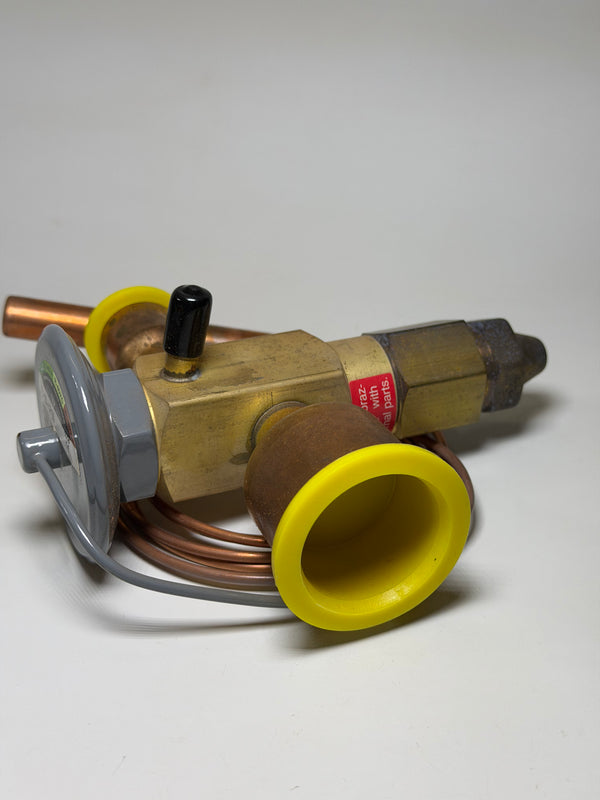

Sporlan OVE-20-CP100 R22 Thermostatic Expansion Valve
- SKU
- P-OV-S-8811
$250.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | SPORLAN |
|---|---|
| Product type | VALVES |
| SKU | P-OV-S-8811 |
| Weight | 3.0 kg |
Description
Sporlan OVE-20-CP100 thermostatic expansion (TX) valve for source-listed R22 air-conditioning service. Original catalogue references: OVE20CP100 and 124303P.
Source-listed specifications
| Brand | Sporlan |
| Connection | Solder |
| Element No. | 83 |
| Equalised | External |
| Equaliser connection | 1/4" ODS |
| Inlet Connection | 7/8" ODS |
| Nominal Capacity kW | 70.3 |
| Outlet Connection | 1-3/8" ODS |
| Refrigerant | R22 |
| Temperature Range | Air Conditioning |
| Valve Type | O - Series - Balanced Port |
The original equaliser row label reads “Equaliser +AF73:AG73Connection”; the spreadsheet-like text is not a fitting reference. The source records nominal capacity as 70.3 kW without rating conditions, and “Temperature Range” as Air Conditioning without numeric limits.
Confirm the exact valve, element, connections and system design before ordering. The original Danfoss tag does not establish interchangeability with a Danfoss valve. No alternative refrigerant suitability or installation approval is claimed.
