PIRTEK

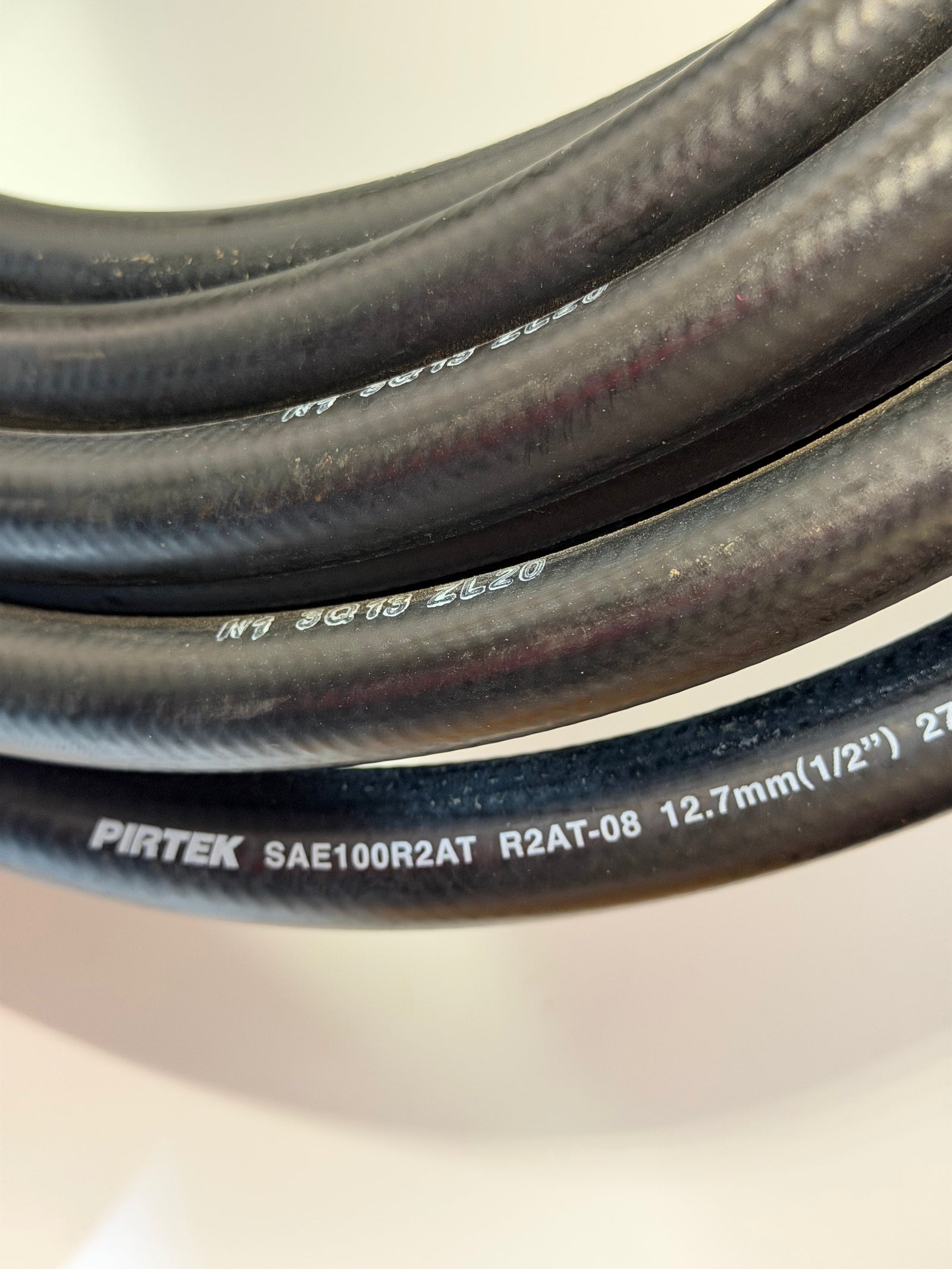

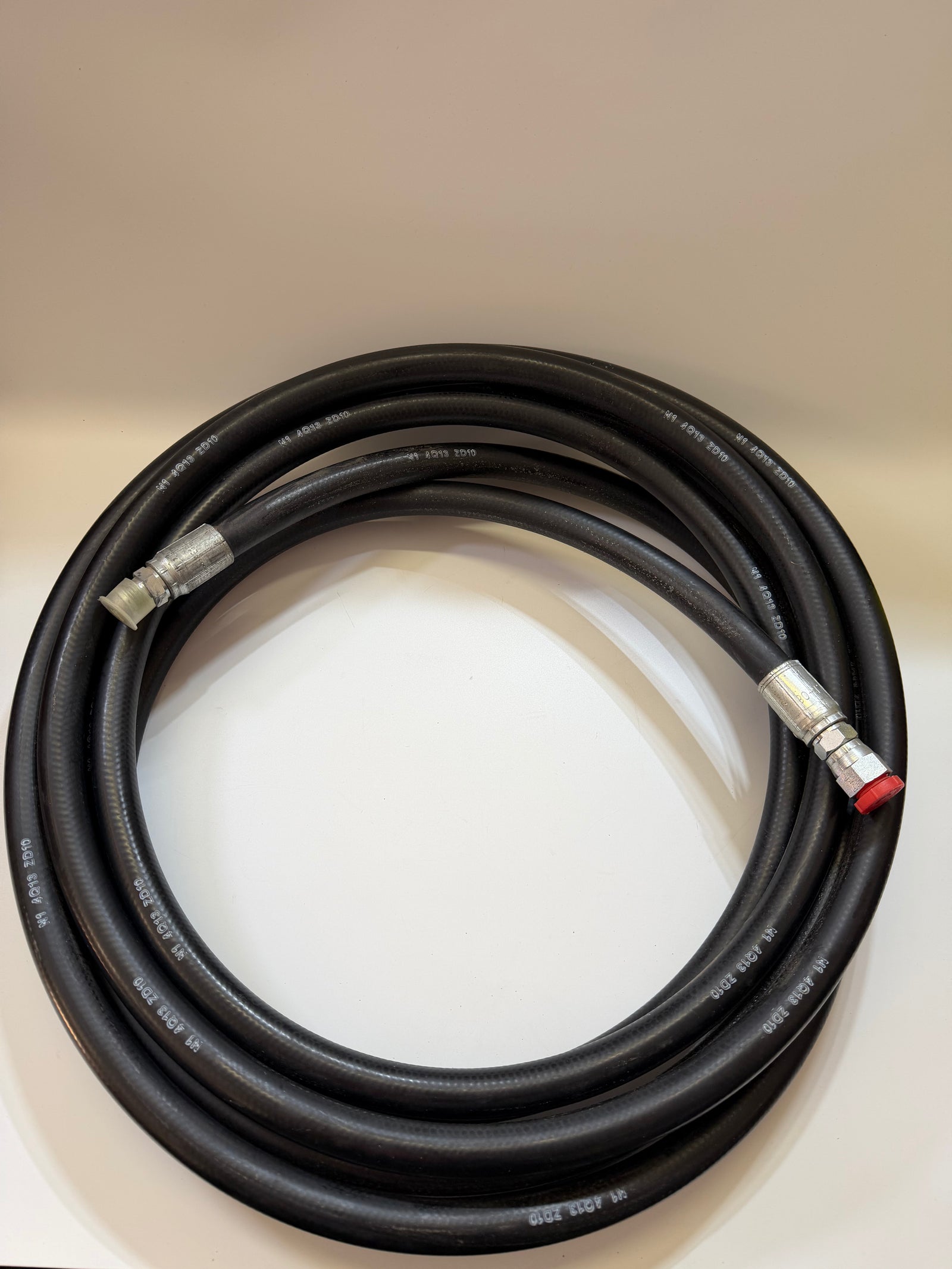

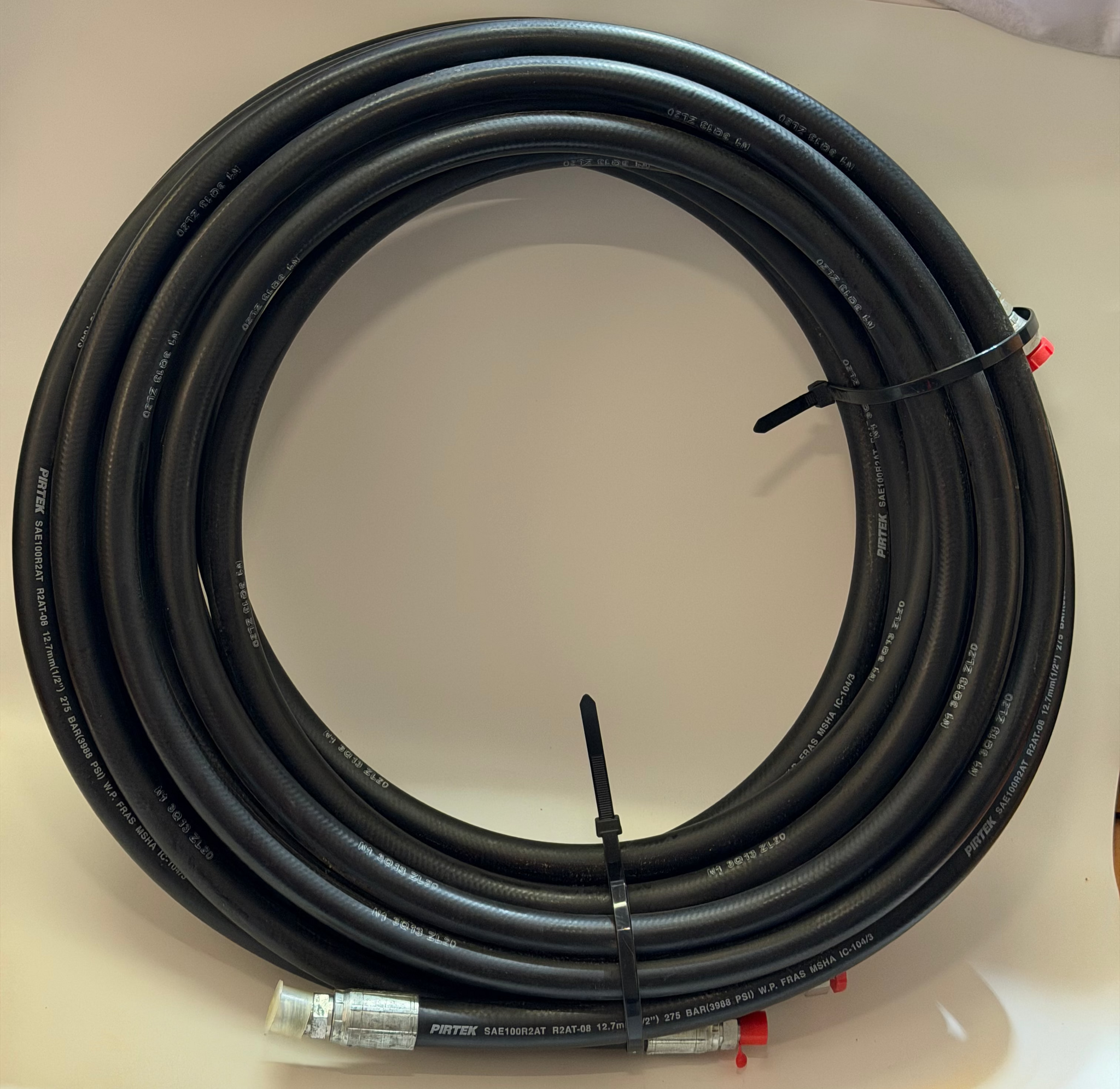

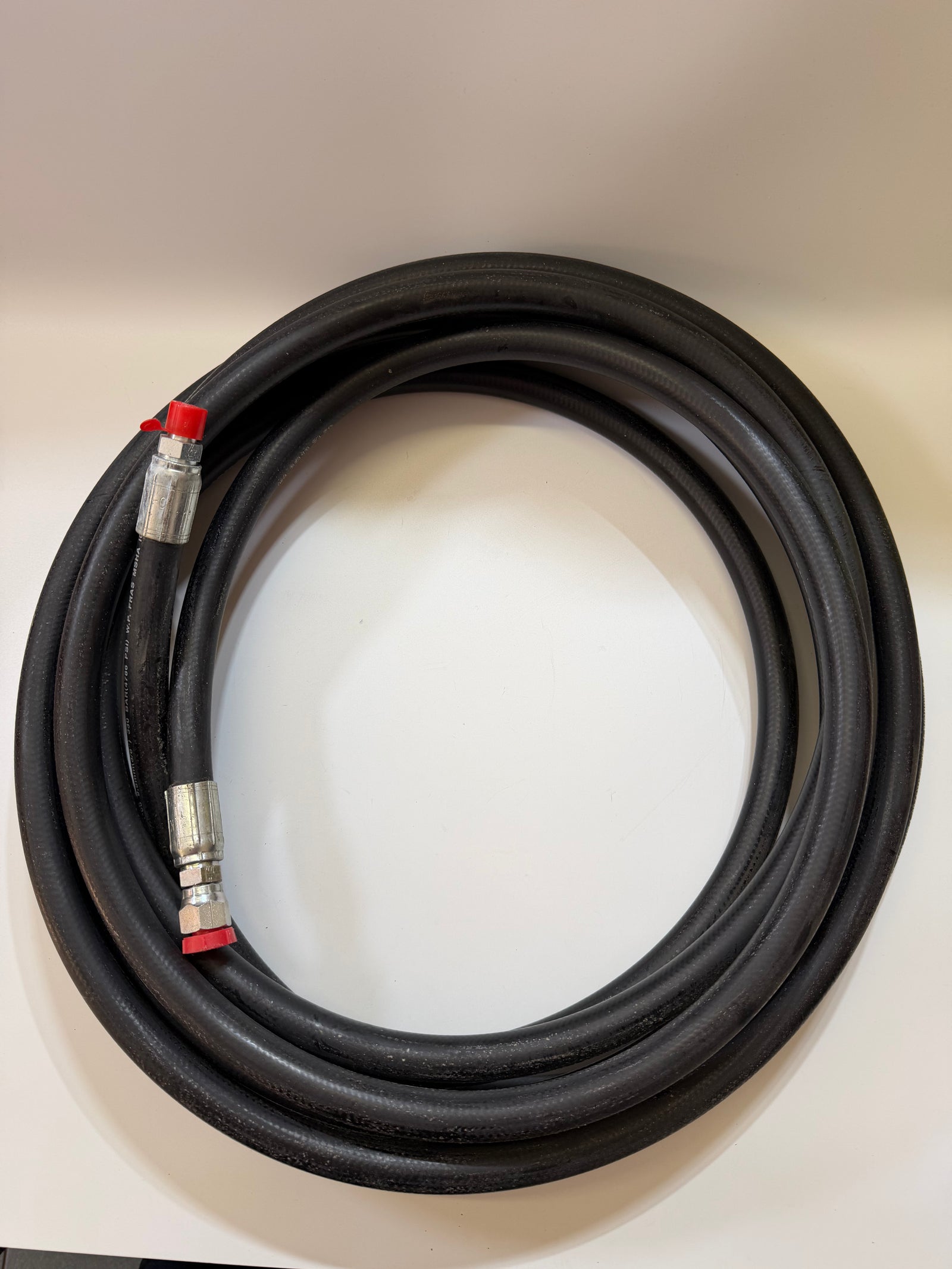

Pirtek SAE 100R2AT-08 Two-Wire Hose with Connectors — 2 × Approx. 8m
- SKU
- P-PI-P-8260
- Weight
- 9.5 kg
Specifications
| Manufacturer | PIRTEK |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-PI-P-8260 |
| Weight | 9.5 kg |
Description
Pirtek SAE 100R2AT-08 two-wire hydraulic hose with connectors. The original title describes two lengths of approximately 8 metres each; confirm the actual lengths and both connector ends before purchase.
Specification confirmation required: the source table records 40°C to 100°C, while the later notes give different fluid-specific ranges and a separate -40 to +70 degree C range. Do not interpret these as one confirmed assembly operating range. The source also lists “Length: Varied” and “Connection: B2”; exact supplied assembly details need checking.
Original recorded specifications
The information below is retained from the original listing for identification. Ratings, standards and MSHA/FRAS claims require confirmation against this hose assembly and its condition before service; they are not newly verified approvals.
| Type | Hydraulic Hose |

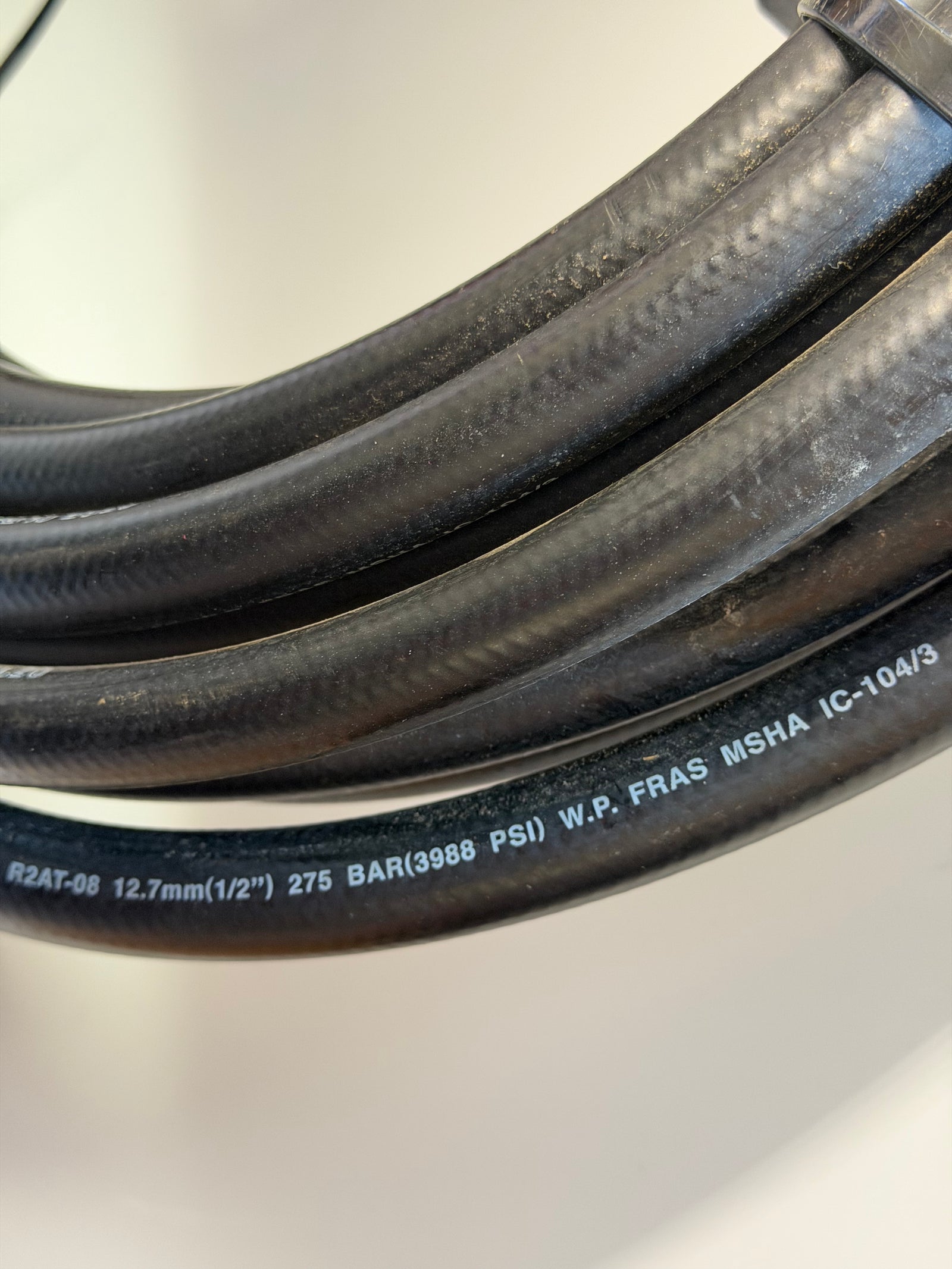

| Working Pressure | 4000psi |
| Material | Rubber |
| Outer Diameter | 22.20mm |
| Working Temperature | 40°C to 100°C |
| Inner Diameter | 1/2" |
| Length | Varied |
| Connection | B2 |
| Colour | Black |
| Application | High pressure hydraulics |
| Size | 4000psi |
Inner Liner
Seamless NBR (Nitrile) rubber. Oil resistant
Outer Cover
Black smooth synthetic rubber resistant to abrasion/oils/ozone and weathering
Reinforcement
Two braids of high tensile steel wire
Application
Medium to high pressure hose for hydraulic fluids such as mineral oils/aqueous emulsions/water/air and inert gases. Outer cover must be pin-pricked if hose is to be used to convey air or gas above 17 bar.
Materials and Specifications
- -40 degrees C up to +100 degrees C mineral oil
- -40 degrees C up to +60 degrees C water based fluids
- 0 degrees C up to +60 degrees C water
- 0 degrees C up to +50 degrees C air
- -40 degrees C up to +70 degrees C ambient
- Prolonged usage with water or water based fluids at temperatures above 60 degrees C will allow wire corrosion as a result of diffusion through the inner liner
Features

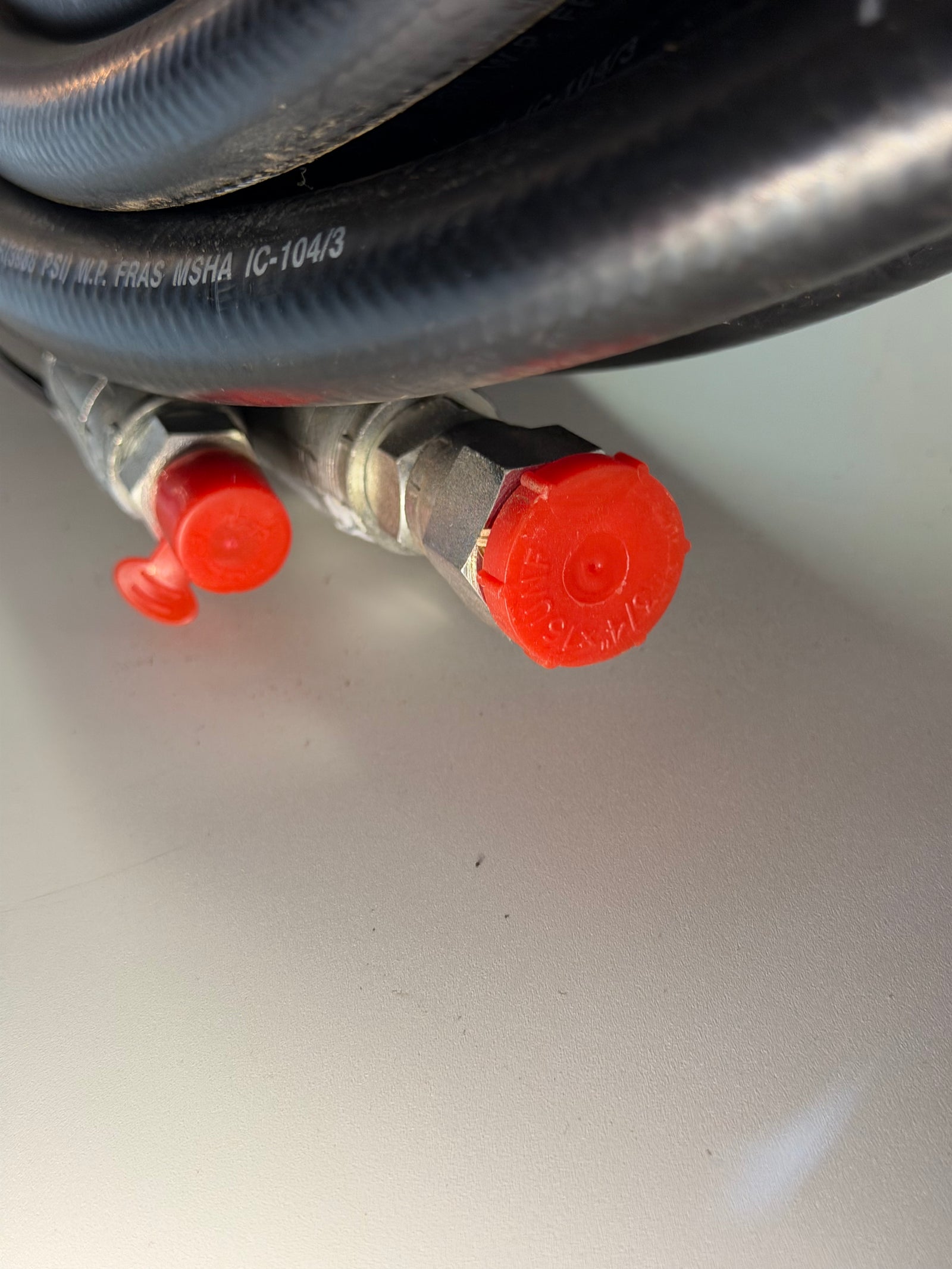

MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static)
Specifications/Performance
- SAE 100R2AT
- EN853 2SN
- AS 3791 100R2
- ISO 1436 R2AT/2SN
Temperature Range
-40 degrees C up to +70 degrees C
Safety Factor
4:1
Vacuum Rating
-0.2 Bar (7.6 in-Hg)
Have a suitably qualified person confirm the complete hose/fitting assembly, fluid compatibility, pressure and temperature limits before use. The original air/gas and water-temperature cautions above remain part of the source information, not evidence that this stock is prepared for those uses.
