PULSARLUBE

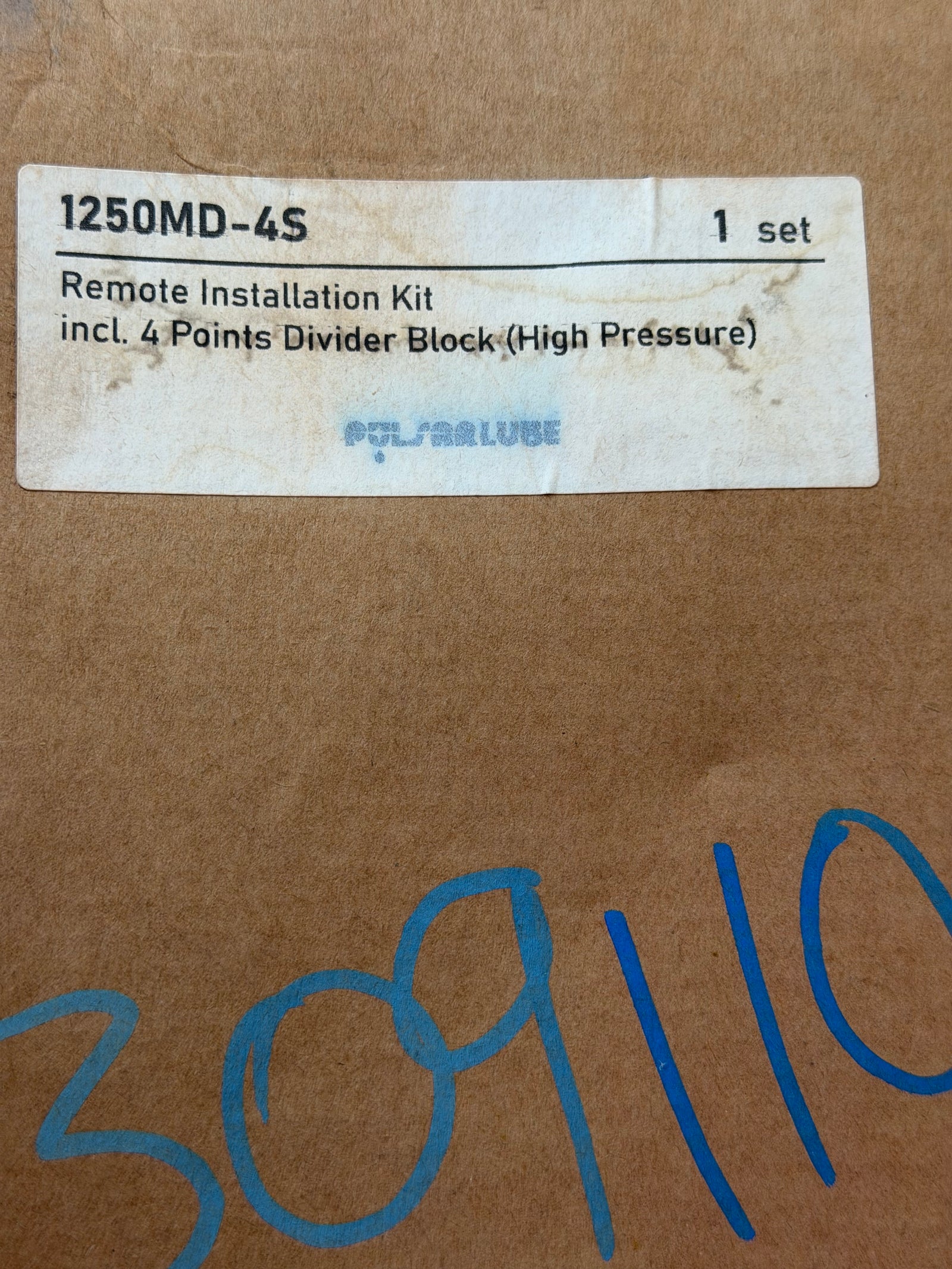

Pulsarlube 1250MD-4 M Series 4 Outlet Remote Installation Kit
- SKU
- P-PU-P-8408
$350.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 4.9 kg
Specifications
| Manufacturer | PULSARLUBE |
|---|---|
| Product type | INDUSTRIAL SUPPLIES |
| SKU | P-PU-P-8408 |
| Weight | 4.9 kg |
Description
Pulsarlube 1250MD-4 M Series four-outlet remote installation kit.
The M lubricator unit is available separately and is not included.

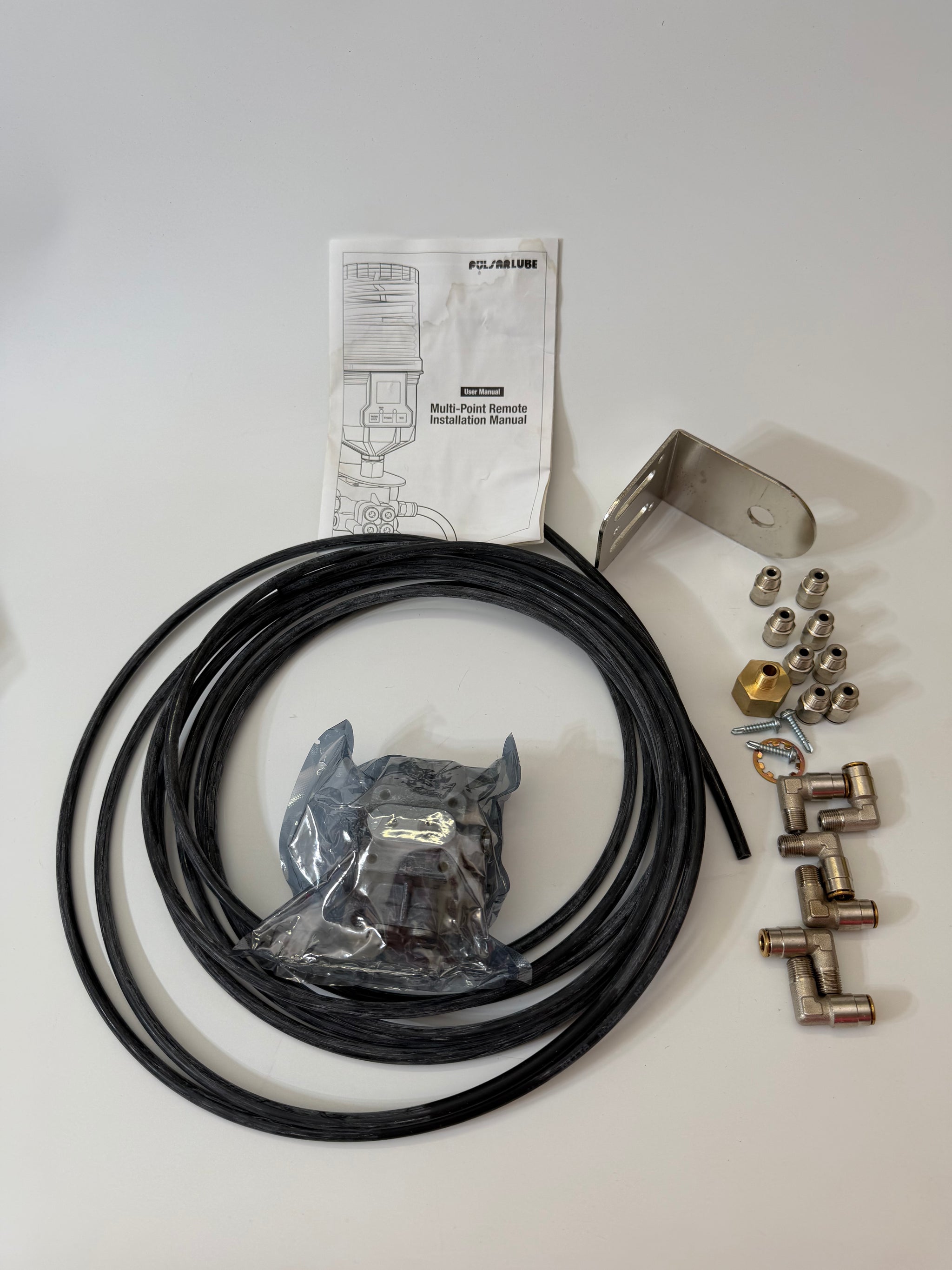

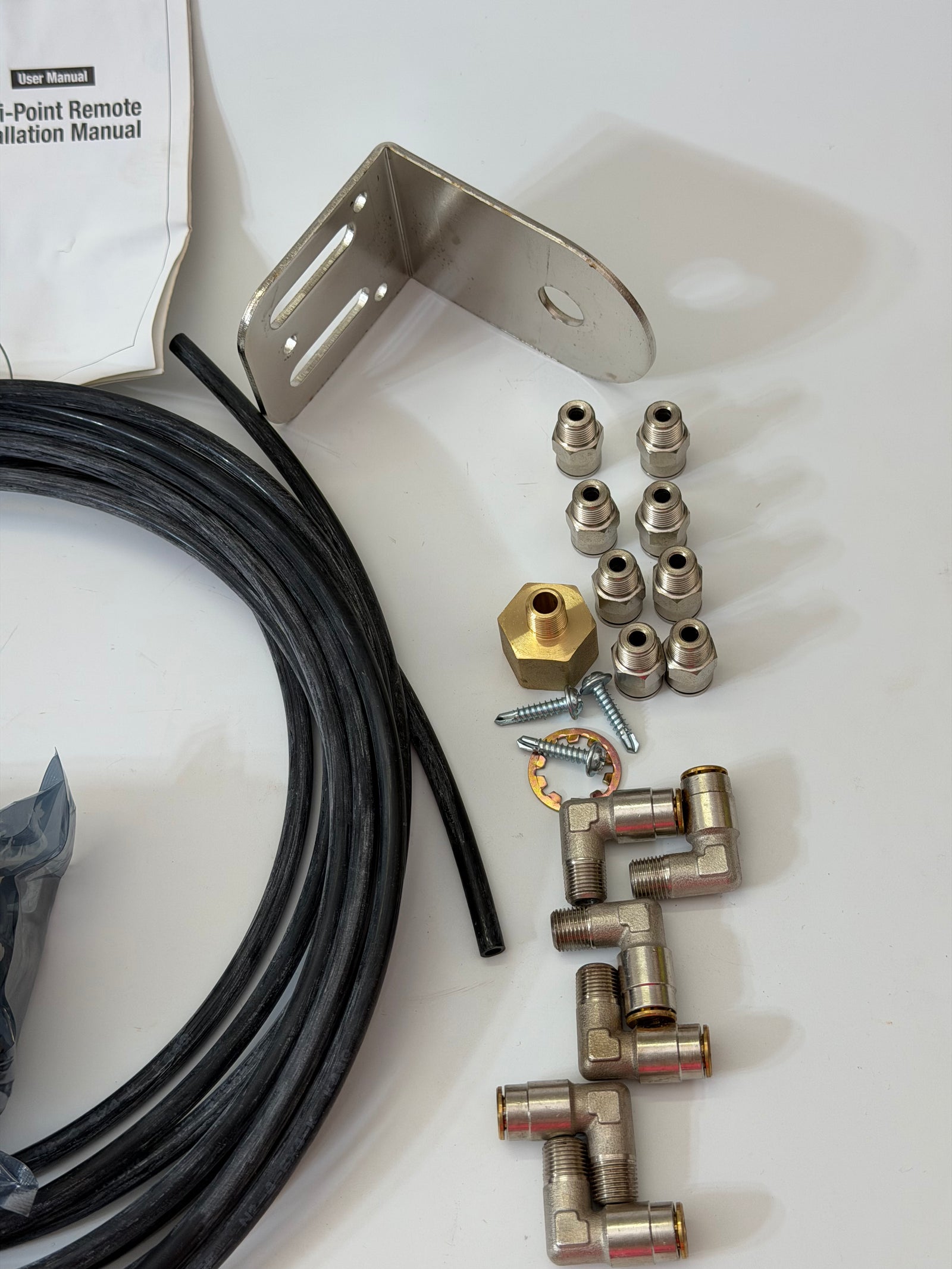

The source kit table below covers two- to eight-point versions. For four points it lists eight A240 push-in fittings and two A214-1 tubing lengths, each recorded as 3 m (10 ft), nominal 1/4-inch (6 mm) OD nylon. Other listed hardware includes A002 reducer, B002 L-shaped bracket, three B051 screws, one B058 tooth washer and a DU-XRS divider block. Confirm the exact four-outlet kit contents before ordering.
| 1 | M Unit | Available Separately (Electrochemical - Pulsarlube M, MSP, PLC) | N/A |
|---|---|---|---|
| 2 | A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1 |
| 3 | B002 | Mounting Bracket, "L" Shape | 1 |
| 4 | B051 | Self Drilling Screw, #8 x 19 | 3 |
| 5 | B058 | Tooth Washer | 1 |

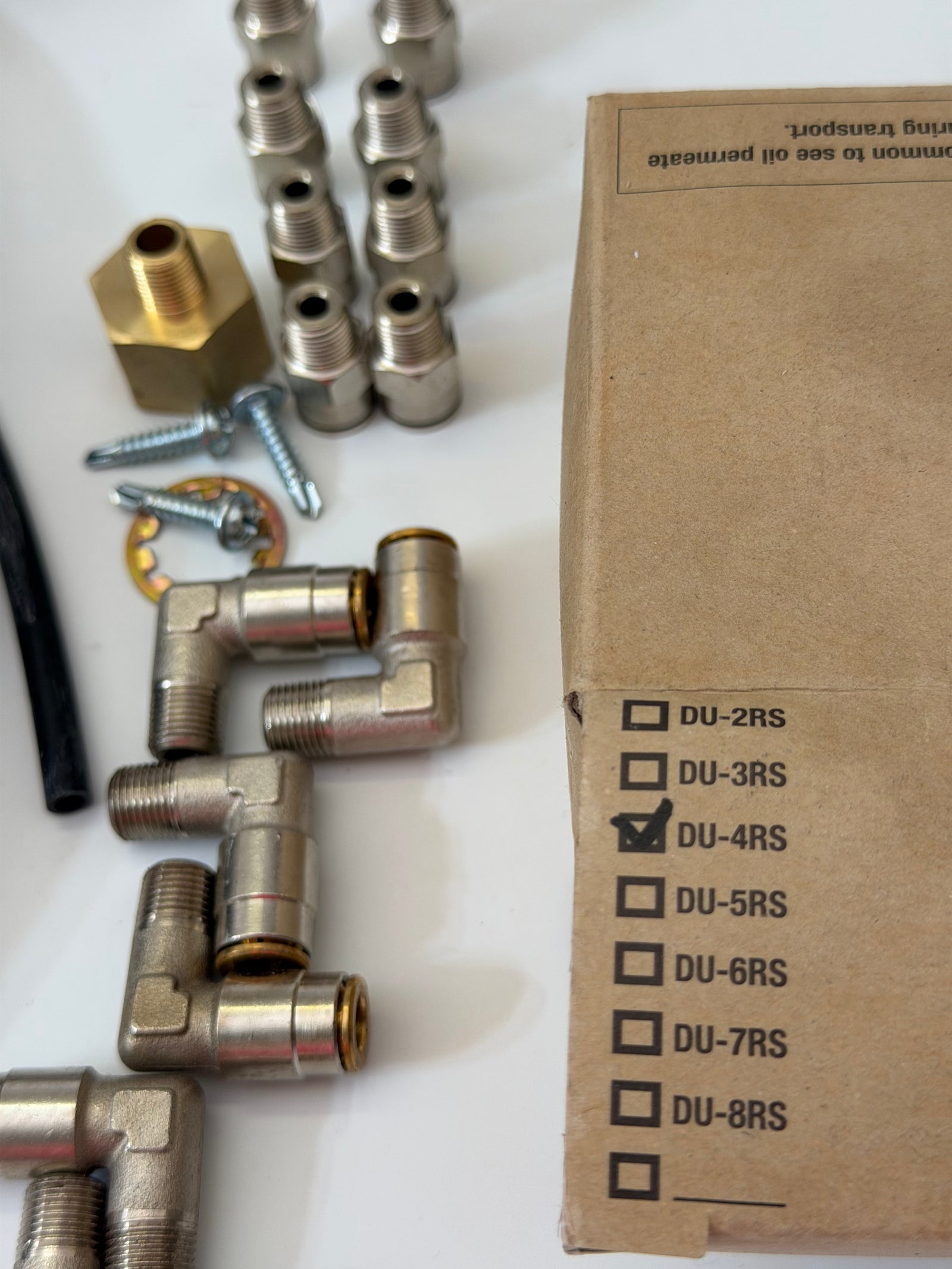

| 6 | A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M | |
| For 2 Points | 4 | ||
| For 3 Points | 6 | ||
| For 4 Points | 8 | ||
| For 5 Points | 10 | ||
| For 6 Points | 12 | ||
| For 7 Points | 14 | ||
| For 8 Points | 16 | ||

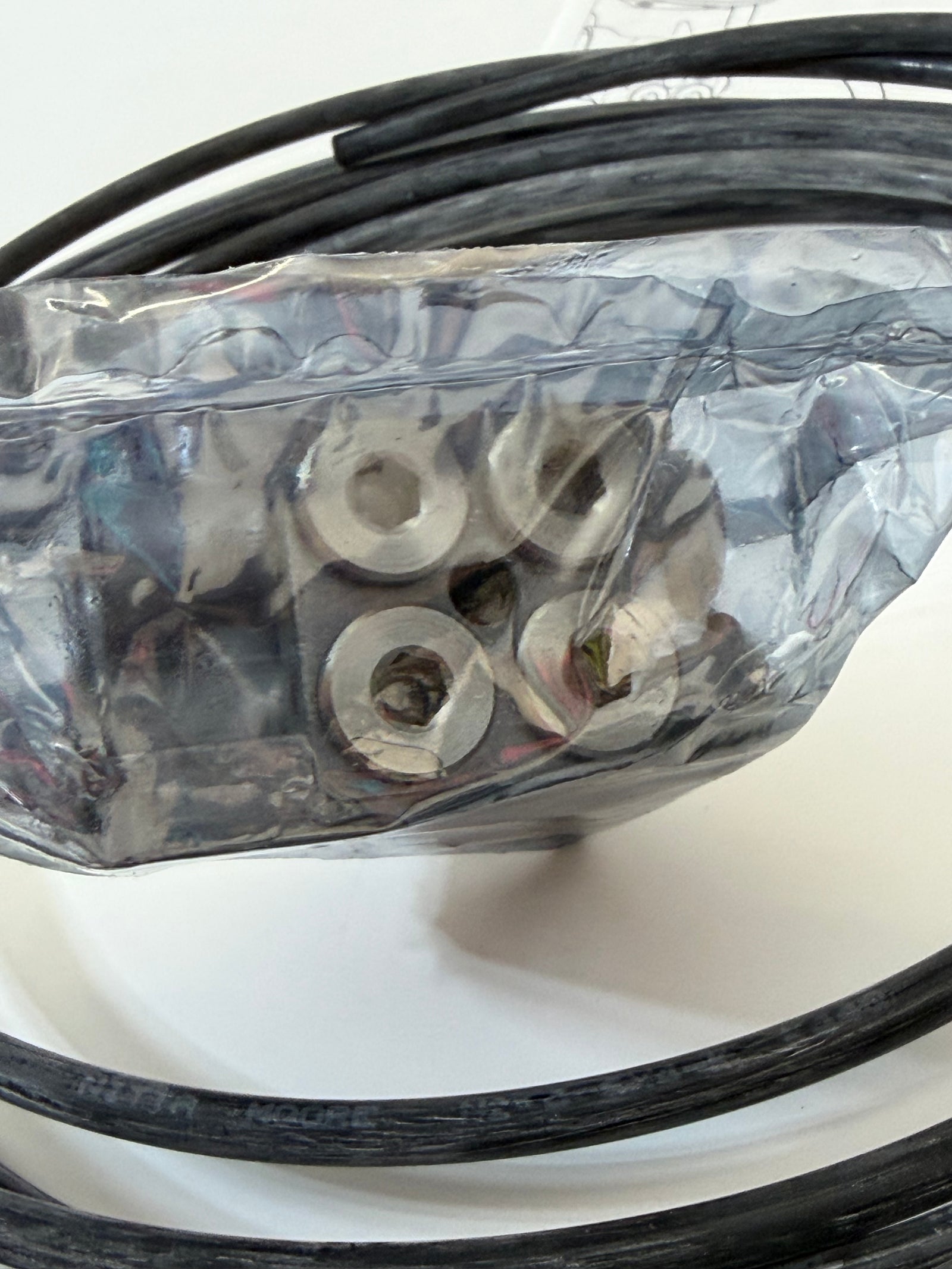

| 7 | DU-XRS | DU Divider Block, Grease Type, 2 ~ 8 Points |
1 |
| 8 | A214-1 | Distribution Tubing, 3m (10ft) O.D. 1/4" (6mm) (Nylon) | |
| For 2 Points | 1 | ||
| For 3 Points | 2 | ||
| For 4 Points | 2 | ||
| For 5 Points | 3 | ||
| For 6 Points | 3 | ||
| For 7 Points | 4 | ||
| For 8 Points | 4 |
