RDA BRAKES

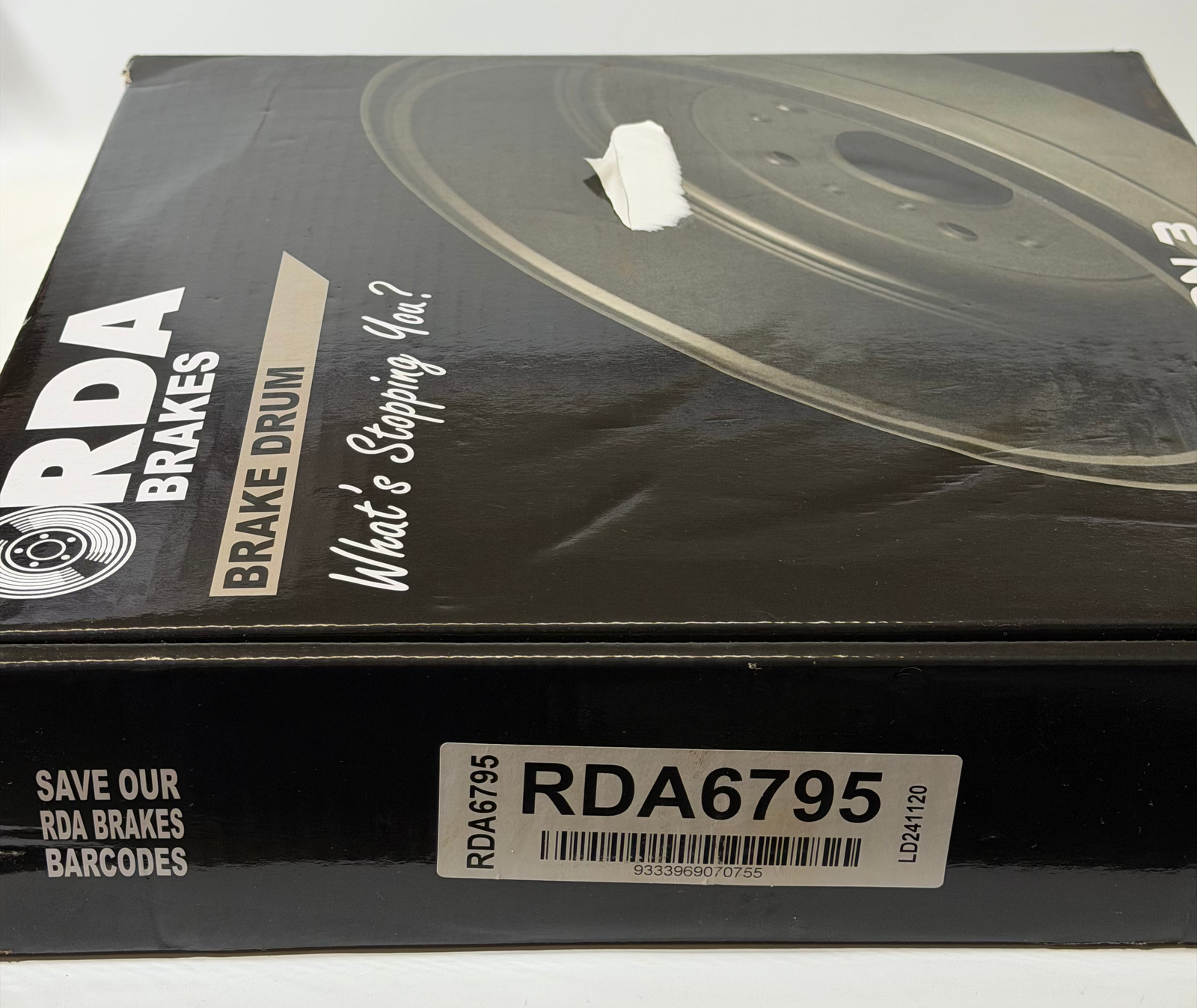

RDA 6795 Rear Brake Drum for Toyota Hilux
- SKU
- P-RD-R-8299
$80.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 9.9 kg
Specifications
| Manufacturer | RDA BRAKES |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-RD-R-8299 |
| Weight | 9.9 kg |
Description

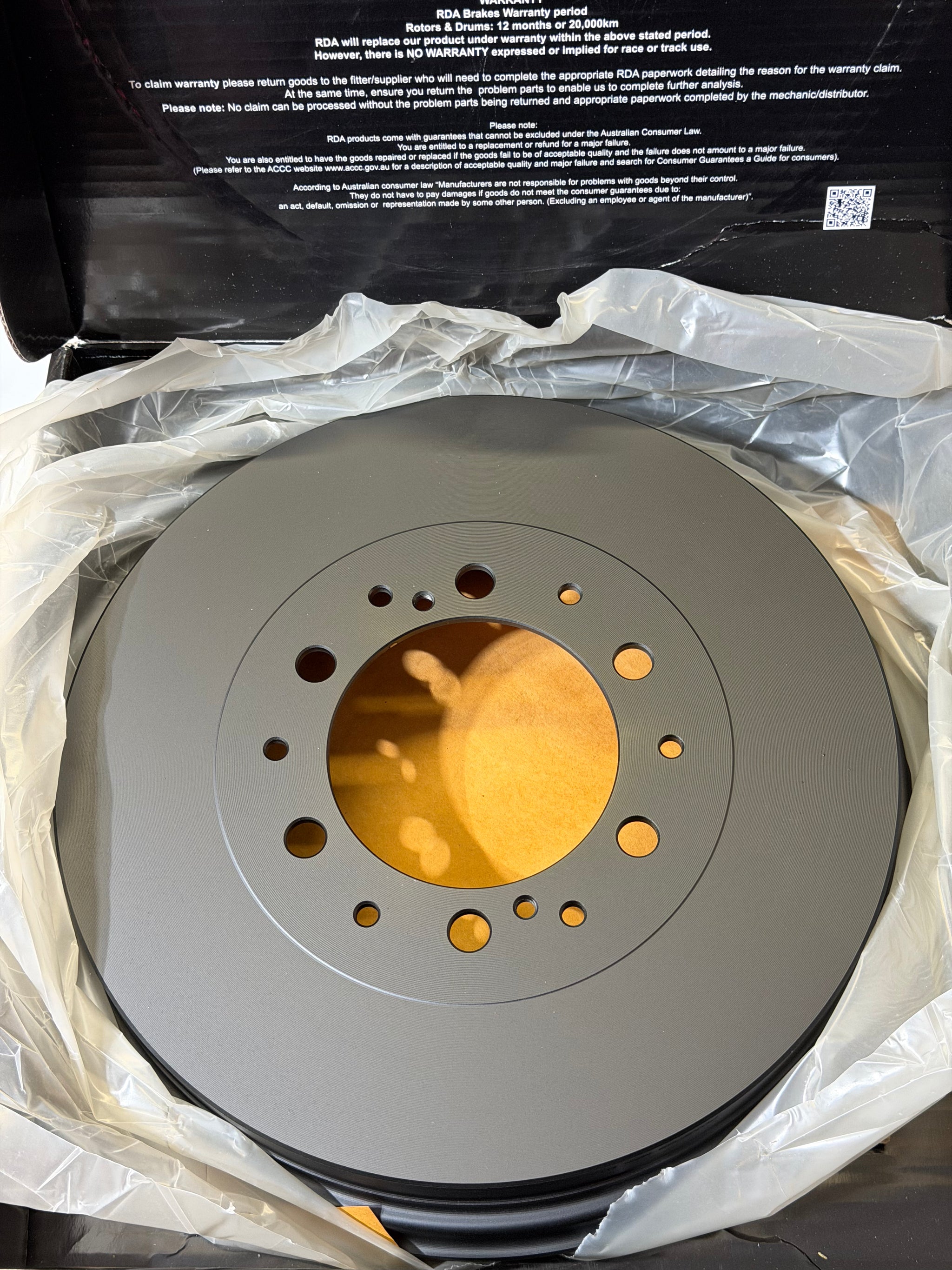

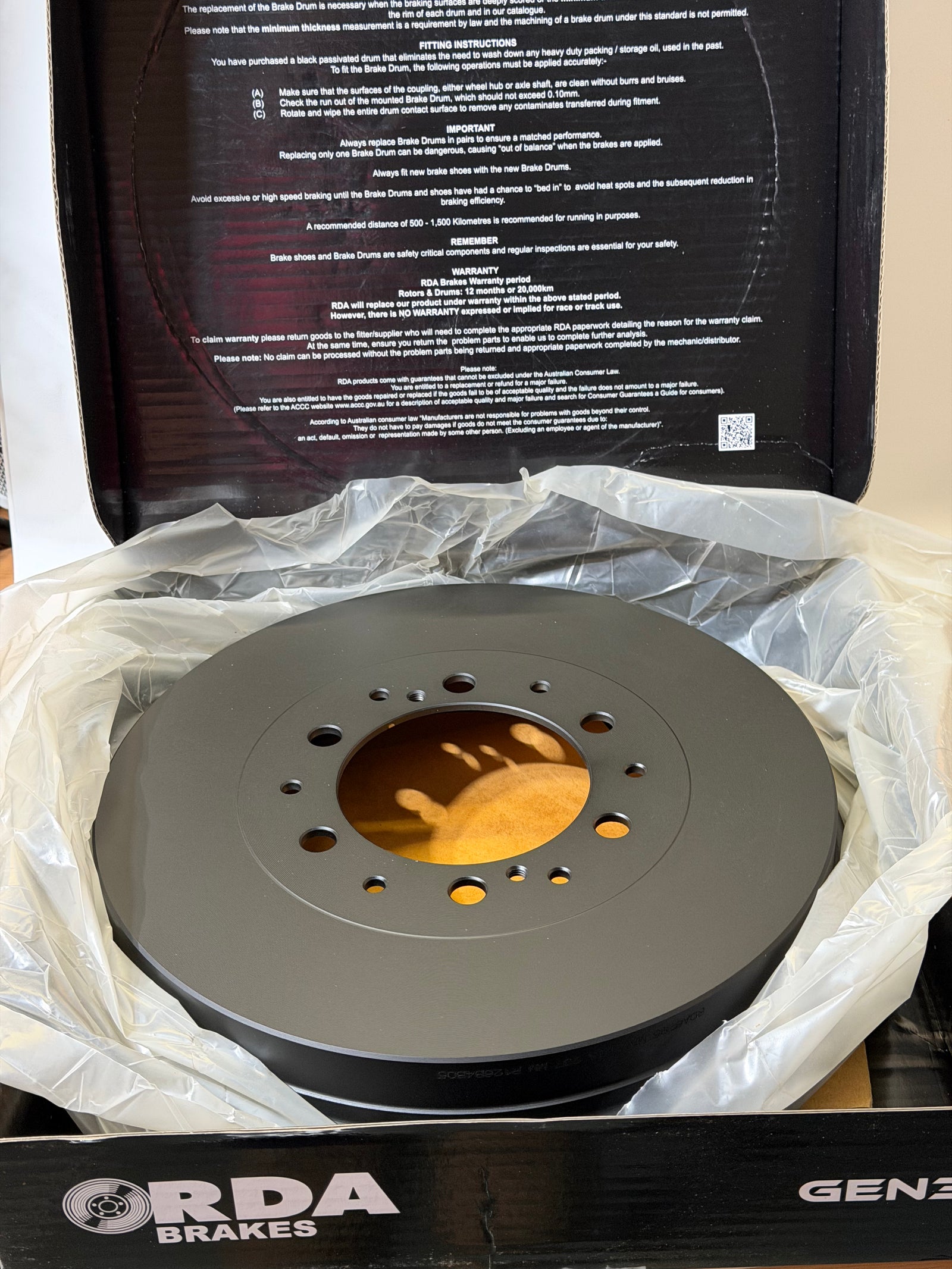

RDA 6795 rear brake drum for source-listed Toyota Hilux applications.
Source application wording
REAR BRAKE DRUMS for TOYOTA HILUX GGN, KUN26 3.0L Turbo Diesel 2005-2015
Confirm the exact vehicle and engine configuration; the combined source wording should not be assumed to describe every GGN or KUN variant. Additional tag references are GGN25 and KUN.
Recorded specifications
- Note: 297mm Max Diameter
- Inside Diameter: 295mm
- Height: 79mm
- Item Type: Brake Drum
- Material Type: CAST IRON
- Number of Stud Holes: 6
- Position: Rear
- Centre Hole Diameter: 108mm
- Path - Friction: 64mm
- Number of Studs: 6
- Max.skimmed drum measure: 297
- Inner Brake Drum Height: 64
- Centering Diameter: 108
- Inner Br. Drum Diam.: 295
- Weight: 10.3kg
The maximum diameter/skimmed measurement is a source limit, not a measurement of the supplied drum. Confirm the drum dimensions and application before ordering. No pair quantity, studs or other hardware are stated as included.
