EMERSON

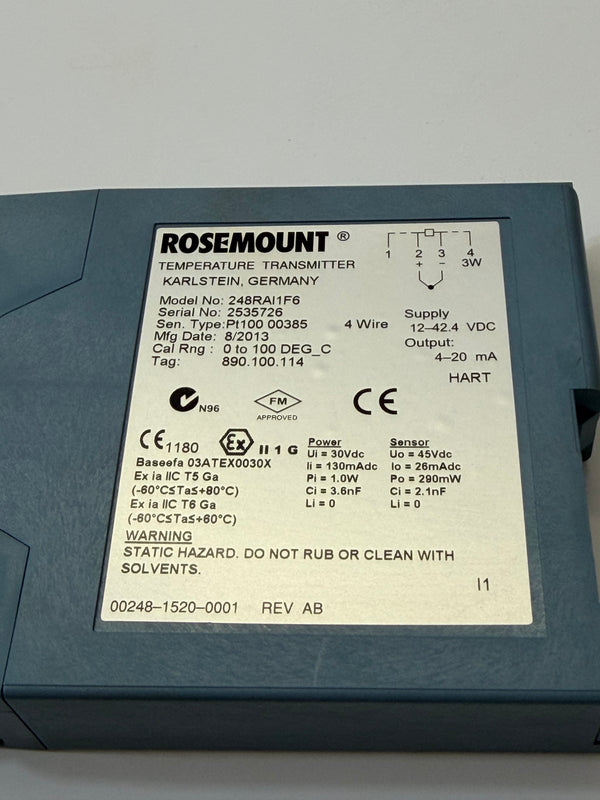

Rosemount 248RAI1F6 Rail-Mounted Temperature Transmitter
- SKU
- P-RO-E-8361
- Weight
- 1.6 kg
Specifications
| Manufacturer | EMERSON |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-RO-E-8361 |
| Weight | 1.6 kg |
Description
Rosemount 248RAI1F6 rail-mounted temperature transmitter. Recorded serial number: 2535726. The source lists sensor configuration “PT100 00385” and calibration range “0-100 deg C”. These are historical configuration details, not a current calibration certificate or the full supported input range.
Additional historical reference: 00248-1520-0001. A temperature probe, rail or enclosure is not stated as included. This is a transmitter, not a complete PLC or temperature controller.
Approval and configuration check required: historical tags claim ATEX, Ex, Ex d and intrinsic safety, while the source model breakdown says “I1: No hazardous area approvals.” These conflicting statements are not verified. No hazardous-area approval or suitability is claimed for this stock. Confirm the actual marking and matching certificate before any such use.
The source also interprets A as 4–20 mA with HART and F6 as a 60 Hz filter. These option-code interpretations remain unverified and do not establish the supply voltage.
Original stock details and unverified model breakdown

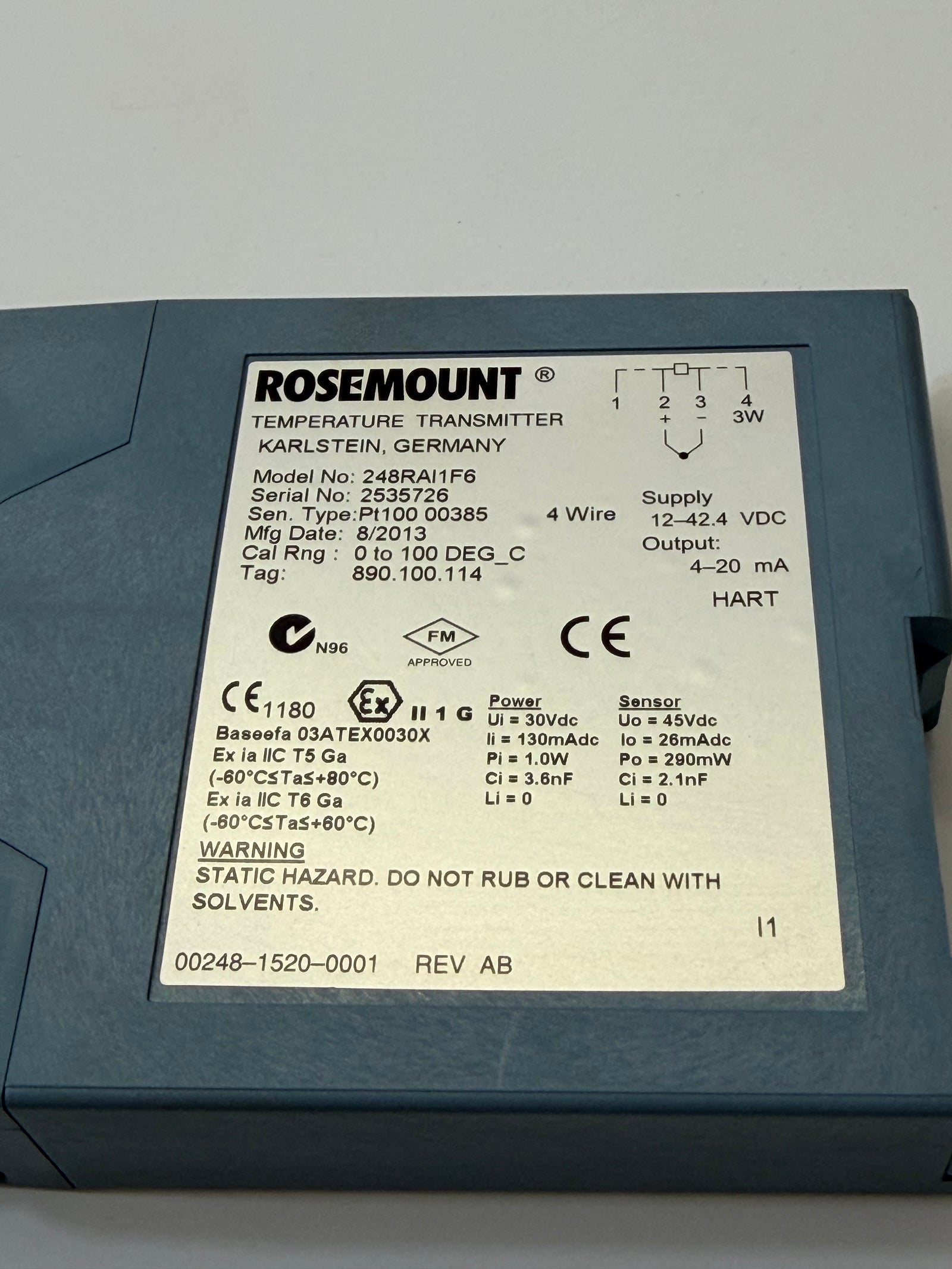

Model: 248RAI1F6
Serial no. 2535726
Sensor Type: PT100 00385
Cal Rng: 0-100 deg C
Model Breakdown:
- 248R: Rail Mount configuration.
- A: Output protocol is \(4\text{ - }20\text{ mA}\) with HART.
- I1: No hazardous area approvals.
- F6: \(60\text{ Hz}\) line voltage filter to minimize electrical noise.
