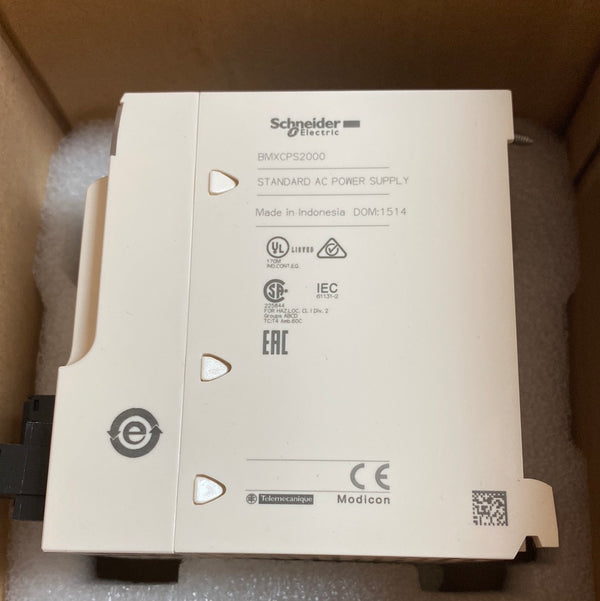

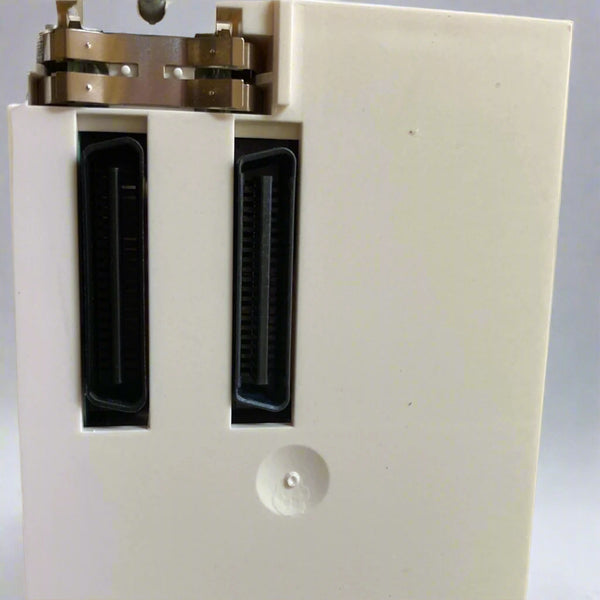

Schneider Electric BMXCPS2000 AC Power Supply Module

BMXCPS2000

Primary voltage limit 85...264 V

Network frequency 50/60 Hz Network frequency limits 47...63 Hz

Apparent power 0.07 kVA Power supply input current 0.61 A 115 V 0.31 A 240 V Inrush current <= 60 A 240 V <= 30 A 120 V I²t on activation 2...3 240 V It on activation <= 0.06 A.s 240 V <= 0.03 A.s 120 V

Protection type Short-circuit protection secondary circuit Overvoltage protection secondary circuit Overload protection secondary circuit Internal fuse not accessible primary circuit

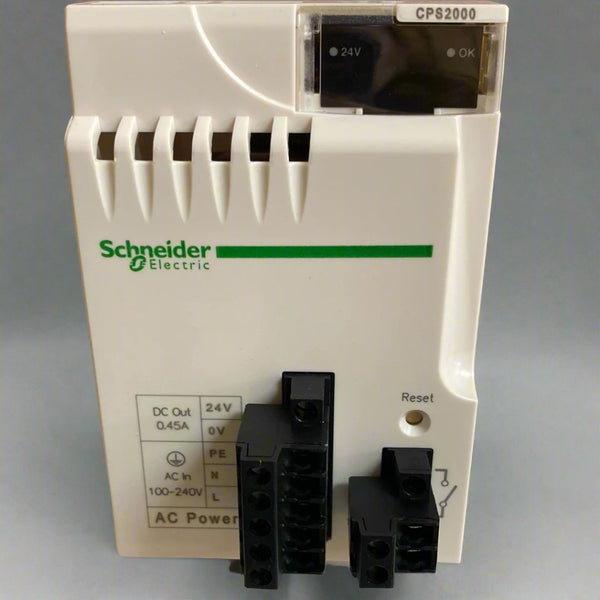

Current at secondary voltage 2.5 A 3.3 V DC I/O module logic power supply 0.7 A 24 V DC I/O module power supply and processor 0.45 A 24 V DC sensor power supply Power dissipation in W <= 8.5 W Status LED 1 LED green sensor voltage 1 LED green rack voltage OK Control type RESET pushbutton cold restart

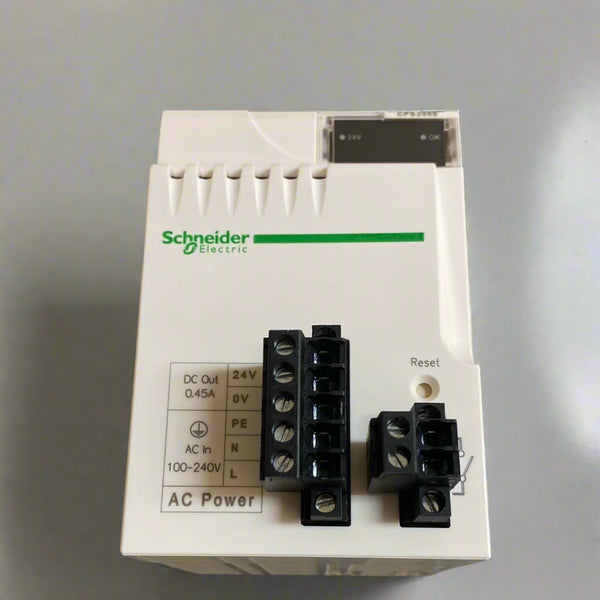

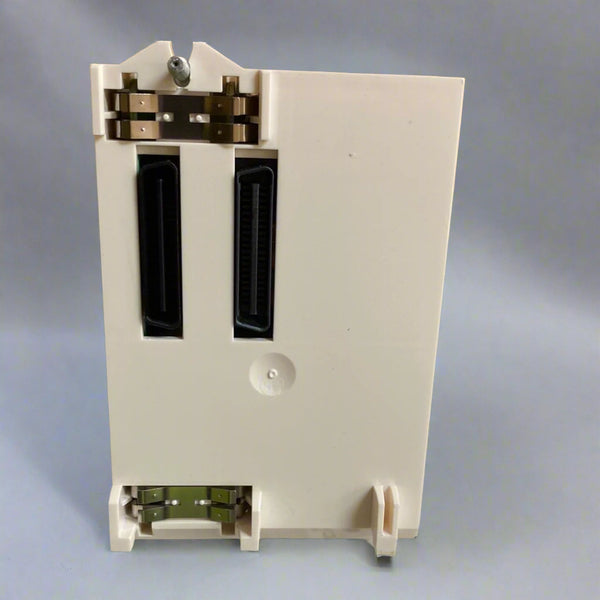

Electrical connection 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor 1 connector 2 pin(s)alarm relay Insulation resistance >= 100 MOhm primary/secondary >= 100 MOhm primary/ground
