TECALEMIT

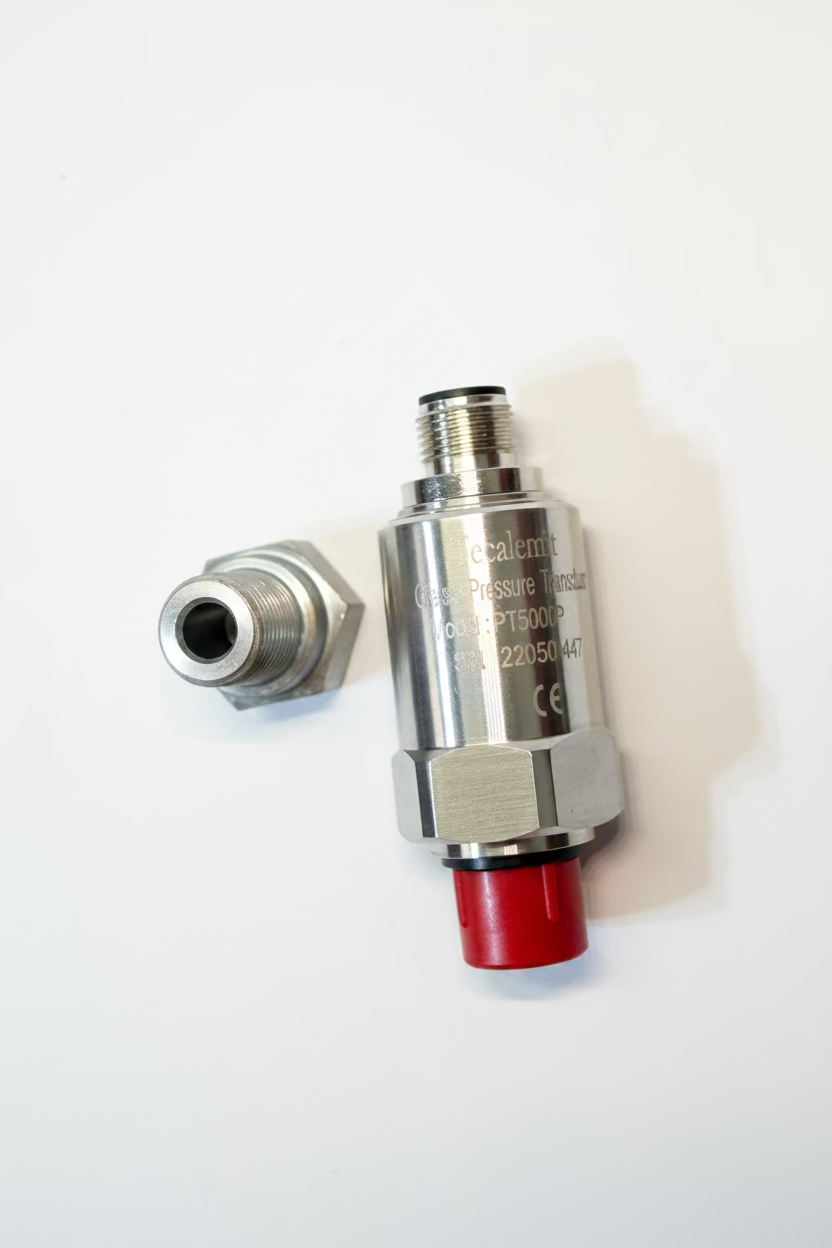

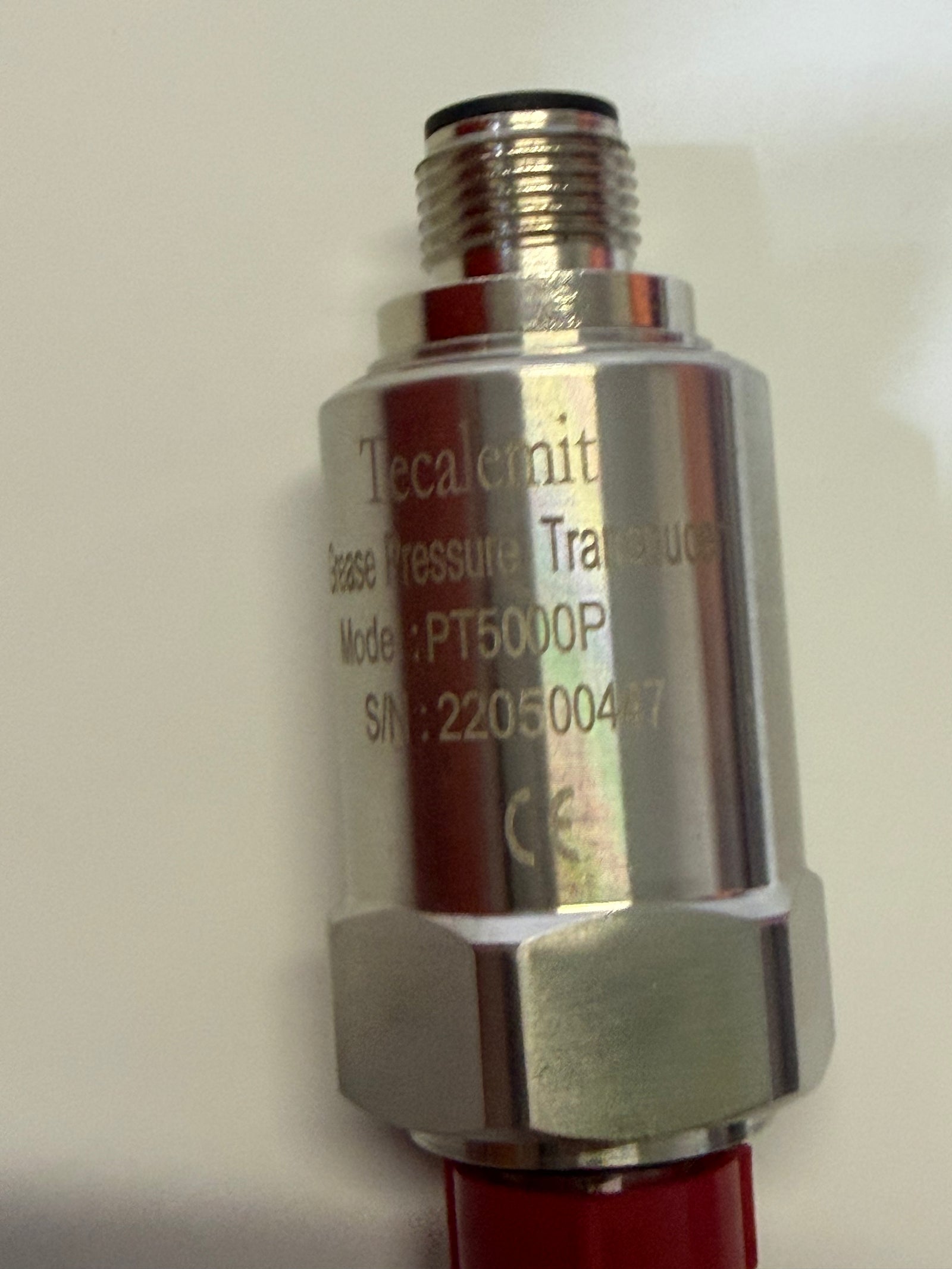

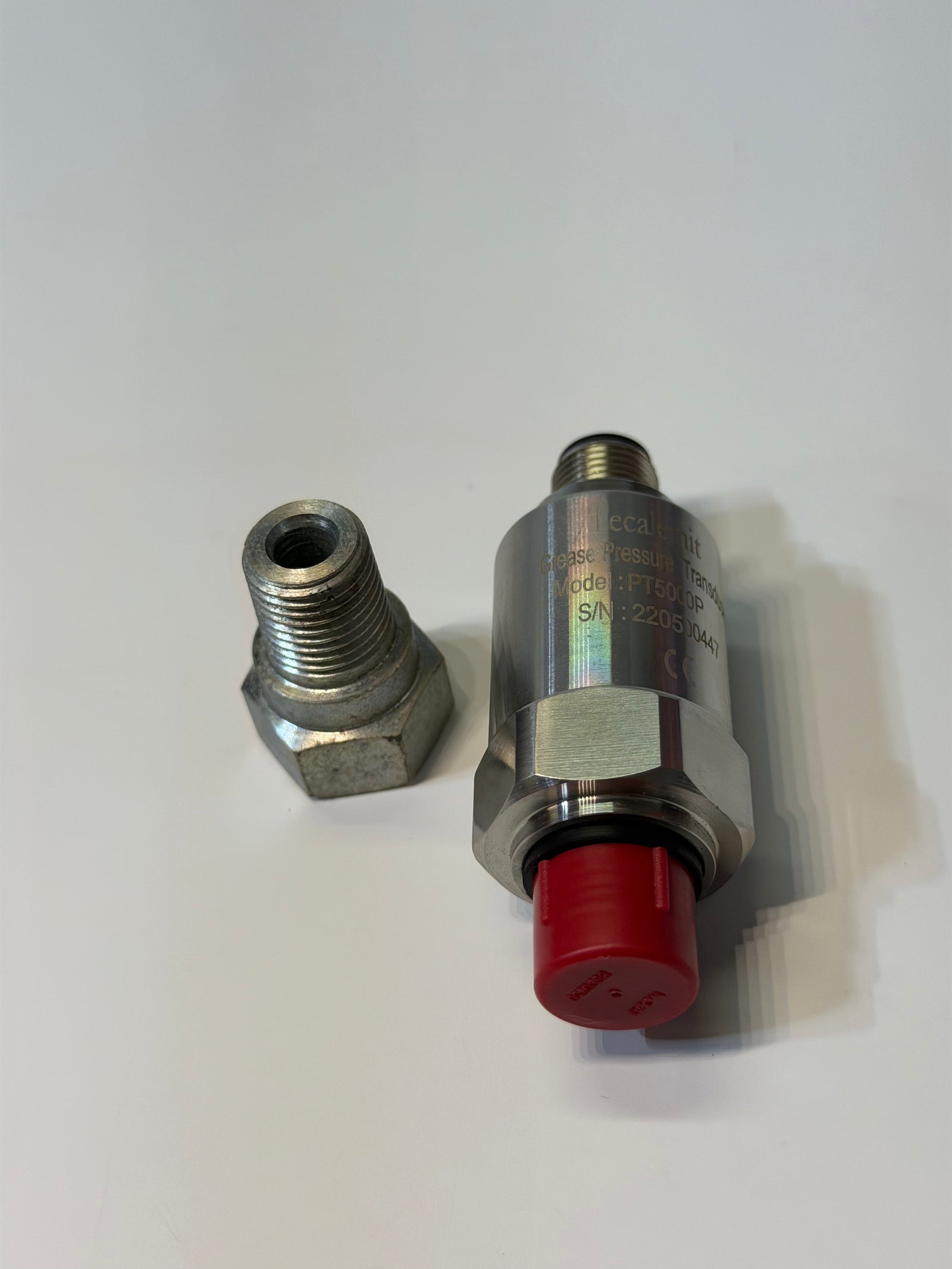

Tecalemit PT5000P Grease Pressure Transducer
- SKU
- P-TE-T-8348
- Weight
- 1.0 kg
Specifications
| Manufacturer | TECALEMIT |
|---|---|
| Product type | SENSOR |
| SKU | P-TE-T-8348 |
| Weight | 1.0 kg |
Description
Tecalemit PT5000P grease pressure transducer for lubrication-system pressure measurement.
Recorded specifications
The following values are retained from the existing listing, not independently certified for this unit.
- Operating Pressure: 0 – 345 bar (0 – 5,000psi)
- Maximum Pressure: 517 bar (7,503psi)
- Rupture Pressure: 1035 bar (15,007psi)
- Grease Connection Port: 1/4” BSPP Male with seal
- Material: 304 Stainless Steel

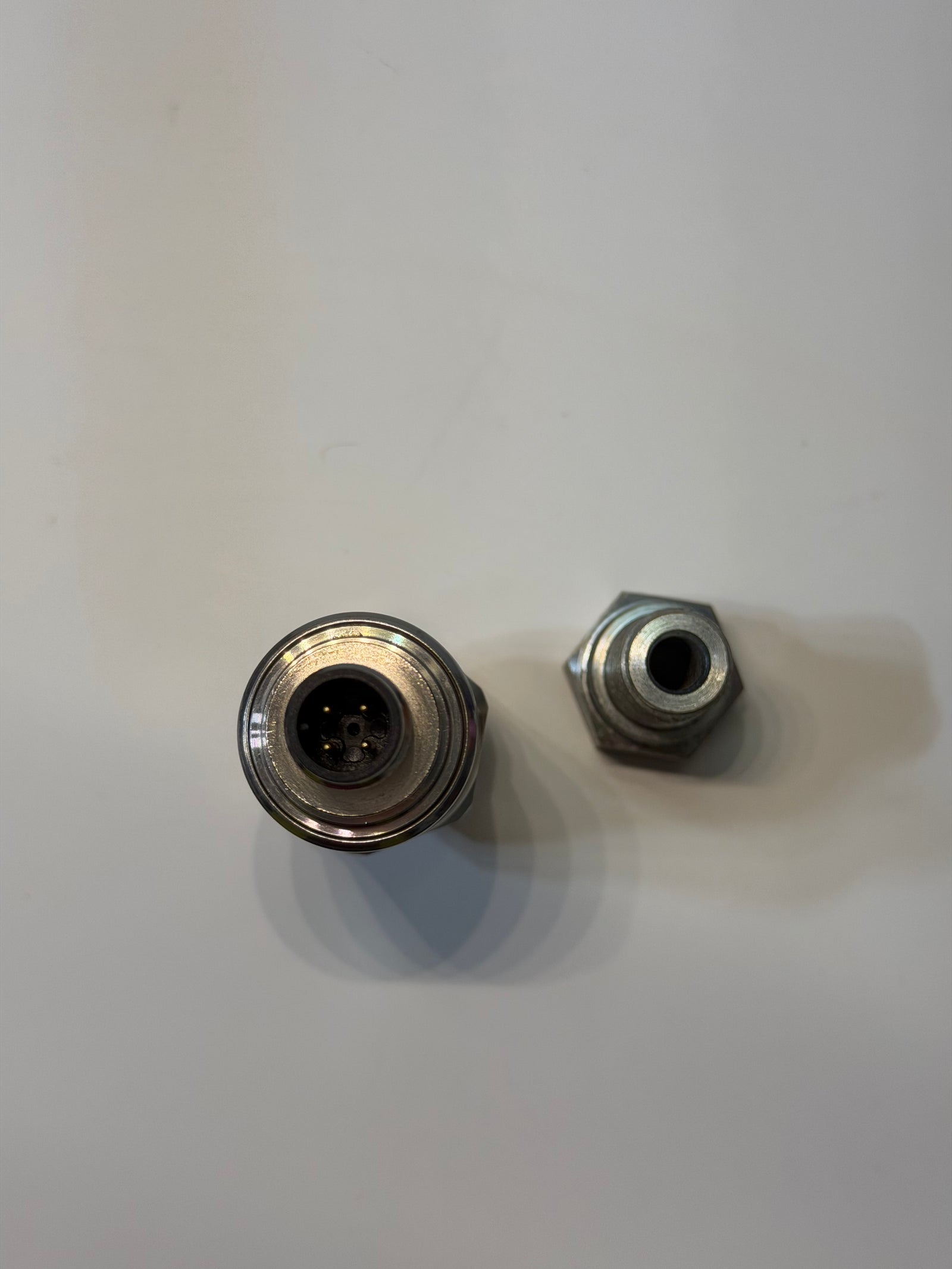

- Electrical Connection: M12, 4 Pin male
- Pin 1: Power Supply
- Pin 2: Signal
- Voltage Range: 8 – 30VDC
- Load resistance: (U-10)/0.02 (Ω)
- Insulation: >100M Ω@50V
- Output signal: 4 – 20mA
- Response Time: 10ms
- EMC: EMI:EN500811-1/2
- Accuracy: ±1% F.S
- Electrical Protection: IP65
- Weight: 95g
- Approval: CE, RoHS
- Operating Temperature: -40°C to 100°C
Technical details requiring confirmation: the source's 8–30VDC supply range and load-resistance formula (U-10)/0.02 (Ω) need to be checked together, especially below 10V. The EMC reference “EMI:EN500811-1/2” is reproduced as supplied and has not been corrected to a presumed standard. Confirm the applicable datasheet, approvals, complete pinout and wiring before connection. Maximum and rupture pressures are not normal operating ratings.
Existing tags also record PT5000; confirm the exact PT5000P variant, seal, condition and included items before purchase.
