Terasaki XM30PB53P TemBreak 1 MCCB – 3 Pole, 5 A
- SKU
- P-TE-N-8705
$160.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 4.0 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-TE-N-8705 |
| Weight | 4.0 kg |
Description

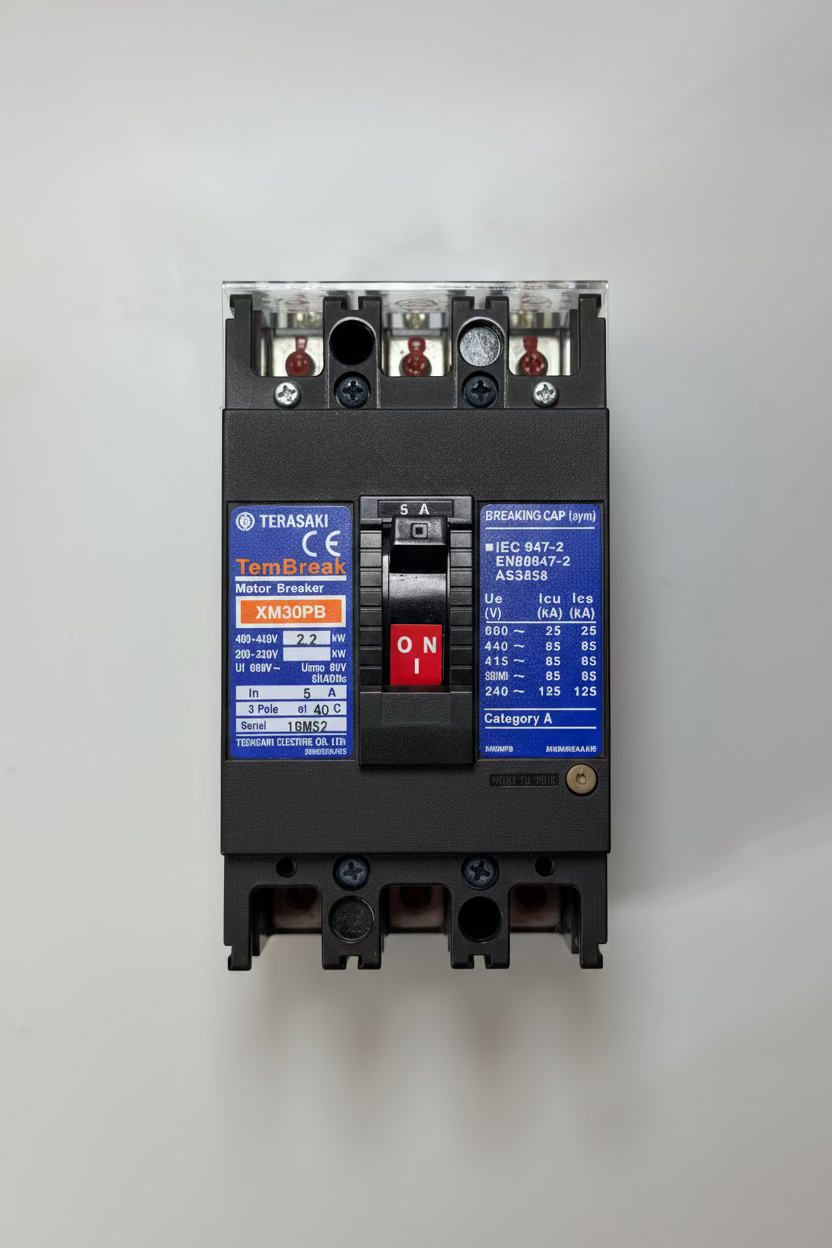

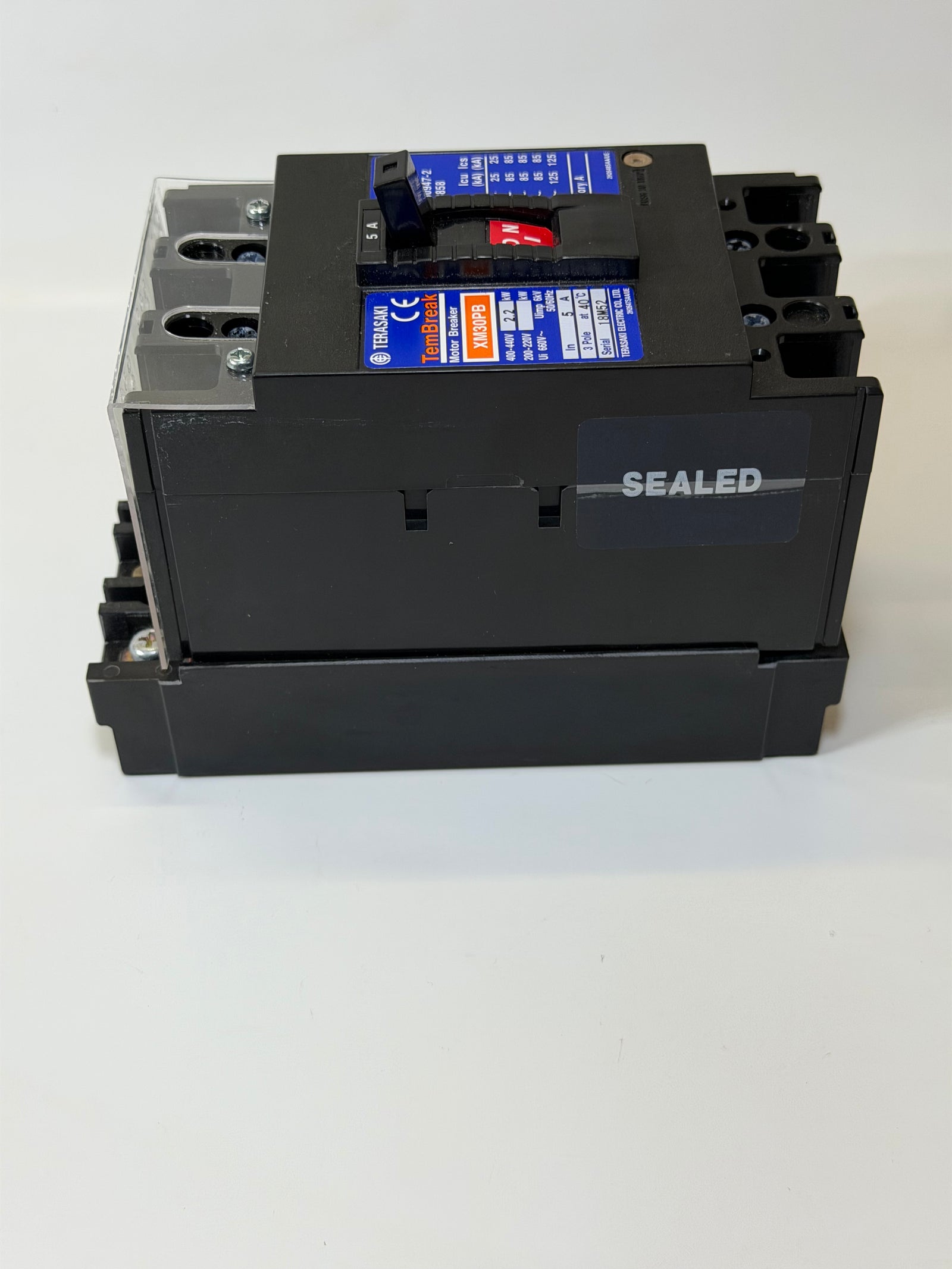

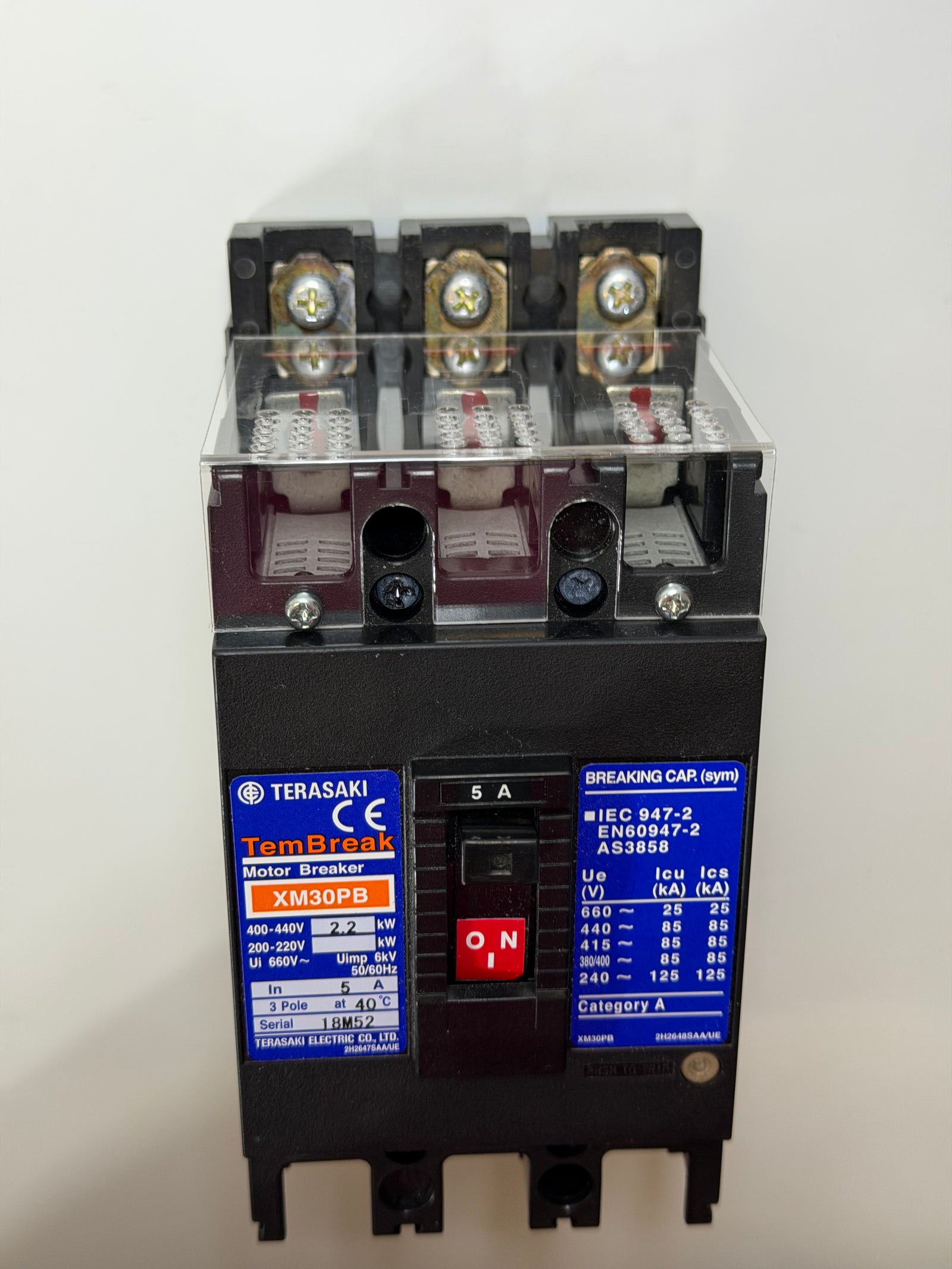

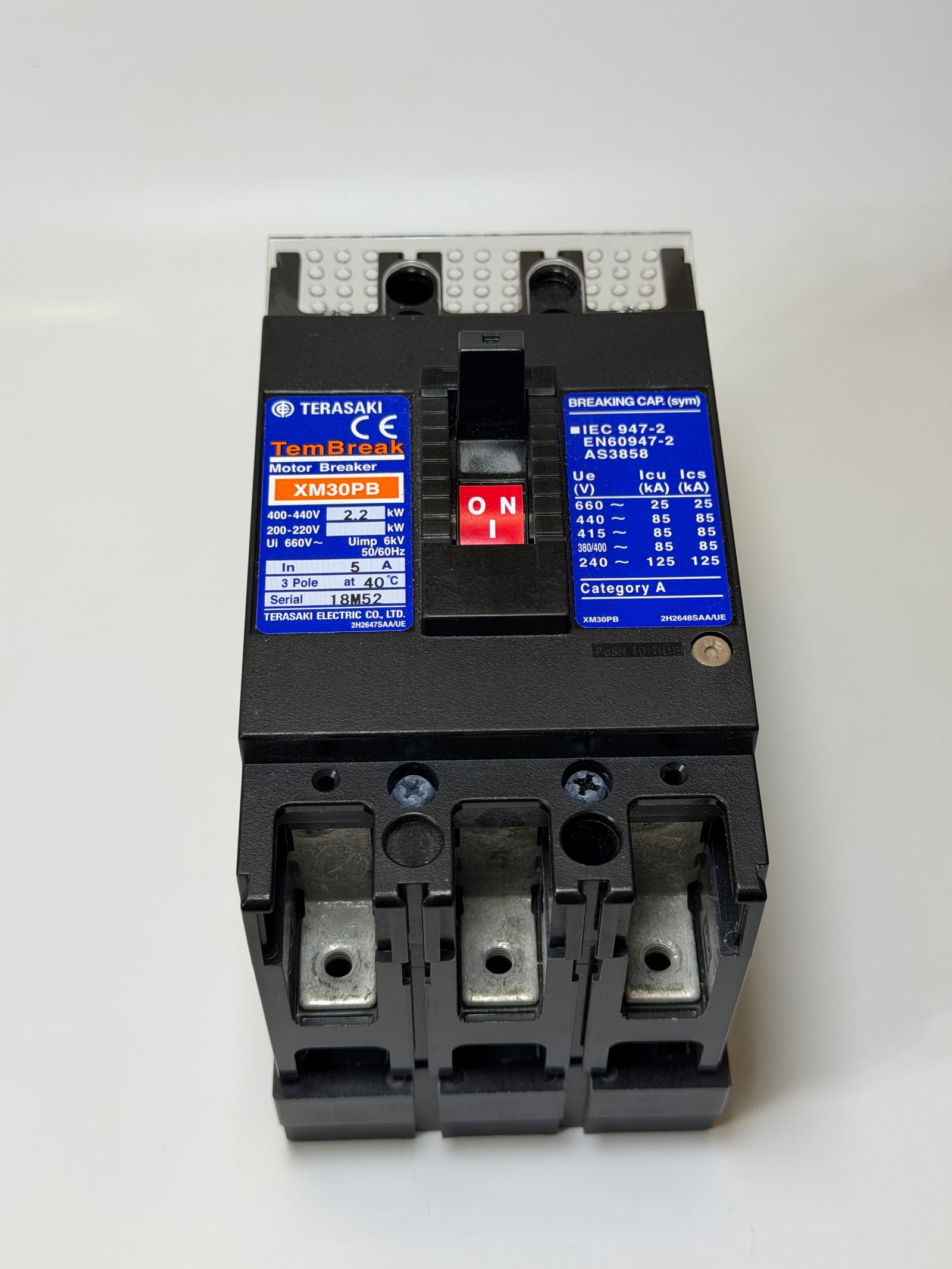

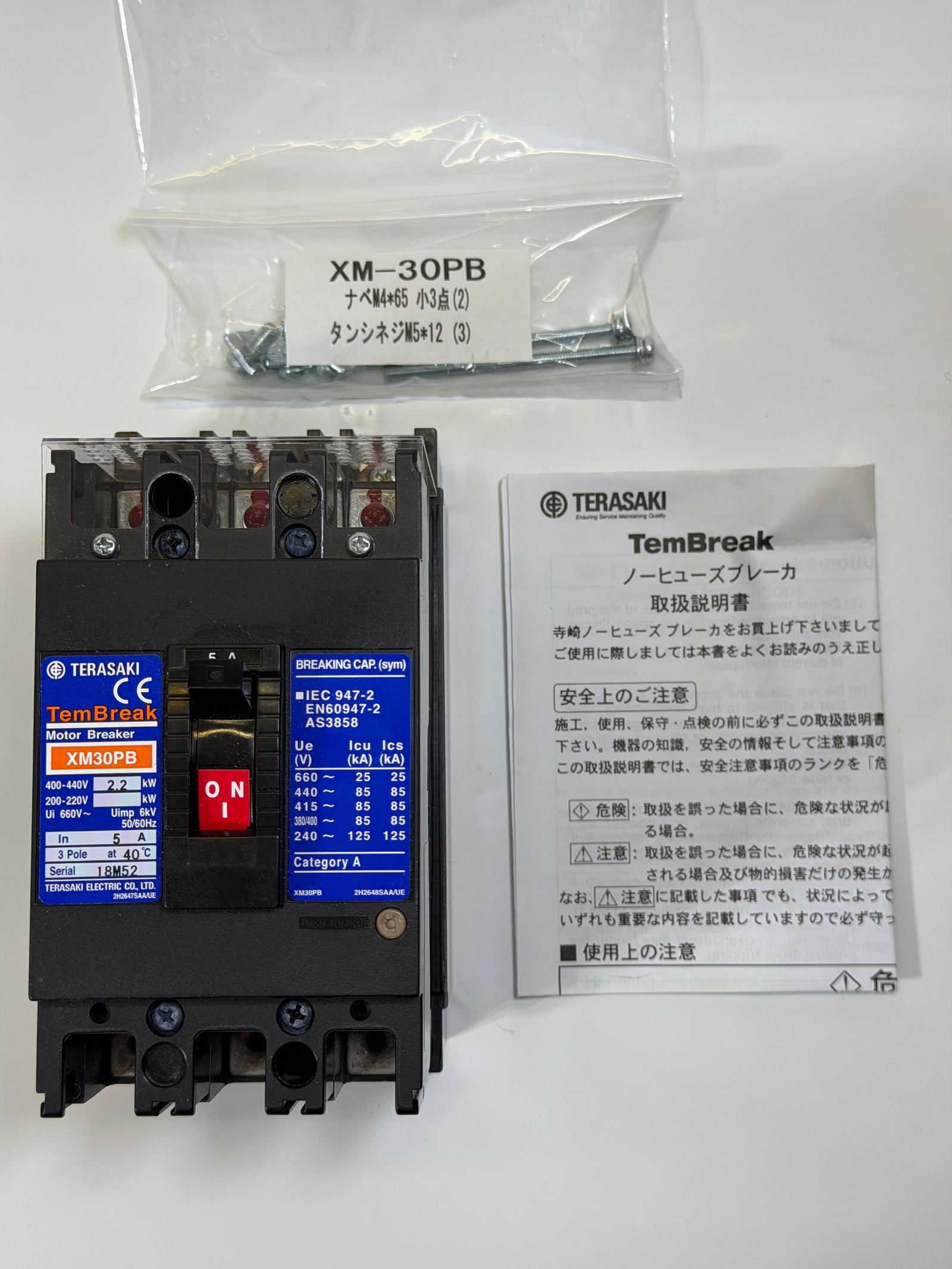

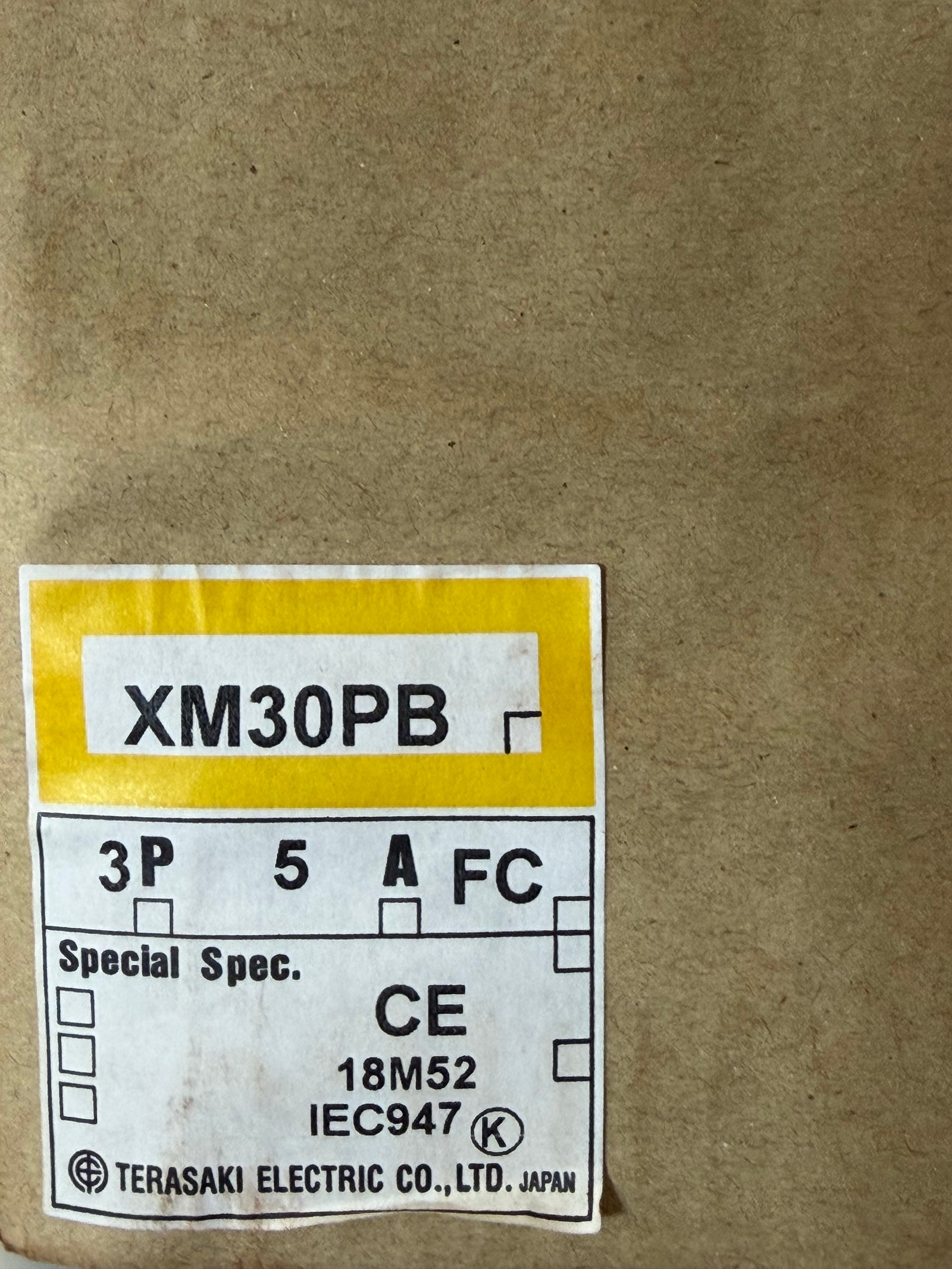

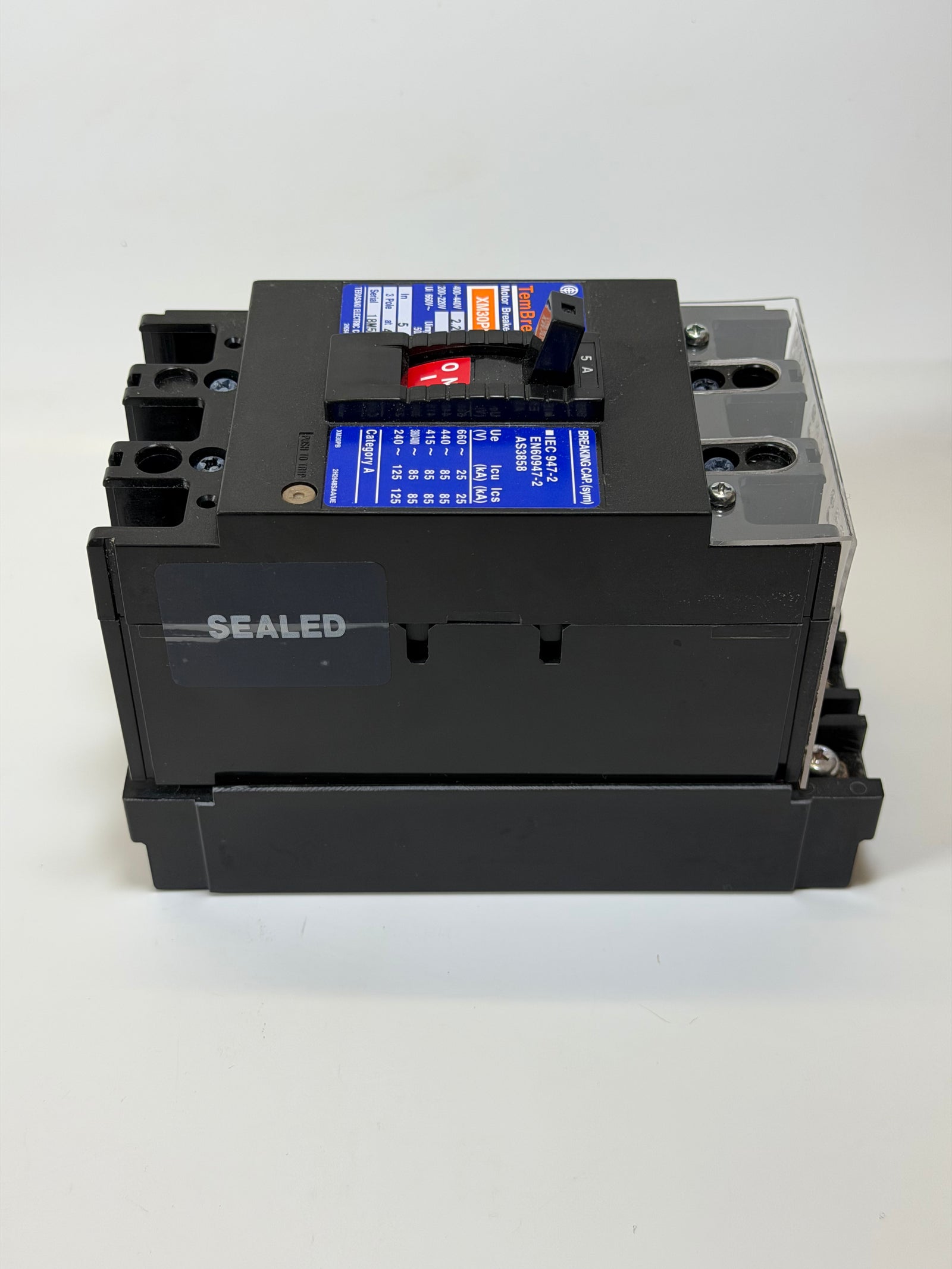

Terasaki XM30PB53P TemBreak 1 (TB1) moulded-case circuit breaker, XM30PB series, with NHP recorded as the vendor.

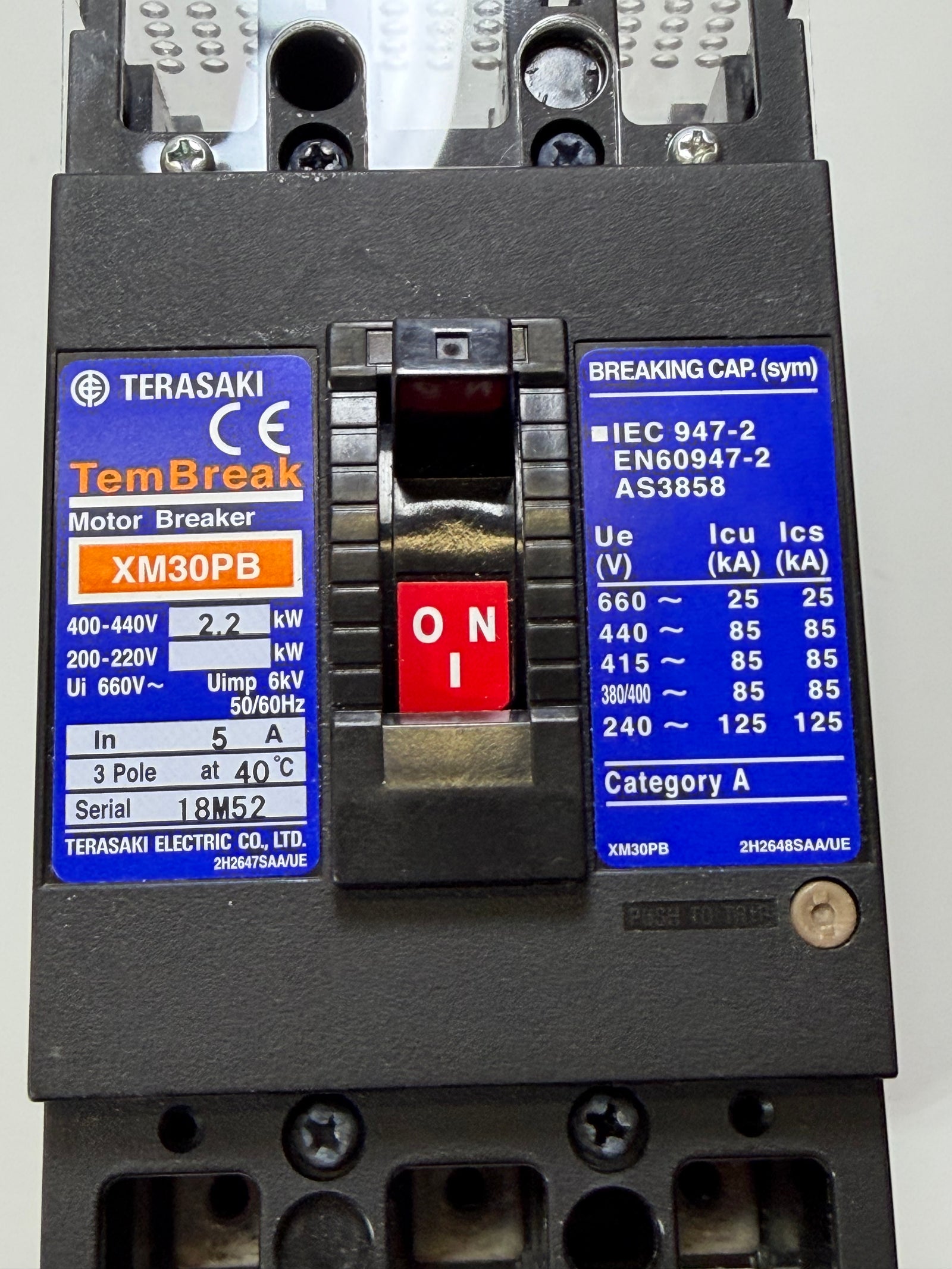

Recorded ratings
- Rated current In: 5 A; poles: 3.
- Frame size rating: 30 A, distinct from the 5 A operating-current rating.
- Maximum rated operating voltage Ue: 525 V AC.
- Ultimate short-circuit breaking capacity Icu: 85 kA at 415 V, 50 Hz.
- Service short-circuit breaking capacity Ics: 85 kA at 400 V, 50 Hz.
- Frequency: 50–60 Hz.
- Rated insulation voltage Ui: 690 V.
- Rated impulse withstand voltage Uimp: 8 kV.
- AC power loss per pole at In: 2.66 W.
- Electrical life at Un, In: 10,000 service cycles, as recorded.
Trip unit
Thermal/magnetic release with fixed thermal and fixed magnetic settings.
Confirm the supply, fault level and protection requirements before installation. The 85 kA figures apply to their stated voltage/frequency conditions, not automatically to the maximum 525 V operating voltage.
