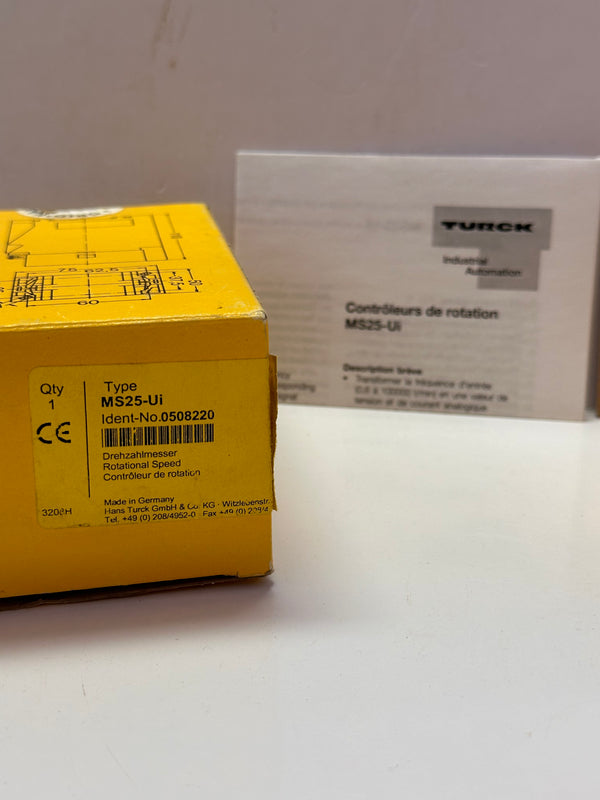

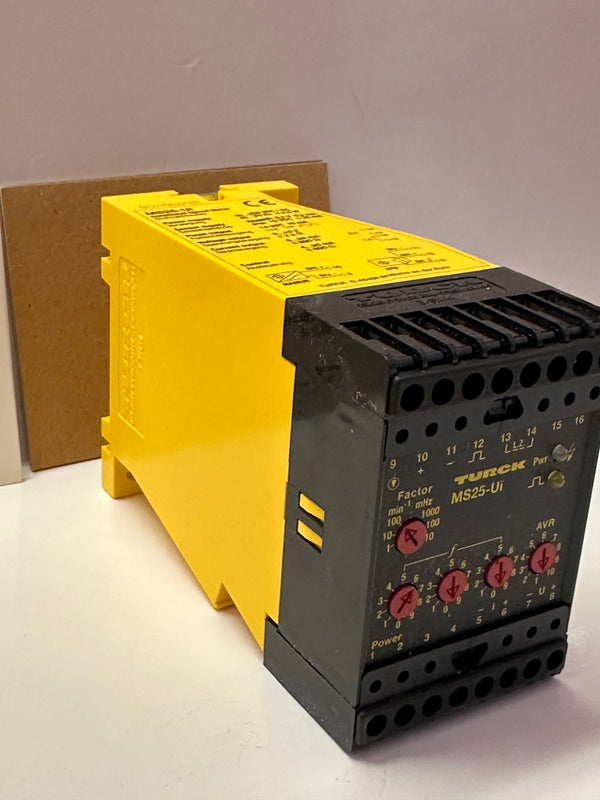

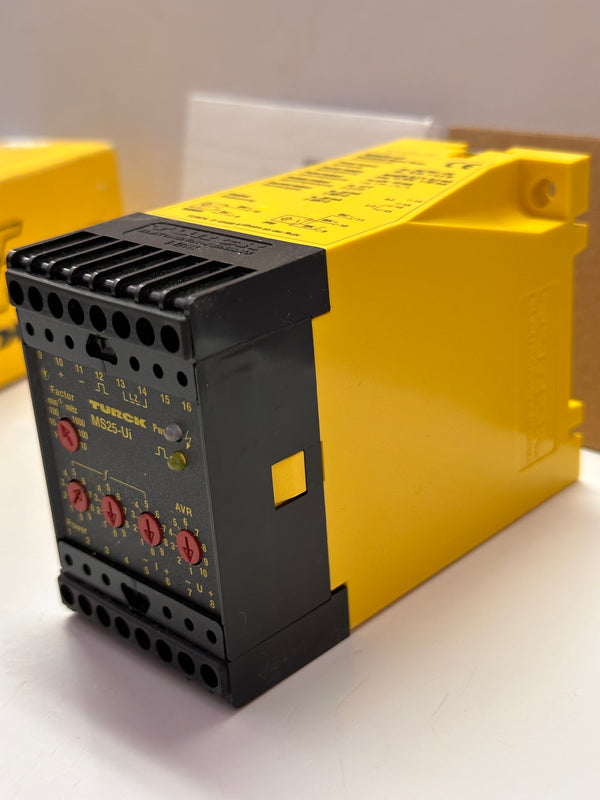

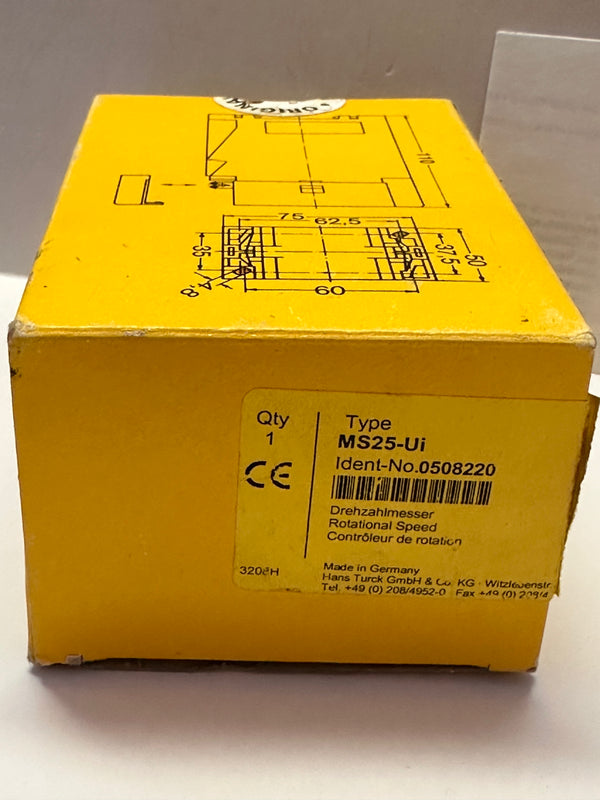

TURCK MS25Ui Rotation Speed Monitor NIB

Frequency to current/voltage conversion
Monitoring range: 10 mHz… 1 660 Hz (0.6…100 000^min-1)
Line monitored for wire-break/short-circuit

Removable terminal blocks
Excellent temperature stability
Pulse output
Floating averaging for signal steadying

Complete galvanic isolation
Input reverse-polarity protected

Frequency to current/voltage conversion
Monitoring range: 10 mHz… 1 660 Hz (0.6…100 000^min-1)
Line monitored for wire-break/short-circuit

Removable terminal blocks
Excellent temperature stability
Pulse output
Floating averaging for signal steadying

Complete galvanic isolation
Input reverse-polarity protected

Frequency to current/voltage conversion
Monitoring range: 10 mHz… 1 660 Hz (0.6…100 000^min-1)
Line monitored for wire-break/short-circuit

Removable terminal blocks
Excellent temperature stability
Pulse output
Floating averaging for signal steadying

Complete galvanic isolation
Input reverse-polarity protected

The MS25-UI is a digital to analog converter.
It converts the input frequency into an analog current or voltage output relative to the preset measuring range.
The device can accommodate NAMUR sensors, 3-wire PNP sensors or other voltage sources with pulse levels between 9 and 30 VDC.
The speed range, from 0.6-100,000 pulses/min or 0.01-1660 Hz, is adjusted digitally using four multi-position switches.
The voltage output supplies 0-10 V and the current output supplies 0/4-20 mA.
The current output may be programmed for 0-20 mA operation by linking terminals 13 and 14.
