WIKA 233.30.100 Liquid-Filled Pressure Gauge – 0–800 kPa, 100 mm
- SKU
- P-WI-W-8461
- Weight
- 3.0 kg
Specifications
| Manufacturer | WIKA |
|---|---|
| Product type | SENSORS & GAUGES |
| SKU | P-WI-W-8461 |
| Weight | 3.0 kg |
Description

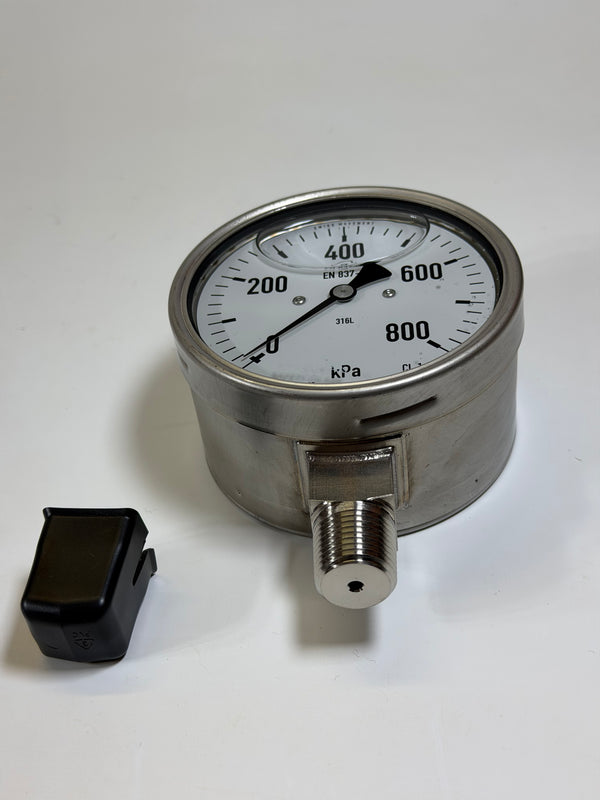

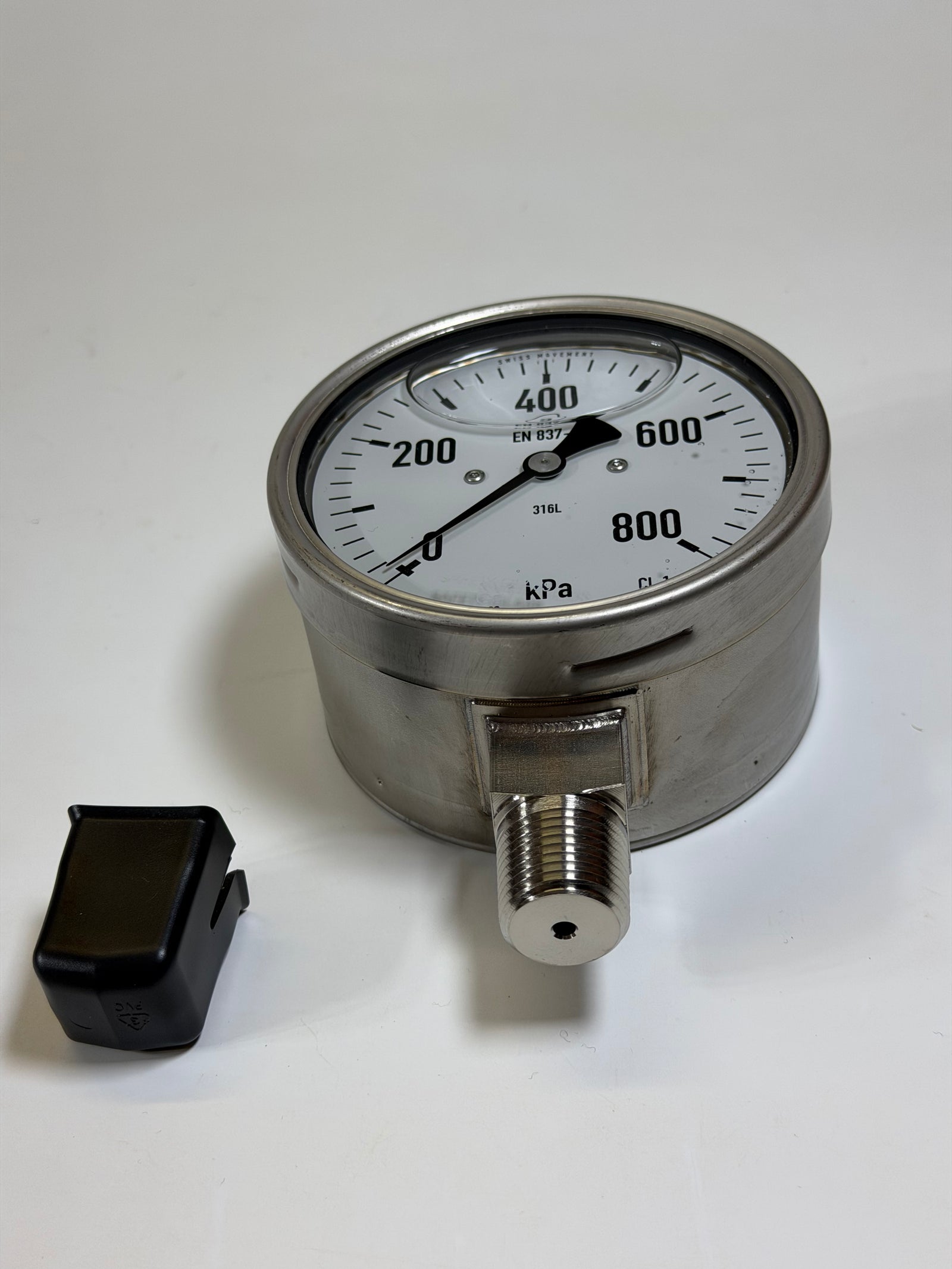

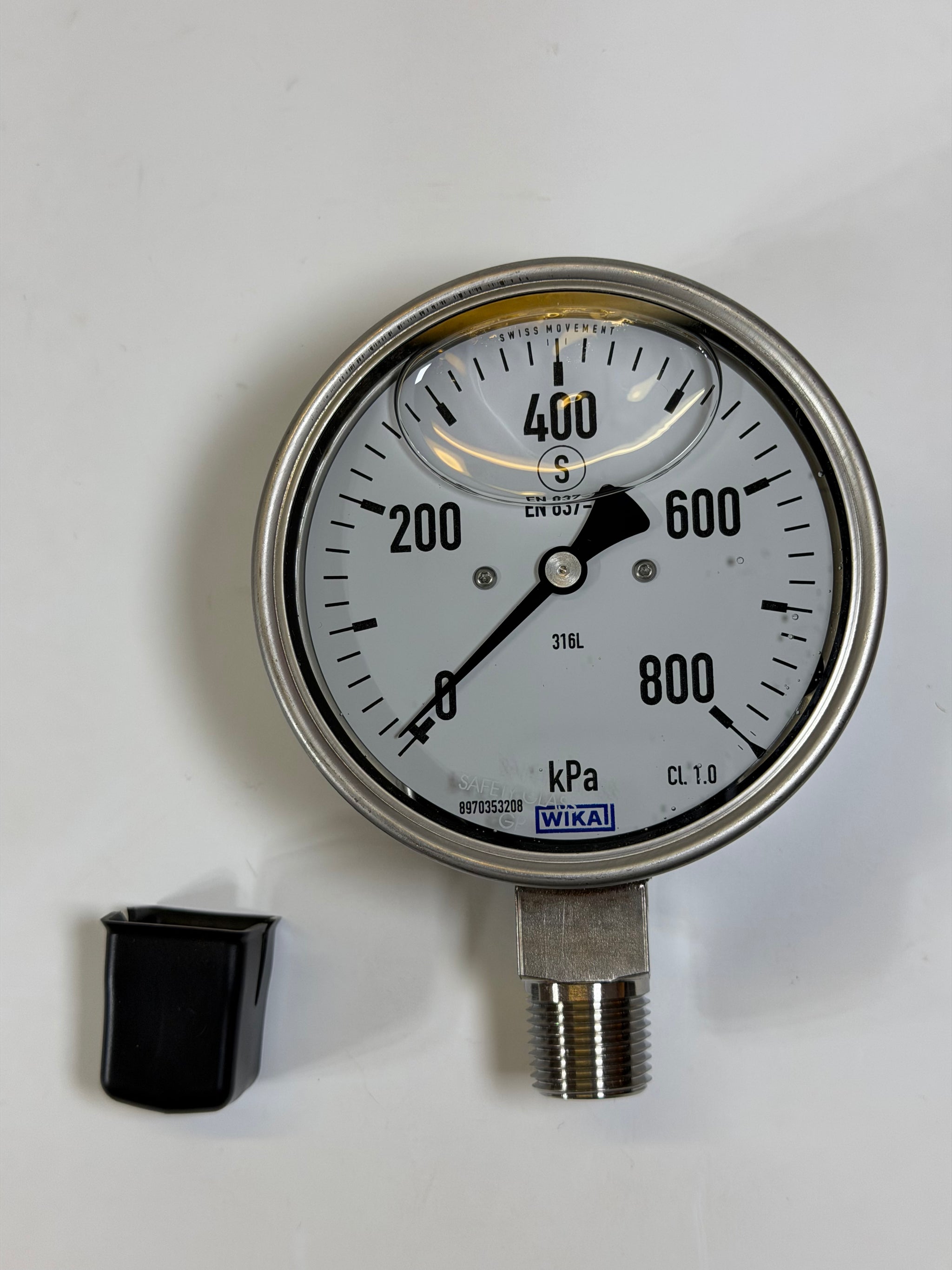

WIKA 233.30.100 liquid-filled Bourdon-tube pressure gauge with a listed 0–800 kPa gauge-pressure scale, 100 mm nominal size and lower-mount 1/2-inch NPT process connection.
Not suitable for oxygen service.
Specifications recorded in the source listing
- Bourdon Tube Pressure Gauges, Safety Pattern
- Series EN 837-1
- Model: 233.30
- Specifications according to data sheet: PM 02.04
- Measuring system: stainless steel
- Case filling: with
- Nominal size: 100 mm
- Measuring range: gauge pressure range
- Scale range: 0...800 kPa
- Process connection: 1/2 NPT
- Connector location: lower mount
- Window: laminated safety glass
- Pointer: standard pointer
- Accuracy class: class 1.0
- Overpressure safe: standard
- Case material: Stainless steel 316TI
- Case surface: bare
- Material pressure element: Measuring System 316L
- Case filling fluid: glycerine
- Ingress protection: IP 65
- Permissible medium temperature: + 100 °C
- Permissible ambient temperature: -20 … +60 °C
- Movement: stainless steel
- Packaging: single packing
- Pressure Gauge Standard: International (standard Europe)
- Manufacturer logo: *WIKA* with Serial number
- Permissible ambient temperature: -20 … +60 °C
- Not suitable for Oxygen Service
Source design notes and checks
The source describes a safety-pattern solid-front baffle design to EN 837-1 and ASME B40.100, load-cycle stability, shock resistance and case filling for dynamic pressure and vibration. It also mentions an EMICO gauge version to avoid fugitive emissions and a dial QR code linking to instrument-specific information. Confirm which features and documentation apply to this actual unit; these notes are not a stock-specific compliance or emissions certificate.

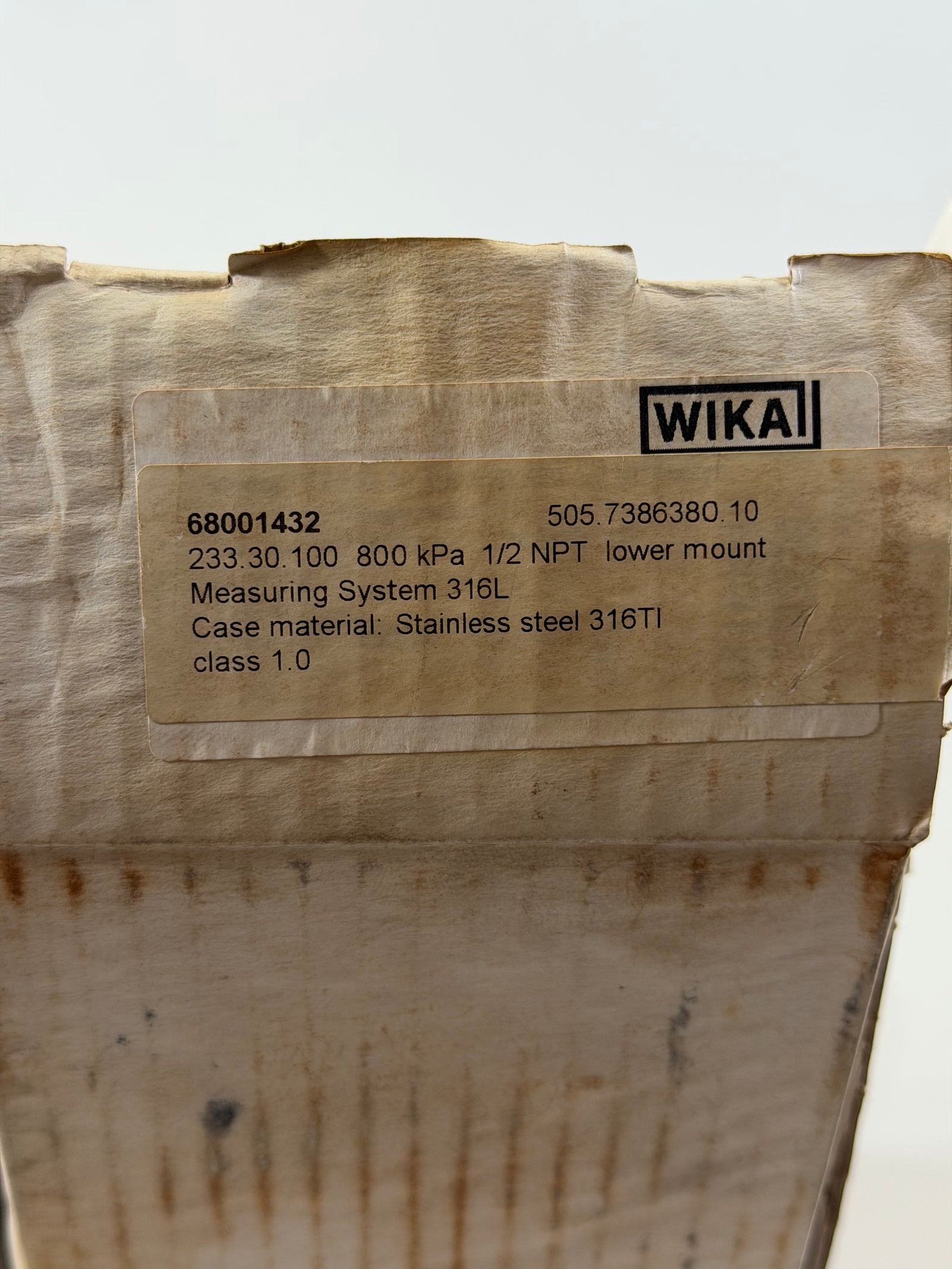

The original tag reference 505.7386380.10 is not explained in the description. Confirm it against the gauge label before relying on it as an order code. Check media compatibility, connection, operating pressure and temperature before installation. The listed “standard” overpressure safety does not specify a numeric overpressure limit.
