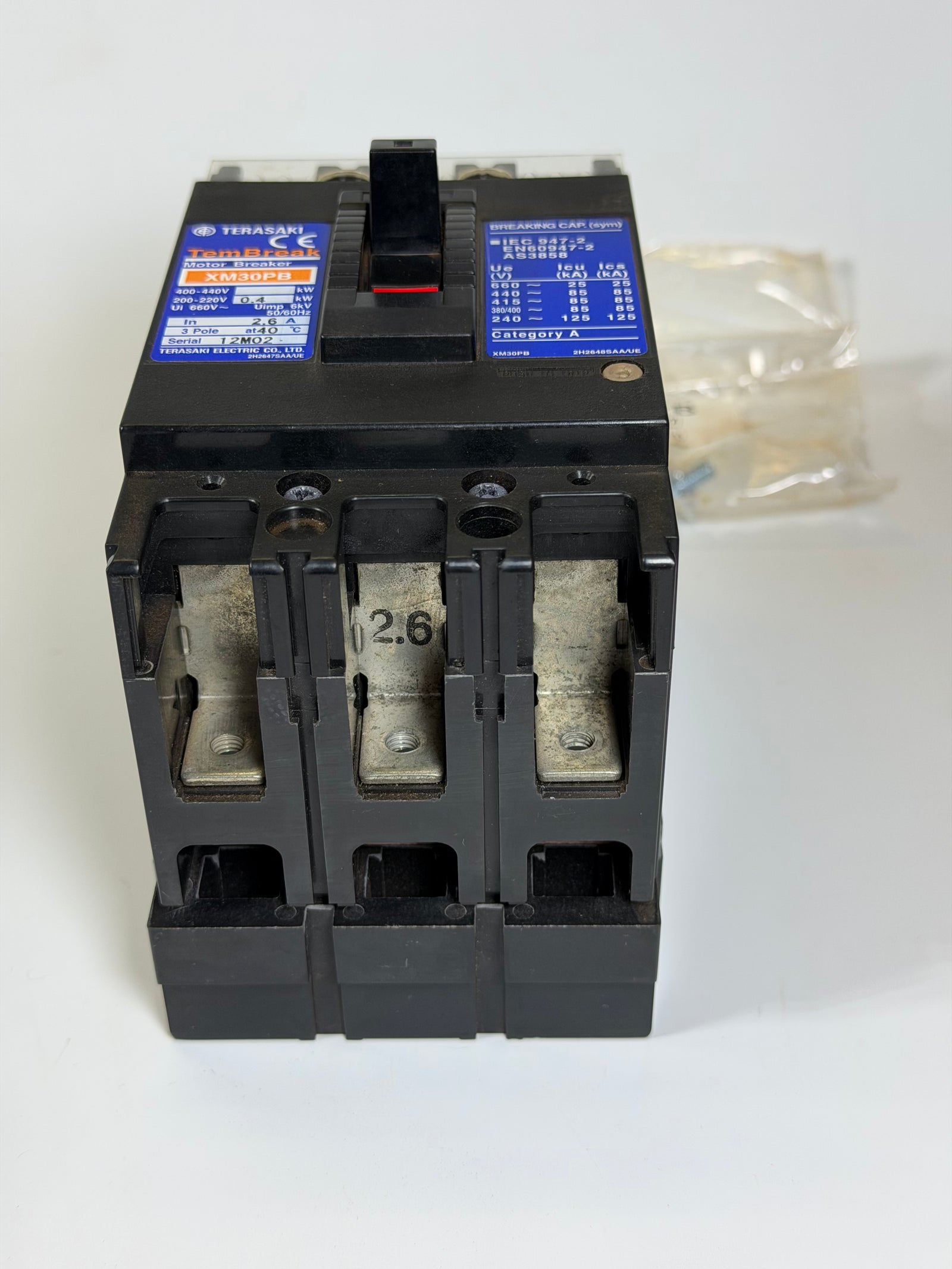

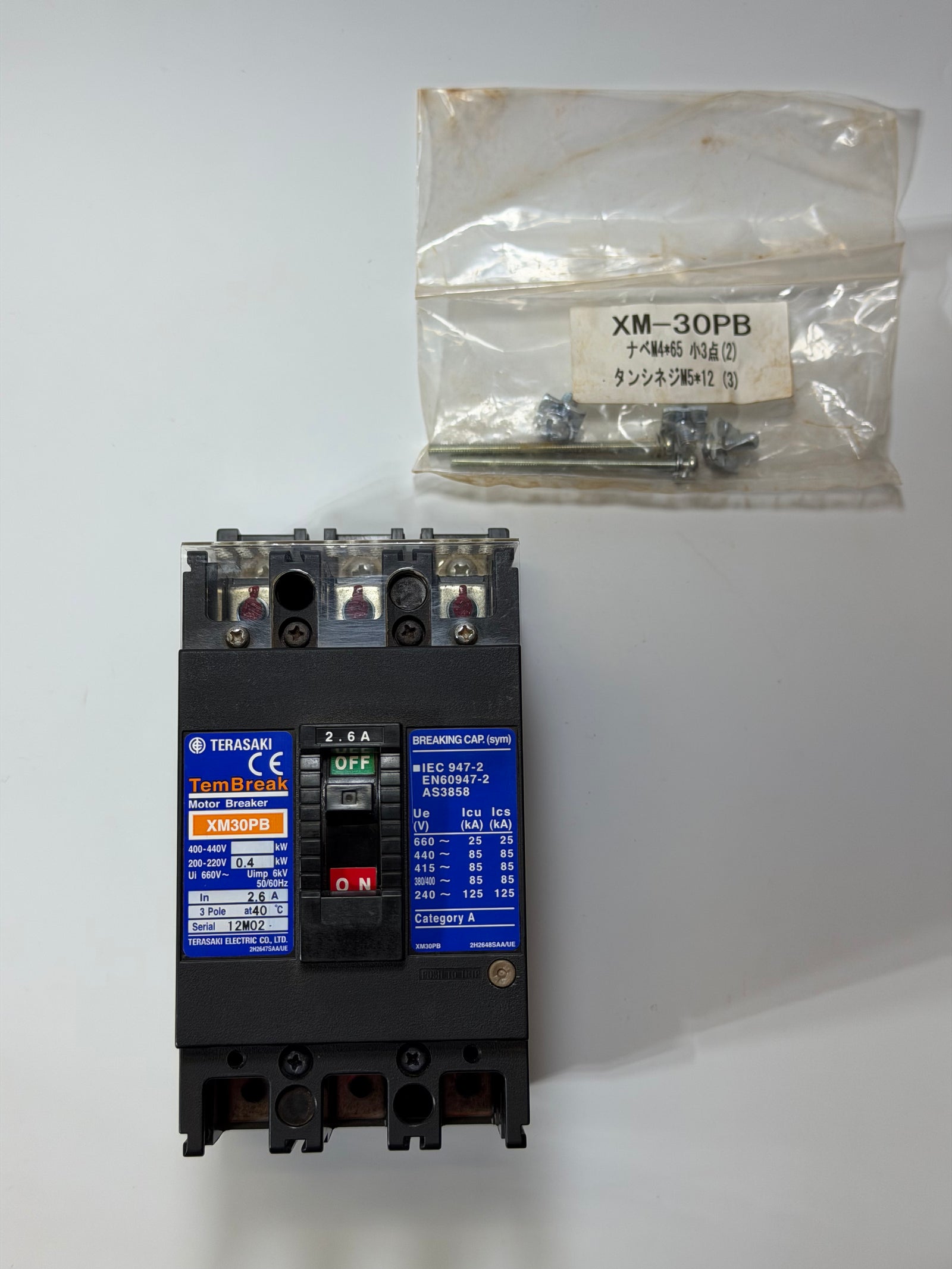

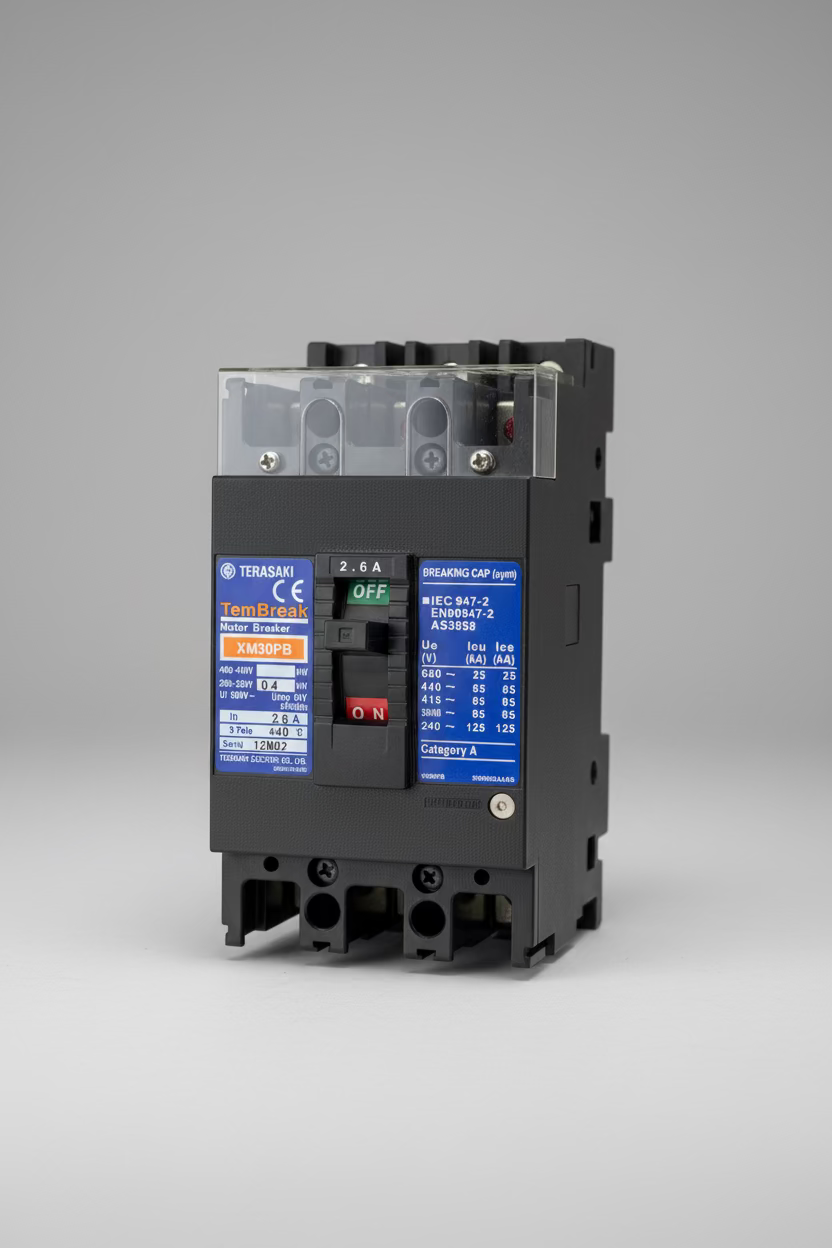

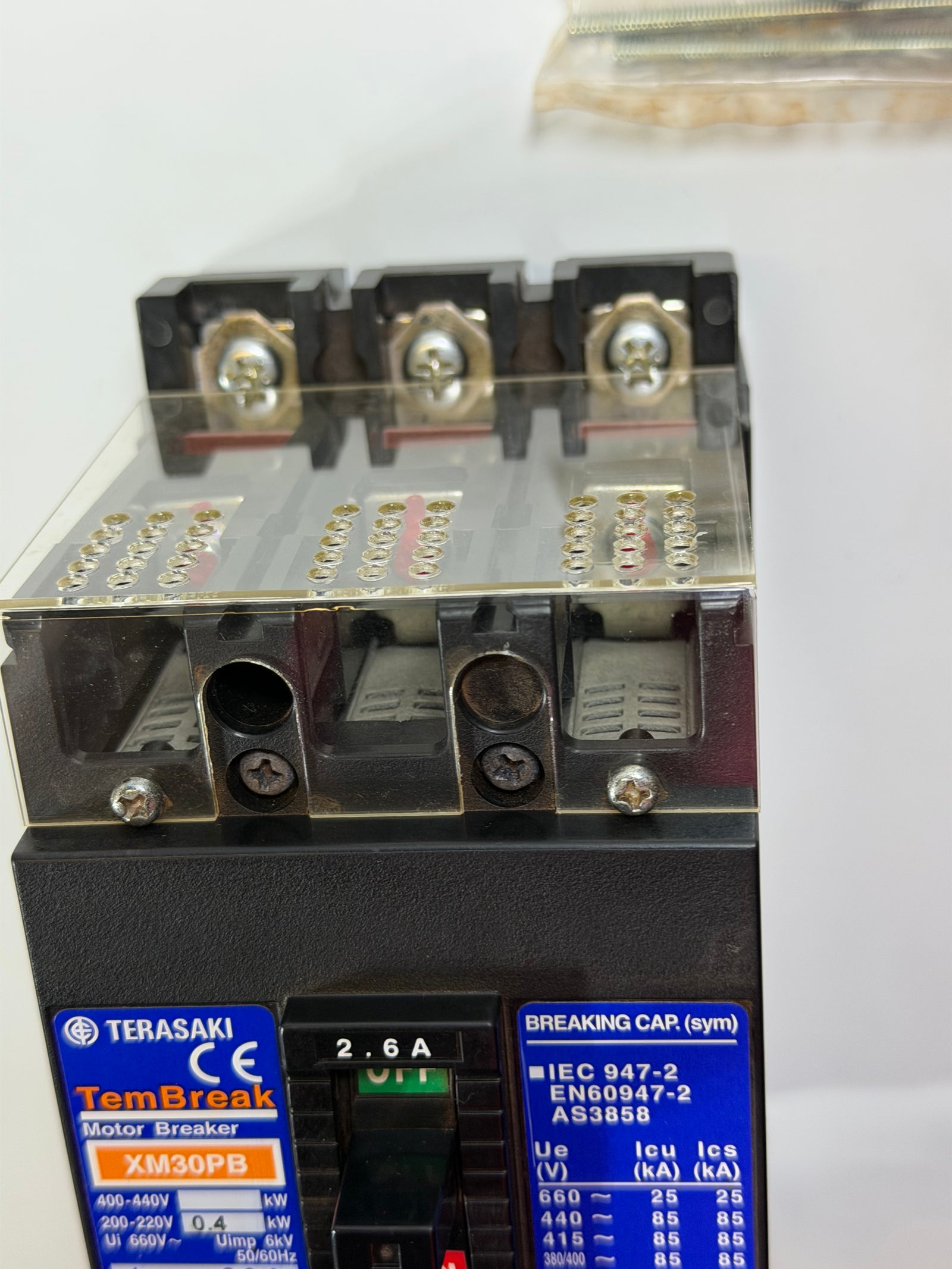

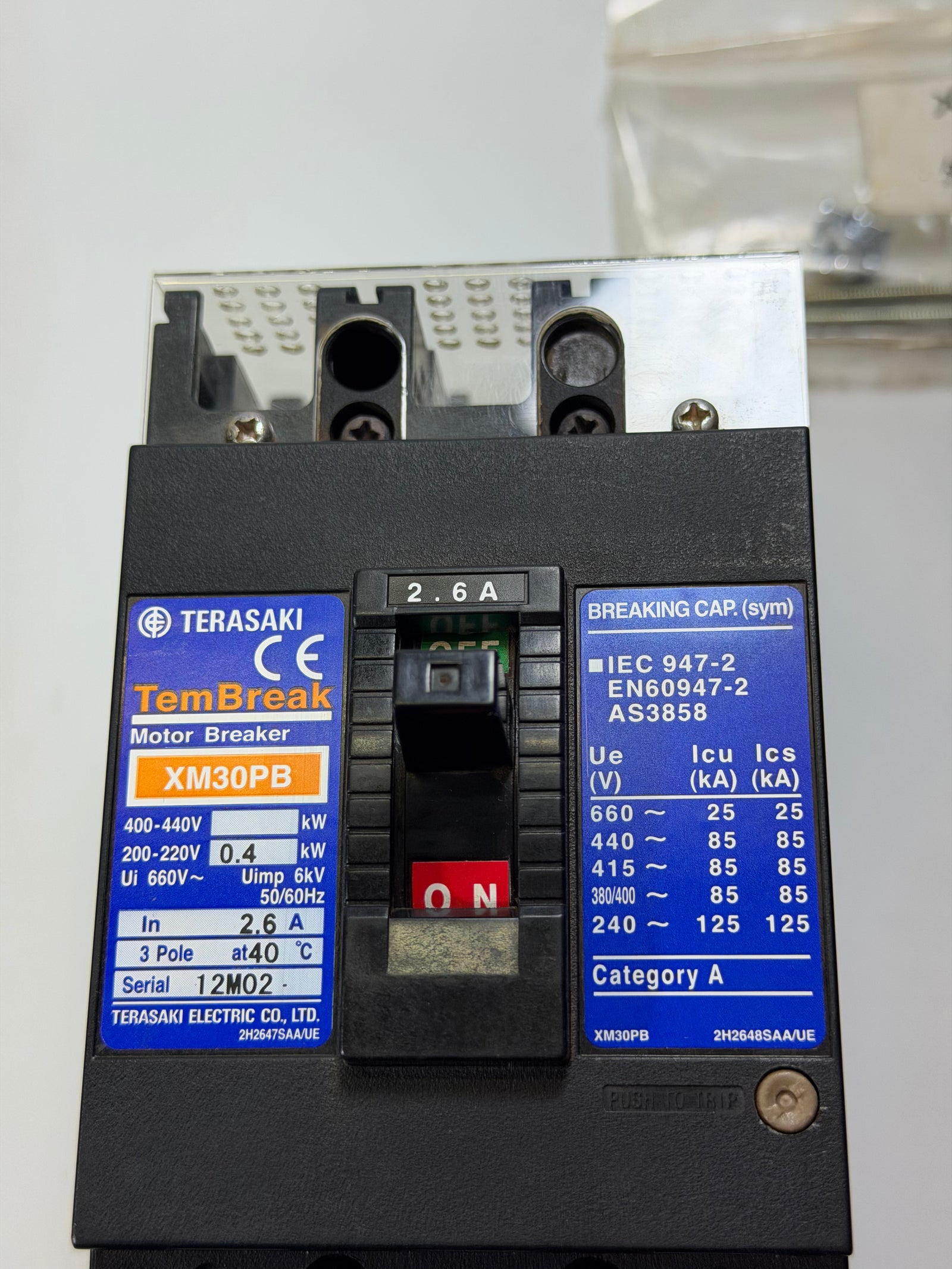

Terasaki TemBreak 1 XM30PB263P MCCB — 3-Pole, 2.6A
- SKU
- P-XM-N-8714
$160.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.5 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-XM-N-8714 |
| Weight | 3.5 kg |
Description
Terasaki TemBreak 1 XM30PB263P 3-pole, 2.6A moulded-case circuit breaker (MCCB). Vendor recorded as NHP; series reference XM30PB.
Recorded specifications
Component type (ETIM class): Power switching circuit breaker.
| Rated current In | 2.6 A |
|---|---|
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 525 V |
| Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz | 85 kA |
| Rated service short-circuit breaking capacity lcs at 400 V, 50 Hz | 85 kA |
| Type of protection trip unit | Thermal/magnetic release |
| Trip curve | Fixed thermal, fixed magnetic |
| Frame size rating | 30 A |
| Rated frequency | 50-60 Hz |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| AC power loss per pole at In | 2 W |
| Electrical life at Un, In (service cycles) | 10000 cycles |
The 30 A figure is the frame size, not the 2.6 A rated current. Breaking capacities apply at the separately stated test voltages/frequencies. Insulation and impulse-withstand values are not operating supply voltages, and the electrical-life specification is not a statement of remaining life. Confirm the exact breaker and application requirements before installation by a qualified person.
